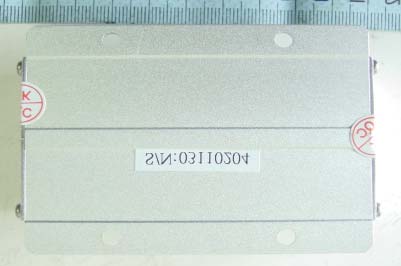

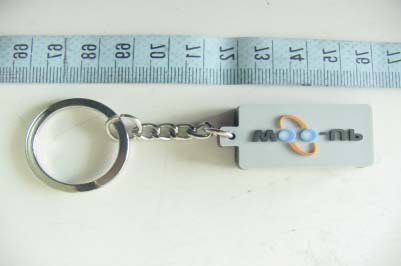

ETC Report No. : ET92R-11-126-01 FCC ID.: RNZIDC101 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Front View of EUT Rear View of EUT ETC Report No. : ET92R-11-126-01 FCC ID.: RNZIDC101 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Side View of EUT Side View of EUT ETC Report No. : ET92R-11-126-01 FCC ID.: RNZIDC101 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Front View of Badge Rear View of Badge

ETC Report No. : ET92R-11-126-01 FCC ID.: RNZIDC101 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Component View of Main PCB Solder View of Main PCB ETC Report No. : ET92R-11-126-01 FCC ID.: RNZIDC101 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Internal View of Badge

RFID CODE LOCK Product Specifications Model: IDC-101 FCC ID: RNZIDC101 Rated Frequency: 134.2kHz Tag Responding Frequency: 123.2kHz Tag Reading Distance: < 7 mm Tag Reading Method: Non-contact Consumption Current: 90mA Operating Voltage: 12Vdc Operating Humidity: 5% ~ 95% Operating Temperature: 0 ~ 50 degree C

Rev. No 2.0 FCC Part 15 EMI TEST REPORT of E.U.T. : RFID CODE LOCK MODEL : IDC-101 FCC ID. : RNZIDC101 for APPLICANT : WOO-UP DIGITAL TECHNOLOGY CO., LTD. ADDRESS : 16Fl., No. 104, Sec. 1, Shintai 5 th Rd., Shijr City, Taipei Hsien, Taiwan 221, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG TAIPEI HSIEN, TAIWAN, R.O.C. Tel:(02)26023052, Fax:(02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : ET92R-11-126-01 ETC Report No. : ET92R-11-126-01 Sheet 1 of 22 Sheets FCC ID.: RNZIDC101 Rev. No 2.0 TEST REPORT CERTIFICATION Applicant : WOO-UP DIGITAL TECHNOLOGY CO., LTD. 16Fl., No. 104, Sec. 1, Shintai 5th Rd., Shijr City, Taipei Hsien, Taiwan 221, R.O.C. Manufacturer : WOO-UP DIGITAL TECHNOLOGY CO., LTD. 16Fl., No. 104, Sec. 1, Shintai 5th Rd., Shijr City, Taipei Hsien, Taiwan 221, R.O.C. Description of EUT : a) Type of EUT : RFID CODE LOCK b) Trade Name : ---- c) Model No. : IDC-101 d) FCC ID : RNZIDC101 e) Power Supply : DC 12V f) Working Frequency : 0.1354 MHz Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2002) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date : Dec. 31, 2003 Test Engineer : ( Mic. Chen ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET92R-11-126-01 Sheet 2 of 22 Sheets FCC ID.: RNZIDC101 Rev. No 2.0 Table of Contents Page 1 GENERAL INFORMATION ...................................................................................................... 3 1.1 Product Description...................................................................................................................... 3 1.2 Characteristics of Device ............................................................................................................. 3 1.3 Test Methodology ........................................................................................................................ 3 1.4 Test Facility.................................................................................................................................. 3 2 PROVISIONS APPLICABLE ..................................................................................................... 4 2.1 Definition ..................................................................................................................................... 4 2.2 Requirement for Compliance ....................................................................................................... 5 2.3 Restricted Bands of Operation ..................................................................................................... 6 2.4 Labeling Requirement .................................................................................................................. 6 2.5 User Information .......................................................................................................................... 7 3. SYSTEM TEST CONFIGURATION ......................................................................................... 8 3.1 Justification .................................................................................................................................. 8 3.2 Devices for Tested System........................................................................................................... 8 4 RADIATED EMISSION MEASUREMENT.............................................................................. 9 4.1 Applicable Standard ..................................................................................................................... 9 4.2 Measurement Procedure............................................................................................................... 9 4.3 Measuring Instrument ................................................................................................................ 11 4.4 Radiated Emission Data ............................................................................................................. 12 4.4.1 RF Portion ......................................................................................................................................... 12 4.4.2 Other Emission.................................................................................................................................. 13 4.5 Field Strength Calculation ......................................................................................................... 13 4.6 Photos of Radiation Measuring Setup........................................................................................ 14 5 CONDUCTED EMISSION MEASUREMENT ....................................................................... 15 5.1 Standard Applicable ................................................................................................................... 15 5.2 Measurement Procedure............................................................................................................. 15 5.3 Conducted Emission Data .......................................................................................................... 16 5.4 Result Data Calculation ............................................................................................................. 17 5.5 Conducted Measurement Equipment ......................................................................................... 17 5.6 Photos of Conduction Measuring Setup..................................................................................... 18 6 ANTENNA RE…
