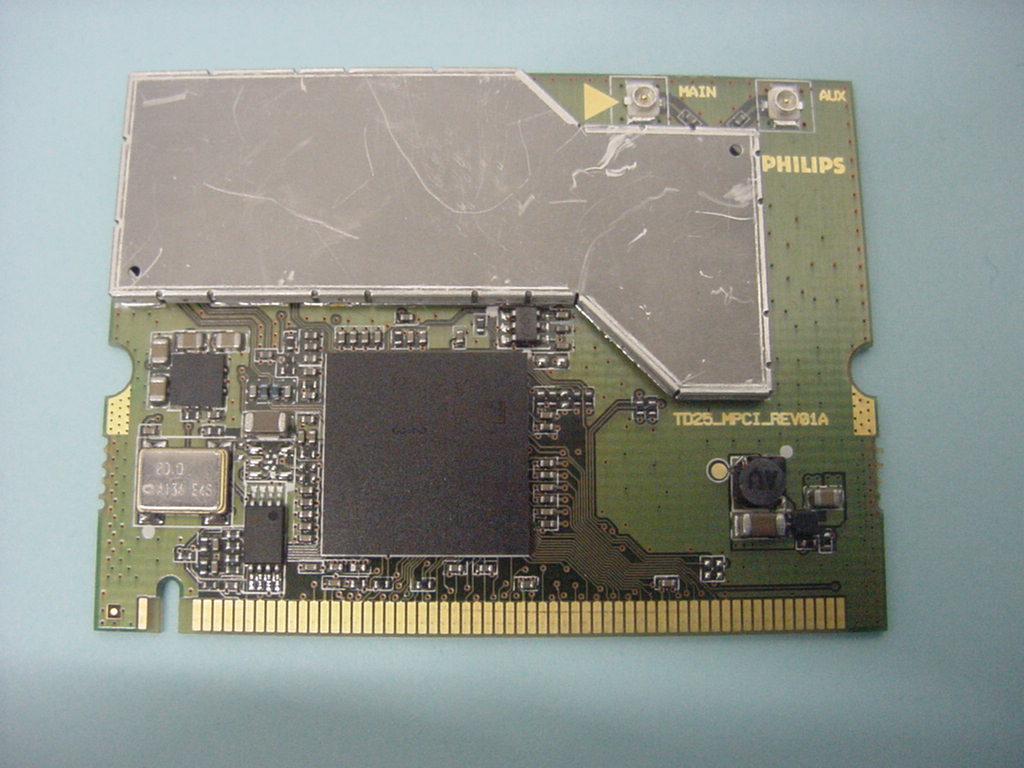

RPD-SA5252MPCI-012.4 GHz / 5 GHz IEEE 802.11a/b/g WLAN MiniPCI card

IEEE 802.11 a/b/g Wireless LAN Adapter Reference Design User Manual PHILIPS 2004 Dec 142 Philips SemiconductorsUser manual 802.11 a/b/g wireless LAN adapter reference design √ Koninklijke Philips Electronics N.V. 2004 All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license under patent- or other industrial or intellectual property rights. 2004 Dec 143 Philips SemiconductorsUser Manual 802.11 /a/b/g wireless adapter CONTENTS 1PCI/MINIPCI/CARDBUSADAPTER 2SYSTEM REQUIREMENTS 2.1Hardware 2.2Software 3INSTALLING THE MINIPCI CARD 4SOFTWARE INSTALLATION FOR WINDOWS 2000 4.1Upgrade from an earlier Version of the Driver 4.2Driver Installation for Windows 2000 4.3Basic TCP/IP Configuration of the Network Device 4.4Driver De-Installation for Windows 2000 5SOFTWARE INSTALLATION FOR WINDOWS XP 5.1Upgrade from an earlier Version of the Driver 5.2Driver Installation for Windows XP 5.3Basic TCP/IP Configuration of the Network Device 5.4Driver De-Installation for Windows XP 6CONFIGURATION TOOL FOR WINDOWS (2000 OR XP) 6.1Philips 802.11a/g two-chip solution WLAN - Dialog Box 6.2Change Profile - Dialog Box 2004 Dec 144 Philips SemiconductorsUser Manual 802.11 /a/b/g wireless adapter 1PCI/MINIPCI/CARDBUSADAPTER The Philips 802.11a/g two-chip solution are designed to support Wireless LAN (WLAN) solutions in the 2.4 GHz and 5 GHz frequency bands. The combined Single Chip 802.11a/g Radio and Single Chip 802.11a/g Baseband makes for a solution that affords transparent connectivity, facilitating seamless roaming for the mobile user. Philips 802.11a/g two-chip solution enables WLAN communications at up to 54 Mbps according IEEE 802.11a and IEEE 802.11g , in addition to providing backward compatibility to an installed base of IEEE 802.11b-compliant systems. 2SYSTEM REQUIREMENTS 2.1Hardware Intel based Windows or Linux PC platform with one free PCI/MiniPCI/Cardbus slot connector. 2.2Software The wireless adapter is designed for the Window Operating System Windows2000 and Windows XP adapter. 3INSTALLING THE MINIPCI CARD 1.Switch off the computer 2.Plug the mPCI card into your systems mPCI slot. If a mPCI to PCI adapter is used plug the card into the adapter before plugging the adaptor into the PCI slot 3.Plug the two antennas into the mPCI cards antenna connectors 4.Turn on the PC 4SOFTWARE INSTALLATION FOR WINDOWS 2000 4.1Upgrade from an earlier Version of the Driver Note: You can skip this Section and proceed with Section 4.2 “Driver Installation for Windows 2000” if this is the first time you are installing the driver for Windows 2000. 1.To upgrade from earlier versions of the driver you first have to de-install the existing driver. Please follow the instructions in Section 4.4 “Driver De-Installation for Windows 2000”. 2.Install the new driver by following the instructions in Section 4.2 “Driver Installation for Windows 2000”. 4.2Driver Installation for Windows 2000 1.After plug-in the PCI/MiniPCI/CardBus Card Windows will automatically detect the PCI/MiniPCI/CardBus Card (follow the instructions in Section 3 “Hardware Installation”) and start the F OUND NEW HARDWARE WIZARD. 2.If Windows does not automatically detect the newly installed PCI/MiniPCI/CardBus Card, please do the following: a) On the Windows task bar click S TART button. b) Select SETTINGS and then select CONTROL PANEL. c) On CONTROL PANEL window, double click on the SYSTEM icon to view the SYSTEM PROPERTIES. d) Click on H ARDWARE tab. e) Click on D EVICE MANAGER. f)Right-mouse click on N ETWORK ADAPTERS and select SCAN FOR HARDWARE CHANGES. 2004 Dec 145 Philips SemiconductorsUser Manual 802.11 /a/b/g wireless adapter g) A window FOUND NEW HARDWARE WIZARD pops up. Follow the instructions below. 3.At F OUND NEW HARDWARE WIZARD and INSTALL HARDWARE DEVICE DRIVERS select SEARCH FOR A SUITABLE DRIVER FOR MY DEVICE [RECOMMENDED] and click NEXT. 2004 Dec 146 Philips SemiconductorsUser Manual 802.11 /a/b/g wireless adapter 4.At FOUND NEW HARDWARE WIZARD and LOCATE DRIVER FILES select FLOPPY/CD ROM or SPECIFY A LOCATION of driver files and click NEXT. 5.Navigate to the physical location of the driver’s INF file and click OPEN. Typically, the drivers are located in /WindowsDisks directory of the delivered software package with the default driver in the /WindowsDisks/ReleaseAll/ directory. 2004 Dec 147 Philips SemiconductorsUser Manual 802.11 /a/b/g wireless adapter 6.Click NEXT to start the installation process. 7.At DIGITAL SIGNATURE NOT FOUND dialog box click YES to proceed with installation process. 2004 Dec 148 Philips SemiconductorsUser Manual 802.11 /a/b/g wireless adapter 8.Click FINISH to end the installation. 9.To verify if the installation of the driver was completed successfully make sure Multistandard WLAN PCI device is registered and clean (no exclamation mark) under NETWORK ADAPTERS in DEVICE MANAGER window. See Instructions 2.a - 2.e how to open the DEVICE MANAGER. 2004 Dec 149 Philips SemiconductorsUser Manual 802.11 /a/b/g wireless adapter 4.3Basic TCP/IP Configuration of the Network Device Please follow the procedure below to configure the TCP/IP settings: 1.On the Windows task bar click the START button. 2.Select SETTINGS and then select CONTROL PANEL. 3.Double click on NETWORK AND DIAL-UP CONNECTIONS icon. 4.Right-mouse click on Multistandard WLAN PCI device LOCAL AREA CONNECTION icon and select PROPERTIES. 5.Double click on INTERNET PROTOCOL (TCP/IP). 6.Select USE THE FOLLOWING IP ADDRESS button. 7.Enter the IP A DDRESS (e.g. 10.0.0.1). 8.Enter the SUBNET MASK (e.g. 255.255.255.0) and click OK button. 9.Configure the driver with the configuration Tool for MS-Windows …

Text truncated - open the document above for the full version.

Philips Semiconductors Dresden AG Philips SA5252/SA5251 based IEEE802.11abg dual band 2.4 / 5 GHz miniPCI card reference design FCC-ID: RPD-SA5252MPCI-01 Attestation regarding modular approval requirements Item Requirement EUT 1 EUT must have own shielding Metal shielding covers RF section of the module. Please refer to external photos 2 EUT must have buffered modulation/data inputs All inputs of the module are buffered by logic or microprocessor inputs 3 EUT must have own power supply regulation Module has own on-board regulators. Please refer to schematic drawings 4 EUT must meet antenna requirements as of section 15.203 Module is equipped with unique (Hirose u.FL) connectors. Please refer to external photos 5 EUT must be tested in stand-alone environment Module was tested to comply with that requirement. Please see test setup photos 6 EUR must be labelled with own FCC-ID Module will be labelled with FCC-ID labels. See attached documents with label drawings 7 EUT behaviour cannot be influenced by the end user The modular transmitter is manufactured so that the end- user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. (Refer to "User's Guide") 8 EUT must meet MPE requirements MPE requirements are meet. See calculations in the measurement report.

SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3770-01-01a/04 Date: 2004-12-22 Page 82 of 86 Test sample: SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3770-01-01a/04 Date: 2004-12-22 Page 83 of 86

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. SA5252MPCI-01 FCC-ID: RPD-SA5252MPCI-01 For home or office use. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. SA5252MPCI-01 FCC-ID: RPD-SA5252MPCI-01 For home or office use. CONTAINS MiniPCI RADIO DEVICE Label information for Philips SA5252/SA5251 based IEEE802.11abg dual band 2.4 / 5 GHz MiniPCI card (FCC-ID: RPD-SA5252MPCI-01) Label, to be affixed on the miniPCI card

SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3770-01-01a/04 Date: 2004-12-22 Page 82 of 86 Test sample: SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3770-01-01a/04 Date: 2004-12-22 Page 83 of 86 SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3770-01-01a/04 Date: 2004-12-22 Page 84 of 86 SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3770-01-01a/04 Date: 2004-12-22 Page 85 of 86 Antenna used for test. SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3770-01-01a/04 Date: 2004-12-22 Page 86 of 86

Application: RPD-SA5252MPCI-01 Prediction of MPE limit at given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG / 4 π R 2 where: S = Power density P = Power input to the antenna G = Antenna gain R = Distance to the center of radiation of the antenna The table below is excerpted from Table 1B of 47 CFR 1.1310 titled “Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure” Frequency Range (MHz) Power Density (mW/cm 2 ) Averaging Time (minutes) 1500 - 100000 1.0 30 where f = Frequency (MHz) Frequency range: 5725 to 5825 MHz Radiated power: 5745 MHz / 18.5 dBm peak => Antenna gain = -1.0 dBi Frequency range: 5250 to 5350 MHz Radiated power: 5280 MHz / 15.9 dBm peak => Antenna gain = -1.9 dBi Frequency range: 5150 to 5250 MHz Radiated power: 5180 MHz / 15.7 dBm peak => Antenna gain = -0.6 dBi Prediction: P x G Max power at antenna: 18.5 dBm / 71 mW R Distance: 20 cm S calculated power density: 0.014 mW / cm² This prediction demonstrates the following: The power density levels at a distance of 20 cm are below the maximum levels allowed by FCC regulations

G:\2_RSC\PROJEKTE\04\3770_1\Task1\2-3770-1-1b(5 GHz).doc Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 081/94-D0 Independent ETSI compliance test house ETSI Accredited Bluetooth™ Test Facility (BQTF) Test report no.: 2-3770-01-01b/04 FCC Part 15.407 FCC ID: RPD-SA5252MPCI-01 SA5252 mPCI Rev1 CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 D-66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 598-9075 BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to Cetecom SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.:2-3770-01-01b/04 Date:2004-11-10 Page 2 of 123 Table of contents 1. ADMINISTRATIVE DATA ...................................................................................................................................... 4 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY..................................................................................................... 4 1.1.1 Identification of the testing laboratory ......................................................................................................... 4 1.1.2 Organizational items..................................................................................................................................... 4 1.1.3 Applicant ́s details ........................................................................................................................................ 5 1.2 ADMINISTRATIVE DATA OF MANUFACTURER / MEMBER........................................................................................ 5 1.3 DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) .......................................................................................... 6 1.3.1 EUT: Type, S/N etc. ...................................................................................................................................... 6 1.3.2 If RF component testing only, description of additional used HW/SW ......................................................... 6 1.3.3 ADDITIONAL EUT INFORMATION...................................................................................................................... 6 1.3.4 EUT operating modes ................................................................................................................................... 7 1.3.5 Extreme conditions testing values................................................................................................................. 7 2 TEST STANDARD & SUMMARY LIST OF ALL PERFORMED TEST CASES ............................................. 8 3 RF MEASUREMENT TESTING ........................................................................................................................... 10 3.1 DESCRIPTION OF TEST SET-UP.............................................................................................................................. 10 3.1.1 Radiated measurements .............................................................................................................................. 10 3.1.2 Conducted measurements ........................................................................................................................... 10 3.1.3 AC-conducted measurements...................................................................................................................... 10 3.2 REFERENCED DOCUMENTS.................................................................................................................................. 11 3.3 ADDITIONAL COMMENTS..................................................................................................................................... 11 3.4 ANTENNA GAIN................................................................................................................................................... 11 5725 to 5825 MHz 3.5 PEAK TRANSMIT POWER §15.407A(3)+(4) ................................................................................................... 12 3.6 PEAK SPECTRAL DENSITY CONDUCTED §15.407(A5)...................................................................................... 16 3.7 RATIO OF PEAK EXCURSION §15.407(A6) ....................................................................................................... 19 3.8 UNDESIRABLE EMISSION LIMITS AT BAND EDGES 15.407 (B3).......................................................................... 22 3.9 SPURIOUS (CONDUCTED) 15.407 (B3)........................................................................................................... 24 3.10 SPURIOUS EMISSIONS CONDUCTED...................................................................................................................... 28 3.11 MAX. PEAK TRANSMIT POWER §15.407 (A) (3)................................................................................................... 29 3.12 SPURIOUS EMISSIONS - RADIATED (TRANSMITTER) §15.209............................................................................. 30 3.13 SPURIOUS EMISSIONS RADIATED (RX) §15.209 ............................................................................................ 45 3.14 SPURIOUS EMISSIONS - RADIATED <30 MHZ §15.109..................................................................................... 49 3.15 CONDUCTED EMISSIONS <30 MHZ §15.107/207.............................................................................................. 50 5250 to 530 MHz 3.16 PEAK TRANSMIT POWER §15.407A(2)+(4) ............................................................................................... 51 3.17 SPECTRAL DENSITY CONDUCTED §15.407(A5) ............................................................................................... 54 3.18 RATIO OF PEAK EXCURSION §15.407(A6) ...........…
