RPK-LEOBTMODELBluetooth Keyboard

FC900RBT FC900RBTFC900RBTFC900RBT Bluetooth Bluetooth FC900RBT FC900RBT FC900RBT FC900RBT FC900RBT FC900RBT FC900RBT Press CapsLockGreen LED Press Scroll LockGreen LED Press CapsLockGreen LED Press Scroll LockGreen LED Press CapsLockGreen LED Press Scroll LockGreen LED

Model name Evaluation items Model Series FC900RBT FC750RBT FC980MBT NP900RBT Number of keys 104 87 98 104 Whether it contains iron plate ○ ○ ○ × Bluetooth function ○ ○ ○ ○ USB function ○ ○ ○ ○ Dry battery power supply ○ ○ ○ ○ Whether to share the Bluetooth small board ○ ○ ○ ○ Remarks (1) Please mark "○" if they are identical. (2) If they are not exactly the same, please mark "×", and explain the difference in the other description column.

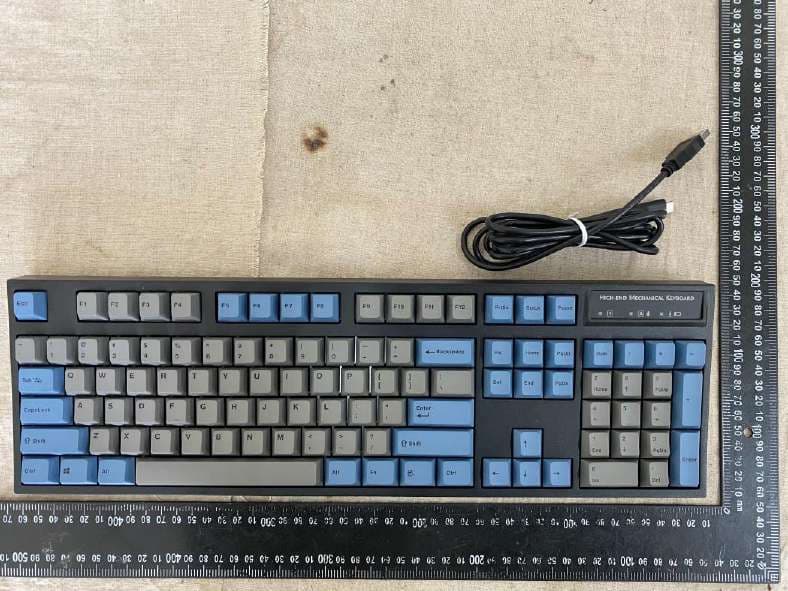

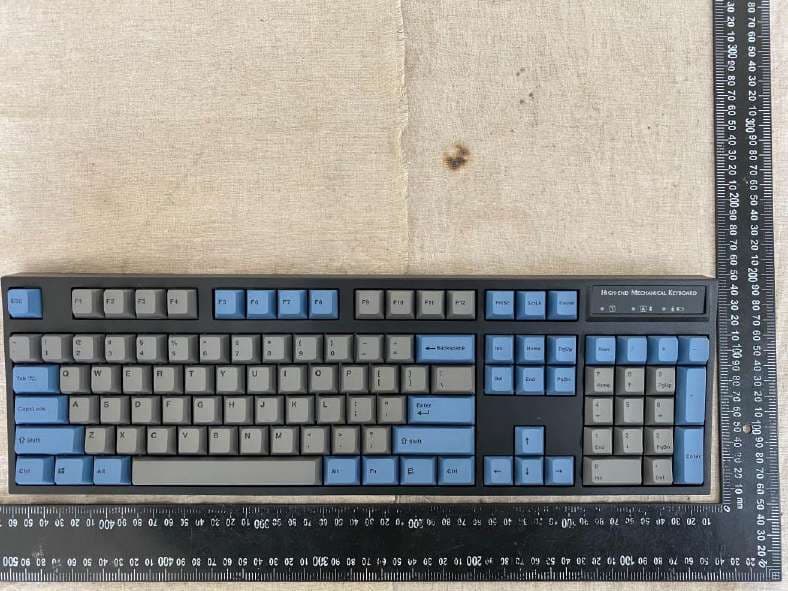

WH Technology Corp. Date of Issue: Mar. 11, 2021 Report No.: WH-FCC-R21012903 Page 1/5 External Photos WH Technology Corp. Date of Issue: Mar. 11, 2021 Report No.: WH-FCC-R21012903 Page 2/5 WH Technology Corp. Date of Issue: Mar. 11, 2021 Report No.: WH-FCC-R21012903 Page 3/5 WH Technology Corp. Date of Issue: Mar. 11, 2021 Report No.: WH-FCC-R21012903 Page 4/5 WH Technology Corp. Date of Issue: Mar. 11, 2021 Report No.: WH-FCC-R21012903 Page 5/5

Page 1/1 Lable

WH Technology Corp. Date of Issue: Mar. 11, 2021 Report No.: WH-FCC-R21012903 Page 1/3 Internal Photos WH Technology Corp. Date of Issue: Mar. 11, 2021 Report No.: WH-FCC-R21012903 Page 2/3 WH Technology Corp. Date of Issue: Mar. 11, 2021 Report No.: WH-FCC-R21012903 Page 3/3

WH Technology Corp. Date of Issue: Mar. 11, 2021 Report No.: WH-FCC-R21012903 Page 1/2 Radio Frequency Exposure EUT INFORMATION FCC ID FC900RBT EUT Bluetooth Keyboard Frequency band (Operating) 2402 MHz ~ 2480 MHz Max. output power -6.409 dBm Antenna gain (Max) 2.78 dBi TEST RESULT According to KDB 447498 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distance ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance,mm)] *[√f(GHz)] ≤ 3.0 Modulation Standard Frequency (MHz) Output Power (dBm) Output Power with tune-up tolerance (dBm) GFSK (1Mbps) 2402 -6.409 -6±2 2441 -6.567 -7±2 2480 -7.148 -7±2 π/4-DQPSK (2Mbps) 2402 -6.521 -6±2 2441 -6.995 -7±2 2480 -7.591 -7±2 8DPSK (3Mbps) 2402 -6.706 -6±2 2441 -7.003 -7±2 2480 -7.598 -7±2 Frequency (MHz) Output Power with tune-up tolerance (dBm) Tune up Power (mW) 2402 -4 0.398 WH Technology Corp. Date of Issue: Mar. 11, 2021 Report No.: WH-FCC-R21012903 Page 2/2 The max. average power of channel, including tune-up tolerance(mW) is 0.398 mW @ 2402 MHz (With tune-up tolerance), The min. test separation distance (mm) is 5 mm, So, [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] *[√f(GHz)] = 0.398/5*√2.402 = 0.123 < 3.0 (With Tune-up tolerance). Therefore, standalone SAR measurements are not required for both head and body. Tested By: Reviewed by: Mar. 11, 2021 Mar. 11, 2021 (Date) Bing / Engineer (Date) Bell / Manager FCC Designation Number: TW2954

WH Technology Corp. Date of Issue: Mar. 11, 2021 Report No.: WH-FCC-R21012903 Page 1/79 FCC 47 CFR PART 15 SUBPART C 15.247 TEST REPORT FOR Bluetooth Keyboard Model : FC900RBT Trade Name : Leopold Issued to Leopold Co., Ltd. B-dong-306, DaebangTriplaon Business Tower, 158, Haneulmaeul-ro, Ilsandong-gu, Goyang-si, Gyeonggi-do 10355 South Korea Issued by WH Technology Corp. Xizhi Office 7F., No.262, Sec. 3, Datong Rd., Xizhi Dist., New Taipei City 221, Taiwan (R.O.C.) Xizhi Lab No. 67-22, Baoxin St., Xizhi Dist., New Taipei City 221, Taiwan (R.O.C.) Tel.: +886-2-7729-7707 Fax: +886-2-8648-1311 Note: This test refers exclusively to the test presented test model and sample. This report shall not be reproduced except in full, without the written approval of WH Technology Corp. This document may be altered or revised by WH Technology Corp. personnel only, and shall be noted in the revision section of the document. WH Technology Corp. Date of Issue: Mar. 11, 2021 Report No.: WH-FCC-R21012903 Page 2/79 Contents 1. General Information ................................................................................................................................ 4 2. Report of Measurements and Examinations ........................................................................................ 5 2.1 List of Measurements and Examinations ....................................................................................... 5 3. Test Configuration of Equipment under Test ....................................................................................... 6 3.1 Description of the Tested Samples................................................................................................. 6 3.2 Carrier Frequency of Channels ...................................................................................................... 7 3.3 Test Mode and Test Software ......................................................................................................... 7 3.4 Test Methodology & General Test Procedures ............................................................................... 8 3.5 Measurement Uncertainty .............................................................................................................. 9 3.6 Description of the Support Equipments ......................................................................................... 9 4. Test and Measurement Equipment ...................................................................................................... 10 4.1 Calibration .................................................................................................................................... 10 4.2 Equipment .................................................................................................................................... 10 5. Antenna Requirements ......................................................................................................................... 12 5.1 Standard Applicable ..................................................................................................................... 12 5.2 Antenna Construction and Directional Gain ................................................................................. 12 6. Test of Conducted Emission ................................................................................................................ 13 6.1 Test Limit ...................................................................................................................................... 13 6.2 Test Procedures ........................................................................................................................... 13 6.3 Typical Test Setup ........................................................................................................................ 14 6.4 Test Result and Data .................................................................................................................... 15 7. Test of Radiated Emission ................................................................................................................... 17 7.1 Test Limit ...................................................................................................................................... 17 7.2 Test Procedures ........................................................................................................................... 18 7.3 Typical Test Setup ........................................................................................................................ 19 7.4 Test Result and Data (9kHz ~ 30MHz)......................................................................................... 20 7.5 Test Result and Data (30MHz ~ 1GHz, worst emissions found) .................................................. 20 7.6 Test Result and Data (Above 1GHz) ............................................................................................ 26 8. 20dB Bandwidth Measurement Data ................................................................................................... 32 8.1 Test Limit ...................................................................................................................................... 32 8.2 Test Procedures ........................................................................................................................... 32 8.3 Test Setup Layout ........................................................................................................................ 32 8.4 Test Result and Data .................................................................................................................... 32 9. Frequencies Separation ....................................................................................................................... 38 9.1 Test Limit .................................................................................................................................…

Text truncated - open the document above for the full version.

WH Technology Corp. Date of Issue: Mar. 11, 2021 Report No.: WH-FCC-R21012903 Page 1/3 Test Setup Photos Conduction WH Technology Corp. Date of Issue: Mar. 11, 2021 Report No.: WH-FCC-R21012903 Page 2/3 Photograph – Radiated Emission Below 1G Test Setup WH Technology Corp. Date of Issue: Mar. 11, 2021 Report No.: WH-FCC-R21012903 Page 3/3 Photograph – Radiated Emission Above 1G Test Setup
