RQP-R-2004A-1Car alarm system

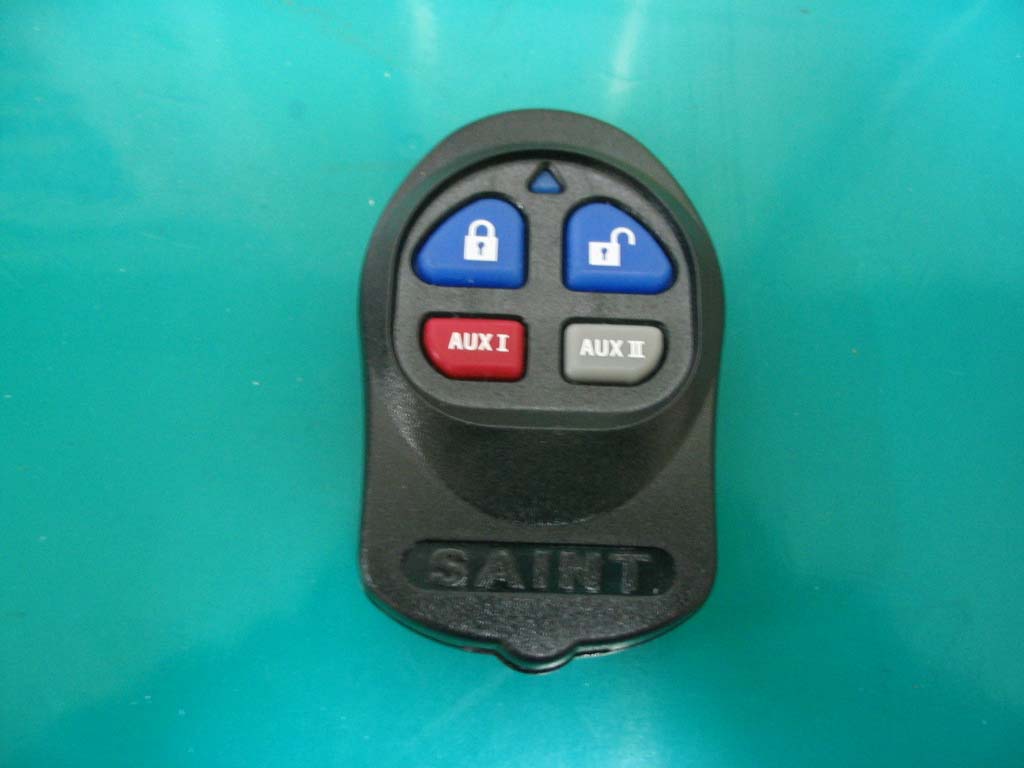

THE COMPLETE AUTO SECURITY SYSTEM OF THE 21ST CENTURY This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference and 2. This device must accept any interference received, including interference that may cause undesired operation. Caution : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Copyright 2004 TORNADO Audio, Inc.Model : ST 2004 SAINT AUTO SECURITY SYSTEM SAINT Remote Control Transmitter ARMDISARMMUTE ARMMUTE DISARM *ARM(Lock): PressARM button *DISARM(Unlock): Press DISARM button *MUTE ARM: Press AUX 1 and then Press *MUTE DISARM: Press AUX 2 and then Press Multi purpose channel outputCHANNEL 2 :Press & Hold more than 3 seconds (AUX Button-Continues output)I CHANNEL 3 :Press & Hold more than 3 seconds (AUXButton-Continues output)II CHANNEL 4 :Press & Hold more than 3 seconds (AUXI&AUXIIboth Buttons-Continues output) CHANNEL 5Press & Hold more than 3 seconds (Disarm/Unlock button-Continues output) CHANNEL 2CHANNEL 3CHANNEL 4CHANNEL 5 Press and holdButton (more then 3 seconds) SAINT Security System Operation Using the Transmitter to Arm the Security System 1. Exit the vehicle and close all entrances. 2. Press and release the ARM/Lock button on the transmitter. The security system will respond as follows: a. The siren will chirp one time. b. The LED indicator will begin to flash at a steady rate. c. The parking light will flash one time. d. The starter disable relay is activatedand will prevent the engine from starting. e. All protected entrances are armed. The Security System is now fully ARMED! Automatic Arming(Without using Transmitter) NOTE : The following information is valid only if your security system has been programmed to Automatically (Passive) arm. Check with your dealer if you are unsure. Turn off the ignition key and exit the vehicle. Close all protected entrances. After the last protected entrance is closed the siren will chirp one time and the LED indicator will begin to flash rapidly. The fast flashing LED indicates that the auto arm timer is counting down and the security system will become armed within 30 seconds. After 30 seconds has passed, the security system will respond as follows: Note 1 : Reopening a protected entrance will stop the arming timer. After closing the entrance the timer will begin counting down again from zero. Note 2 : If the vehicle has a delayed interior lighting system, the auto arming timer will start counting after the interior lighting has turned itself off. This could add up to 30 seconds to the total auto arming countdown time. (Up to 60 seconds total arming delay) A. The siren will chirp one time. B. The LED indicator will begin to flash slower. C. The parking lights will flash one time. D. The starter disable relay is activated and will prevent the engine from starting. E. All protected entrances are armed. The Security System is now fully ARMED! SAINT Disarming the Security System (Using the Transmitter) Press and release the Disarm/Unlock button on the transmitter. The security system will respond as follow: A. The siren will chirp two times. B. The LED indicator will be off. C. The parking lights will flash two times. NOTE: If you are disarming the security system after it has been triggered and the horn/siren is sounding, the disarm chirps are automatically deleted. The Security System is now Disarmed! Valet / Override Switch Operation Remote mobile security systems are supplied with a push button valet switch. The valet switch is used to override the security system in the event that the transmitters are lost or fail to operate or to put the security system in non-operational mode (valet) for vehicle servicing, etc. Override Operation by the Valet Switch (Security system is Armed) 1. Enter the vehicle. (System will begin sounding at this point) 2. Find it valet switch location. 3. Place the ignition key into the ignition switch and turn the ignition switch to the ON position. 4. Within 5 seconds of turning on the ignition key, push and hold to valet switch. 5. Turn off the ignition (The horn/siren will stop sounding) 6. The LED indicator will be continuously on. The security system is overridden and is now in the Valet mode! Howtogetoutofvaletmode(bytheValetswitch) 1. Turn on the ignition key 2. Push and hold to valet switch. 3. Turn off the ignition key. 4. Release to valet switch. 5. When the LED is off, you are out of the valet mode. SAINT Valet Operation by the remote (transmitter) (The security system is already disarmed) 1. Turn the ignition switch to the ON position. 2. Push and hold to arm/lock button until when you hear 1 chirp 3. Turn the ignition switch to the OFF position 4. The LED indicator will be continuously on. Now in the Valet mode! How to get out of valet mode (by the remote) Continue from remote valet mode above situation 1. Turn the ignition switch to the ON position. 2. Push and hold to arm/lock button until when you hear 2 chirps 3. Turn the ignition switch to the OFF position 4. The LED indicator will be off. Remote Panic Press and hold the ARM/Lock button for more than 3 seconds and the security system will respond as follows: A. The horn/siren will begin sounding. B. The parking lights will begin flashing. *To turn off the panic alarm,press and release theANY buttonon the transmitter. The horn/siren will stop sounding and parking lights will stop flashing. NOTE : If you do not turn off the panic feature with the transmitter, the panic alarm will sound for 60 seconds and then turn off by itself. User Discretion Mute Arming SAINT can be instructed to become armed or disarmed without the horn/siren chirps by the remote transmitter. To operate this feature at any time. * Mute Arm (Lock): Simply press the AUX & Arm/Lock button within 3 seconds. * Mute Disarm (Unlock): Simp…

Text truncated - open the document above for the full version.

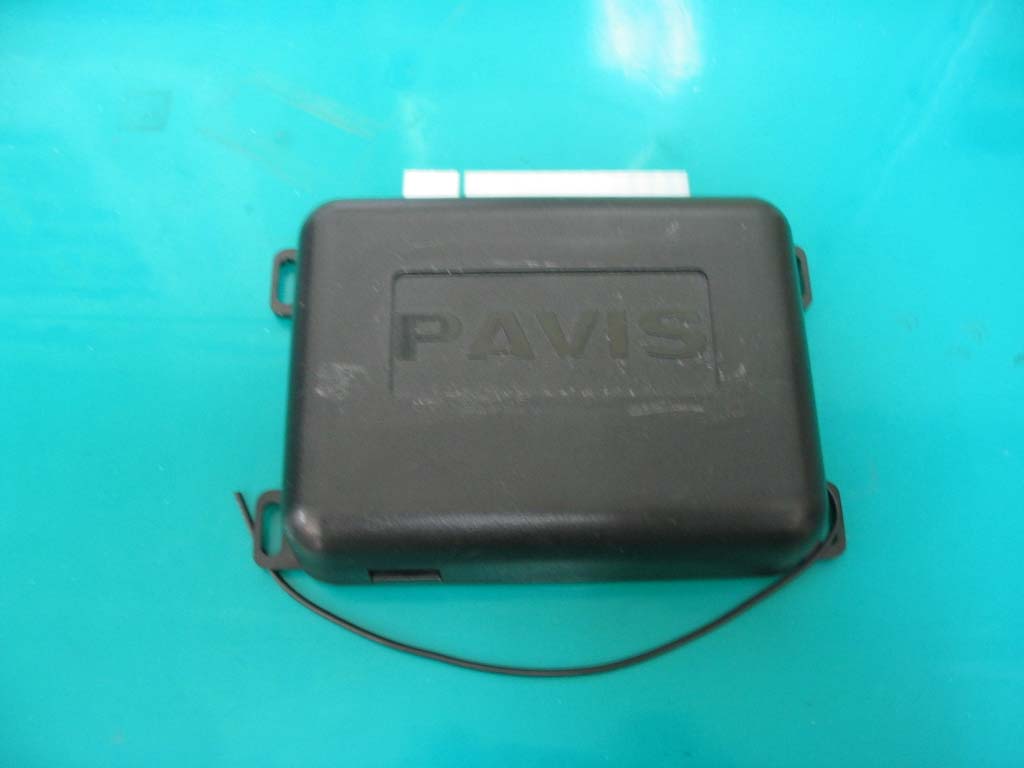

[External Photos]

* WHITE:: : : : : : : : : : : : : : : : : : (+) / ( )Parking Light Output * RED(+) 12Volt Constant Input * BLACK( ) Chassis Ground Input * YELLOW (+) 12Volt IgnitionInput * ORANGE( ) Starter Ground Output * BROWN (+) * VIOLET(+) * GREEN( ) * BLUE( ) Additionaldevice Output * BLACK/WHITE ( ) Dome Light Output * RED/WHITE( ) 2nd Channel Output * * * * * * * GRAY( )Honking Horn Siren Output Door Pin Input Door Pin Input BLACK(+) Lock / ( ) Unlock BLUE( ) Double Unlock GREEN( ) Lock/(+)Unlock RED ( ) 3rd Channel Output GREEN( ) 4th Channel Output GRAY( ) 5th Channel Output 1 2 P I N H A R N E S S 3 3 P P I I N N FCC ID : RQP-R-2004A-1 DESIGNED IN U.S.A ID LABELING SAINT

[Internal Photos]

55 44 33 22 11 D D C C B B A A DOOR_+ S/S GNDDOME DOOR_+SIREN_1 DOOR_- IG_1 VALET BAT SCLSDAABC S/S GND_1 2UNLOCK MINOR/J VALET_1 LED KILL_1 LIGHT_2 LED_1CH2_1LIGHT_1 DOME_1 LOCK_1UNLOCK_12UNLOCK_1 SIREN LED+LED- HORN_1DOME_1 KILL_1 CH2KILL 2UNLOCK_1 HORNLIGHT DATA UNLOCK CH2_1HORN_1 LOCK IG S/S MAJOR +12V/JMAJOR/J S/S MINOR GND DOOR DATA INCH5CH4CH3 EXT INPUT EXT INPUT-DOOR_- +5V +12V +5V +5V +5V +5V +5V +12V BATT BATT +12V BATT +12V +5V +5V +12V BATT +5V +5V +5V +5V BATT +12V+12V +5V +5V +5V TitleSize Document Number Rev Date: Sheet of saint_main_040119 1.0 SAINT MAIN C 11 Monday, February 09, 2004 TitleSize Document Number Rev Date: Sheet of saint_main_040119 1.0 SAINT MAIN C 11 Monday, February 09, 2004 TitleSize Document Number Rev Date: Sheet of saint_main_040119 1.0 SAINT MAIN C 11 Monday, February 09, 2004 POWERPART R55 4.7KJ R55 4.7KJ R406.8MJR406.8MJ 123 J7JUMPER3PJ7JUMPER3P TNR17D390TNR17D390 D17 M4 D17 M4 + C1 220uF/25V + C1 220uF/25V Q3 KSC1623 Q3 KSC1623 Q7 KRC243M Q7 KRC243M + C4100uF/16V + C4100uF/16V R584.7KJR584.7KJ D14M4D14M4 D15M4D15M4 R3968KJR3968KJ R3727KJR3727KJ D2 LL4148 D2 LL4148 IN 1 OUT 3 GND 2 U7KIA7036U7KIA7036 D121N4148D121N4148 12 J3 CON2 J3 CON2 C195p/SLC195p/SL D3 LL4148 D3 LL4148 C28104ZC28104Z Q15 KN2907 Q15 KN2907 R494.7KJR494.7KJ D8M4D8M4 C13104C13104 C2104C2104 R2810KJR2810KJ D18M4D18M4 R181KJR181KJ D9M4D9M4 R2722KJR2722KJ R591KJR591KJ R29100KJR29100KJ C5104C5104 R10 1KJ R10 1KJ C21102BC21102B D1 1N5402 D1 1N5402 R12 1KJ R12 1KJ 12 J6CON2J6CON2 + C253.3uF/16V + C253.3uF/16V 1 TP1TP1 D5 LL4148 D5 LL4148 C29104ZC29104Z R16220 JR16220 J Q4KTA1658Q4KTA1658 I1 1 I2 2 I3 3 I4 4 I5 5 I6 6 I7 7 GND 8 VCC 9 07 10 06 11 O5 12 O4 13 O3 14 O2 15 O1 16 U3 ULN2003 U3 ULN2003 R252.2KJR252.2KJ R22 10J R22 10J Q16 KRC243M Q16 KRC243M TC1N/UTC1N/U R1710KJR1710KJ R56 10KJ R56 10KJ D11 LL4148 D11 LL4148 C16100p/CHC16100p/CH 1234 J1CON4J1CON4 C14104C14104 R2 150KJR2 150KJ C7104C7104 R24470JR24470J C184p/CHC184p/CH C3104C3104 C31104C31104 R30220JR30220J R9 N/U R9 N/U RA0 2 RA1 3 RA2 4 RA3 5 RA4 6 RA5 7 RB0 21 RB1 22 RB2 23 RB3 24 RB4 25 RB5 26 RB6 27 RB7 28 RC0 11 RC1 12 RC2 13 RC3 14 RC4 15 RC5 16 RC6 17 RC7 18 OSC1 9 OSC2 10 MCLR 1 VSS 8 VSS 19 VDD 20 U2PIC16C72U2PIC16C72 D7 LL4148 D7 LL4148 C9104C9104 R34.7KJR34.7KJ R191KJR191KJ R54 4.7KJ R54 4.7KJ R311KJR311KJ R604.7KJR604.7KJ Q2 KRC243S Q2 KRC243S Q19SRA2201SQ19SRA2201S 12 J4CON2J4CON2 Q14 KN2907 Q14 KN2907 R4310KJR4310KJ C155p/CHC155p/CH D19 M4 D19 M4 R4510KJR4510KJ D20LL4148D20LL4148 VCC 16 Y 5 Y 6 OE 7 GND 8 D3 1 D2 2 D1 3 D0 4 D7 12 D6 13 D5 14 D4 15 C 9 B 10 A 11 U674HC251U674HC251 R514.7KJR514.7KJ L20.10uHL20.10uH R46470KJR46470KJ C20390p/CHC20390p/CH R71KJR71KJ Q12SRC1201SQ12SRC1201S R44100KJR44100KJ D10 LL4148 D10 LL4148 Q1 KSA812 Q1 KSA812 C30M104C30M104 123456789101112 JP1CON12JP1CON12 IN 3 OUT 1 GND 2 U1LM78L05U1LM78L05 C10104C10104 56 7 84 +- U5BLM358 +- U5BLM358 Q17 KRC243M Q17 KRC243M R13 10KR13 10K Q9BFQ67WQ9BFQ67W C27102BC27102B C172p/CHC172p/CH R41100JR41100J R326.8KJR326.8KJ C12104C12104 R1447KJR1447KJ R501KJR501KJ C2433p/CHC2433p/CH + C2610/10 + C2610/10 Y14MHzY14MHz R534.7KJR534.7KJ 32 1 84 +- U5ALM358 +- U5ALM358 R44.7KJR44.7KJ L110uHL110uH 123 J5CON3J5CON3 C8104C8104 R201KJR201KJ R21 10 1/4W R21 10 1/4W Q5KRC243SQ5KRC243S R3410KJR3410KJ D16M4D16M4 R3533KJR3533KJ R365.6KJR365.6KJ D21LL4148D21LL4148 R81KJR81KJ C23390p/CHC23390p/CH ZD31N5231ZD31N5231 R571KJR571KJ R524.7KJR524.7KJ R384.7KJR384.7KJ R266.8MJR266.8MJ D22 M4 D22 M4 R154.7KJR154.7KJ SW1PIANO 4PSW1PIANO 4P 1 MT13.5MMMT13.5MM Q11SRA2201SQ11SRA2201S 1 MT23.5MMMT23.5MM D13 LL4148 D13 LL4148 1 MT33.5MMMT33.5MM + C6 4.7uF/50V + C6 4.7uF/50V C22105ZC22105Z D4 LL4148 D4 LL4148 R6 10JR6 10J GND 4 VCC 8 SDA 5 SCLK 6 NC 7 NC 1 NC 2 NC 3 U424LC02B/SOU424LC02B/SO 1 MT46MMMT46MM Q18 KRC243M Q18 KRC243M 123 J2CON3J2CON3 4 3 12 5 RL120ARL120A Q10BFQ67WQ10BFQ67W C11104ZC11104Z R54.7KJR54.7KJ Q8 KRC243M Q8 KRC243M

KTL Korea Testing Laboratory Page 1 of 9 TEST REPORT This test report only responds to the tested sample and shall not be reproduced except in full without written approval of the Korea Testing Laboratory. Tested and reported by Reviewed by Jeong-Min Kim, Senior Engineer Hee-Soo Kim , Telecommunication Team Manager Ref. Report No. 04-1341-006 Name and address of the applicant iTOP electronic 538-12, Kajung-dong, Seo-gu, Incheon-shi, 404-230, Korea Standard / Test regulation FCC Part 15, Subpart B Test result Pass Incoming date : February 13, 2004 Test item(s) ; Superregenerative Receiver (Car Alarm System) Model/type ref. ; ST 2004 Manufacturer ; iTOP electronic Additional information ; -Required Authorization : Certification -FCC ID. : RQP-R-2004A-1 Test date : March 16, 2004 Issue date : March 23, 2004 KOREA TESTING LABORATORY FG101-01-02-00 222-13, Guro-Dong Guro-Gu Seoul Korea 152-053 http://www.ktl.re.kr Ref. Report No. 04 - 1341 – 006 Page 3 of 9 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 TABLE OF CONTENTS I. GENERAL INFORMATION 3 1. Grantee’s Name and Mailing Address 2. Manufacturer's Name and Mailing Address 3. Equipment Descriptions 4. Rules and Regulations 5. Measuring Procedure 6. Place of Measurement 7. Date of Measurement II. GENERAL REQUIREMENTS OF THE EUT 4 1. Labeling Requirement (Section 15.19) 2. Information to User (Sections 15.21) 3. Special Accessories (Section 15.27) III. RADIATED EMISSION MEASUREMENT (Section 15.109) 5 1. Test Procedure 2. Photograph for the test configuration 3. Sample Calculation 4. Measurement Data 5. Reference Data IV. TEST EQUIPMENTS USED FOR MEASUREMENT 9 Ref. Report No. 04 - 1341 – 006 Page 4 of 9 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 I. GENERAL INFORMATION 1. Grantee’s Name and : iTOP electronic Mailing Address 538-12, Kajung-dong, Seo-gu, Incheon-shi, 404-230, Korea 2. Manufacturer's Name and : iTOP electronic Mailing Address 538-12, Kajung-dong, Seo-gu, Incheon-shi, 404-230, Korea 3. Equipment Descriptions 3.1 Tunning Frequency : 433.9 MHz 3.2 Detect Method : Superregenerative Detector 3.3 Power Supply : DC 12V(Car Battery) 4. Rules and Regulations : FCC Part 15, Subpart B 5. Measuring Procedure : ANSI C63.4-2001 6. Place of Measurement : Absorber-lined Room (KTL) 7. Date of Measurement 7.1 Conducted Emission : Not Applicable 7.2 Radiated Emission : March 16, 2004 Ref. Report No. 04 - 1341 – 006 Page 5 of 9 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 II. GENERAL REQUIREMENTS OF THE EUT 1. Labeling Requirement (Section 15.19) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interface, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1.1 Location of Label : User’s Guide Manual 1.2 How Applied : Printed 2. Information to User (Section 15.21) The following or similar statements were provided in the manual for user instruction. Please refer page 1 of the attached manual for details. CAUTION : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 3. Special Accessories (Section 15.27) 3.1 Were the special Accessories provided? [ ] yes, [ x ] no 3.2 If yes, details for the special accessories are as follows : 3.3 If yes, were the appropriate instructions provided on the first page of the text concerned with the installation of the device? [ ] yes, [ ] no 3.4 Are these accessories provided of the type which can be readily obtained from multiple retail outlets ? [ ] yes, [ ] no And therefore does the manual specify what additional components or accessories are required to used in order to comply with the Rules? [ ] yes, [ ] no Ref. Report No. 04 - 1341 – 006 Page 6 of 9 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 III. RADIATED EMISSION MEASUREMENT (Section 15.109) 1. Test Procedure 1.1 Preliminary Testing for Reference Preliminary testing was performed in a KTL absorber-lined room to determine the emission characteristics of the EUT. The EUT was placed on the wooden table which has dimensions of 0.8 meters in height, 1 meter in length and 1.5 meters in width. Receiving antenna (Biconi-Log antenna : 30 to 2000MHz or Horn Antenna : 1 to 18GHz) was placed at the distance of 1 meter from the EUT. In order to cohere the individual components of the characteristic broadband emission from the receiver(EUT), a RF generator(CW signal) and a log-periodic antenna were used. The frequency and output level of the generator were adjusted for highest observed coherent receiver emissions on the spectrum analyzer with RF amplifier. An attempt was made to maximize the emission level with the various configurations of the EUT. The effect of changing the position of the cable was observed to find the worst case configuration while rotating the table and varying antenna height and it’s polarization. Radiated and spurious emissions were checked from 30 MHz to 3000 MHz according to section 15.33. 1.2 Final Radiated Emission Test at an Absorber-Lined Room The final measurement of radiated field strength was carried out in a KTL Absorber-Lined Room that was listed up at FCC according to the "Radiated Emissions Testing" procedure specified by ANSI C63.4. Based on the test results in preliminary test, measurement was made in same test set up and configuration which produced maximum emission level. Receiving antenna was installed at 3-meter distance from the EUT, and was connected to an EMI receiver or spectrum analyzer(for above 1GHz) with a RF amplifier. Turntable was rotated through 360 degrees and receiving antenna height was varied from 1 to 4 meters above the…

Text truncated - open the document above for the full version.

[Test setup Photo]

THE COMPLETE AUTO SECURITY SYSTEM OF THE 21ST CENTURY This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference and 2. This device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment. Mo del : ST 2004 SAINT AUTO SECURITY SYSTEM SAINT Remote Control Transmitter ARMDISARMMUTE ARMMUTE DISARM *ARM(Lock): PressARM button *DISARM(Unlock): Press DISARM button *MUTE ARM: Press AUX 1 and then Press *MUTE DISARM: Press AUX 2 and then Press Multi purpose channel outputCHANNEL 2 :Press & Hold more than 3 seconds (AUX Button-Continues output)I CHANNEL 3 :Press & Hold more than 3 seconds (AUXButton-Continues output)II CHANNEL 4 :Press & Hold more than 3 seconds (AUXI&AUXIIboth Buttons-Continues output) CHANNEL 5Press & Hold more than 3 seconds (Disarm/Unlock button-Continues output) CHANNEL 2CHANNEL 3CHANNEL 4CHANNEL 5 Press and holdButton (more then 3 seconds) SAINT Security System Operation Using the Transmitter to Arm the Security System 1. Exit the vehicle and close all entrances. 2. Press and release the ARM/Lock button on the transmitter. The security system will respond as follows: a. The siren will chirp one time. b. The LED indicator will begin to flash at a steady rate. c. The parking light will flash one time. d. The starter disable relay is activatedand will prevent the engine from starting. e. All protected entrances are armed. The Security System is now fully ARMED! Automatic Arming(Without using Transmitter) NOTE : The following information is valid only if your security system has been programmed to Automatically (Passive) arm. Check with your dealer if you are unsure. Turn off the ignition key and exit the vehicle. Close all protected entrances. After the last protected entrance is closed the siren will chirp one time and the LED indicator will begin to flash rapidly. The fast flashing LED indicates that the auto arm timer is counting down and the security system will become armed within 30 seconds. After 30 seconds has passed, the security system will respond as follows: Note 1 : Reopening a protected entrance will stop the arming timer. After closing the entrance the timer will begin counting down again from zero. Note 2 : If the vehicle has a delayed interior lighting system, the auto arming timer will start counting after the interior lighting has turned itself off. This could add up to 30 seconds to the total auto arming countdown time. (Up to 60 seconds total arming delay) A. The siren will chirp one time. B. The LED indicator will begin to flash slower. C. The parking lights will flash one time. D. The starter disable relay is activated and will prevent the engine from starting. E. All protected entrances are armed. The Security System is now fully ARMED! SAINT Disarming the Security System (Using the Transmitter) Press and release the Disarm/Unlock button on the transmitter. The security system will respond as follow: A. The siren will chirp two times. B. The LED indicator will be off. C. The parking lights will flash two times. NOTE: If you are disarming the security system after it has been triggered and the horn/siren is sounding, the disarm chirps are automatically deleted. The Security System is now Disarmed! Valet / Override Switch Operation Remote mobile security systems are supplied with a push button valet switch. The valet switch is used to override the security system in the event that the transmitters are lost or fail to operate or to put the security system in non-operational mode (valet) for vehicle servicing, etc. Override Operation by the Valet Switch (Security system is Armed) 1. Enter the vehicle. (System will begin sounding at this point) 2. Find it valet switch location. 3. Place the ignition key into the ignition switch and turn the ignition switch to the ON position. 4. Within 5 seconds of turning on the ignition key, push and hold to valet switch. 5. Turn off the ignition (The horn/siren will stop sounding) 6. The LED indicator will be continuously on. The security system is overridden and is now in the Valet mode! Howtogetoutofvaletmode(bytheValetswitch) 1. Turn on the ignition key 2. Push and hold to valet switch. 3. Turn off the ignition key. 4. Release to valet switch. 5. When the LED is off, you are out of the valet mode. SAINT Valet Operation by the remote (transmitter) (The security system is already disarmed) 1. Turn the ignition switch to the ON position. 2. Push and hold to arm/lock button until when you hear 1 chirp 3. Turn the ignition switch to the OFF position 4. The LED indicator will be continuously on. Now in the Valet mode! How to get out of valet mode (by the remote) Continue from remote valet mode above situation 1. Turn the ignition switch to the ON position. 2. Push and hold to arm/lock button until when you hear 2 chirps 3. Turn the ignition switch to the OFF position 4. The LED indicator will be off. Remote Panic Press and hold the ARM/Lock button for more than 3 seconds and the security system will respond as follows: A. The horn/siren will begin sounding. B. The parking lights will begin flashing. *To turn off the panic alarm,press and release theANY buttonon the transmitter. The horn/siren will stop sounding and parking lights will stop flashing. NOTE : If you do not turn off the panic feature with the transmitter, the panic alarm will sound for 60 seconds and then turn off by itself. User Discretion Mute Arming SAINT can be instructed to become armed or disarmed without the horn/siren chirps by the remote transmitter. To operate this feature at any time. * Mute Arm (Lock): Simply press the AUX & Arm/Lock button within 3 seconds. * Mute Disarm (Unlock): Simply press the AUX II& Disar…
