RQSXA1000Digital Wireless Communicator

Homepage: www.sayu.biz E-Mail: [email protected] TEL. +82-2-719-4985 FAX. +82-2-719-4986 SayU Digital Wireless Communicator User Manual Full-duplex digital walkie-talkie for family communication, outdoor activity, child/baby care... Thank you for your selection of SayU’s digital wireless communicator, DiCo! SayU’s personal digital communicator(DiCo) is the first full- duplex walkie-talkie with its digital technology and modern design. You are not required to press the old-fashioned PTT button to communicate. You only need to press call button just once, and you can talk and listen to your partner easily. Additionally, you can experience the advanced digital functions of DiCo. Contents 1.Major Features .................................................................................................................................................. 3 2.Parts of Your DiCo............................................................................................................................................. 3 3.DiCo’s Use ........................................................................................................................................................ 3 4.DiCo’s Looking .................................................................................................................................................. 4 5.LCD Display ...................................................................................................................................................... 4 5.1Icons on display screen....................................................................................................................... 4 5.2Back-lit LCD / illuminating the LCD...................................................................................................... 4 6.Power ................................................................................................................................................................ 5 6.1Charging .............................................................................................................................................. 5 6.2Low battery alert .................................................................................................................................. 5 6.3Battery life............................................................................................................................................ 5 6.4When to exchange and how/ where to buy battery .............................................................................. 5 7.How to use DiCo ............................................................................................................................................... 5 7.1Turning on / off..................................................................................................................................... 5 7.1.1Turning on................................................................................................................................ 5 7.1.2Turning off................................................................................................................................ 6 7.2Group setting for communication ......................................................................................................... 6 7.2.1What is group setting? ............................................................................................................. 6 7.2.2Factory setting ......................................................................................................................... 6 7.2.3How to set your group.............................................................................................................. 6 7.3Calling and talking ............................................................................................................................... 7 7.3.1Calling...................................................................................................................................... 7 7.3.2Automatic re-calling ................................................................................................................. 7 7.3.3Being called ............................................................................................................................. 7 7.3.4Talking...................................................................................................................................... 7 Homepage: www.sayu.biz E-Mail: [email protected] TEL. +82-2-719-4985 FAX. +82-2-719-4986 7.4Baby monitor ....................................................................................................................................... 7 7.5Checking how far your partner is ......................................................................................................... 8 7.5.1Display of distance level .......................................................................................................... 8 7.5.2Distance alert........................................................................................................................... 8 7.6Volume control ..................................................................................................................................... 8 7.6.1Voice volume ........................................................................................................................... 8 7.6.2Beep volume............................................................................................................................ 8 7.7Selection of call tone............................................................................................................................ 8 7.8Communication range.......................................................................................................................... 9 7.9Link error .............................................................................…

Text truncated - open the document above for the full version.

BWS TECH Inc. 294-9 Jungdae-Dong, Kwanggu-Si, Kyunggi-Do, 464-800, Korea SayU Co., Ltd. Digital Wireless Communicator Report No: BWS-03-RF-0005 FCC ID : RQSXA1000 Date of Test : December 18, 2003 Appendix 3. External Photographs

BWS TECH Inc. 294-9 Jungdae-Dong, Kwanggu-Si, Kyunggi-Do, 464-800, Korea SayU Co., Ltd. Digital Wireless Communicator Report No: BWS-03-RF-0005 FCC ID : RQSXA1000 Date of Test : December 18, 2003 Appendix 2. FCC ID Label and location Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier is marked in the product label. The warning statement and information to the user are described in the user manual. Label Location The label shown above shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) SayU Co., Ltd. Digital Wireless Communicator Model : DICO XA-1000 FCC ID : RQSXA1000 This device complies with Part 15 of the FCC Rules. Operation is subjec t to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. SayU Co., Ltd. Digital Wireless Communicator Model : DICO XA-1000 FCC ID : RQSXA1000 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.

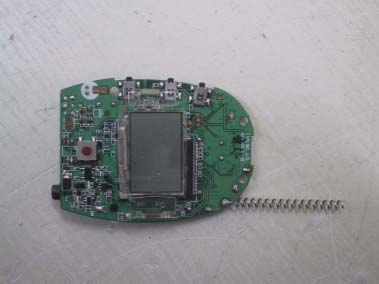

BWS TECH Inc. 294-9 Jungdae-Dong, Kwanggu-Si, Kyunggi-Do, 464-800, Korea SayU Co., Ltd. Digital Wireless Communicator Report No: BWS-03-RF-0005 FCC ID : RQSXA1000 Date of Test : December 18, 2003 Appendix 4. Internal Photographs

HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. PRODUCT COMPLIANCE DIVISION SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 CERTIFICATE OF COMPLIANCE (SAR EVALUATION) EUT Type: Digital Wireless Communicator Model(s): DICO XA-1000 Frequency Range: 902.5 MHz – 927.5 MHz Max. SAR Measurement(s): 0.210 mW/g(1g) Face SAR ; 0.804 mW/g(1g) Body SAR Max. RF Output Power : 0.1514 W (21.8 dBm) (Conducted Power) Channel Capacity: 26 Application Type: Certification Trade Name(s): SayU Co., Ltd. FCC Rule Part(s): 95(A)(B), 2(J) Report prepared by : Ki-Soo Kim Manager of Product Compliance Team This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. Manufacture; SayU Co., Ltd. 2F Koominsekwan Bldg., 257-3 Gongduk-dong, Mapo-gu, Seoul, Korea Date of Issue : January 14, 2004 Test Report No.: HCT-SAR04-0107 Test Site : HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. FRN : 0005-8642- 21 FCC ID : APPLICANT : RQSXA1000 SayU Co., Ltd. Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Table of Contents 1.1 SCOPE ---------------------------------------------------------------------------------------------------------- 2.1 INTRODUCTION / SAR DEFINITION --------------------------------------------------------------------- 3.1 SAR MEASUREMENT SET-UP --------------------------------------------------------------------------- 4.1 E-FIELD PROBE SYSTEM --------------------------------------------------------------------------------- 5.1 E-FIELD PROBE CALIBRATION PROCESS -------------------------------------------------------- 6.1 PHANTOM, HOLDER, & EQUIVALENT TISSUE --------------------------------------------------- 7.1 SYSTEM SPECIFICATIONS ------------------------------------------------------------------------------ 8.1 MEASUREMENT PROCESS ------------------------------------------------------------------------------ 9.1 ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS -------------------------------------------------------- 10.1 MEASUREMENT UNCERTAINTIES ------------------------------------------------------------------- 11.1 TEST DATA SUMMARY ---------------------------------------------------------------------------------- 12.1 SAR TEST EQUIPMENT LIST --------------------------------------------------------------------------- 13.1 CONCLUSION ------------------------------------------------------------------------------------------------ 14.1 REFERENCES -------------------------------------------------------------------------------------------- APPENDIX A – SAR TEST PLOTS APPENDIX B – TEST SETUP PHOTOGRAPHS APPENDIX C – EUT PROFILE PHOTOGRAPHS APPENDIX D – DIPOLE VALIDATION PLOTS APPENDIX E – PROBE CALIBRATION DATA APPENDIX F – DIPOLE CALIBRATION DATA 3 4 5 6-7 8 9 10 11 12 13 14 15-16 17 18 Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in emulated human head and body tissues exposed to radio frequency(RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC).2 1. 2 Applicant 2. • FCC ID: RQSXA1000 • EUT Type: Digital Wireless Communicator (Prototype) • Trade Name: SayU Co., Ltd. • Model(s): DICO XA-1000 • Frequency Range: 902.5 MHz – 927.5 MHz • Application Type: Certification • Classification: Digital Wireless Communicator • Modulation(s): FSK • Max SAR Measurement: 0.210 mW/g(1 g) Face SAR ; 0.804 mW/g(1 g) Body SAR • Max. RF Output Power: 0.1514 W • Power Supply: DC 3.6V (Li-ion Rechargeable Battery) • Place of Test(s): Hyundai C- TECH. EMC Lab. • Date(s) of Tests: January 13, 2004 • Report No.: HCT-SAR04-0107 Figure 1. SAR System 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62 Company Name: SayU Co., Ltd. Address: 2F Koominsekwan Bldg., 257-3 Gongduk-dong, Mapo-gu, Seoul, Korea Attention: Si Ho Nam / Mannaging Director Tel. / Fax : 82- 2-719-4985 / 82- 2-719-4986 E-Mail : [email protected] Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are s…

Text truncated - open the document above for the full version.

Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr 7.1 SYSTEM SPECIFICATIONS 7.2 Robotic System Specifications Specifications POSITIONER: Stäubli Unimation Corp. Robot Model: RX90LB Repeatability: 0.02 mm No. of axis: 6 Data Acquisition Electronic (DAE) System Cell Controller Processor: Pentium III Clock Speed: 450 MHz Operating System: Windows NT 4.0 Data Card: DASY3 PC-Board Data Converter Features: Signal Amplifier, multiplexer, A/D converter, and control logic Software: DASY3 software Connecting Lines: Optical downlink for data and status info. Optical uplink for commands and clock PC Interface Card Function: 24 bit (64 MHz) DSP for real time processing Link to DAE3 16 bit A/D converter for surface detection system serial link to robot direct emergency stop output for robot E-Field Probes Model: ET3DV6 S/N: 1798, S/N: 1609 Construction: Triangular core fiber optic detection system Frequency: 10 MHz to 6 GHz Linearity: ± 0.2 dB (30 MHz to 3 GHz) Phantom Phantom: SAM Shell Material: Fiberglass Thickness: 2.0 ± 0.1 mm Tissue Parameters Freq. [MHz] Liquid Liquid Temp [°C] Parameters Target Value Measured Value Deviation [%] Limit [%] ε 41.5 41.1 -0.96 5% Head 21.5 σ 0.98 0.95 -3.06 5% ε 55.0 54.8 -0.36 5% 915MHz Body 21.5 σ 1.06 1.05 -0.94 5% Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr 8.1 MEASUREMENT PROCESS 8.2 System Verification Prior to assessment, the system is verified to the ±10% of the specifications at 450MHz by using the system validation kit. (Graphic Plots Attached) Freq. [MHz] Liquid Liquid Temp [°C] SAR Average Target Value (mW/g) Measured Value (mW/g) Deviation [%] Limit [%] 900 MHz D900V2, S/N: 062 Head 21.5 1 g 10.8 10.5 -2.78 10% 8.3 Dosimetric Assessment Setup The evaluation was performed with the following procedure: 1. The SAR value at a fixed location above the ear point was measured and was used as a reference value for assessing the power drop. 2. The SAR distribution at the exposed side of the head was measured at a distance of 3.9mm from the inner surface of the shell. The area covered the entire dimension of the head and the horizontal grid spacing was 20mm x 20mm. Based on this data, the area of the maximum absorption was determined by spline interpolation. 3. Around this point, a volume of 32mm x 32mm x 34mm was assessed by measuring 5 x 5 x 7 points. On this basis of this data set, the spatial peak SAR value was evaluated with the following procedure: a. The data at the surface were extrapolated, since the center of the dipoles is 2.7mm away from the tip of the probe and the distance between the surface and the lowest measuring point is 1.2mm. The extrapolation was based on a least square algorithm [13]. A polynomial of the fourth order was calculated through the points in z-axes. This polynomial was then used to evaluate the points between the surface and the probe tip. b. The maximum interpolated value was searched with a straight-forward algorithm. Around this maximum the SAR values averaged over the spatial volumes (1g or 10g) were computed using the 3D-Spline interpolation algorithm. The 3D-spline is composed of three one-dimensional splines with the “Not a knot” condition (in x,y, and z directions) [13][14]. The volume was integrated with the trapezoidal algorithm. One thousand points (10 x 10 x 10) were interpolated to calculate the average. c. All neighboring volumes were evaluated until no neighboring volume with a higher average value was found. Fig. 10. SAR Measurement Point in Area Scan Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr 9.1 ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS HUMAN EXPOSURE UNCONTROLLED ENVIRONMENT General Population (W/kg) or (mW/g) CONTROLLED ENVIRONMENT Occupational (W/kg) or (mW/g) SPATIAL PEAK SAR * (Brain) 1.60 8.00 SPATIAL AVERAGE SAR ** (Whole Body) 0.08 0.40 SPATIAL PEAK SAR *** (Hands / Feet / Ankle / Wrist) 4.00 20.00 Table 2. Safety Limits for Partial Body Exposure NOTES: * The Spatial Peak value of the SAR averaged over any 1 gram of tissue (defined as a tissue volume in the shape of a cube) and over the appropriate averaging time. ** The Spatial Average value of the SAR averaged over the whole-body. *** The Spatial Peak value of the SAR averaged over any 10 grams of tissue (defined as a tissue volume in the shape of a cube) and over the appropriate averaging time. Uncontrolled Environments are defined as locations where there is the exposure of individuals who have no knowledge or control of their exposure. Controlled Environments are defined as locations where there is exposure that may be incurred by persons who are aware of the potential for exposure, (i.e.as a result of employment or occupation). Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr 10.1 MEASUREMENT UNCERTAINTIES Measurement uncertainties in SAR measurements are difficult to quantify due to several variables including biological, physiological, and environmental. However, we estimate the measurement uncertainties in SAR to be less than 15-25 % [16]. According to ANSI/IEEE C95.3, the overall uncertainties are difficult to assess and will vary with the type of meter and usage situation. However, accuracy’s of ± 1 to 3 dB can be expected in…

Text truncated - open the document above for the full version.

Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX A – SAR TEST PLOTS Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX B – EUT TEST SETUP PHOTOGRAPHS Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr 25mm 3mm Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX C – DIPOLE VALIDATION PLOTS Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX D – PROBE CALIBRATION DATA Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr APPENDIX E – DIPOLE CALIBRATION DATA Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0107 FCC ID : RQSXA1000 DATE : January 14, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

5 5 4 4 3 3 2 2 1 1 DD CC BB AA + CHARGE - XA-1000 RF B'd.DSN 1.2 XA-1000 POWER SAYU INC., LTD. A3 16 Wednesday, December 03, 2003 Title SizeDocument NumberRev Date:Sheetof BATT_DECT CHAR_DONE CHAR_STAR V_BATT+3.3V1.8V+3.3V C102 104 IC103 BQ24010DRC 1 3 4 2 5 10 9 8 7 6 IN STAT…
