RQVBP-10017FFM Modulator

FM MODULATOR Picture [I-POP] New type of wireless audio linker BP-10017F User’s Manual PDF created with pdfFactory Pro trial version www.pdffactory.com FCC Caution This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions; (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. PDF created with pdfFactory Pro trial version www.pdffactory.com 1. Outlook AUDIO CABLE 3.5?STEREO AUDIO JACK Frequency Control Switch 88.3/88.7/88.9 MHz POWER LED Power Switch ON / OFF DC INPUT hole 12V/24V input PDF created with pdfFactory Pro trial version www.pdffactory.com 2. How to use 1.Insert a 1.5 V AAA size battery into the device like the right picture or insert DC JACK into I–POP DC hole. 2.Connect FM transmitter audio jack(3.5 ?) into earphone hole of MP3 or CD player. 3.Play MP3 or CD music. 4.Turn Power Switch ON. 5.Select FM frequency. ( 88.3/ 88.7 / 88.9 MHz)) –Avoid selecting the on Air frequency. 6.Set FM audio frequency to the selected FM frequency on Step 5. 7.Control the volume level of your audio device & FM radio and Enjoy the wireless music. Audio JACK Connection Frequency Selection POWER ON Batter Input Direction PDF created with pdfFactory Pro trial version www.pdffactory.com Trade Name Trade Name Current Current FM Dimension Dimension Weight Weight Battery Application : 68mA Cigar JACK Application : 32mA 88.3MHz ~ 88.9MHz 67x 25 x 20mm 약24 g (Excluding Battery) Power Supply Power Supply 1.5V battery AAA size & Vehicles 12 –24V Frequency Range Frequency Range Modulation Modulation Operating Temp Operating Temp-10 ~ 50 °C 3. 3. Specifications Specifications BP-10017F The specification is subject to change without notice. PDF created with pdfFactory Pro trial version www.pdffactory.com 4. Warrant Information BKM warrant our product FM transmitter and accessories (excluding batteries) to be free from malfuntions and defects in both materials and workmanship for one year from the date of purchase. Limited Warranty Coverage This Limited Warranty will be honored only within the geographical location that I-POP purchased. BKM will repair or replace I-POP if they fail to function properly during the warranty period, subject to any conditions and/or limitations stated herein. Such repair service will include all labor as well as any necessary adjustments and/or replacement parts. Such repair or replacement is the sole remedy under this warranty. Warranty conditions : •Request for Warranty Service will not be accepted without proofof date of purchase, such as a copy of the original dated I- POP sales receipt. •This Warranty does not apply to the battery used in I-POP. This Warranty does not cover circumstances beyond BKM’s control, nor problems caused by failure to follow the operating instructions in the I-POP User’s Guides. •This Warranty does not apply when failure is due to shipping damage, accident, alteration, modification, unauthorized service, misuse, abuse, use with incompatible accessories or attachments, failure to follow BKM’operation, maintenance or repacking instructions, failure to use items supplied by BKM (Such as adapters and cables), or claims made after the duration of this Warranty. •This Warranty does not apply when repairs performed by non-authorized service centers such as opening of the product by a non-authorized person. PDF created with pdfFactory Pro trial version www.pdffactory.com 5. Safety Instruction •Read and understand all these instructions to avoid injury to yourself and damege to the equipment. •The use of an accessory attachment that is not recommended by BKM Co.,Ltd, such as a CIGAR JACK, may cause fire, electric shock, or injury. CAUTION •Do not apply excessive pressure to the device. •Do not let any foreign matter spill into the device. •Do not place heavy objects on the device. •Do not expose to chemicals such as benzene and thinners. •Remove batteries when the device is left unused for a long period of time. •Do not expose to direct sunlight or heat sources. •Do not store in dusty areas. •Do not try to disassemble and repair the device yourself. •Keep batteries out of the reach of children. •If using this product in an airplane, observe all instructions of the airline. •Do not pull out the cable from the device. PDF created with pdfFactory Pro trial version www.pdffactory.com 6. Troubleshooting [ I-POP does not work and POWER LED does not work properly.] •Check the battery capacity. •Check to see if the battery is inserted to the right poles.(+,-) •When the POWER LED is dark, change the battery. [Can not listen clean sound through I-POP ] •Check switch position (on/off) •Noise could be occurred by adjacent public broadcasting. In this case, please change the another frequency. •Check to see whether I-POP audio cable is connected with Music player properly. •If the cable is twisted, uncoil the cable. BKM Co.,Ltd Tel : +82-31-718-7020~1 FAX : +82-31-718-4021 www.i-bkm.com [email protected] Room 506, 5F Owners Tower, 16-5Sunnae-dong,Bundang-gu, Seongnam-si,Gyeonggi-do, KOREA PDF created with pdfFactory Pro trial version www.pdffactory.com

Power SectionFM Transmission Section External DC Input Power up FM Oscillation 7.6 MHz x-tal Ampli -fire Signal Input Antenna Battery DC 1.5V BP-10017F Block Diagram Frequency Selection PDF created with pdfFactory Pro trial version www.pdffactory.com

1 Mike Kuo From: James_Kwon Sent: February202004Friday 3:09 AM To: Mike Kuo Cc: Forest_Lee Subject: Re: BKM CO., LTD., FCC ID:RQVBP-10017F, AN04T3637 Importance: High RevisedTestReport. pdf RevisedManual.pdf Hi Mike, How is your business ? Several days passed after Forest have sent the updated test report on above project. My customer, BKM, is eagerly waiting your certificate in this week. Did you finish the evaluation ? Regards, ======================================================== James Kwon ( james_kwon ) Tel : 82-31-428-5740 Fax: 82-31-427-2371 Mobile : 82-11-9788-0485 SGS Testing Korea Co., Ltd. (www.sgstesting.co.kr) Add: 2F, 18-34, Sanbon-Dong, Gunpo-City, Kyunggi-Do, Korea ======================================================== Forest Lee Consumer To: Mike Kuo <[email protected]> Tel : (82-03) cc: "James_Kwon (E-mail)" 12.63.04.09 Subject: Re: FW: BKM CO., LTD., FCC ID:RQVBP-10017F, AN04T3637(Document link: James Kwon) 04-02-18 08:24 PM Dear Mike Please see the reply below your questions. Thank you Regards Forest (See attached file: RevisedTestReport.pdf)(See attached file: RevisedManual.pdf) Mike Kuo <[email protected]> To: "James_Kwon (E-mail)" <[email protected]>, "'[email protected]'" <[email protected]> 2004-02-17 08:40 cc: AM Subject: FW: BKM CO., LTD., FCC ID:RQVBP-10017F, AN04T3637 2 -----Original Message----- From: CERTADM Sent: Monday, February 16, 2004 3:39 PM To: Mike Kuo Subject: BKM CO., LTD., FCC ID:RQVBP-10017F, AN04T3637 Notice_content ------------- Question #1:FCC Docket 01-278, 95-19 and FCC 03-149 has been published in Federal Register on Dec. 09, 2003 with effective date of Jan. 08, 2004. All applications submitted after Jan.08 shall comply with ANSI C63.4:2001 procedures. In the test report, ANSI C63.4:1992 is used. Please confirm the tests were performed per ANSI C63.4:2001 and revised the test report to indicate the test procedure used. -Ans. : see the first page and 5th of the attached revised test report with ANSI C63.4-2001 Question #2: The radiated spurious emission was measured with average detector, Per 15.239(b) requirement, 15.35 limiting peak emission apply. Please provide radiated spurious emission with peak detector. -Ans. : Please see the 10th page of the revised test report Question #3: What is the frequency range investigated during radiated spurious emission tests ? -Ans. : 30MHz-1000MHz Question #4: Per ANSI C63.4 applied modulation requirement, when perform the 200kHz bandwidth tests and radiated spurious emission tests, what type of modulation was used ? Did proper audio signal apply from the MP3 player to the EUT ? -Ans. : FM and After adjusting volume and choosing some types of music with different bit, we chose worst case with nearly maximum volume. But the emission level is nearly not changed. It could be proper audio signal Question #5: The product specification as indicated in the user manual indicates the frequency range is from 88 - 108MHz but only 88.3-88.9 was investigated. Please provide revised user manual to match with fundamental frequencies tested. -Ans. : See the attached revised manual Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. 3 The information in this email and any attachments is confidential and intended solely for the use of the individual(s) to whom it is addressed or otherwise directed. If you are not a named addressee or otherwise an intended recipient you are requested to immediately notify the sender and to delete this email and all attachments from your system.

Report No. : F690501/LF-EMC000168 External Phontos l Front View l Rear View PDF created with pdfFactory Pro trial version www.pdffactory.com

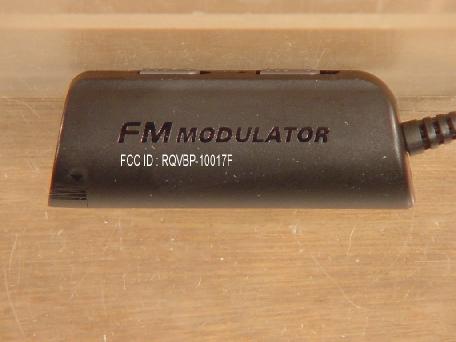

Report No. : F690501/LF-EMC000168 Lable Sample l Label PDF created with pdfFactory Pro trial version www.pdffactory.com

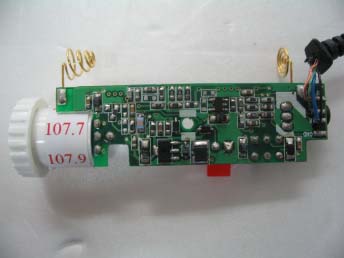

Report No. : F690501/LF-EMC000168 Internal Photos l Top View of Main Board l Bottom View of Main Board PDF created with pdfFactory Pro trial version www.pdffactory.com

BP-10017F : Theory of operation 1.Power Section The Power section is composed of 1)the external DC power supply 2) battery DC 1.5V source and power up part. 1] The external DC power supply When the external DC 12V is input, the DC power decreases by DC 5V through the regulated circuit and supplies DC 5V to each part. 2]The battery DC 1.5V source and power up part. When DC 1.5V is input from a battery, the DC power increases by DC 3V through power up circuit and supplies DC 3V to each part. 2. Signal input section The signal is input through the stereo audio cable. 3. FM transmission section FM transmission section includes 1)FM oscillation part and 2)amplifier part. The functions of each part are : 1] FM oscillation part FM oscillation part resonates crystal 7.6MHz and generates 19KHz ,FM transmission frequency, by PLL. 2]Amplifier part Amplifier part amplifies FM transmission frequency generated from FM oscillation part and deliveries it to antenna. 4. Antenna Antenna radiates FM transmission frequency delivered from the amplifier part and uses wire antenna. 5. Frequency selection part FM transmission frequency is selected by the frequency selection switch. PDF created with pdfFactory Pro trial version www.pdffactory.com

Report No. : F690501/LF-EMC000302 Page : 1 of 13 FCC COMPLIANCE REPORT Order No. : SKR-03-132/R Reference No. : F690501/LF-EMC000302 Applicant : BKM Co., Ltd. Address of Applicant : #506, Owners Tower, 16-5 Sunae-dong, Bundang-gu, Seongnam-city, Kyunggi-do, Korea Equipment Under Test (EUT) : Name : FM Modulator Brand Name : IPOP Model No. : BP-10017F FCC ID : RQVBP-10017F Standards : FCC Part 2 & Part 15, Subpart C ANSI C63.4:2001 Date of Receipt : 23 December 2003 Date of Test : 29 December 2003 Date of Issue : 10 January 2004 Test Result : PASS In the configuration tested, the EUT complied with the standards specified above. Remarks : This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report shall not be reproduced except in full, without the written approval of the laboratory. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Kew-Seung, Lim EMC DIV. Manager SGS KES CO., LTD. EMC Laboratory PDF created with pdfFactory Pro trial version www.pdffactory.com Report No. : F690501/LF-EMC000302 Page : 2 of 13 Contents 1. General Information 1.1 Manufacturer Information 4 1.2 General Description of EUT 4 1.3 Details of EUT 4 1.4 Description of Support Units 4 1.5 Cable List 5 1.6 System Configuration 5 1.7 Test Set-Up Configuration 5 1.8 Measurement Procedure 6 1.9 Standards Applicable for Testing 6 1.10 Summary of Results 6 2. Radio Disturbance 2.1 Test Results 7 2.2 Frequency Range 7 2.3 Limit Of Conducted And Radiated Emission 7 2.3.1 Limit Of Conducted Emission Of FCC Part 15, Subpart C 7 2.3.2 Limit Of Radiated Emission Of FCC Part 15, Subpart C 7 2.4 Test of Conducted Emission 8 2.4.1 Test Instruments 8 2.4.2 Test Site 8 2.4.3 Operating Environment 8 2.4.4 Measurement Data 8 2.5 Test of Radiated Emission 9 2.5.1 Test Instruments 9 2.5.2 Test Site 9 2.5.3 Operating Environment 9 2.5.4 Measurement Data 9 3.Photographs of Test 11 4.Measured Bandwith 13 PDF created with pdfFactory Pro trial version www.pdffactory.com Report No. : F690501/LF-EMC000302 Page : 3 of 13 1. General Information 1.1 Manufacturer Information Manufacturer : BKM Co., Ltd. Address : #506, Owners Tower, 16-5 Sunae-dong, Bundang-gu, Seongnam-city, Kyunggi-do, Korea 1.2 General Description of EUT Name : FM Modulator Brand Name : IPOP Model No. : BP-10017F FCC ID : RQVBP-10017F 1.3 Details of EUT Fundamental Frequency : 88.3MHz, 88.7MHz, 88.9MHz Tested Power Supply : DC 12V Port : DC IN Description of Operating : Receiving MP3 Audio Signal from MP3 Player and transmitting it the FM Receiver Modifications to the EUT : None 1.4 Description of Support Units Product Model No. Serial No. Manufacturer MP3 Player SM-320VH1 N/A PINE TECH DC Power Supply 3003 9401892 Protek FM Receiver RX-DS15 CN4JA11609 Panasonic PDF created with pdfFactory Pro trial version www.pdffactory.com Report No. : F690501/LF-EMC000302 Page : 4 of 13 1.5 Cable List Start END Cable Spec Name I/O Port Name I/O Port Length Shield EUT DC DC Power Supply DC Out 1.2 Unshielded LINE IN MP3 Player Line Out 1.2 Unshielded 1.6 System Configuration Description Model Serial No. Manufacturer Main Board N/A N/A N/A 1.7 Test Set-Up Configuration FM Receiver MP3 Player DC Power Supply EUT PDF created with pdfFactory Pro trial version www.pdffactory.com Report No. : F690501/LF-EMC000302 Page : 5 of 13 1.8 Measurment Procedure Conducted Emission Testing was performed according ANSI C63.4:2001 in a shielded room with peripherals placed on a table, 0.8m high over a metal floor. It was located more than required distance away from the shielded room wall. Radiated Emission Testing was performed according to ANSI C63.4:2001 at the open field test site. The EUT was placed in a 0.8m high table along with the peripherals. The turn table was separated from the antenna distance 3 meters. Cables were placed in a position to produce maximum emissions as determined by experimentation, and operation mode was selected for maximum. The frequencies and amplitudes of maximum emission were measured at varying azimuths, antenna heights and antenna polarities. Reported are maximized emission levels. 1.9 Standards Applicable for Testing Table of tests to be carried out under FCC Part 15, Subpart C Test Standards Status FCC Part 15.209 & 15.239 Applicable Deviation from Standard No Deviation 1.10 Summary of Results The data collected shows that Model BP-10017F complies with Part 15.209 and 15.239 of FCC Technical Rules. The highest emission level observed was at 88.8MHz radiated emission with a margin of 8.88dB. Emissions from the intentional radiator is confined within a band 200 kHz wide centered on the operating frequency. The 200kHz band lies wholly within the frequency range of 88-108 MHz The field strength of any emissions within the permitted 200kHz band is not Exceed 200vV/m(48dBuV) at 3 meters. PDF created with pdfFactory Pro trial version www.pdffactory.com Report No. : F690501/LF-EMC000302 Page : 6 of 13 Radio Disturbance 2.1 Test Results Results Conducted Emission N/A Radiated Emission PASS Not applied because it is powered from an automobile 12VDC System. 2.2 Frequency Range Conducted Emission : 450 kHz - 30 MHz Radiated Emission : 0kHz – 1000 MHz 2.3 Limits Of Radiated Emission 2.3.1 Limit Of Radiated Emission Of FCC Part 15.109 Class B Class A (at 10m)* Class B (at 3m)* FREQUENCY (MHz) uV/m(dBuV/m) uV/m(dBuV/m) 30 - 88 90(39) 100(40) 88 - 216 150(43.5) 150(43.5) 216 - 960 210(46.5) 200(46) Above 960 300(49.0) 500(54) 2.3.2 Limit Of Radiated Emission Of FCC Part 15.209 Field Strength* Measurement Distance FREQUENCY (MHz) Microvolts/Meter Meters 0.009 – 0.490 2400/F(kHz) 300 0.490 – 1.705 2400/F(kHz) 3…
