Page 1 of 2 USER MANUA L APPLICATION Restaurants Hotels Homes Supermarkets Offices Stor es PRECAUTIONS 1. Never use on a source voltag e that fluctuates 6% above or 10 % below the lamp’s rated voltage. 2. Never di sassembl e or modify – any changes could void the user ’ s authority to operate thi s device. 3. Do not hold the glas s tube while installing. 4. Not for use in total ly enclosed fixtures. 5. Risk of electric shock- do n ot use where directly exposed to water. 6. This device is not intended for use with emergency exit fixt ures or emergenc y exit lights. 7. This p roduct m ay cause interference to r adio equipment a nd s hould n ot be i nstall ed n ear m aritime safety communications equipment or other critical navigation or communicatio n equipment operating between 0.45-30MHz 8. To prevent burns,do not touc h the bulb during operation or i mmediately after switching off. 9. Not for use with dimmers,ele ctronic timer or photocell devic es or occupancy sensor. 10. Never use in circumstance su ch as low or high temperature a nd high moisture. 11. Unsuitable for applications where the lamp must be turned o n and off frequently. The device complies with Part 18 of the FCC rules. FCC ID RRHBEAUTYLIGHT Page 2 of 2 FEATURES Long life Soft and brisk light Wide voltage range 1/4 Power consumption compared with standard bulb 1/4 Heat r adiati on compared with standard bulb FCC ID RRHBEAUTYLIGHT

Page 1 of 1 LETTER OF AGENCY I9M AN OFFICER OF KWANGZHOU BEAUTY SHADOW LAMP EQUIPMENT CO., LTD. HEREBY AUTHORIZE INTERTEK. TEST1NG SERVICES TO ACT ON OUR BEHALF IN FRONT OF THE FEDERAL. COMMUNICATON COMM1SSION WITH RESPECT TO ALL MATTERS RELATING TO CERTIFICATION OF EQUIPMENT UNDER PAKT 15 AND PART 18 OF THE FCC RIJLES UNTIL FURTHER NOTICE. I FURTHER CERTIFY THAT NO PARTY(AS DEF1NEDIN § 11.2002(b) OF CFR 47,1992) TO THIS APPL1CATION,INCLUDING MYSELF, IS SUBJECTED TO A DENIAL OF FEDERAL BENEFITS, PURSUANT TO SECTION 5301 OF THE ANTI-DRUG ABUSE ACT OF 1988, U.S.C., 853(a) DATED 11th of December, 2003 BY ZuLing Ye TITLE QA Manager FCC ID: FCC ID RRHBEAUTYLIGHT

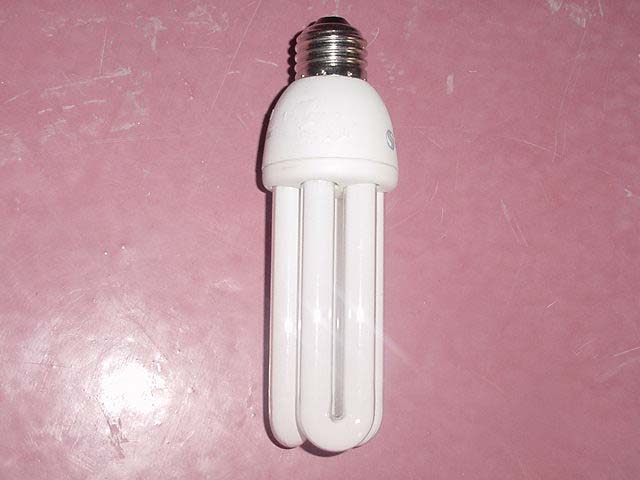

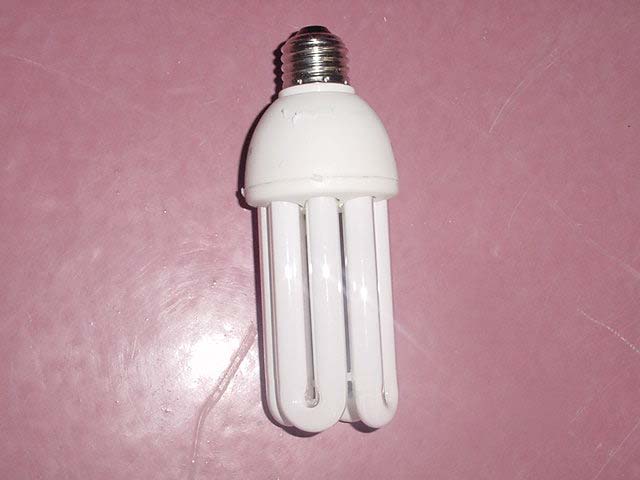

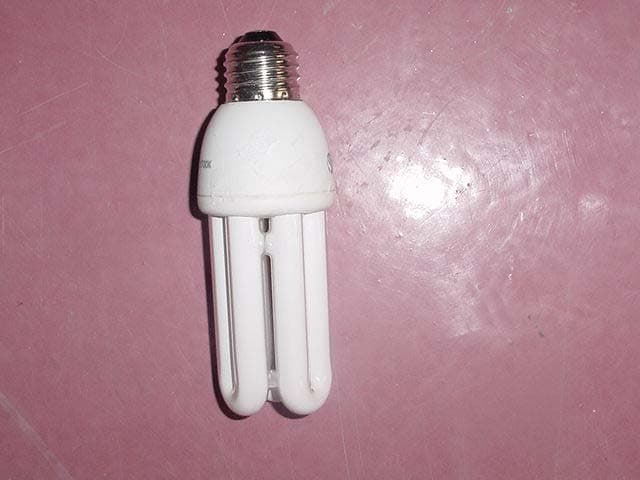

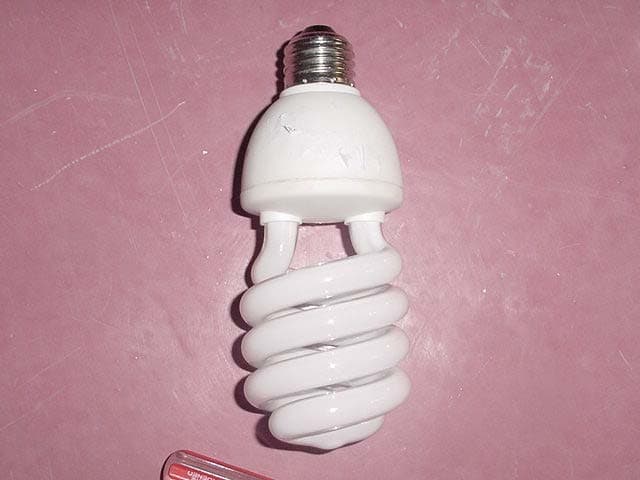

Page 1 of 2 The external photo of the models 4UELM-00, SELM-00, 3UELM-08-15&3UELM-08-20 The external photo of the model 4UELM-00 The external photo of the model SELM-00 FCC ID RRHBEAUTYLIGHT Page 2 of 2 The external photo of the model 3UELM-08-15 The external photo of the model 3UELM-08-20 FCC ID RRHBEAUTYLIGHT

Page 1 of 1 FCC ID RRHBEAUTYLIGHT The Labels for the four models SUNSHINE 4UELM-00 28W 120V 60Hz 0.4A FCC ID: RRHBEAUTYLIGHT SUNSHINE 3UELM-08-15 15W 120V 60Hz 0.25A FCC ID: : RRHBEAUTYLIGHT SUNSHINE SELM-00 28W 120V 60Hz 0.4A FCC ID: : RRHBEAUTYLIGHT SUNSHINE 3UELM-08-20 20W 120V 60Hz 0.28A FCC ID: :RRHBEAUTYLIGHT The label for this location

Page 1 of 1 Technical Descripti on of Block Diagram When operation， normal voltage 120V is changed into DC voltage about 160V through Bridge Rectifier. DC voltage is added to trigger circuit. Once DB3 is triggered, the stored charges in the capacitor discharge in the base of transi stor (below) to cause base current and drive transistor to open. With the turn of ope ration of the two transistors, it separately forms high frequency vibrant circuit combined with L, C circuit, and further forms high frequency voltage between the f ilament terminals and lights the tube. After the tube is operated normally, the circu it loses the vibration; L only takes the role of keep down the current. FCC ID RRHBEAUTYLIGHT

Page 1 of 12 Schematics Diagram of t h e model 4UELM-00 FCC ID RRHBEAUTYLIGHT Page 2 of 12 FCC ID RRHBEAUTYLIGHT Page 3 of 12 FCC ID RRHBEAUTYLIGHT Page 4 of 12 Schematics Diagram of t h e model SELM-00 FCC ID RRHBEAUTYLIGHT Page 5 of 12 FCC ID RRHBEAUTYLIGHT Page 6 of 12 FCC ID RRHBEAUTYLIGHT Page 7 of 12 Schematics Diagram of t h e model 3UELM-08- 20 3 U ELM-0 8-2 0 20W / 1 20V Ci i D i FCC ID RRHBEAUTYLIGHT Page 8 of 12 3 U ELM-0 8-2 0 20W / 1 20V FCC ID RRHBEAUTYLIGHT Page 9 of 12 FCC ID RRHBEAUTYLIGHT Page 10 of 12 Schematics Diagram of t h e model 3UELM-08- 15 3 U ELM-0 8-1 5 15W / 1 20V Ci i D i FCC ID RRHBEAUTYLIGHT Page 1 1 of 12 3 U ELM-0 8-1 5 15W / 1 20V FCC ID RRHBEAUTYLIGHT Page 12 of 12 FCC ID RRHBEAUTYLIGHT

Report no: JSH0310319-001 Page 1 of 11 Application for FCC Identifier On Behalf of KWANGZHOU BEAUTY SHADOW LAMP EQUIPMENT CO., LTD. (FCC ID RRHBEAUTYLIGHT) Summary The equipment comply with the requirements according to the following standard(s): 47CFR Part 18: Industrial, Scientific, and Medical Equipment FCC/OET MP-5 (1986): FCC Methods of Measurements of Radio Noise Emissions From Industrial, Scientific, and Medical Equipment ANSI C63.4 (2003): American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz. Description The appliances were tested by QuieTek Corporation and found compliance with relevant requirements described in FCC Part 18 RF Lighting Device. Test results are contained in this test report and Intertek Testing Services ETL SEMKO Shanghai Limited is assumed full responsibility for the accuracy and completeness of these measurements. The test report applies to tested samples only and shall not be reproduced in part without written approval of Intertek Testing Services ETL SEMKO Shanghai Limited. Date of Test: October 30, 2003 Date of Issue: February 19, 2004 Prepared by: Report Approved by: Tino Pan (Projector Engineer) Steve Li (EMC Manager) FCC ID RRHBEAUTYLIGHT Report no: JSH0310319-001 Page 2 of 11 Description of Test Facility Name of Firm : QuieTek Corporation. Site Location : 716 Yi Shan Road Shanghai City, China Name of contact : Mr. Hall (first name) Wang (last name) Phone : 86-21-64700066EXT201 Fax : 86-21-64514252 E-mail address : [email protected] Registeration Code : 142171 FCC ID RRHBEAUTYLIGHT Report no: JSH0310319-001 Page 3 of 11 CONTENTS Summary........................................................................................................................................1 Description.....................................................................................................................................1 Description of Test Facility...........................................................................................................2 1.Applicant Information...............................................................................................................4 2.Information of Equipment Under Test (EUT).........................................................................4 2.1 Identification of the EUT .......................................................................................................4 2.2 Additional information about the EUT..................................................................................4 2.3 Peripheral equipment............................................................................................................5 3. Conducted Powerline Measurement........................................................................................6 3.1 Conduction Limit...................................................................................................................6 3.2 Instruments List......................................................................................................................6 3.3 Test Setup...............................................................................................................................7 3.4 Test Configuration.................................................................................................................7 3.5 Test Procedure.......................................................................................................................8 3.6 Test Results............................................................................................................................8 3.7 Measurement Uncertainty....................................................................................................10 4. Conducted Powerline Calculation..........................................................................................11 FCC ID RRHBEAUTYLIGHT Report no: JSH0310319-001 Page 4 of 11 1.Applicant Information Applicant : KWANGZHOU BEAUTY SHADOW LAMP EQUIPMENT CO., LTD. No.2 Building 1, Xin Shi Road, Xin Ke Village, Xin Shi Town, Bai Yun District, Guangzhou City, P.R.China Manufacturer: KWANGZHOU BEAUTY SHADOW LAMP EQUIPMENT CO., LTD. No.2 Building 1, Xin Shi Road, Xin Ke Village, Xin Shi Town, Bai Yun District, Guangzhou City, P.R.China Country of origin: P.R. China Name of contact: Mr. Ye (first name) Zuling (last name) Telephone: 86-20-86097831 Telefax: 86-20-86097913 2.Information of Equipment Under Test (EUT) 2.1 Identification of the EUT Equipment: Compact Fluorescent Lamp Type of EUT: ; Production … Pre-product … Pro-type Type/model: Serial number: 031008-20-008, 031008-20-006, 031008-20-010, 031008-20-009 Date of sample receipt 2003-10-29 Date of test 2003-10-30 Rating: 120V~, 60Hz 28W for 4UELM-00, 28W for SELM-00 15W for 3UELM-08-15, 20W for 3UELM-08-20 2.2 Additional information about the EUT The family of product contains 4 models, which were described above. They are the same in schematic diagram, difference between them are their appearance and rating. Internal clock frequencies or other used frequencies: None The tests have been performed on the EUT provided with the following modification: None FCC ID RRHBEAUTYLIGHT Report no: JSH0310319-001 Page 5 of 11 2.3 Peripheral equipment None FCC ID RRHBEAUTYLIGHT Report no: JSH0310319-001 Page 6 of 11 3. Conducted Powerline Measurement 3.1 Conduction Limit For Consumer Equipment Maximum RF line voltage measured with a 50uH/50 ohm LISN Frequency (MHz) (μV) dB(μV) 0.45 – 2.51 250 48 2.51 – 3.0 3000 69.5 3.0 – 30 250 48 RF Line Voltage dB(μV) = 20 lg RF Line Voltage (μV) 3.2 Instruments List The following instruments were used during the measurement of RF voltage conducted back into the power lines. Item Equipment Manu. Type Serials no. Last Cal. Cal. Interval 1 EMI Test Receiver Rohde & Schwarz ESCS30 100070 Aug 28, 03 1 Year 2 A.M.N Roh…

Text truncated - open the document above for the full version.

Page 1 of 8 FCC ID RRHBEAUTYLIGHT The waveform of the conducted power line The waveform for the model 4UELM-00 Page 2 of 8 FCC ID RRHBEAUTYLIGHT Page 3 of 8 FCC ID RRHBEAUTYLIGHT The waveform for the model SELM-00 Page 4 of 8 FCC ID RRHBEAUTYLIGHT Page 5 of 8 FCC ID RRHBEAUTYLIGHT The waveform for the model 3UELM-08-15 Page 6 of 8 FCC ID RRHBEAUTYLIGHT Page 7 of 8 FCC ID RRHBEAUTYLIGHT The waveform for the model 3UELM-08-20 Page 8 of 8 FCC ID RRHBEAUTYLIGHT

Page 1 of 1 The Test Setup For Conducted Power Line FCC ID RRHBEAUTYLIGHT
