RRIMF130RXFart Machine

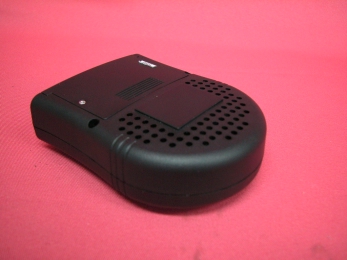

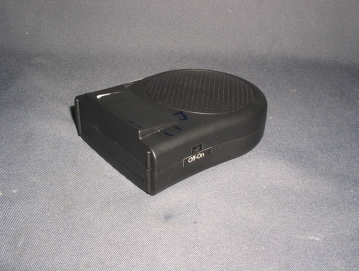

FCC ID: RRIMF130RX Ophoto1 Ophoto2 FCC ID: RRIMF130RX Ophoto3

FCC ID: RRIMF130RX Iphoto1 Iphoto2 FCC ID: RRIMF130RX Iphoto3 Iphoto4 FCC ID: RRIMF130RX Iphoto5 Iphoto6

FCC ID: RRIMF130RX Technical Description : The brief circuit description is listed as follows : - Q2 and associated circuit act as Super-regenerative Receiver. - IC1A, IC1B, IC1C, IC1D and associated circuit act as RF Signal Detector. - COB1 and associated circuit act as Sound IC. - Q3 and associated circuit act as Amplifier. Antenna Used : A permanent wire antenna has been used.

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited • The evaluation data of the report will be kept for 3 years from the date of issuance. FCC ID : RRIMF130RX Shenzhen Creative Ind. Co., Ltd. Application For Certification (FCC ID: RRIMF130RX) Superregenerative Receiver Sample Description : Radio Controller (MF130), Model : MF130 0320698 WN/at January 27, 2004 INTERTEK TESTING SERVICES FCC ID: RRIMF130RX i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: RRIMF130RX ii MEASUREMENT/TECHNICAL REPORT Shenzhen Creative Ind. Co., Ltd. - MODEL: MF130 FCC ID: RRIMF130RX January 27, 2004 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Superregenerative Receiver (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart B for intentional radiator Report prepared by: Wilbur Ng Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone: 852-2173-8502 Fax: 852-2742-9149 INTERTEK TESTING SERVICES FCC ID: RRIMF130RX iii Table of Contents 1.0 General Description................................................................................................. 2 1.1 Product Description............................................................................................... 2 1.2 Related Submittal(s) Grants .................................................................................. 2 1.3 Test Methodology ................................................................................................. 3 1.4 Test Facility .......................................................................................................... 3 2.0 System Test Configuration ...................................................................................... 5 2.1 Justification........................................................................................................... 5 2.2 EUT Exercising Software ...................................................................................... 5 2.3 Support Equipment List and Description................................................................ 5 2.4 Equipment Modification......................................................................................... 6 2.5 Special Accessories.............................................................................................. 6 3.0 Emission Results..................................................................................................... 8 3.1 Field Strength Calculation ..................................................................................... 9 3.2 Radiated Emission Configuration Photograph ..................................................... 10 3.3 Radiated Emission Data...................................................................................... 11 4.0 Equipment Photographs ........................................................................................ 14 5.0 Product Labelling................................................................................................... 16 6.0 Technical Specifications........................................................................................ 18 7.0 Instruction Manual ................................................................................................. 20 8.0 Miscellaneous Information.................................................................................... 22 8.1 Stabilization Waveform........................................................................................ 23 8.2 Emissions Test Procedures................................................................................. 24 8.2 Emissions Test Procedures (cont'd) .................................................................... 25 INTERTEK TESTING SERVICES FCC ID: RRIMF130RX iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.pdf Test Report Stabilization Waveform superreg.pdf External Photo External Photo external photos.pdf Internal Photo Internal Photo internal photos.pdf Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: RRIMF130RX 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: RRIMF130RX 2 1.0 General Description 1.1 Product Description The equipment under test (EUT) is a receiver for a Fart Machine operating at 318 MHz. The EUT is powered by four AAA batteries. The EUT has a switch which is used to power on or off the EUT. When the EUT receivers a signal from the corresponding transmitter, it will generate a sound effect. The brief circuit description is saved with filename: descri.pdf 1.2 Related Submittal(s) Grants This is a single application for certification of a receiver. The transmitter for this receiver is authorized by Certification procedure with FCC ID : RRIMF130TX. INTERTEK TESTING SERVICES FCC ID: RRIMF130RX 3 1.3 Test Methodology The radiated emission measurements were performed accordi…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Front View Back View
