RRJ-Q10SMART TV BOX

HiMedia Technology Limited
SMART TV BOX - FCC ID RRJ-Q10 - HiMedia Technology Limited
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Feb 26, 2013
Application Purpose
Original Equipment
Date of Application
Feb 26, 2013
Equipment Note
SMART TV BOX
Frequency Range
2412.00000000 - 2462.00000000
Company
HiMedia Technology Limited
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the followingmeasures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

Cover Letter(s)

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 Shenzhen HiMedia Technology Limited 2013-2-19 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, ___ __ Shenzhen HiMedia Technology Limited.____hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (SMART TV BOX,Model: Q10 , FCC ID: RRJ-Q10) We affirm that between SIEMIC and ___ __ Shenzhen HiMedia Technology Limited._____, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title : Xu Gangxiong / Engineer Contact information / address : Room B302,Zondy Cyber,Cyber-tech Zone,Keyuan Road(South),Nanshan District,Shenzhen,China

Cover Letter(s)

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Shenzhen HiMedia Technology Limited 2013-2-19 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: RRJ-Q10 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title : Xu Gangxiong / Engineer Contact information / address : Room B302,Zondy Cyber,Cyber-tech Zone,Keyuan Road(South),Nanshan District,Shenzhen,China

Cover Letter(s)

Shenzhen HiMedia Technology Limited Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2013-2-21 SUBJECT: FCC Application for ( FCCID: RRJ-Q10) To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite device. We understand that devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm Select the "accredited" option to search for FCC recognized accredited test firms. Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to test for the DoC procedure. Regards, Signatory Signature Client’s name / title : Xu Gangxiong / Engineer Contact information / address : Room B302,Zondy Cyber,Cyber-tech Zone,Keyuan Road(South),Nanshan District,Shenzhen,China

External Photos

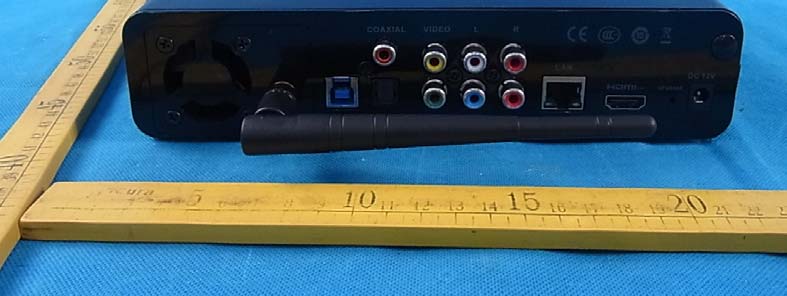

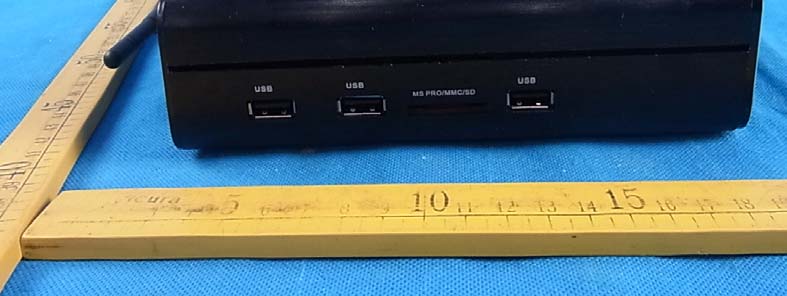

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8

Internal Photos

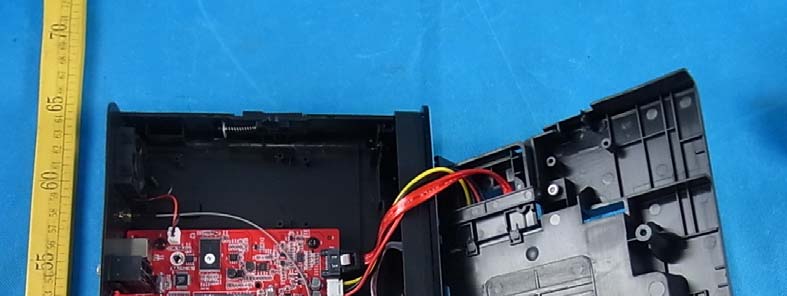

Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16 Photo 17 Photo 18 Photo 19 ANT

RF Exposure Info

RF EXPOSURE TEST Applied procedures / limit These devices are not exempted from compliance does not exceed the Commission’s RF exposure guidelines.Unless a device operates at substantially low power levels,with a low gain antenna(s),supporting information is generally needed to establish the various potential operating configurations and exposure conditions of a transmitter and its antenna(s) in order to determine compliance with the RF exposure guidelines. In order to demonstrate compliance with MPE requirement(see Section 2.1091),the following information is typically needed: Calculation that estimates the minimum separation distance(20 cm or more)between an antenna and persons required to satisfy power density limits defined for free space. Antenna installation and device operating instructions for installers(professional/unskilled users),and the parties responsible for ensuring compliance with the RF exposure requirement Any caution statements and/or warming labels that are necessary in order to comply with the exposure limits Any other RF exposure related issues that may affect MPE compliance. FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency(RF) radiation as specified in 1.1307(b). (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density MPE CALCULATION METHOD Calculation Method of RF Safety Distance: P :power input to the antenna in Mw EIRP :Equivalent(effective) isotropic radiated power. S :power density mW/ cm 2 G ;numeric gain of antenna relative to isotropic radiator R :distance to centre of radiation in cm FCC radio frequency exposure limits may be exceeded at distances closer than r cm from the antenna of this device EIRP=10 ( Antenna Gain+Peak Output Power/10) Note: 1. s=1.0 mW /cm 2 for limits for General Population/Uncontrolled Exposures. 2. The time averaged power over 30 minutes will be equaled Output Power. 3. The Power Density at a distance of 20cm calculated from the formula is far below the limit of 1MW/ cm 2 TEST RESULTS EUT: SMART TV BOX Model Name : Q10 Temperature: 25 °C Relative Humidity: 60% Pressure: 1012 hPa Test Voltage : DC 12V from adapter AC 120V/60Hz Test Mode : TX Mode NOTE: (For mobile or fixed location transmitters, the maximum power density is 1.0mW/cm 2 even if the calculation indicates that the power density would be larger) Max.Averag e output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm 2 ) Limit of Power Density (S) (mW/ cm 2 ) Result 15.88 38.72 1.59(2.0dBi) 0.0122 1 Pass

Test Report

FCC RADIO TEST REPORT FCC ID: RRJ-Q10 Product: SMART TV BOX Trade Name: N/A Model Name: Q10 Serial Model: N/A Report No.: NTEK- 2013NT0125147F Prepared for Shenzhen HiMedia Technology Limited Room B302, Zondy Cyber, Cyber-tech Zone, Keyuan Road(South), Nanshan District, Shenzhen, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 90 Report No.: NTEK-2013NT0125147F TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen HiMedia Technology Limited Address ................................. : Room B302, Zondy Cyber, Cyber-tech Zone, Keyuan Road(South), Nanshan District, Shenzhen, China Manufacture's Name ............ : Shenzhen HiMedia Technology Limited Address ................................. : Room B302, Zondy Cyber, Cyber-tech Zone, Keyuan Road(South), Nanshan District, Shenzhen, China Product description Product name ........................... : SMART TV BOX Model and/or type reference : Q10 Serial Model .............................. : N/A Standards ............................. : FCC Part15.247 Test procedure ..............................ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 14 Jan. 2013 ~30 Jan. 2013 Date of Issue ........................................... : 31 Jan. 2013 Test Result ............................................... : Pass Testing Engineer : (Apple Huang) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) Page 3 of 90 Report No.: NTEK-2013NT0125147F Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 19 3.2.1 RADIATED EMISSION LIMITS 19 3.2.2 TEST PROCEDURE 20 3.2.3 DEVIATION FROM TEST STANDARD 20 3.2.4 TEST SETUP 21 3.2.5 EUT OPERATING CONDITIONS 22 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 23 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 24 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 28 4 . POWER SPECTRAL DENSITY TEST 68 4.1 APPLIED PROCEDURES / LIMIT 68 4.1.1 TEST PROCEDURE 68 4.1.2 DEVIATION FROM STANDARD 68 4.1.3 TEST SETUP 68 4.1.4 EUT OPERATION CONDITIONS 68 4.1.5 TEST RESULTS 69 5 . BANDWIDTH TEST 77 5.1 APPLIED PROCEDURES / LIMIT 77 5.1.1 TEST PROCEDURE 77 Page 4 of 90 Report No.: NTEK-2013NT0125147F Table of Contents Page 5.1.2 DEVIATION FROM STANDARD 77 5.1.3 TEST SETUP 77 5.1.4 EUT OPERATION CONDITIONS 77 5.1.5 TEST RESULTS 78 6 . PEAK OUTPUT POWER TEST 86 6.1 APPLIED PROCEDURES / LIMIT 86 6.1.1 TEST PROCEDURE 86 6.1.2 DEVIATION FROM STANDARD 86 6.1.3 TEST SETUP 86 6.1.4 EUT OPERATION CONDITIONS 86 6.1.5 TEST RESULTS 87 7 . ANTENNA REQUIREMENT 88 7.1 STANDARD REQUIREMENT 88 7.2 EUT ANTENNA 88 8 . EUT TEST PHOTO 89 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 90 Report No.: NTEK-2013NT0125147F 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 90 Report No.: NTEK-2013NT0125147F 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add.:1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U,where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2,providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 90 Report No.: NTEK-2013NT0125147F 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment SMART TV BOX Trade Name N/A Model Name Q10 Serial Model N/A Model Difference N/A Product Description The EUT is a SMART TV BOX Operation Frequency: 802.11b/g/n:2412~2462 MHz Modulation Type: CCK/OFDM/DBPSK/DAPSK Bit Rate of Transmitter 802.11b:11/5.5/2/1 Mbps 802.11g:54/48/36/24/18/12/9/6 Mbps 802.11n(20/40MHz):150/144.44/130 /117/115.56/104/86.67/78/52/6.5 Mbps Number Of Channel 802.11b/g/n20: 11CH 802.11n40: 7CH Antenna Designation: Please see Note 3. Output Power(Conducted): 802.11b: 15.88 dBm (Max.) 802.11g: 14.79 dBm (Max.) 802.11n20: 13.76 dBm (Max.) 802.11n40: 12.87 dBm (Max.) Antenna Gain (dBi) 2.0dbi Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. Mo…

Text truncated - open the document above for the full version.

Test Setup Photos

Page 89 of 90 Report No.: NTEK-2013NT0125147F 8. EUT TEST PHOTO Radiated Measurement Photos Page 90 of 90 Report No.: NTEK-2013NT0125147F Conducted Measurement Photos

Contact Information

Applicant

Xu Gangxiong
[email protected]+86 13480847453Fax: +86-755-26062646

Test Firm

NTEK Testing Technology Co., Ltd.Wetow Huang
[email protected]0755-29453021Fax: 0755-27667047

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz73.90 mW
Confidentiality
Long Term
Grant Notes
Power listed is the conducted output power. Device contains 20 and 40 MHz signal bandwidth. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
