RRL-HANDTI-GAudience Interaction (AI) Wireless System

© 2004, Audience Interaction, Inc. All rights reserved. All brand names and product names are trademarks or registered trademarks of their respective holders. Preliminary Draft Version (01/04/04) System Installation and Operation Manual A I Audience Interaction Inc. A I Audience Interaction Inc. 207 North 44th Street Cody, WY 82414 www.audienceinteraction.com [email protected] Phone: (307) 527-9357 Fax: (707) 222-1551 AI System Manual (Jan-04) Installation and Operation ii TABLE OF CONTENTS FCC NOTICE ................................................................................................................................iii 1. INTRODUCTION ..................................................................................................................... 1 1.1 Packing List...................................................................................................................... 2 1.2 Quick Start Checklist........................................................................................................ 3 2. SYSTEM OVERVIEW .............................................................................................................. 4 2.1 Handsets .......................................................................................................................... 6 2.2 Base Stations ................................................................................................................... 7 3. THEORY OF OPERATION ...................................................................................................... 9 4. SYSTEM CABLING ............................................................................................................... 11 5. AI SOFTWARE ...................................................................................................................... 12 5.1 Required Operating System Environment...................................................................... 12 5.2 USB Drivers ................................................................................................................... 12 6. SYSTEM OPERATION .......................................................................................................... 16 6.1 Audience Response Software........................................................................................ 16 6.2 Normal AI System Operation ......................................................................................... 19 6.3 System Testing .............................................................................................................. 19 7. TROUBLESHOOTING ........................................................................................................... 20 7.1 Basic Methodology.........................................................................................................20 7.2 Sample Configuration..................................................................................................... 21 7.3 Identifying Problem Scope ............................................................................................. 22 7.3.1 Individual Handset Problems ............................................................................... 22 7.3.2 Communication Channel Problems...................................................................... 23 7.3.3 Problem Areas in the Room ................................................................................. 24 7.3.4 Room-Level Problems.......................................................................................... 24 7.4 Handset Repair .............................................................................................................. 25 7.5 Base Station Repair .......................................................................................................28 AI System Manual (Jan-04) Installation and Operation iii FCC NOTICE NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference; (2) this device must accept any interference received including interference that may cause undesired operations. Modification Warning Changes or modifications made to this equipment not expressly approved by the manufacturer may void the user's authority to use the equipment. © 2004, Audience Interaction, Inc. All rights reserved. All brand names and product names are trademarks or registered trademarks of their respective holders. 1. INTRODUCTION The Audience Interaction wireless system allows you to implement audience interaction technology for meetings, delegate voting, strategic planning, training, customer surveys, focus groups, games shows and more. AI system hardware, Handsets and Base Station(s), allow audience members to register their responses with your host computer running third-party audience response software. An AI system is Fleetwood compatible at the interface of the AI system with the host computer. Although AI Handsets communicate with an AI Base Station using a proprietary protocol, the AI system communicates with the host computer using the Fleetwood Standard Reply® protocol. Therefore, your third- party audience response software can be configured for an AI system as it would be for Fleetwood hardware. This manual covers the installation and operation of an AI system including the following information: • System Overview — outlines major system components • Theory of Operation — describes the vote collection process and interface with a user-supplied host computer running third-party audience response software • System Cabling — includes a cabling diagram for a USB Base Station • AI Software —outlines the procedure for installing the drivers required with a USB Base Station • System Operation — describes procedures for configuring third-party audience response software and normal system performance • Troubleshooting — outlines procedures for troublesho…

Text truncated - open the document above for the full version.

HandTI Block Diagram 20 MHz TRF 6901 RF input---> mixer ---> IF Filter 10.7 MHz RFPA output FM Discriminator 10.7 MHz. Reference Data Out Oscillator 28.8 kbps Input Data In Serial Commands Si gnal Strength Baseband Processor PIC16LF873A Keypad: 3 columns by 4 rows. Piezo- electric Buzzer Battery, 2xAA alkaline dry cell. 3.6864 MHz RF: 903-927 MHz. -6 dBm max. SerTI Block Diagram 20 MHz TRF 6901 RF input---> mixer ---> IF Filter 10.7 MHz RFPA output FM Discriminator 10.7 MHz. Reference Data Out Oscillator 28.8 kbps Input Data In Serial Commands Si gnal Strength Baseband Processor PIC16LF873A I2C interface, 57.6 kbps Piezo- electric Buzzer 3.3VDC input 3.6864 MHz RF: 903-927 MHz. -6 dBm max. SerTI Processor PIC18F252 Status LED's 3.6864 MHz USB Interface IC FTDI FT232AM 9600 baud USB +5V input USB Data 12 MHz 6.000 MHz To Host Computer via standard USB cable.

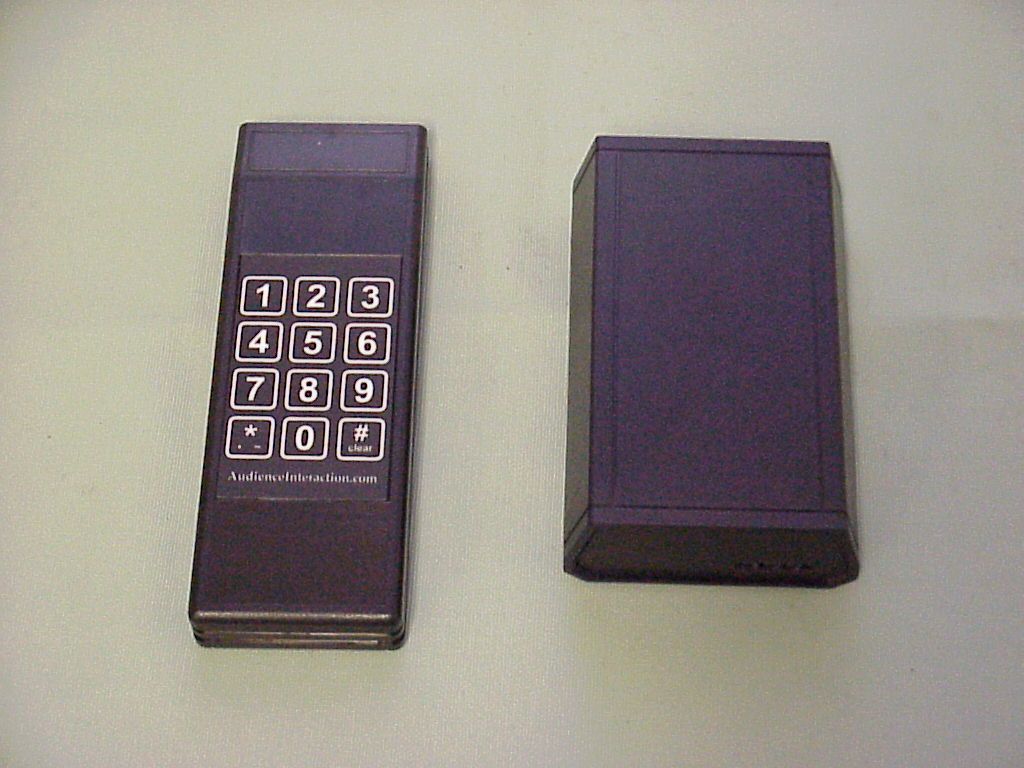

January 5, 2004 Federal Communications Commission Equipment Approval Services Post Office Box 358315 Pittsburgh, PA 15251-5315 To Whom It May Concern: The following submittal is to apply for equipment certification for the Audience Interaction (AI) Wireless System. Garwood Laboratories, Inc. will be submitting this package on behalf of the applicant, IRIS Interactive Horizons, Inc. A letter authorizing Garwood Laboratories as an agent for IRIS Inc. is available upon request. The Audience Interaction Wireless System consists of two components, the AI Base Station and the AI Handset. Both units utilize the same transceiver circuitry. Testing to the requirements was performed on both units. Regards, Arnie Tapia EMC Engineer Garwood Laboratories, Inc

207 N. 44 th Street ♦ Cody, WY 82414 Phone (307) 527-9357 ♦ Fax (707) 222-1551 November 3, 2003 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern, This letter is to comply with Section 0.457(d)(2)(i) pertaining to confidential material. IRIS Interactive Horizons, Inc. would like the following documents regarding this submission to be kept confidential. 1. Document "HandTI Schematics.doc" 2. Document "SerTI Schematics.doc" The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Richard White President IRIS Interactive Horizons , Inc

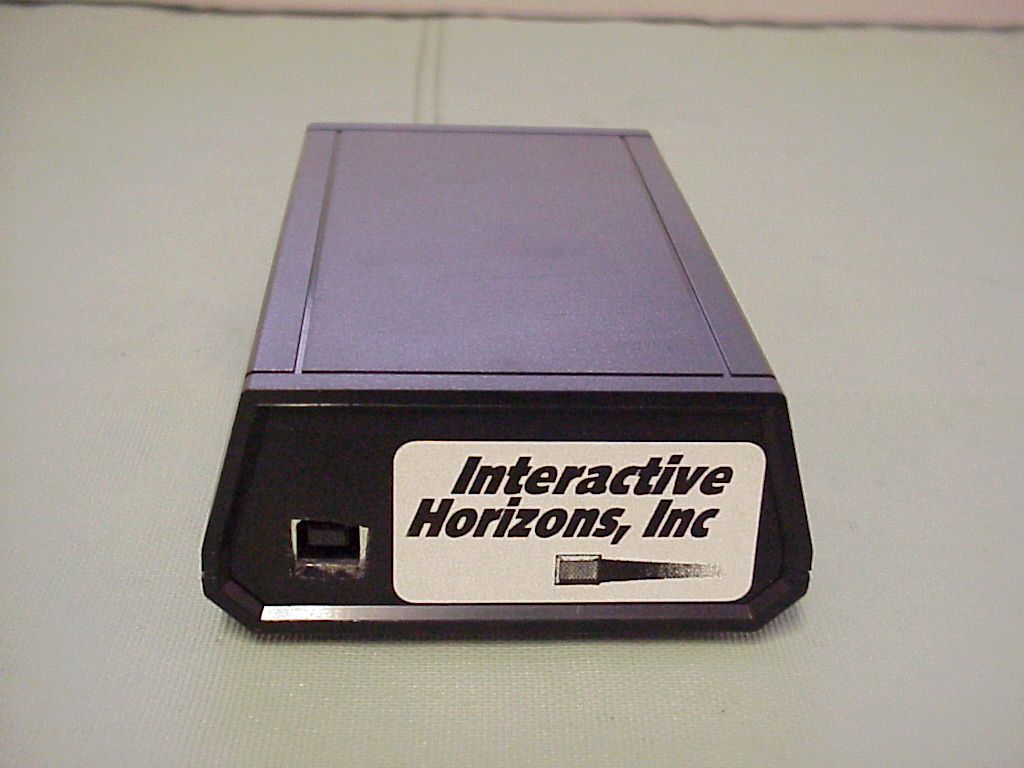

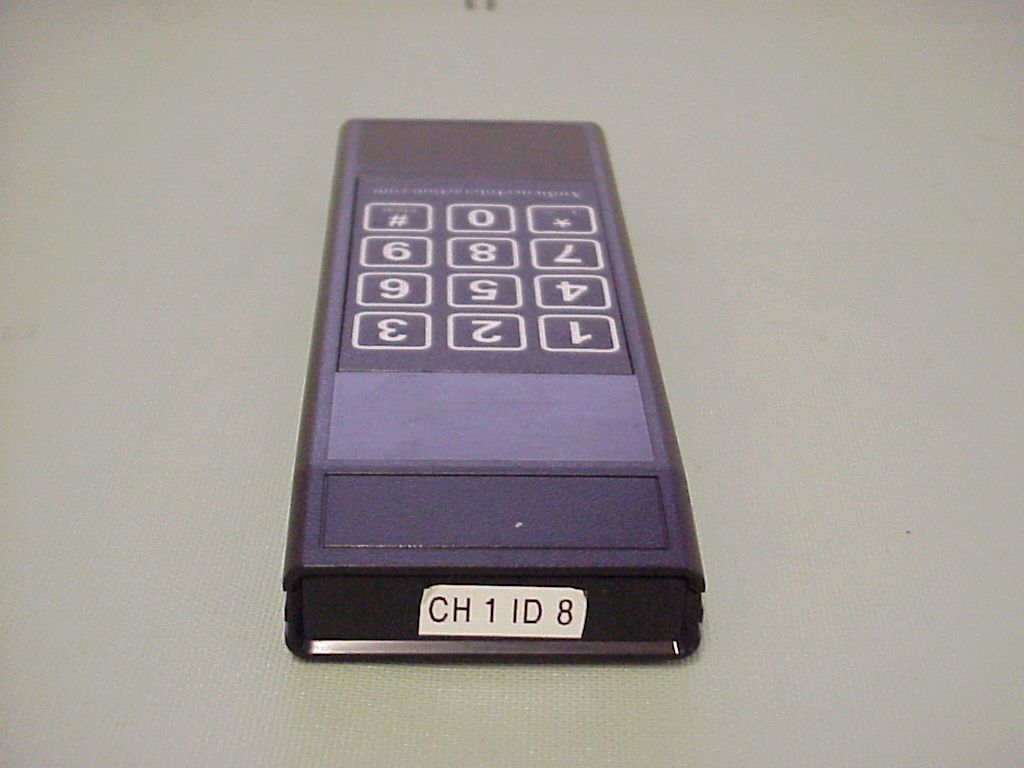

FCC ID Label Below is a picture of the FCC ID Label, except that the FCC ID on the label will read: FCC ID: RRL-HANDTI-G FCC Label Placement Handset (HandTI), as viewed from the back FCC Label Placement Base Station (SerTI), as viewed from the back

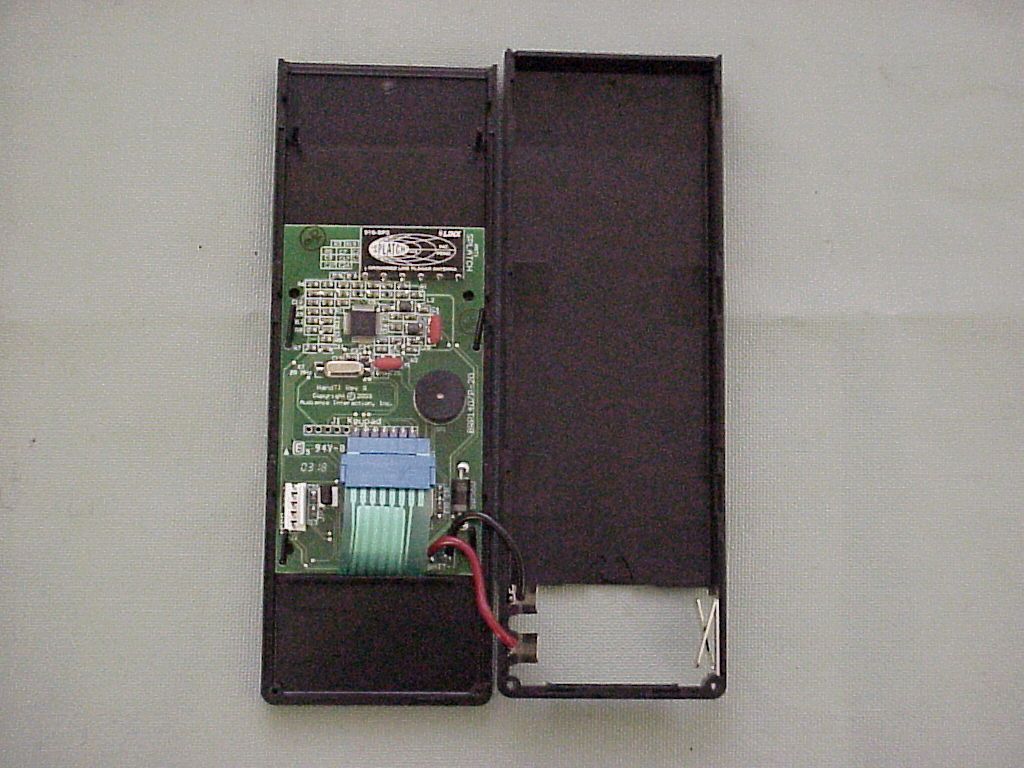

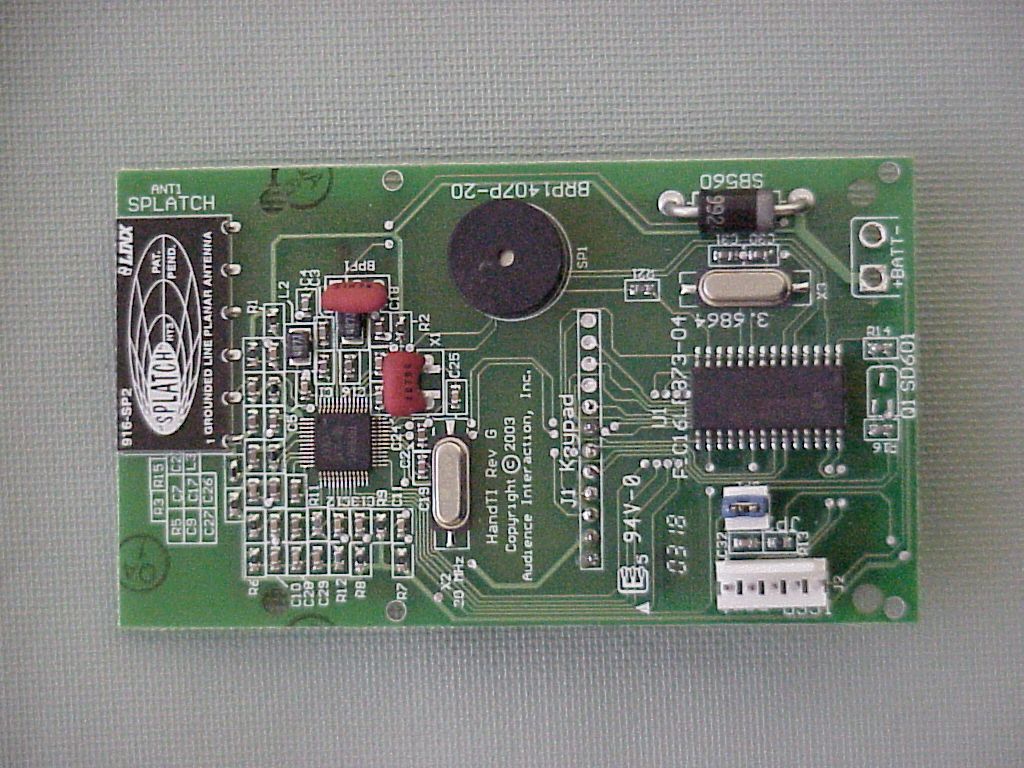

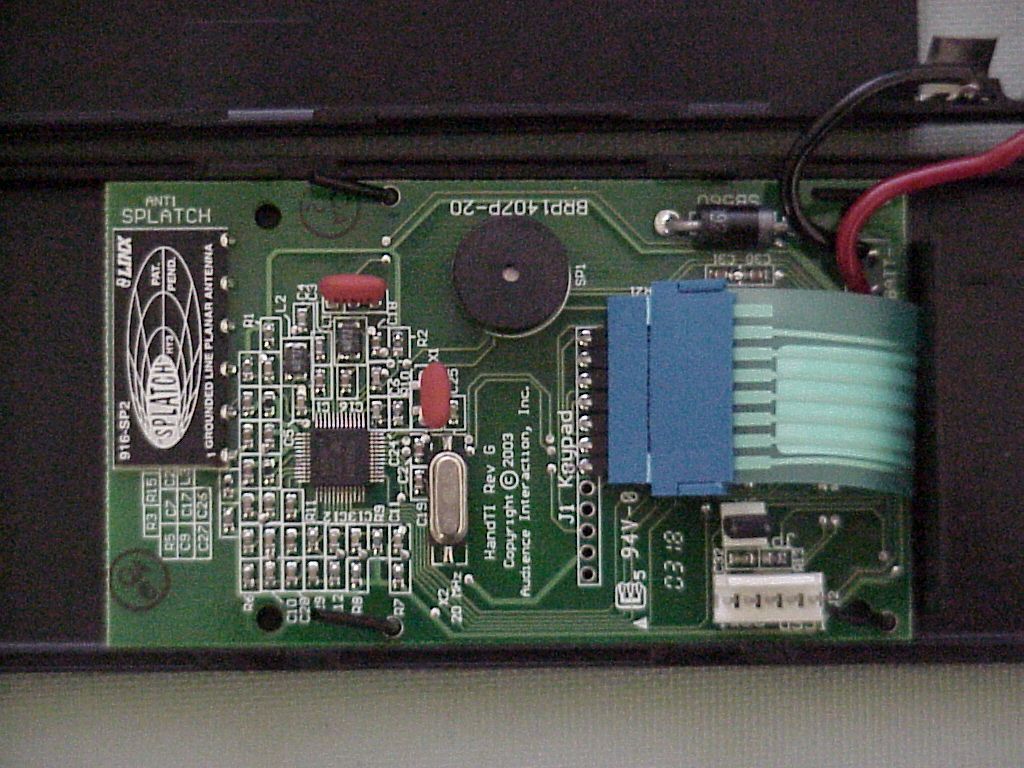

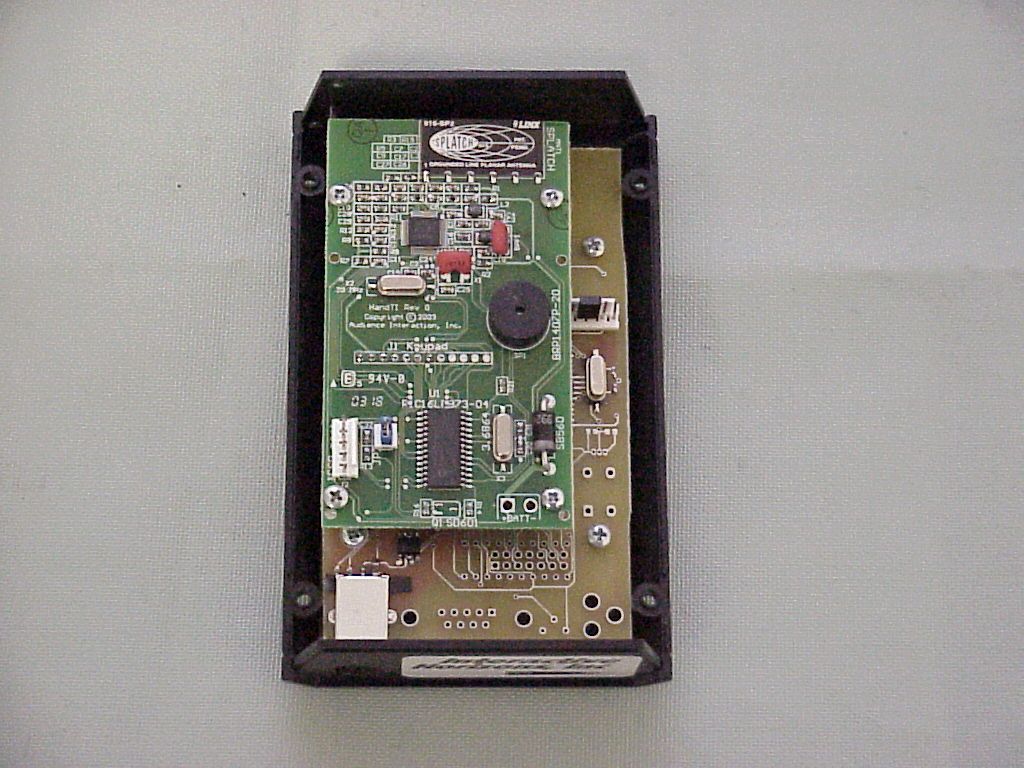

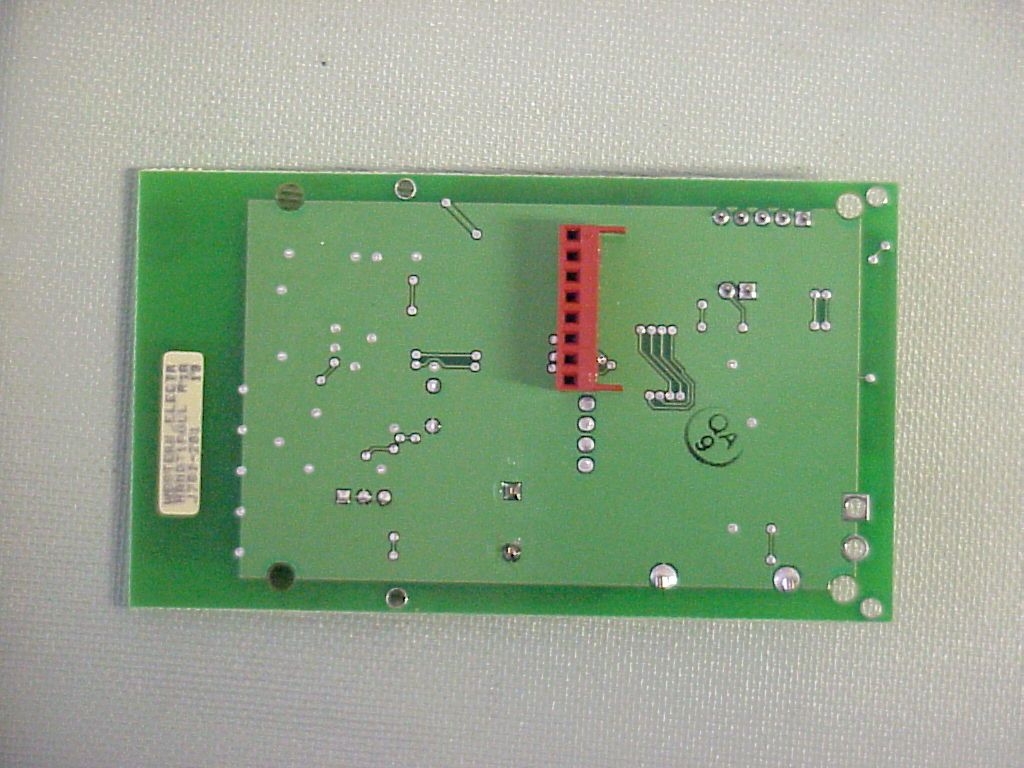

System Operational Description I. Transceiver Circuitry (same for all devices) The transceiver is based on Texas Instruments(R) TRF6901 900 MHz transceiver IC. Oscillator: a 20.0 MHz oscillator provides the reference frequency for the integer-N PLL to produce an internal, "local oscillator" frequency of 892.3 MHz - 927 MHz. This reference oscillator's frequency is shifted by means of a capacitor being keyed into and out of the circuit, accomplishing FM modulation. Receiving: The local oscillator is set to (RF frequency - 10.7 MHz) and mixed with the input signal. This is amplified, filtered using a 10.7 MHz IF filter, amplified again, and passed to an FM discriminator for data recovery. Transmitting: The local oscillator is set to (RF frequency). The 20.0 MHz reference oscillator frequency is shifted slightly by means of a capacitor, providing frequency modulation. This is passed to an RF power amplifier, then to the antenna. Typical EIRP is around -6 dBm. The frequency range is from 903.0 MHz to 927.0 MHz. Channels assigned: Channels 1-25 are mapped to frequencies 903.0 to 927.0 MHz, 1.00 MHz channel spacing. II. Baseband Processor (same for all devices) The recovered data is processed by a PIC16F873A microcontroller, operating with a reference oscillator of 3.6864 MHz. The RF data rate is 28.8 Kbps. III. Handset Description The handset is simply a transceiver board (HandTI Rev. G) with a keypad and battery attached, and placed into a Serpac M-8 enclosure. IV. Base Station Description The base station is simply a transceiver board attached to a "host interface" board, which contains a microcontroller and USB interface circuitry. The USB circuitry contains a 6.000 MHz reference oscillator. The microcontroller, a PIC18F252, uses a 3.6864 MHz oscillator. V. System Behavior In essence, this system is a wireless voting system, where one base station collects votes from N handsets. It accomplishes this by polling up to 250 handsets for any new keypresses. The base station (SerTI) polls handsets (HandTI) by sending a 6 ms RF message approximately every 48 ms. If a handset has keypress data to report to the base station, it reports the information only when it is polled, in its assigned time slice. The base station collects keypress information, and reports it to the host twice per second. Software then compiles this information and displays the vote summary. Each handset wakes up when a key is pressed, records the value of the key pressed, then stays awake only long enough to report the keypress. After it receives confirmation that the vote was received, the handset goes to sleep to conserve battery life.

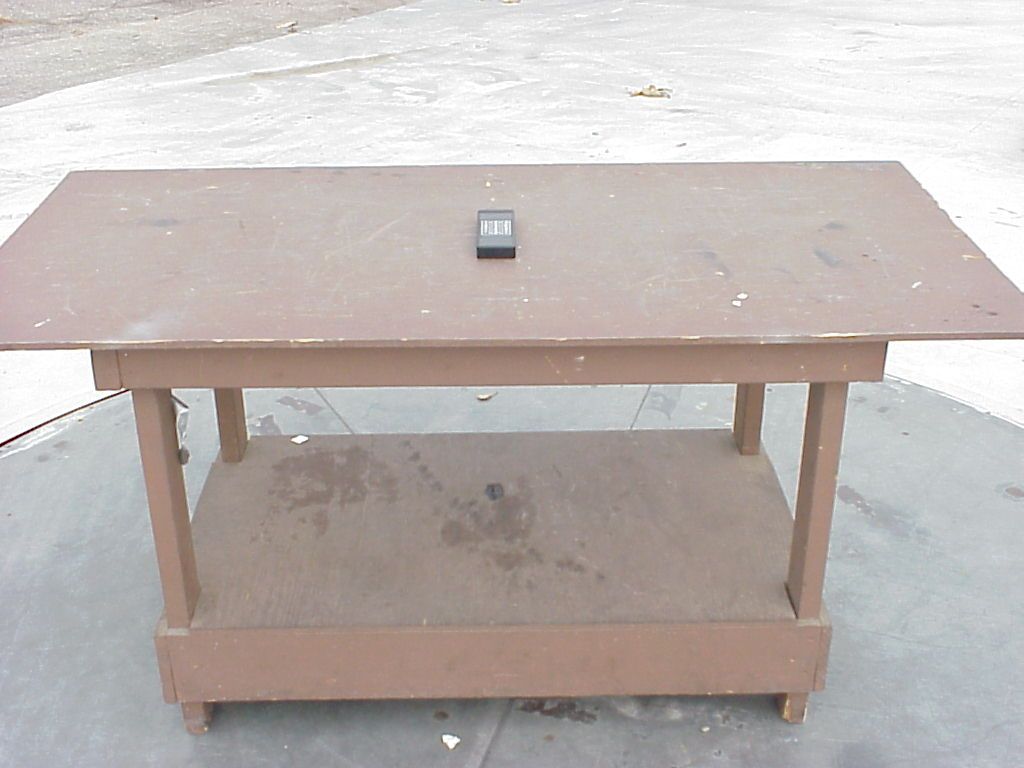

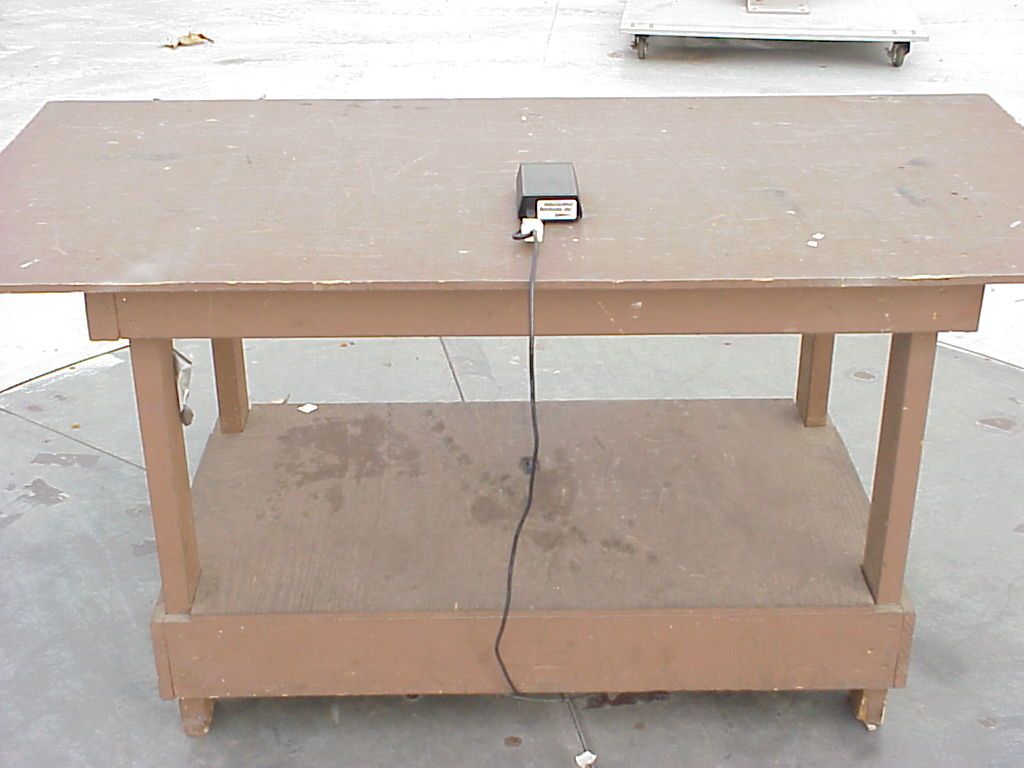

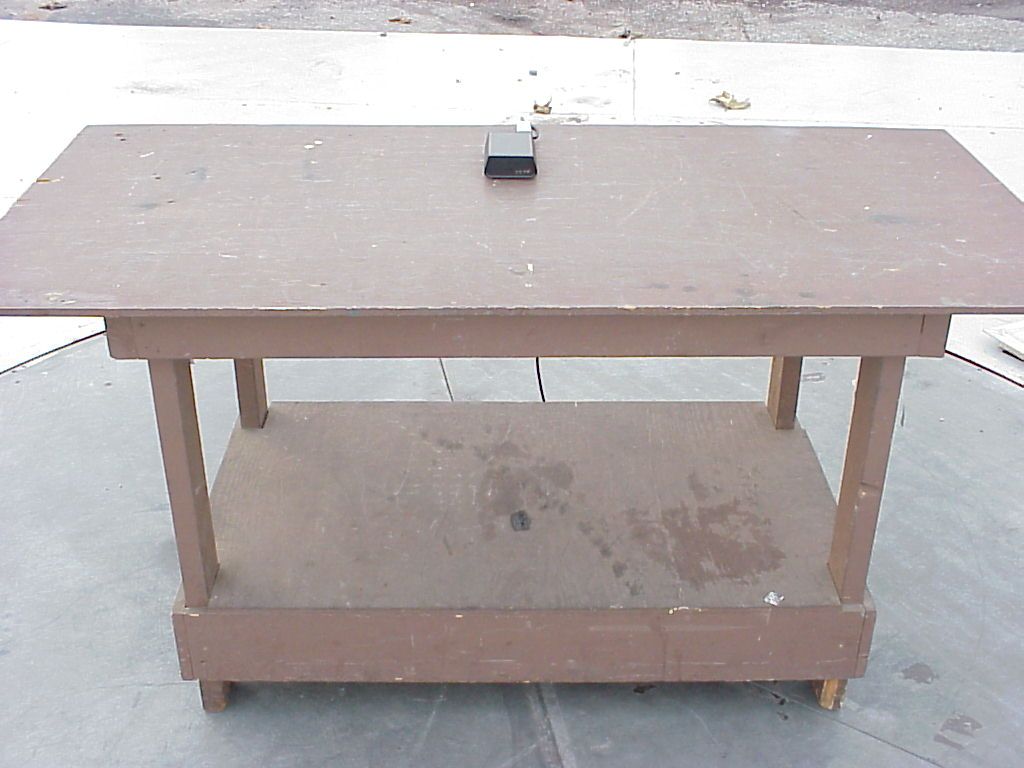

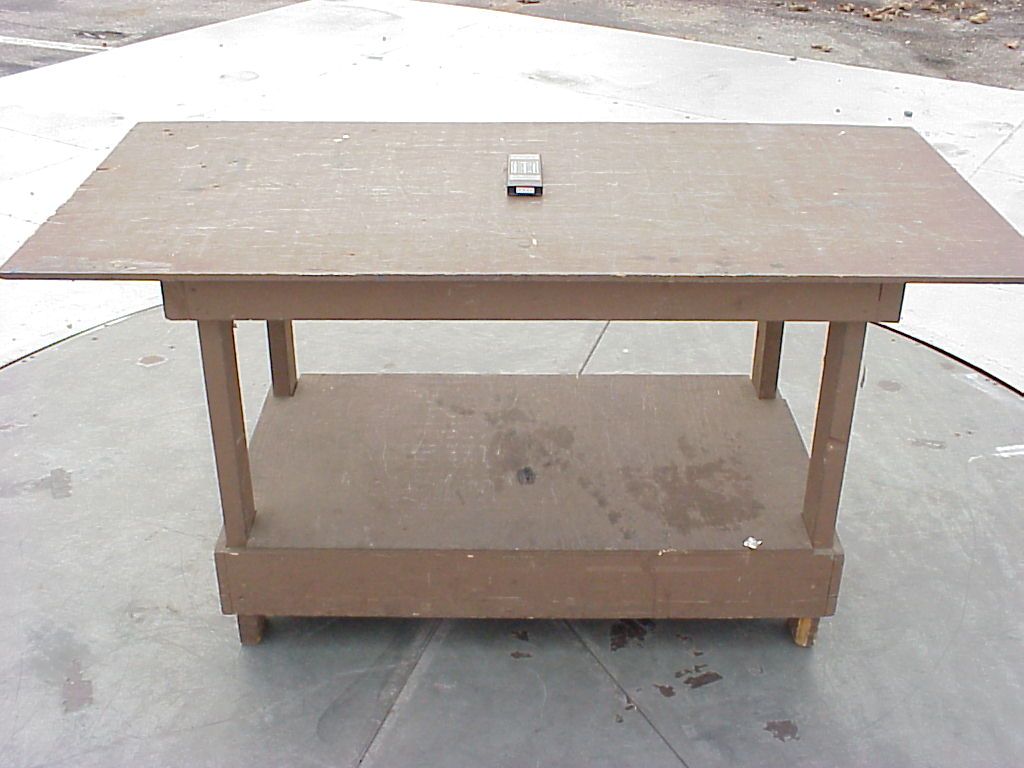

1 of 24 FCC TEST REPORT for IRIS INTERACTIVE HORIZONS, INC. Audience Interaction (AI) Wireless System ARWOOD LABORATORIES, INC. Your Most Trusted Name in Testing Since 1954. G Date: 12/30/03 EUT: AI Wireless System 2 of 24 GARWOOD LABORATORIES, INC. TESTING AND ENGINEERING SERVICES FCC TEST REPORT Certification for FCC Part 15 Subpart C – Intentional Radiators Section 15.249 Report for: IRIS INTERACTIVE HORIZONS, INC. A UDIENCE INTERACTION (AI) WIRELESS SYSTEM Prepared For: Iris Interactive Horizons, Inc. 207 N. 44 th Street Cody, WY 82414 Prepared By: Garwood Laboratories, Inc 7829 Industry Avenue Pico Rivera, CA 90660 Issued: December 30, 2003  GARWOOD LABORATORIES, INC. 7829 Industry Avenue, Pico Rivera, CA 90660 Report No: FR26028-E FCC TEST REPORT FOR IRIS INC. Date: 12/30/03 EUT: AI Wireless System 3 of 24 Testing Services Since 1954 ® “EXCELLENCE BUILT ON INTEGRITY” RESPONSIBLE SIGNATURES This report is intended for the use by the organization to whom it is addressed, and will not be made available to any other parties without the expressed written consent of the aforementioned organization. This report shall not be reproduced, except in full, without the written approval of Garwood Laboratories, Inc. DOCUMENT HISTORY Revision Issue Date Affected Page(s) Description Of Modifications Revised By Approved By N/C 12/30/03 Initial release GARWOOD LABORATORIES, INC. 7829 Industry Avenue, Pico Rivera, CA 90660 Report No: FR26028-E FCC TEST REPORT FOR IRIS INC. Date: 12/30/03 EUT: AI Wireless System 4 of 24 Testing Services Since 1954 ® “EXCELLENCE BUILT ON INTEGRITY” CLIENT INFORMATION Purchase Order FCC-F1 Company Name Address City, State, Zip Iris Interactive Horizons, Inc. 207 N. 44 th Street Cody, WY 82414 Contact Name E-mail Justin Crooks [email protected] GARWOOD INFORMATION EMC Test Laboratory Address City, State, Zip Code Phone Fax Web Site Garwood Laboratories, Inc. 7829 Industry Avenue Pico Rivera, CA 90660 (562) 949-2727 (562) 949-8757 www.garwoodtestlabs.com Contact Name Title Tony Masone EMC Manager Test Personnel Test Dates Arnie Tapia – EMC Engineer 12/22/03, 12/23/03, 12/24/03, 12/29/03 GARWOOD LABORATORIES, INC. 7829 Industry Avenue, Pico Rivera, CA 90660 Report No: FR26028-E FCC TEST REPORT FOR IRIS INC. Date: 12/30/03 EUT: AI Wireless System 5 of 24 Testing Services Since 1954 ® “EXCELLENCE BUILT ON INTEGRITY” ACCREDITATIONS: The Open Area Test Site (OATS) and measurement facilities used to collect the test data are located at Garwood Laboratories, Incorporated test facility in Pico Rivera, California. This facility has been fully described in a report submitted to the FCC and accepted in a letter dated 25 September 2003, Registration Number 534174. The test facility is also recognized, certified, or accredited by the following organizations: This site has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. Registration Number: 534174. Date of renewal: September 25, 2003. Garwood Laboratories is an authorized test laboratory for the DoC process. Garwood Laboratories, Inc. has been assessed in accordance with ISO 17025 and with ITI's assessment criteria. Based upon this assessment, Technology International (Europe), Ltd. has granted approval for specifications implementing the EU Directive on EMC (89/336/EEC). The scope of the approval was provided on a Schedule of Assessment supplied with a certificate and is available upon request. Certificate Number: 01-051, effective through October 11, 2003 or until the next agreed assessment date. Garwood Laboratories, Inc. is registered by Industry Canada for performance of measurements and complies with RSS 212, Issue 1 (Provisional). Reference IC 3298, Dated: January 8, 2003. Garwood Laboratories, Inc. is authorized, by joint agreement with Korea Electric Testing Institute (KETI), to perform required and necessary South Korean Product Safety and EMC testing (including reports) according to the IEC and CISPR standards. Nmi (Nederlands Meetinstituut) Garwood Laboratories, Inc. has entered into a cooperative agreement with Nmi Certin B.V. of the Netherlands. This is a Notified Body for the R&TTE Directive and Maritime Directive as well as a Competent Body for the EMC Directive. GARWOOD LABORATORIES, INC. 7829 Industry Avenue, Pico Rivera, CA 90660 Report No: FR26028-E FCC TEST REPORT FOR IRIS INC. Date: 12/30/03 EUT: AI Wireless System 6 of 24 Testing Services Since 1954 ® “EXCELLENCE BUILT ON INTEGRITY” TABLE OF CONTENTS MEASUREMENT / TECHNICAL REPORT SUMMARY.............................................................................7 1. GENERAL INFORMATION ...................................................................................................................8 1.1 Product Description.......................................................................................................8 1.2 System Operational Description ....................................................................................8 1.3 Configuration of Tested System .....................................................................................9 2. PRODUCT LABELLING ......................................................................................................................10 2.1 FCC ID Label ..............................................................................................................10 2.2 Location of the Label on the EUT................................................................................10 2.3 Information to the User................................................................................................10 3. TEST RESULTS ....................................................................................................................................11 3.1 Field Strength of the Fundamental Frequency ............................................................11 3.2 F…

Text truncated - open the document above for the full version.
