RRN-BHSS270ACar Alarm

Applicant: Guangdong Sansong Technology Co., Ltd. FCC ID: RRN-BHSS270A Federal Communications Commission (FCC ) Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference received, in cluding interference that may cause undesired operation of the device. Note: The manufacturer is not responsible for any radio of TV interference caused by unauthorized modification to this euipment. Such modification could void the user’s authority to operate the euqipment.

Applicant: Guangdong Sansong Technology Co., Ltd. FCC ID: RRN-BHSS270A ANT X 9 RF POWER AMP 433.92Mhz DIGITAL SIGNAL MCU BASE FREQUENCE 48.2133MHZ

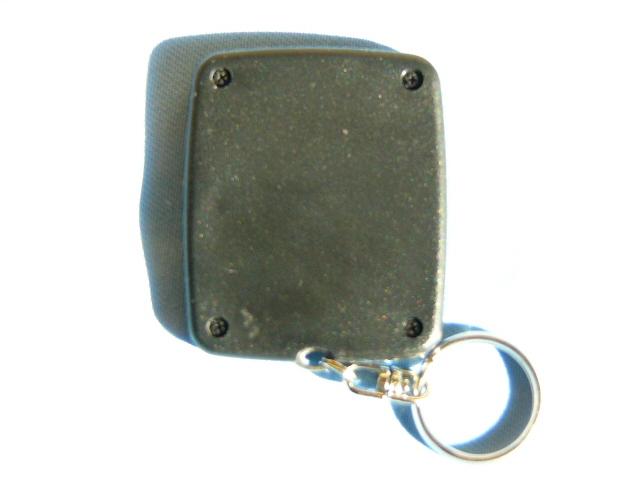

Applicant: Guangdong Sansong Technology Co., Ltd. FCC ID: RRN-BHSS270A EUT top view EUT bottom view

Applicant: Guangdong Sansong Technology Co., Ltd. FCC ID: RRN-BHSS270A Proposed Label Location on EUT EUT Bottom View/Proposed FCC ID Location FCC ID: RRN-BHSS270A

Applicant: Guangdong Sansong Technology Co., Ltd. FCC ID: RRN-BHSS270A EUT inside whole view Main board component side Main board solder side

Applicant: Guangdong Sansong Technology Co., Ltd. FCC ID: RRN-BHSS270A Operational Description The car alarm transmitter is a low powered hand held unit for remote controlling the car locks and other features. See the unction descriptions in attached. The transmitter is powered by a 3 volt battery. It is designed to operate on a single fixed frequency at 433.92 MHz. See the attached block Diagram and schematic. There are 3 buttons trigger the integrated circuit U1) which produces the digital control signals and will modulate the carrier signal. The carrier signal is generated by a crystal oscillator and an amplifier circuit comprised of a 434 MHz crystal (X1) and a npn oscillator and a transmitter (Q3/Q4) The modulated output of the RF amplifier stage is coupled to the PCB strip antenna. The coupling network comprised of L6, C15, C16 and C17. The strip antenna is attached on PCB permanently around 20 mm. The transmitter is manually operated by the buttons pushed and will automatically deactivate within 2 seconds after the button being released. This feature is incorporated by the U1 internally. All tuning and verification are performed by the manufacture and there are no adjustments can be made by the user. No external ground is required or used with this transmitter.

The test report consists 24 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Ke Mei Ou Laboratory Corporation. The test result in the report only applied to the tested sample. FCC TEST REPORT Under : FCC 15 Subpart C, Paragraph 15.231 Prepared For : Guangdong Sansong Technology Co., Ltd. 9 th Building, Yinhai Industrial Center, Henggang Town, Shenzhen, China February 2, 2004 FCC ID: RRN-BHSS270A EUT: Car Alarm Model: BHSS-270A Report Type: Original Report Test Engineer: Peter Lin Test Date: December 28, 2003 Review By: Apollo Liu / Manager FEDERAL COMMUNICATIONS COMMISSION Registration Number: 125782 Ke Mei Ou Laboratory Co., Ltd. 7A, Jiaxiangge, Jiahuixincheng, No.3027, Shennan Rd., Futian, Shenzhen, Guangdong, P.R.China. Zip Code: 518033 Tel: + 86 755 83642690 Fax: + 86 755 83297077 www.kmolab.com Guangdong Sansong Technology Co., Ltd. FCC ID: RRN-BHSS270A FCC ID Report Report #: KSZ2003111402J Page 2 of 24 TABLE OF CONTENTS 1. General Information...........................................................................................................................................................3 1. 1 Notes...............................................................................................................................................................................3 1. 2 Testing Laboratory..........................................................................................................................................................3 1. 3 Details of Applicant........................................................................................................................................................3 1. 4 Application Details.........................................................................................................................................................3 1. 5 Test Item.........................................................................................................................................................................3 1. 6 Test Standards.................................................................................................................................................................4 2. Technical Test.......................................................................................................................................................................5 2. 1 Summary of Test Results................................................................................................................................................5 3. EUT Modifications..............................................................................................................................................................6 4. Conducted Power Line Test................................................................................................................................................7 4. 1 Test Equipment...............................................................................................................................................................7 4. 2 Test Procedure................................................................................................................................................................7 4. 3 Test Setup.......................................................................................................................................................................7 4. 4 Configuration of The EUT..............................................................................................................................................8 4. 5 EUT Operating Condition...............................................................................................................................................9 4. 6 Conducted Power Line Emission Limits........................................................................................................................9 4. 7 Conducted Power Line Test Result...............................................................................................................................10 5. Radiated Emission Test......................................................................................................................................................11 5. 1 Test Equipment.............................................................................................................................................................11 5. 2 Test Procedure..............................................................................................................................................................11 5. 3 Radiated Test Setup......................................................................................................................................................11 5. 4 Configuration of The EUT............................................................................................................................................12 5. 5 EUT Operating Condition.............................................................................................................................................12 5. 6 Radiated Emission Limit..............................................................................................................................................12 5. 7 Radiated Emission Test Result......................................................................................................................................13 6. Technical Characteristic....................................................................................................................................................14 6. 1 Band Edge.......................................................................................................................................…

Text truncated - open the document above for the full version.

Applicant: Guangdong Sansong Technology Co., Ltd. FCC ID: RRN-BHSS270A Radiated emission test view
