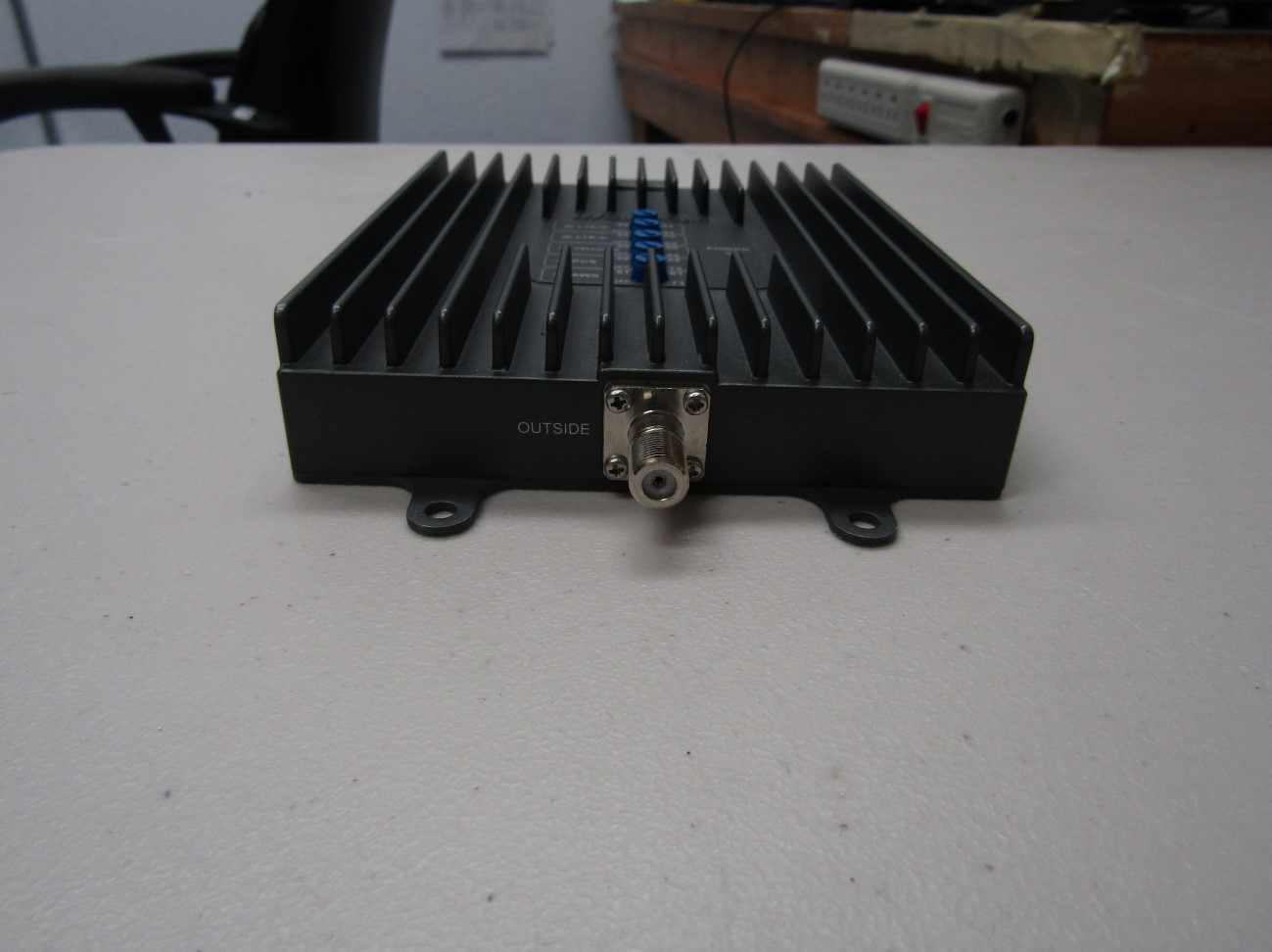

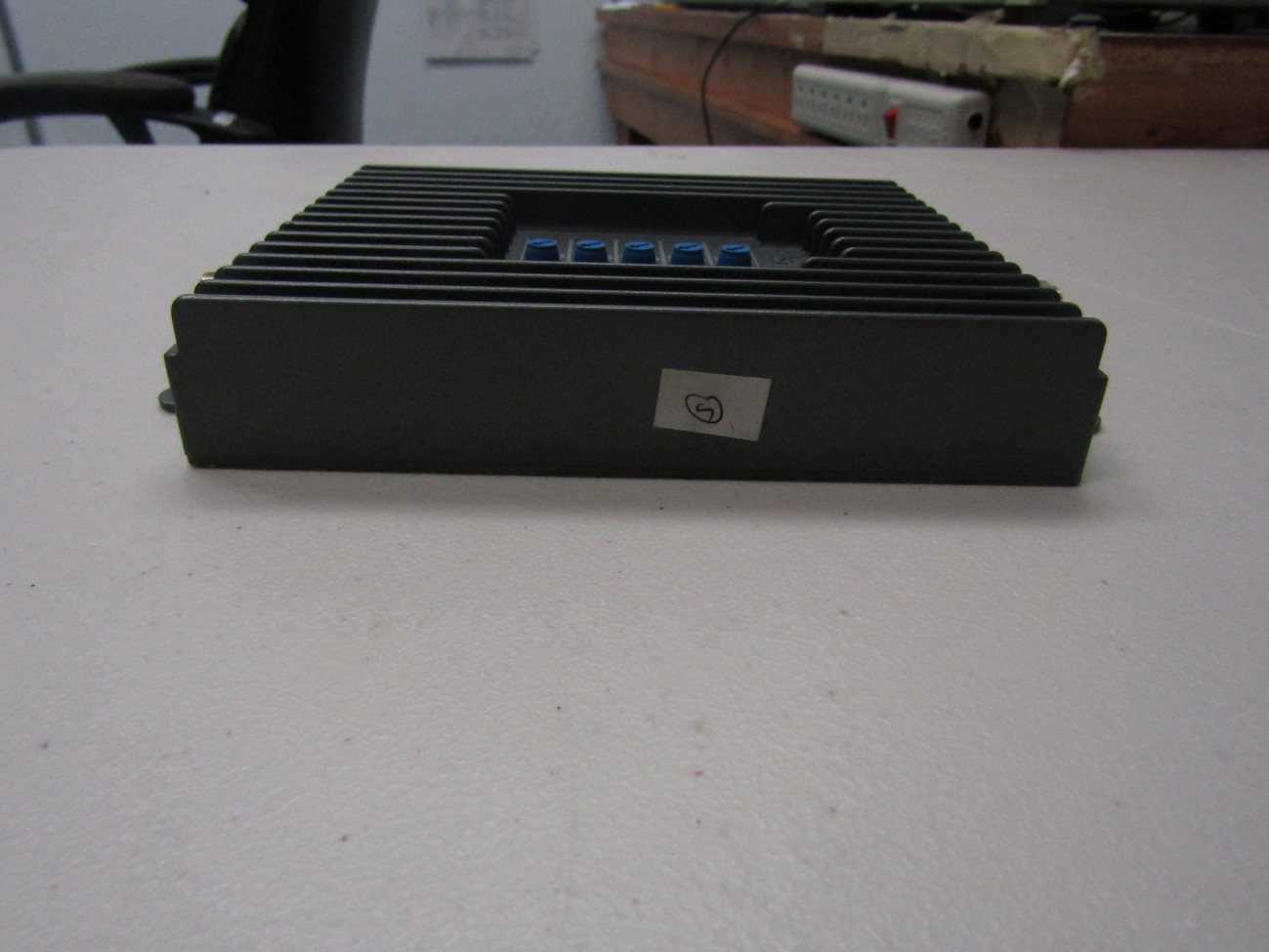

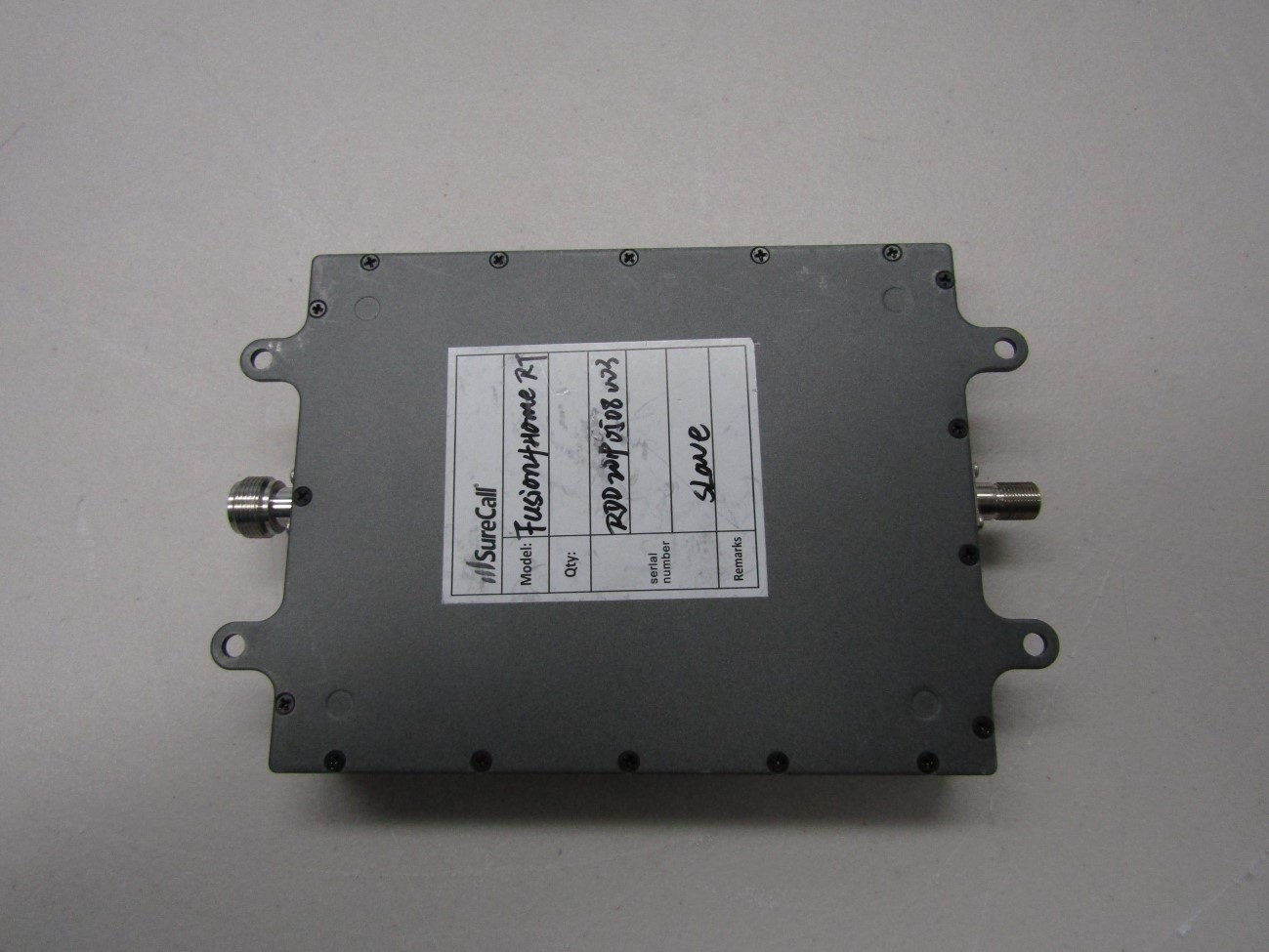

RSNF4H-MAXSDual Enclosure Wideband Consumer booster Indoor unit

05.17.2021 Cellular signal booster kit for the Home or Office Fusion4Home Max User Guide SureCall, Inc | 1-888-365-6283 | [email protected] | www.surecall.com SureCall, Inc | 1-888-365-6283 | [email protected] | www.surecall.com 2 Thank you for purchasing SureCall’s Fusion4Home cellular signal booster kit. SureCall’s Fusion4Home Max was specifically designed to eliminate frustrations over dropped calls and limited range by amplifying incoming and outgoing cellular signals in homes and offices. If you have any questions during setup, please reach out to our US-based experienced support technicians: Call: 1-888-365-6283 Email: [email protected] Visit: www.surecall.com/support Watch installation, optimization and troubleshooting techniques on our SureCall YouTube channel @SureCallStay up to date with all things SureCall SureCall, Inc | 1-888-365-6283 | [email protected] | www.surecall.com SureCall, Inc | 1-888-365-6283 | [email protected] | www.surecall.com TABLE OF CONTENTS How it works .....................................................................................................................................4 PACKAGE CONTENTS ........................................................................................................................4 BEFORE INSTALLATION .....................................................................................................................6 Installation Overview .........................................................................................................................6 INSTALLATION ....................................................................................................................................6 Step 1. Find the Area With the Strongest Signal ...............................................................................6 Step 2. Install the Outside Yagi Antenna and Outside Amp ..............................................................7 Step 3. Install the Inside Amp and Inside Antenna. ..........................................................................9 Step 4: Connect to Power and Turn On ..........................................................................................10 Step 5: Configure Gain Settings If Needed ......................................................................................11 IF YOU WANT TO IMPROVE PERFORMANCE .................................................................................11 Antenna Isolation .............................................................................................................................11 TROUBLESHOOTING ........................................................................................................................11 LED INDICATORS ..............................................................................................................................12 SPECIFICATIONS ..............................................................................................................................13 Kitting ..............................................................................................................................................13 CONSUMER GUIDELINES ................................................................................................................16 WARRANTY .......................................................................................................................................17 Three-Year Product Warranty .........................................................................................................17 3 SureCall, Inc | 1-888-365-6283 | [email protected] | www.surecall.com SureCall, Inc | 1-888-365-6283 | [email protected] | www.surecall.com 4 How it works 1. The high-gain outside antenna captures even the weakest cell signal, from the cell tower where it is aimed. 2. The Fusion4Home Max Donor booster uses Extended Range Technology™ (ERT) to grab signal outside, at its strongest point , where it boosts voice, text and data signals for all 4G & 5G devices. 3. Using low-loss RG-6 cable, signal is transmitted from the outside to the inside Fusion4Home Max inside host amplifier. 4. The signal is then broadcast from the inside panel antenna to all cellular devices in range. 5. The Fusion4Home Max system also works in reverse, boosting the outgoing signal and to faraway and hard-to-reach towers. Outside Antenna Power Supply Booster Booster Inside Antenna Coax cable Extended Range Technology™ MAXIMUM COVERAGE How the SureCall Fusion4Home Max Works PACKAGE CONTENTS Unpack all package contents. For missing or damaged items, contact your reseller. Turn over the signal booster and record the model and serial number for reference: Serial #: ________________________________________________________________ Purchase Date: __________________________________________________________ Keep the carton and packing material to store the product in case you need to return. SureCall, Inc | 1-888-365-6283 | [email protected] | www.surecall.com 5 Inside Components 1. Fusion4Home Max inside host amplifier and power supply 3. Inside Cable (20 ft.) Outside Components Your Fusion4Home Max signal booster package includes the following items: • SureCall Fusion4Home Max inside host and power supply • Directional Panel Inside Antenna • Inside cable (connects inside Panel to the booster) • Outside Yagi antenna • Outside Amplifier • Outside Cable (connects outside amplifier to inside host) 2. Panel antenna 4. Outside Amp 5. Yagi antenna 6. Outside cable (75 ft) With mounting bracket With mounting bracket Warning: Changes or modifications not expressly approved by SureCall could void the user’s authority to operate the equipment. SureCall, Inc | 1-888-365-6283 | [email protected] | www.surecall.com SureCall, Inc | 1-888-365-6283 | [email protected] | www.surecall.com 6 BEFORE INSTALLATION Prior to securing the location of any booster parts, a “soft install” …

Text truncated - open the document above for the full version.

48346 Milmont Drive Fremont, CA 94538 Phone: 510-770-0469 Fax: 510-996-7250 www.cellphone-mate.com FCC Confidential Authorization 27th April, 2021 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: RSNF4H-MAXS In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Cellphone-mate hereby requests long- term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description • Parts list The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Sincerely Yours, Dennis Findley Authorized Representative Cellphone-Mate Inc. 510 770-0469 ext. 228 48346 Milmont Drive Fremont, CA 94538 Phone: 510-770-0469 Fax: 510-996-7250 www.cellphone-mate.com

1 48346 Milmont Dr., Fremont, CA 94538 Phone: 510-770-0469 Fax: 510-996-7250 www.surecall.com Antenna Kitting Information Fusion4Home RT V1.02 Component Prod No. Description Gain/Loss Notes LTE-A LTE-V 800MHz 1900MHz 1700MHz\2100MHz Outdoor Antenna* SC268W 5.5dBi 5.5dBi 6dBi 7.5dBi 7.5dBi\8dBi SC232W 8.5dBi 8.5dBi 8.5dBi 8.5dBi 8.5dBi\8.5dBi Cable between systems * SC-RG6 -50 50Feet 3.32dB 3.32dB 3.75dB 6.42dB 6.22dB\6.68dB 50 to 150 Feet Indoor Cable* SC240-20NN 20Feet 2.06dB 2.06dB 2.29dB 3.56dB 3.36dB\ 3.76dB 20 Feet or longer Indoor Antenna* SC248W 7dBi 7dBi 7dBi 10dBi 10dBi\10dBi For Panel-RT SC222W 3dBi 3dBi 3dBi 6dBi 6dBi\6dBi SC121W 1.2dBi 1.2dBi 1.2dBi 3dBi 3dBi\3dBi SC302W 2.5dBi 2.5dBi 3dBi 5dBi 4dBi\5dBi SC323W 2.5dBi 2.5dBi 3dBi 4dBi 4dBi\4dBi For Flare-RT *All equivalent antennas and cables are suitable for use with the Fusion4Home RT V1.0 2 Maximum Gain Minimum Gain Outdoor Antenna SC232W 8.5dBi 8.5dBi Indoor Antenna SC248W 10dBi 7dBi SC222W 6dBi 3dBi SC121W 3dBi 1.2dBi SC302W 5dBi 2.5dBi SC323W 4dBi 2.5dBi

LETTER OF ATTESTATION 17 th May, 2021 To Whom It May Concern, These statements are true. 1) Not applicable : Licensee consent for provider-specific booster has been obtained (consent to be made available upon FCC/TCB request) 2) Yes : NPS and other compliance/safeguard features have been implemented 3) Yes: NPS and other compliance/safeguard features are defaulted to be "On" (in operation) 4) Yes: NPS and other compliance/safeguard features cannot be field reconfigured, disabled or removed 5) Yes: Consumer booster is not user programmable, does not need fine tuning or adjustment, does not require professional installation 6) Yes: Future software upgrade will not cause non-compliance. Sincerely, Print Name: Dennis Findley Title: Director of Operations Contact Telephone Number: 510-770-0469 ext. 228 Contact Email: [email protected] ,I/ SureCall® RAISE YOUR BARS 48346 Milmont Drive Fremont, CA 94538 Phone: 510-770-0469 Fax: 510-996-7250 www.cellphone -mate.com

48346 Milmont Drive Fremont, CA 94538 Phone: 510-770-0469 Fax: 510-996-7250 www.surecall.com 1 Explanation of MSCL Mobile antenna Booster server antenna Mobile Booster MSCL Indoor Cable Loss P ath loss Mobile Antenna Gain Indoor Antenna Gain spatial distance=d Figure 1 MSCL= Path loss + Indoor Cable Loss - Mobile Antenna Gain- Indoor Antenna Gain+ Polarity Loss......① 1.1 Decibel version of free-space propagation loss equation Path loss (dB) =20Lgf+20Lgd+32.45 ......② or Path loss (dB) =20Lgf+20LgD-27.55 ......③ f ( MHz), d (km), D(m) , d=1000D 1.1.1 Operation Frequency At PCS (1850-1915MHz) f =1850MHz At Cellular (824-849MHz) f =824 MHz At AWS (1710-1755MHz) f =1710 MHz At LTE(698-716MHz) f =698 MHz At LTE(776-787MHz) f =776 MHz 48346 Milmont Drive Fremont, CA 94538 Phone: 510-770-0469 Fax: 510-996-7250 www.surecall.com 1.1.2 Minimum Separation Distances for MSCL base on FCC new rule D (m) Minimum Separation Distances for MSCL Calculation or Measurements D(m) Indoor server antenna types Minimum separation distances D (m) Ceiling Mounted (i.e., Dome-type) Antennas 2.0 Wall Mounted (i.e., Panel or other type) Antennas 1.0 or 2.0* Table Top Antennas 1.0 * Note: Wall Mounted (i.e., Panel or other type) Antennas: Alternatively, if a manufacturer clearly specifies a minimum separation distance to consumer devices in the installation manual or other user documentation provided with the booster, a reasonable minimum separation distance could be up to 6 feet (or 2 meters) horizontally removed from the antenna. In this case, the user would be required to ensure this minimum separation distance for all CMRS devices authorized for use with this booster. 1.2 Mobile Antenna Gain Mobile Antenna Gain=0dBi 1.3 Indoor Cable Loss And Indoor Antenna Gain Indoor Cable Loss and Indoor Antenna Gain are listed in the separate submitted file of Fusion4Home RT V1.0 Antenna Kitting . 1.4 Polarity Loss Polarity Loss dB = 10Log (E1/E2)2 dB = PL dB PL dB= 10Log (E12/ (E1Sin (45deg)) 2) dB = 20Log (1/Sin (45deg)) dB = 3.01dB Where: E1 = Maximum Possible Magnitude of the Electric Field from the Mobile Device. E2 = Magnitude of the electric field from the Mobile device with a 45deg polarity mismatch = E1Sin (г). г =45deg E1 E2 48346 Milmont Drive Fremont, CA 94538 Phone: 510-770-0469 Fax: 510-996-7250 www.surecall.com 2 MSCL Calculations Antenna Kitting Information Fusion4Home RT V1.0 Indoor Antenna Indoor Antenna Indoor Antenna Gain At LTE-A&LTE-V (698-787MHz)(dBi) At 800MHz(dBi) At 1900MHz(dBi) At 1700MHz(dBi) At 2100MHz(dBi) SC248W 7 7 10 10 10 SC222W 3 3 6 6 6 SC121W 1.2 1.2 3 3 3 SC302W 2.5 3 5 4 5 SC323W 2.5 3 4 4 4 MAX GAIN 7 7 10 10 10 Indoor Cable Indoor Cable Indoor Cable Loss At LTE-A&LTE-V (698-787MHz)(dBi) At 800MHz(dBi) At 1900MHz(dBi) At 1700MHz(dBi) At 2100MHz(dBi) SC240-20NN 20Feet 2.06 2.29 3.56 3.36 3.76 MIN LOSS 2.06 2.29 3.56 3.36 3.76 Path loss=20Lgf+20LgD-27.56 Operation Frequency (MHz) f(MHz) D(m) Constant(dB) Path loss(dB) PCS(1850-1915) 1850 2 27.56 43.8 Cellular(824-849) 824 2 27.56 36.8 LTE(698-716) 698 2 27.56 35.3 LTE(776-787) 776 2 27.56 36.3 AWS(1710-1755) 1710 2 27.56 43.1 MSCL Calculations of fixed booster Fusion4Home RT V1.0 MSCL Operation Frequency (MHz) Path loss(dB) Indoor Antenna Gain(dBi) Indoor Cable Loss(dB) Polarity Loss(dB) MSCL(dB) PCS(1850-1915) 43.8 10 3.56 3 40.4 Cellular(824-849) 36.8 7 2.29 3 35.1 LTE(698-716) 35.3 7 2.06 3 33.4 LTE(776-787) 36.3 7 2.06 3 34.3 AWS(1710-1755) 43.1 10 3.36 3 39.5 48346 Milmont Drive Fremont, CA 94538 Phone: 510-770-0469 Fax: 510-996-7250 www.surecall.com MSCL presented in test report 102129-30, 102129-31 resent worse case MSCL when Panel Antenna is installed in one of the several possible configuration , ie non-indoor cable configuration. MSCL Operation Frequency (MHz) Path loss(dB) Indoor Antenna Gain(dBi) Indoor Cable Loss(dB) Polarity Loss(dB) MSCL(dB) PCS(1850-1915) 43.8 10 0.2 3 37.0 Cellular(824-849) 36.8 7 0.2 3 33.0 LTE(698-716) 35.3 7 0.2 3 31.5 LTE(776-787) 36.3 7 0.2 3 32.5 AWS(1710-1755) 43.1 10 0.2 3 36.3 Non indoor cable configuration

70mm x 60mm Fusion4Home Max inside host US-CAN 05/24/21 Patent No. US 8867572 B1, US 9100839B2, US 9402190B2 FUSION4HOME MAX FCC ID: RSNF4H-MAXS IC : 7784A-F4HMAXS Designed and assembled in the USA / www.surecall.com This is a CONSUMER device BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider ’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. In Canada, BEFORE USE, you must meet all requirements set out in CPC-2-1-05. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from (i.e., MUST NOT be installed within 20 cm of ) any person. You MUST cease operation of this device immediately if requested by FCC (ISED in Canada) or a licensed wireless service provider. WARNING: E911 location information may not be provided or may be inaccurate for calls served by using this device. This device may operate in a fixed location only, for in-building use. Ce produit est un appareil de CONSOMMATION AVANT DE L’UTILISER, vous DEVEZ ENREGISTRER CE DISPOSITIF auprès de votre fournisseur de services cellulaires et obtenir son consentement. La plupart des fournisseurs de services cellulaires autorisent l’utilisation d’amplificateurs de signal. Il se peut que certains fournisseurs n’autorisent pas l’utilisation de ce dispositif sur leur réseau. Si vous n’êtes pas sûr, contactez-le. Au Canada, AVANT DE L’UTILISER, vous être conforme à toutes les exigences établies dans la CPC-2-1-05. Vous DEVEZ utiliser ce dispositif avec les antennes et les câbles autorisés, tel que le spécifie le fabricant. Les antennes DOIVENT être installées à au moins 20 cm (8 po) (NE DOIVENT PAS être installées à moins de 20 cm) de toute personne avoisinante. Vous DEVEZ arrêter cet appareil immédiatement à la demande de la FCC (ISED au Canada) ou de tout fournisseur de services cellulaires autorisé. AVERTISSEMENT : Les renseignements relatifs à l’emplacement du service E911 pourraient être non fournis ou inexacts pour les appels eectués au moyen de cet appareil. Cet appareil peut fonctionner seulement à un emplacement fixe à l’intérieur d’un bâtiment. FUSION4HOME MAX OUTSIDE AMP FCC ID: RSNF4H-MAX IC : 7784A_F4HMAX

REVISED RADIO FREQUENCY EXPOSURE REPORT TO 102129-33 FOR THE Dual Enclosure Booster, Fusion4Home RT Dual Enclosure Booster, Flare RT Dual Enclosure Booster, Panel RT Dual Enclosure Booster, RT Main Unit GME36A-150240FDS, AC/DC Adapter Report No.: 102129-33A Date of Issue: June 7, 2021 PREPARED FOR: Dennis Findley Cellphone-Mate, Inc. 48346 Milmont Drive Fremont, CA 94538 PREPARED BY: Hieu Song Nguyenpham CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 The test data contained in this report documents the observed testing parameters pertaining to and are relevant for only the sample equipment tested in the agreed upon operational mode(s) and configuration(s) as identified herein. Compliance assessment remains the client’s responsibility. This report may not be used to claim product endorsement by A2LA or any government agencies. This test report has been authorized for release under quality control from CKC Laboratories, Inc. Steve Behm Director of Quality Assurance & Engineering Services CKC Laboratories, Inc. Page 2 of 10 Report No: 102129-33A Revision History Original: Radio Frequency Exposure Report For The Dual Enclosure Booster, Fusion4Home RT, Dual Enclosure Booster, Flare RT, Dual Enclosure Booster, Panel RT, Dual Enclosure Booster, RT Main Unit, GME36A-150240FDS, AC/DC Adapter Revision A: Replaced US and IC MPE Assessment tables for uplink and downlink reference. Purpose: To demonstrate compliance with United States, Canada, Australia and/or European Union RF Exposure requirements for Portable equipment (devices used ≤20cm from the body) or Mobile equipment (devices used >20cm from the body) with power output below exemption levels and Mobile equipment, where Maximum Permissible Exposure (MPE) Calculations apply. Device and Antenna Operating Configuration: Device operating at maximum output power with continuous transmission of modulated data. The MPE calculation is based on highest radiated output power, worse case being the Uplink path on the UL 1850-1915MHz band for Fusion4Home RT and RT Main Unit on a 50ft cable. Test Procedure: This equipment is evaluated in accordance with the guidelines set forth in KDB 447498 & ANSI C95.1 for the US, Health Canada Safety Code 6 & RSS 102 for Canada, ARPANSA RPS3 for AU and EN 62479 or EN 62311 for EU. Other Considerations: Report considers stand-alone configurations only. RF Exposure limits are calculated at the max-point of each operating band. Maximum EIRP is presented further below. Referenced Test Reports: The following test reports were referenced in conjunction with this assessment: 102129-30A and 102129-31A Page 3 of 10 Report No: 102129-33A RF Exposure Power Density Assessment (Single Transmitter, Stand Alone) MPE Calculation: 푃표푤푒푟 퐷푒푛푠푖푡푦 ( 푆 ) = 퐸퐼푅푃 4휋 푑 2 Given: EIRP in mW or W and d in cm or m US MPE Assessment Power Reported is: ☐ Peak ☒ Average Limit Used is: ☒ General Population ☐ Occupational Exposure Operating Band MHz Power dBm *Ant Type/Gain dBi & Cable loss EIRP dBm Distance cm MPE mW/cm 2 Limit mW/cm 2 Comments UL 1850-1915 21.3 External/8.5/0 29.8 20 0.19 1 Uplink band DL 1930-1950 10.1 External/10/3.6 16.5 20 0.01 1 Downlink Band IC MPE Assessment Power Reported is: ☐ Peak ☒ Average Limit Used is: ☒ General Population ☐ Occupational Exposure Operating Band MHz Power dBm *Ant Type/Gain dBi & Cable loss EIRP dBm Distance m MPE W/m 2 Limit W/m 2 Comments UL 1850-1915 21.3 External/8.5/0 29.8 20 1.9 4.66 Uplink band DL 1930-1950 10.1 External/10/3.6 16.5 20 0.09 4.53 Downlink Band * Antenna gain and cable losses indicated from Antenna Kit UL: SC232W DL: SC248W and an Indoor Cable which integrated on the antenna Page 4 of 10 Report No: 102129-33A Summary: Exemptions: Equipment demonstrating compliance by portable RF exposure exemption have been evaluated, without further testing, for use under either portable or mobile RF exposure configurations. Additional configurations including collocation or simultaneous transmission with other transmitters (including necessary separation distances) are subject to further assessment. Certain exemption criteria may define specific separation distances. It is assumed that the manufacturer shall design the equipment such that these minimum separation distance is met. MPE Calculation Results: Equipment demonstrating compliance with MPE calculations have been evaluated, without further testing, for use under mobile RF exposure configurations as identified herein. Additional configurations including collocation or simultaneous transmission with other transmitters (including necessary separation distances) are subject to further assessment. It is assumed that the manufacturer shall design the equipment such that the minimum separation distance of 20cm (or greater, as listed above) is met or that the manufacturer provides a protection guide (e.g. installation instructions) to the end user such that the antenna(s) may be installed in accordance with the manufacturer’s instructions in such a manor to maintain the minimum separation distance. General Comments: The absorption and distribution of Electromagnetic energy in the body is a very complex phenomena that depends on the mass, shape and physiological condition of the body; the orientation of the body with respect to the fields; and, the electrical properties of the body and the environment. Variables that may play a substantial role in possible biological effects are those that characterize the environment (including but not limited to: ambient temperature, air velocity, relative humidity and body insulation); and those that characterize the individual (including but not limited to: age, gender, activity level and existing debilitation or disease). Because innumerable factors may interact to determine specific biological effects of exposure to electromagnetic fields, any protection guide should consider both intended and unintended operational environments and provide guidance for installation and use of the product suc…

Text truncated - open the document above for the full version.

This report contains a total of 462 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. Cellphone-Mate, Inc. REVISED TEST REPORT TO 102129-30 AC/DC Adapter Model: GME36A-150240FDS Dual Enclosure Booster Models: Fusion4Home RT, Flare RT, Panel RT and RT Main Unit Tested to The Following Standard: FCC Part 20.21 / 22H / 24E / 27 Report No.: 102129-30A Date of issue: June 7, 2021 This test report bears the accreditation symbol indicating that the testing performed herein meets the test and reporting requirements of ISO/IEC 17025 under the applicable scope of testing for CKC Laboratories, Inc. We strive to create long-term, trust based relationships by providing sound, adaptive, customer first testing services. We embrace each of our customers’ unique EMC challenges, not as an interruption to set processes, but rather as the reason we are in business. Test Certificate # 803.01 Page 2 of 462 Report No.: 102129-30A TABLE OF CONTENTS Administrative Information .......................................................................................................................... 4 Test Report Information ............................................................................................................................................ 4 Revision History ......................................................................................................................................................... 4 Report Authorization ................................................................................................................................................. 4 Test Facility Information ............................................................................................................................................ 5 Software Versions ...................................................................................................................................................... 5 Site Registration & Accreditation Information .......................................................................................................... 5 Summary of Results ................................................................................................................................................... 6 Modifications During Testing ..................................................................................................................................... 8 Conditions During Testing.......................................................................................................................................... 8 Equipment Under Test ............................................................................................................................................... 9 General Product Information................................................................................................................................... 10 FCC Part 20.21/22H/24E/27 ........................................................................................................................ 11 General Test Setup .................................................................................................................................................. 11 7.1 Authorized Frequency Band Verification ........................................................................................................... 12 Summary of Results ............................................................................................................................................. 15 7.2 Maximum Power and 7.3 Maximum Gain ......................................................................................................... 31 Summary of Results ............................................................................................................................................. 37 7.4 Intermodulation Product ................................................................................................................................... 47 Summary of Results ............................................................................................................................................. 50 7.5 Out of Band Emissions ....................................................................................................................................... 78 Summary of Results ............................................................................................................................................. 79 7.6 Conducted Spurious Emissions ........................................................................................................................ 176 Summary of Results ........................................................................................................................................... 179 7.7 Noise limit ........................................................................................................................................................ 251 Summary of Results ........................................................................................................................................... 254 7.7.1 Maximum Transmitter Noise Power Level ............................................................................................... 268 7.7.2 Variable UL Noise Timing .......................................................................................................................... 294 7.8 Uplink Inactivity ............................................................................................................................................... 302 Summary of Results ........................................................................................................................................... 303 Page 3 of 462 Report No.: 102129-30A 7.9 Booster Gain Limit ......................................…

Text truncated - open the document above for the full version.

Page 151 of 462 Report No.: 102129-30A DL_728-746_LTE_ 726.5- 734.5MHz_50ft Cable DL_728-746_LTE_ 739.5- 747.5MHz_50ft Cable Page 152 of 462 Report No.: 102129-30A DL_746-757_LTE_ 744.5- 752.5MHz_50ft Cable DL_746-757_LTE_ 750.5- 758.5MHz_50ft Cable Page 153 of 462 Report No.: 102129-30A DL_869-894_LTE_ 867.5- 875.5MHz_50ft Cable DL_869-894_LTE_ 887.5- 895.5MHz_50ft Cable Page 154 of 462 Report No.: 102129-30A DL_1930-1995_LTE_ 1927- 1938MHz_50ft Cable DL_1930-1995_LTE_ 1987- 1998MHz_50ft Cable Page 155 of 462 Report No.: 102129-30A DL_2110-2155_LTE_ 2107- 2118MHz_50ft Cable DL_2110-2155_LTE_ 2147- 2158MHz_50ft Cable Page 156 of 462 Report No.: 102129-30A UL_698-716_LTE_ 696.5- 704.5MHz_100ft Cable UL_698-716_LTE_ 709.5- 717.5MHz_100ft Cable Page 157 of 462 Report No.: 102129-30A UL_776-787_LTE_ 774.5- 782.5MHz_100ft Cable UL_776-787_LTE_ 780.5- 788.5MHz_100ft Cable Page 158 of 462 Report No.: 102129-30A UL_824-849_LTE_ 822.5- 830.5MHz_100ft Cable UL_824-849_LTE_ 842.5- 850.5MHz_100ft Cable Page 159 of 462 Report No.: 102129-30A UL_1710-1755_LTE_ 1707- 1718MHz_100ft Cable UL_1710-1755_LTE_ 1747- 1758MHz_100ft Cable Page 160 of 462 Report No.: 102129-30A UL_1850-1915_LTE_ 1847- 1858MHz_100ft Cable UL_1850-1915_LTE_ 1907- 1918MHz_100ft Cable Page 161 of 462 Report No.: 102129-30A DL_728-746_LTE_ 726.5- 734.5MHz_100ft Cable DL_728-746_LTE_ 739.5- 747.5MHz_100ft Cable Page 162 of 462 Report No.: 102129-30A DL_746-757_LTE_ 744.5- 752.5MHz_100ft Cable DL_746-757_LTE_ 750.5- 758.5MHz_100ft Cable Page 163 of 462 Report No.: 102129-30A DL_869-894_LTE_ 867.5- 875.5MHz_100ft Cable DL_869-894_LTE_ 887.5- 895.5MHz_100ft Cable Page 164 of 462 Report No.: 102129-30A DL_1930-1995_LTE_ 1927- 1938MHz_100ft Cable DL_1930-1995_LTE_ 1987- 1998MHz_100ft Cable Page 165 of 462 Report No.: 102129-30A DL_2110-2155_LTE_ 2107- 2118MHz_100ft Cable DL_2110-2155_LTE_ 2147- 2158MHz_100ft Cable Page 166 of 462 Report No.: 102129-30A UL_698-716_LTE_ 696.5- 704.5MHz_150ft Cable UL_698-716_LTE_ 709.5- 717.5MHz_150ft Cable Page 167 of 462 Report No.: 102129-30A UL_776-787_LTE_ 774.5- 782.5MHz_150ft Cable UL_776-787_LTE_ 780.5- 788.5MHz_150ft Cable Page 168 of 462 Report No.: 102129-30A UL_824-849_LTE_ 822.5- 830.5MHz_150ft Cable UL_824-849_LTE_ 842.5- 850.5MHz_150ft Cable Page 169 of 462 Report No.: 102129-30A UL_1710-1755_LTE_ 1707- 1718MHz_150ft Cable UL_1710-1755_LTE_ 1747- 1758MHz_150ft Cable Page 170 of 462 Report No.: 102129-30A UL_1850-1915_LTE_ 1847- 1858MHz_150ft Cable U…
