RSY2013NBUDDYAnalyzer

Welcome Thank you for purchasing Nitroxbuddy, the wireless Oxygen Analyzer for the connected scuba diver. Now, thanks to Nitroxbuddy and the related My Nitroxbuddy App you can easily analyze your scuba tanks using your smart- phone. You can also save log your analysis and add to them useful information such as images, cost, and dive operator. You can also use the My Nitroxbuddy App to determine the Maximum Operating Depth and the Equivalent Air Depth and to share your logs with friends and other divers on various social media channels. To use Nitroxbuddy is very simple; just connect it to your smartphone via Bluetooth and position it in front of the tank you want to analyze and the results will show up on your smartphone screen. Nitroxbuddy includes a user replaceable lithium battery. Nitroxbuddy comes with the free “My Nitroxbuddy App” that includes a comprehensive video tutorial. Check on our website how to get the App. Lastly, in order to use Nitroxbuddy you need a smartphone compatible with the Bluetooth 4.0 low energy standard. Check our website for the list of supported smartphones. Go to www.divenav.com/nitroxbuddy for more information and instructional videos (949) 553-0165 [email protected] www.divenav.com FCC Compliance Statement FCC ID: RSY2013NBUDDY This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These lim- its are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: * Reorient or relocate the receiving antenna. * Increase the separation between the equipment and receiver. * Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. * Consult the dealer or an experienced radio/TV technician for help. FCC Caution The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user’s authority to operate this equipment. Remedy Your sole and exclusive remedy for a breach of this Limited Warranty, and Company’s sole and entire liability is, at Company’s discretion, to repair or replace the defective Product or refund the purchase price of the defective Product within thirty (30) calendar days of the date of purchase. Repair or replacement (including part and labor) shall be made at Company’s expenses. Company reserves the right to send you a replacement product that is the same or an equivalent substitute. Replacement products will be furnished only on an exchange basis. Replace- ment products are warranted as above for the reminder of the original applicable Product warranty period. Warranty Disclaimer EXCEPT AS SET FORTH ABOVE IN THIS LIMITED WARRANTY, THE PRODUCT IS PROVIDED ON AN “AS IS” BASIS AND THE COMPANY MAKES NO OTHER EXPRESS OR IMPLIED WARRANTIES TO THE EXTENT PERMITTED BY LAW AND SPECIFICALLY DISCLAIMS AND EXCLUDES ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF SUCH DISCLAIMER OF ANY IMPLIED WARRANTY IS NOT PERMITTED BY LAW, THE DURATION OF ANY SUCH IMPLIED WARRANTIES IS LIMITED TO THE DURATIONS SET FORTH IN THIS LIMITED WARRANTY. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR LIMITATIONS ON HOW LONG AN IMPLIED WAR- RANTY MAY LAST, SO SUCH LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. Obtaining Warranty Service If you whish to make a claim under this warranty with respect to the Product, you can do that either by using our website or by sending an e-mail to [email protected] with the following information: 1) Attach photocopy of original purchase receipt. 2) Provide purchase date, product UPC code, and serial number. 3) Write brief description of the problem. 4) Provide a telephone number and e-mail address at which you can be reached during normal business hours. All of the above information is required before a warranty claim will be accepted. Once Company validates your claim, we will issue you an RMA (Return Material Authorization) number and shipping information. WARRANTY DiveNav, Inc. (the “Company”) warranty obligations for Nitroxbuddy (the “Product”) are limited to the terms set forth in this document as well those set forth in the Warranty section of the company website. Company warrants the Product against substantial defects in material and workmanship under normal use for a period of one (1) year from the date of original purchase (the “Limited Warranty”). This Limited Warranty is non-transferable and covers only the original purchaser. An original or copy of the sales receipt from the original sales retailer or Company website is required to validate the warranty coverage. This Limited Warranty does not cover the battery and products purchased through non- authorized dealers. Warranty claims must be made directly to the Company. Limitation of Liability IN NO EVENT SHALL COMPANY, NOR ITS AFFILIATES, NOR ITS EMPLOYEES, OFFICERS, DIRECTORS, AGENTS, CONTRACTORS, DISTRIBUTORS, SUPPLIERS OR ASSIGNS (THE “RELEASED PARTIES”) BE LIABLE TO YOU OR ANY THIRD PARTY FOR ANY INDIRECT, INCIDENTAL, CONS…

Text truncated - open the document above for the full version.

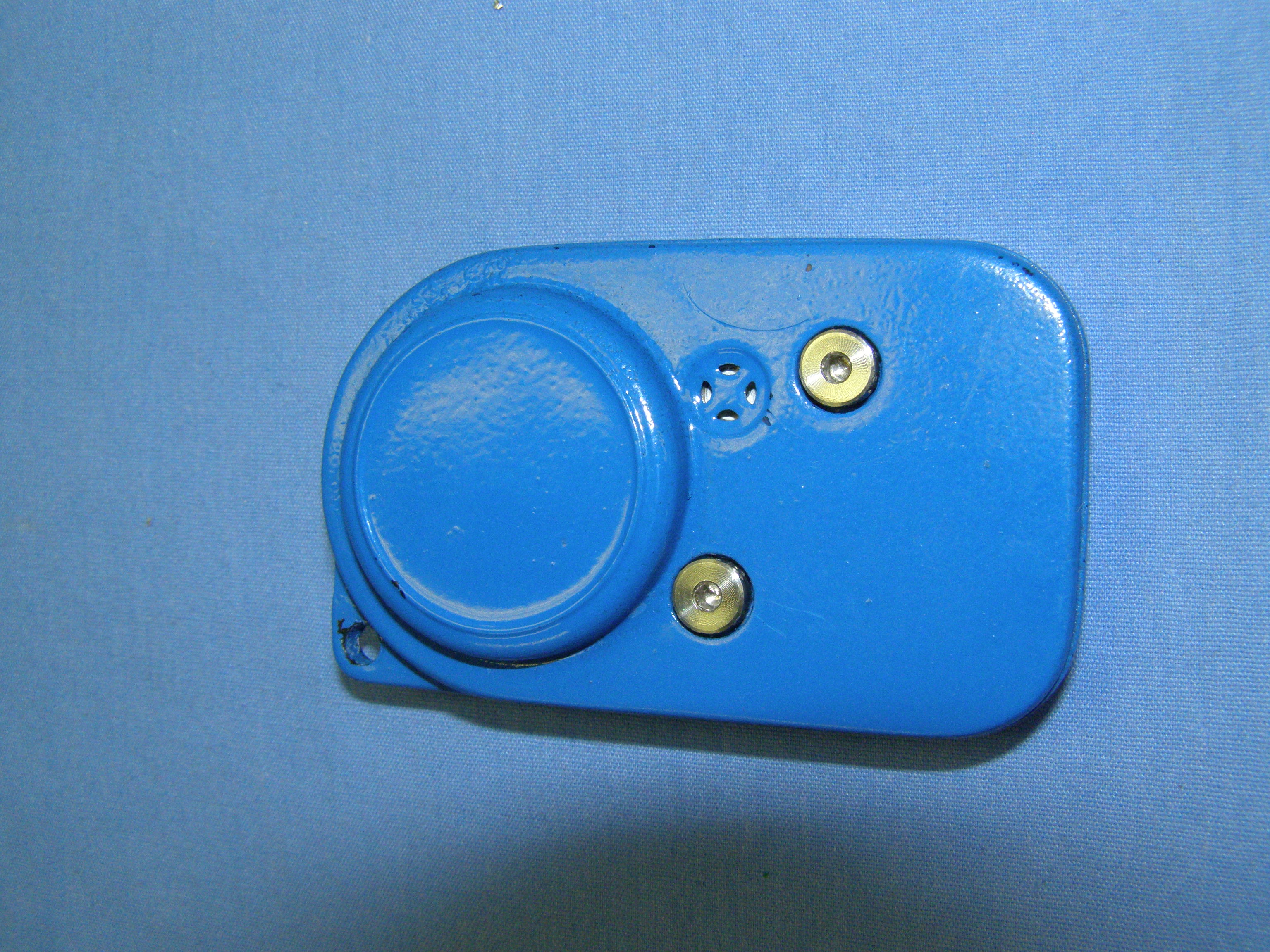

Nitroxbuddy FCC ID FCC ID Code engraved on the bottom of the housing dimensions: 28mm x 3.3mm DiveNav – Proprietary and Confidential 20110217 20131025 4

SAR TEST EXCLUSION This device, FCC ID: RSY2013NBUDDY, is excluded from SAR testing by the following justification. The maximum power that the transmitter IC is capable of is 10 mW. By using the following formula from section 4.3.1 of KDB 447498: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]*[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR Using the maximum conducted power capable (10dBm) and the minimum test separation (5 mm), the resulting calculated SAR value is: (10 mW)/5 mm) * (√2.48 GHz) = 3.15 This value is below the exclusion threshold for the 10-g extremity SAR requirements.

Report Number: D31015P1 FCC ID: RSY2013NBUDDY FCC Part 15 Subpart C Section 15.249 Test Report 20621 PASCAL WAY, LAKE FOREST, CALIFORNIA, 92630 • PH: (949) 587-0400 FX: (949) 587-0476 Page 1 of 17 FCC PART 15, SUBPART B & C SECTION 15.249 CLASS B TEST REPORT For ANALYZER Model: NITROXBUDDY Prepared for DIVENAV, INC. 4311 JAMBOREE ROAD, SUITE #178 NEWPORT BEACH, CA 92660 Prepared by:_____________________ MATT HARRISON Approved by:____________________ JOSH HANSEN COMPATIBLE ELECTRONICS INC. 20621 PASCAL WAY LAKE FOREST, CALIFORNIA 92630 (949) 587-0400 DATE: OCTOBER 15, 2013 REPORT APPENDICES TOTAL BODY A B C D E PAGES 17 2 2 2 16 17 56 This report shall not be reproduced, except in full, without the written approval of Compatible Electronics. Report Number: D31015P1 FCC ID: RSY2013NBUDDY FCC Part 15 Subpart C Section 15.249 Test Report 20621 PASCAL WAY, LAKE FOREST, CALIFORNIA, 92630 • PH: (949) 587-0400 FX: (949) 587-0476 Page 2 of 17 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description of Test Configuration - EMI 8 4.1.1 Photograph of Test Configuration - EMI 8 4.1.2 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 7. CHARACTERISTICS OF THE TRANSMITTER 13 7.1 Channel Number and Frequencies 13 7.2 Modulation 13 7.3 Antenna 13 8. TEST PROCEDURES 14 8.1 RF Emissions 14 8.1.1 Conducted Emissions Test 14 8.1.2 Radiated Emissions (Spurious and Harmonics) Test 15 8.1.3 Fundamental Field Strength 16 8.1.4 Emissions Radiated Outside of the Fundamental Frequency Band 16 8.1.5 Duty Cycle 16 9. TEST PROCEDURE DEVIATIONS 17 10. CONCLUSIONS 17 Report Number: D31015P1 FCC ID: RSY2013NBUDDY FCC Part 15 Subpart C Section 15.249 Test Report 20621 PASCAL WAY, LAKE FOREST, CALIFORNIA, 92630 • PH: (949) 587-0400 FX: (949) 587-0476 Page 3 of 17 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts and Photos  Test Setup Diagrams  Antenna and Amplifier Gain Factors  Radiated Emissions Photos E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Plot Map And Layout of Test Site Report Number: D31015P1 FCC ID: RSY2013NBUDDY FCC Part 15 Subpart C Section 15.249 Test Report 20621 PASCAL WAY, LAKE FOREST, CALIFORNIA, 92630 • PH: (949) 587-0400 FX: (949) 587-0476 Page 4 of 17 GENERAL REPORT SUMMARY This electromagnetic emission report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced in any form except in full, without the written permission of Compatible Electronics. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: Analyzer Model: Nitroxbuddy S/N: None Product Description: The EUT is a wireless Oxygen Analyzer for the connected scuba diver. Modifications: The EUT was not modified during the testing. Manufacturer: DiveNav, Inc. 4311 Jamboree Road Suite 178 Newport Beach, CA 92660 Test Date: October 15, 2013 Test Specifications: EMI requirements CFR Title 47, Part 15 Subpart C Sections 15.205, 15.209 and 15.249 FCC Part 15 Subpart B section 15.109 Test Procedure: ANSI C63.10 and ANSI C63.4 SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz - 30 MHz. The EUT is battery operated; therefore this test was not performed. 2 Radiated RF Emissions & Harmonics, 9 kHz – 25,000 MHz Complies with the limits of CFR Title 47 Part 15Subpart B section 15.109 and Subpart C Sections 15.205 and 15.209. 3 Fundamental Field Strength Complies with CFR Title 47 Part 15 Subpart C Section 15.249(a) 4 Emissions Radiated Outside of the Fundamental Frequency Band Complies with CFR Title 47 Part 15 Subpart C Section 15.249(d) and 15.205 Report Number: D31015P1 FCC ID: RSY2013NBUDDY FCC Part 15 Subpart C Section 15.249 Test Report 20621 PASCAL WAY, LAKE FOREST, CALIFORNIA, 92630 • PH: (949) 587-0400 FX: (949) 587-0476 Page 5 of 17 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the Analyzer Model: Nitroxbuddy. The EMI measurements were performed according to the measurement procedure described in ANSI C63.10 and ANSI C63.4. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT (equipment under test) hereafter, are within the specification limits defined by the Code of Federal Regulations Title 47, Part 15 subpart B sections 15.109, Part 15 Subpart C sections 15.205, 15.209 and 15.249. Report Number: D31015P1 FCC ID: RSY2013NBUDDY FCC Part 15 Subpart C Section 15.249 Test Report 20621 PASCAL WAY, LAKE FOREST, CALIFORNIA, 92630 • PH: (949) 587-0400 FX: (949) 587-0476 Page 6 of 17 2. ADMINISTRATIVE DATA 2.1 Location of Testing The EMI tests described herein were performed at the test facility of Compatible Electronics, 20621 Pascal Way Lake Forest, California 92630. 2.2 Traceability Statement The calibration certificates of all test equipment used during the test are on file at the location of the test. The calibration is traceable to the National Institute of Standards …
