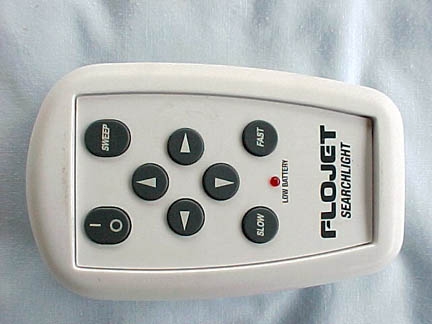

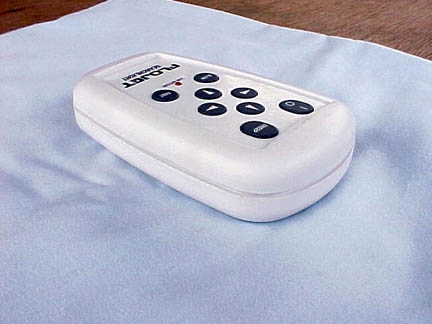

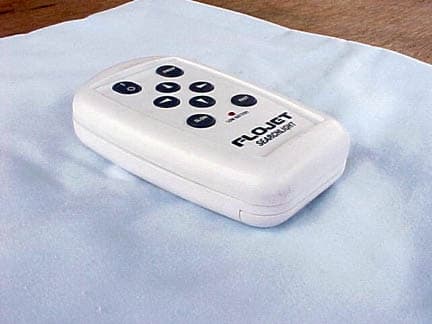

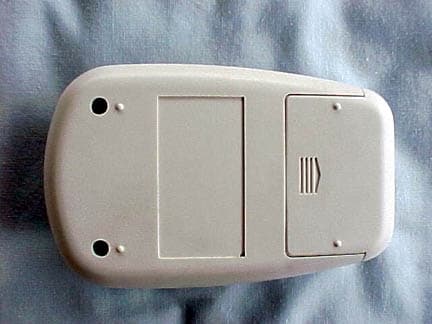

WIRELESS REMOTE CONTROL MARINE / RV SEARCHLIGHT USER’S MANUAL FEATURES ● 12/24 Vdc capable with same lights ● Complies with FCC Part 15 regulations ● FM frequency 433.92 mHz UHF ● Complies with US, Canadian and European regulations ● 150' range ● 30° sweep mode ● Auto off feature prevents leaving light on during daylight hours ● Control powered by high quality 9V battery CLEANING OF EXTERIOR PLASTIC SURFACES Recommendation for cleaning “Exterior Surfaces” is a solution of warm water and a mild “dish washing” detergentsoap. CAUTIONDo not use cleaners that contain esters, halogenated solvents, aromatic solvents, ketones and strong acids or bases. CIRCUIT PROTECTION Aminimum 10 amp circuit is recommended with overload protected by a fuse or circuit breaker. BULB REPLACEMENT 1. Remove four (4) screws and retaining bezel. 2. Pull bulb assembly forward and disconnect spade connectors from back of bulb. 3. Reconnect spade terminals to new bulb. 4. Install bulb and fasten with bezel and four (4) screws. PARTS LIST WIRELESS REMOTE CONTROL MARINE / RV SEARCHLIGHT FEATURES APPLICATION Ideal for RVers... pinpoint road signs, campsites, or use as backup light. Use control inside or outside the vehicle. SPECIFICATIONS ● 320° horizontal movement ● 75° vertical sweep ● 50 watt 3-1/2" x 6" bulb ● White thermoplastic housing and base INSTALLATION INSTRUCTIONS LIGHT MOUNTING 1. Select a location that will allow for clear beam projection. Searchlight base should be mounted on level, flat surface. 2. Using the light base mounting template enclosed, drill three (3) 3/16" mounting holes and a hole 1" at the center of base for wiring 12Vdc power. 3. Mount light so that the FLOJET name on the base is facing to the rear. 4. Fasten light in place with three (3) #10 x 1" screws provided or appli- cable screws for your particular application. 32 Wireless Remote Control INSTRUCTION TO THE USER: The user is cautioned that changes or modifications not expressly approved by the party responsible for compli- ance could void the user’s authority to operate this equipment. ● Wireless ● Constructed of non-corrosive materials ● Sealed beam halogen lamp ● Wireless remote control and 15' cable included ● Long life gear drive ● Low amp draw ● Patented clutch mechanism prevents motor damage when running against limit stops ModelWeightsStandard NumberVoltageAmpsCandlepowerlb (kg)Carton 8035-10012 Vdc3.6100,0006 (2.7)4 Part DescriptionNumber Bulb Kit18753-017B Control91006-393A Upper Housing60023-1000 Lower Housing60024-100A Base60027-100A Bulb Retainer60035-1000 Motor-Vertical (upper)18753-0350 Motor-Horizontal (lower)18753-0350 HAND HELD TRANSMITTER 1. ON/OFF- Toggles the state of the Lamp from OFF to ON or from ON to OFF. 2. SWEEP- When depressed, the button will initiate a “back and forth” operation of the horizontal position. Depressing any other key will cancel this operation. 3. DIRECTIONAL- There are 4 buttons corresponding to RIGHT and LEFT and UP and DOWN. Depressing two direction at the same time will result in no signal being transmitted. 4. SLOW- When depressed, it enables the SLOW speed. All subsequent direction keys will operate the searchlight motors at slow speed. The SLOW rate will be active until the FAST key is depressed. 5. FAST- When depressed, it enables the FAST speed. All subsequent direction keys will run the searchlight motors at fast speed. The FAST rate will be active until the SLOW key is depressed. 6. DATA LED/LOW BAT LED- The data light is lit whenever any data is being transmitted. The LOW BAT led will blink a _ second ON, 2 second OFF rate when a low battery condition is detected. 7. BATTERY REPLACEMENT- The transmitter battery may be replaced by sliding the door on the back of the transmitter case. Memory will not be lost during battery change. Automatic Lamp OFF-To prevent the possibility of that the lamp is left ON during the daylight and not noticed by the user, or that the transmit- ter unit has failed, the receiver/controller will automatically shut the lamp OFF after 15 minutes of non-operation. The automatic timeout can be disabled by depressing the RIGHT and LEFT arrows on the transmitter at the same time; the searchlight will blink ON-OFF to indicate it has received the command. Code Setting- The LEARN mode is activated on the transmitter by depressing both the SLOW and FAST buttons at the same time. This transmits a special LEARN code instead of the normal SLOW or FAST commands. The receiver/controller will accept this code as valid ONLY if it is activated within 5 minutes of application of power to the searchlight (receiver). This prevents an adjacent searchlight from learning the spe- cific code. After 5 minutes of power, this learning mode is DISABLED in the searchlight (receiver). The transmitter code capacity exceeds 60,000 channel channels for your protection. 54 TROUBLESHOOTING All lights are thoroughly inspected before shipping and are warranted to operate within specifications. If light does not operate correctly, check fuse, circuit connections and battery in control before proceeding. Problem Solution Light moves – 1. Check bulb. bulb does notoperate. Dim light.1. Check voltage at power source. 2. Increase wire size from source to light. 3. Check for proper ground circuit. 1 2 4 3 5 6 7 Lightheadoutline 1" Dia. hole in deck for power Lightbaseoutline Mountingholes (3) 3/16" MOUNTING TEMPLATE HAND HELD TRANSMITTER INSTRUCTION TO THE USER FCC ID: RT491006393 This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer- ence in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accor- dance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particula…

Text truncated - open the document above for the full version.

1 Scott McCutchan To:Mike Christensen Subject:FCC ID: RT491006393 Mr. Christensen , In order for processing of this application (FCC ID: RT491006393) to continue, the following issue(s) will have to be addressed: 1) Please provide a more detailed operational description, describing what the device is used, modulation type, how the device meets the requirements of 15.231(a), etc. 2) If the user's manual is to contain the FCC ID, it should show the actual grantee code instead of "XXX". Please submit an updated manual. The item(s) indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Please upload your response to our electronic filing website using a correspondance number of "RT491006393-1". If you have any questions, feel free to contact me. Best regards, Scott McCutchan Operations Manager Compatible Electronics TCB (714) 579-1489 fax (714) 579-1850 http://www.celectronics.com

Report Number: B31229A1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Flojet Searchlight Transmitter Model: 8035 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 15 FCC PART 15, SUBPART B and C TEST REPORT for FLOJET SEARCHLIGHT TRANSMITTER MODEL: 8035 Prepared for ITT INDUSTRIES 20 ICON FOOTHILL RANCH, CA 92610 Prepared by:_____________________ MICHAEL CHRISTENSEN Approved by:____________________ KYLE FUJIMOTO COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: JANUARY 6, 2004 REPORT APPENDICES TOTAL BODY A B C D E PAGES 15 2 2 2 10 16 47 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B31229A1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Flojet Searchlight Transmitter Model: 8035 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 15 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description Of Test Configuration - EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 7. TEST PROCEDURES 13 7.1 Radiated Emissions (Spurious and Harmonics) Test 13 7.2 Bandwidth of the Fundamental 14 8. CONCLUSIONS 15 Report Number: B31229A1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Flojet Searchlight Transmitter Model: 8035 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 15 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos • Test Setup Diagrams • Radiated Emissions Photos • Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Plot Map And Layout of Radiated Site Report Number: B31229A1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Flojet Searchlight Transmitter Model: 8035 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 15 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: Flojet Searchlight Transmitter Model: 8035 S/N: N/A Product Description: See Expository Statement Modifications: The EUT was modified in order to meet the specifications. Please see a list of the modifications in Appendix B. Manufacturer: ITT Industries 20 Icon Foothill Ranch, CA 92610 Test Date: December 29, 2003 Test Specifications : EMI requirements CFR Title 47, Part 15 Subpart B; and Subpart C, Sections 15.205, 15.209 and 15.231 Test Procedure: ANSI C63.4: 2001 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz - 30 MHz This test was not performed because the EUT operates on DC power only and cannot be plugged into the AC public mains. 2 Radiated RF Emissions, 10 kHz - 4400 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.231. Report Number: B31229A1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Flojet Searchlight Transmitter Model: 8035 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 15 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the Flojet Searchlight Transmitter Model: 8035. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4: 2001. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the Class B specification limits defined by CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.231. Report Number: B31229A1 FCC Part 15 Subp…
