RTC-1000FMLow Power FM Transmitter

User’s Manual 2 Table of Contents TABLE OF CONTENTS.............................................................................................................. ..........................................2 INTRODUC TION................................................................................................................... ................................................5 Welcome ........................................................................................................................ ...................................................................................................................... 5 Aireo™ User’ s Guide ............................................................................................................ ............................................................................................................. 6 Communications Regulation Information.......................................................................................... .............................................................................................. 7 Caring fo r Aireo............................................................................................................... ................................................................................................................... 8 Before You Begin ............................................................................................................... ................................................................................................................. 9 Tour Aireo ..................................................................................................................... .................................................................................................................... 11 Basic Conn ections .............................................................................................................. ............................................................................................................... 13 LET’S GET STARTED.............................................................................................................. ..........................................16 Installation Procedure ......................................................................................................... ............................................................................................................. 16 The Installati on Wizard ........................................................................................................ ........................................................................................................... 19 LOADING MUSIC ON AI REO™ ........................................................................................................ .................................22 Using Soni qSync ................................................................................................................ ............................................................................................................... 22 3 AIREO FE ATUR ES................................................................................................................. ............................................25 MP3 / WMA Player ............................................................................................................... ........................................................................................................... 25 FM Stereo ...................................................................................................................... .................................................................................................................... 25 FM Transmitter ................................................................................................................. ............................................................................................................... 25 File Caddy ..................................................................................................................... .................................................................................................................... 26 SD/MMC Flash Storage ........................................................................................................... ........................................................................................................ 26 Aireo Status Displays.......................................................................................................... .............................................................................................................. 26 Using Aireo™................................................................................................................... ................................................................................................................. 29 MP3 PLAYER APPLI CATION ......................................................................................................... ...................................32 Playing Aireo Music ............................................................................................................ ............................................................................................................. 32 Browse ......................................................................................................................... ...................................................................................................................... 33 Aireo Pref erences.............................................................................................................. ................................................................................................................ 39 FM STEREO APPLI CATION ...............................…

Text truncated - open the document above for the full version.

FCC ID: RTC -1000FM Page 1 of 2 1000FM - External Top 1000FM - External Bottom Label to be placed here FCC ID: RTC -1000FM Page 2 of 2 1000FM - External Sides

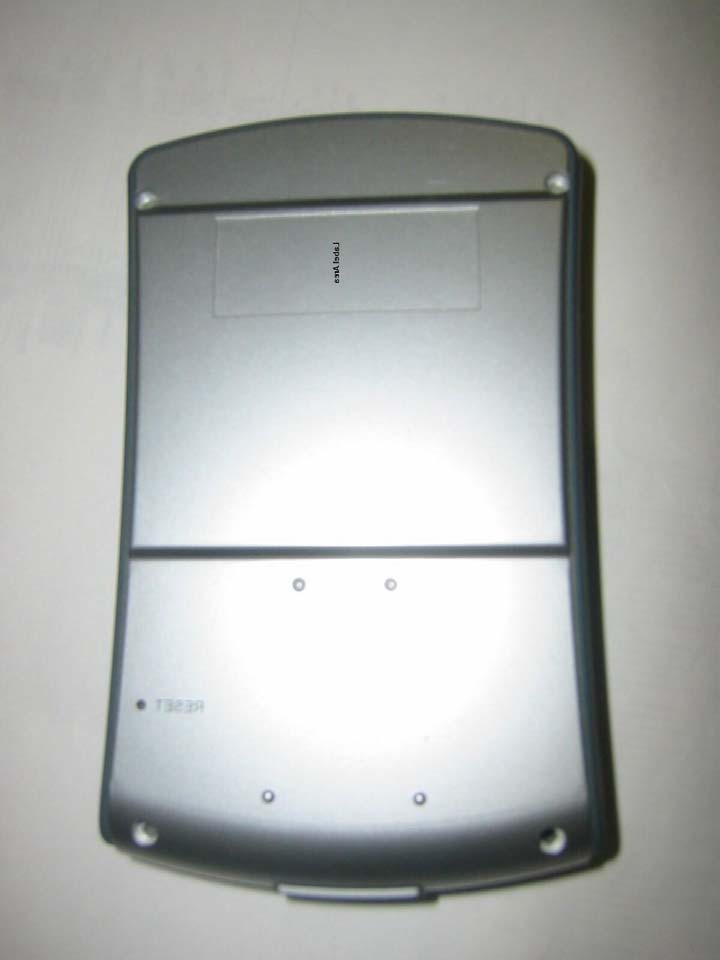

F FCC ID: RTC-1000FM and FCC ID: RTC-1000WF IC: 4816A-1000FM and IC: 4816A-1000WF TM 1000FM - External Bottom Label to be placed here Due to the small smize of this device (approx 4" x 2") the compliance statement has been placed in the manual instead of on the label.

FCC ID: RTC -1000FM Page 1 of 12 1000WF Internal - Disassembly FCC ID: RTC -1000FM Page 2 of 12 1000WF Internal - Disassembly FCC ID: RTC -1000FM Page 3 of 12 1000WF Internal - CPU PCB - Bottom View FCC ID: RTC -1000FM Page 4 of 12 1000WF Internal - CPU PCB (with WIFI Board removed) - Top View FCC ID: RTC -1000FM Page 5 of 12 1000FM Internal - CPU PCB - Top View (FM Transmitter circuitry outlined) FCC ID: RTC -1000FM Page 6 of 12 1000FM Internal - CPU PCB - Top View (Clo se up of FM Transmitter circuitry outlined) FCC ID: RTC -1000FM Page 7 of 12 1000FM Internal - CPU PCB - Bottom View (clo se up of FM Transmitter circuitry outlined) FCC ID: RTC -1000FM Page 8 of 12 1000FM Internal - FM Transmit Antenna PCB Trace FCC ID: RTC -1000FM Page 9 of 12 1000WF Internal - LCD Board - Front View FCC ID: RTC -1000FM Page 10 of 12 1000WF Internal - LCD Board - Back View FCC ID: RTC -1000FM Page 11 of 12 1000WF Internal - LCD Back View FCC ID: RTC -1000FM Page 12 of 12 1000WF Internal - LCD Front View

Confidential and Proprietary – SoniqCast, Inc. (Do not copy or distribute without express written consent from SoniqCast, Inc.) Introduction This document provides the background technical data necessary for FCC submittal for the FM transmitter (FCC ID: RTC-1000FM) within the SoniqCast Aireo wireless audio player (model SQ-1000-NA). SoniqCast LLC is headquartered at 4400 Baker Road, Minnetonka, MN and has been assigned a FRN of 0010017416. The Aireo player contains two transmitter functions, a FM transmitter detailed herein, and an 802.11b radio (FCC ID: RTC-1000WF) detailed in a separate submittal. 1 General Functions The SoniqCast Aireo is a portable wireless audio player for the consumer electronics market. It plays audio content, including music and voice, in MP3, WMA and .wav digital formats. Content is stored on an internal hard disk and an optional removable SD format memory card. Content is loaded via a USB interface and/or an 802.11b wireless LAN connection. Audio output is via external headphones or is modulated onto a carrier in the 88-108 MHz band for receipt on a conventional FM radio receiver. The user interface consists of a power button, keypad and LCD screen. 2 Circuit Operation A single IC, the Rohm BH1415, provides a FM stereo transmit function with the audio supplied from the device. A PLL controlled VCO is implemented with a varactor controlled LC tank circuit, tuning over the 88-108 MHz band. Digital tuning of the PLL is by the unit microprocessor. 75us pre-emphasis is implemented for compatibility with the US market. The transmitter is automatically disabled when any headphone jack is populated. Reference the external documents 1000FM Schematic.pdf and 1000FM Block Diagram for further information. 3 Device Antennas As a battery powered portable product, no external grounding system is used with the unit antennas. All transmit antennas are internal to the unit with no provision for external antennas. 3.1 FM Transmitter A pcb trace is used for the FM transmit antenna. The trace forms a simple, short monopole. The transmitter is disabled if any headphone jack is populated. SoniqCast ) ) ) )

PRODUCT SERVICE TEST RESULT SUMMARY FCC Part 15 Subpart C Section 15.239 MANUFACTURER'S NAME SoniqCast, LLC NAME OF EQUIPMENT Low Power FM transmitter (FCC ID: RTC- 1000FM) in wireless audio player MODEL NUMBER SQ-1000-NA MANUFACTURER'S ADDRESS 4400 Baker Road Minnetonka MN 55343 TEST REPORT NUMBER NC305614 TEST DATE 18 December 2003 According to testing performed at TÜV Product Service Inc, the above-mentioned unit is in compliance with the radiated emission electromagnetic compatibility requirements defined in FCC Part 15 Subpart C Section 15.239. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. Any modifications necessary for compliance made during testing on the above mentioned date(s) must be implemented in all production units for compliance to be maintained. TÜV Product Service Inc, as an independent testing laboratory, declares that the equipment tested as specified above conforms to the requirements of FCC Part 15 Subpart C Section 15.239. Date: 02 January 2004 Location: Taylors Falls MN G. S. Jakubowski J. T. Schneider USA Test Technician Senior Engineer Not Transferable FCC ID: RTC-1000FM File No. NC305614, Page 1 of 10 TÜV PRODUCT SERVICE INC 19333 Wild Mountain Road Taylors Falls MN 55084-1758 Tel: 651 638 0297 Fax: 651 638 0298 Rev.No 1.0 PRODUCT SERVICE EMC EMISSION - T E S T R E P O R T Test Report File No. : NC305614 Date of issue: 02 January 2004 Model No. : SQ-1000-NA Product Name : Low Power FM transmitter in wireless audio player Applicant : SoniqCast, LLC Manufacturer : SoniqCast, LLC Address : 4400 Baker Road : Minnetonka MN 55343 Test Result : „ Positive † Negative Test Project Number : Reference(s) NC305614 Total pages including Appendices 36 TÜV Product Service Inc is a subcontractor to TÜV Product Service, GmbH according to the principles outlined in ISO/IEC Guide 25 and EN 45001. TÜV Product Service Inc reports apply only to the specific samples tested under stated test conditions. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. TÜV Product Service Inc shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV Product Service Inc issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. This report shall not be used by the client to claim product endorsement by NVLAP or any agency of the US government. TÜV Product Service Inc and its professional staff hold government and professional organization certifications and are members of AAMI, ACIL, AEA, ANSI, IEEE, NVLAP, and VCCI File No. NC305614, Page 2 of 10 TÜV PRODUCT SERVICE INC 19333 Wild Mountain Road Taylors Falls MN 55084-1758 Tel: 651 638 0297 Fax: 651 638 0298 Rev.No 1.0 PRODUCT SERVICE D I R E C T O R Y - EMISSIONS Page(s) A) Documentation Test report 1 - 10 Directory 2 Test Regulations 3 Deviations from standard / Summary 8 Test-setups (Photos) 9-10 Test-setup (drawing) Appendix A B) Test data Conducted emissions (15.207) 150 kHz - 30 MHz 5, 7 Radiated emissions (15.239 (b) & (c) 30 MHz - 1000 MHz 5, 7 15.239(a) bandwidth measurement 5, 7 Band edge compliance 5, 7 C) Appendix A Test Data Sheets and Test Setup Drawing(s) A2 – A20 D) Appendix B Constructional Data Form B2 – B4 E) Appendix C Measurement Protocol C1 - C2 File No. NC305614, Page 3 of 10 TÜV PRODUCT SERVICE INC 19333 Wild Mountain Road Taylors Falls MN 55084-1758 Tel: 651 638 0297 Fax: 651 638 0298 Rev.No 1.0 PRODUCT SERVICE EMISSIONS TEST REGULATIONS : The emissions tests were performed according to following regulations: -------------------------------------------------------------------------------- † - EN 50081-1 / 1991 † - EN 55011 / 1998 Radiated Emissions, † - Group 1 † - Group 2 with Amendment A1: 1999 & Amendment A2: 2002 † - Class A † - Class B † - EN 55013 / 1990 † - EN 55014 / 1987 † - Household appliances and similar † - Portable tools † - Semiconductor devices † - EN 55014 / A2:1990 † - EN 55014 / 1993 † - Household appliances and similar † - Portable tools † - Semiconductor devices † - EN 55015 / 1987 † - EN 55015 / A1:1990 † - EN 55015 / 1993 † - EN 55022 / 1987 † - Class A † - Class B † - EN 55022 / 1994 † - Class A † - Class B † - BS † - VCCI † - Class A † - Class B „ - FCC Part 15 Subpart C Section 15.239 † - AS 3548 (1992) † - Class A † - Class B † - CISPR 11 (1997) Radiated Emissions, w/A1: 1999 † - Group 1 † - Group 2 † - Class A † - Class B † - CISPR 22 (1993) † - Class A † - Class B File No. NC305614, Page 4 of 10 TÜV PRODUCT SERVICE INC 19333 Wild Mountain Road Taylors Falls MN 55084-1758 Tel: 651 638 0297 Fax: 651 638 0298 Rev.No 1.0 PRODUCT SERVICE Environmental conditions in the lab: Actual Temperature : 21 °C Relative Humidity : 30 % Atmospheric pressure : 98.0 kPa Power supply system : 60 Hz – 110 VAC – 1 Phase Sign Explanations: † - not applicable „ - applicable File No. NC305614, Page 5 of 10 TÜV PRODUCT SERVICE INC 19333 Wild Mountain Road Taylors Falls MN 55084-1758 Tel: 651 638 0297 Fax: 651 638 0298 Rev.No 1.0 PRODUCT SERVICE Emissions Test Conditions: CONDUCTED EMISSIONS ( Interference Voltage ) The C ONDUCTED E MISSIONS (I NTERFERENCE V OLTAGE ) measurements were performed at the following test location: † - Test not applicable „ - Wild River Lab Large Test Site (Open Area Test Site) † - Wild River Lab Small Test Site (Open Area Test Site) † - Oakwood Lab (Open Area Test Site) † - Wild River Lab Screen Room † - New Brighton Lab Shielded Room Test equipment used : TUV ID Model Number Manufacturer Description Serial Number Cal Due „ - 2417 3825/2 EMCO LISN 1439 01-15-04 „ - 2534 ESHS-20 RHODE & SCHWARZ TEST RECEIVER 837055/003 12-03-03 All …

Text truncated - open the document above for the full version.

Test-setup photo(s): Conducted emission 150 kHz - 30 MHz FCC ID: RTC-1000FM Test-setup photo(s): Radiated emission 30 MHz - 1000 MHz TEST SETUP FOR EMISSIONS TESTING WILD RIVER LAB Large Test Site Notes: 1. Items shown in dotted lines are located on the floor below the test area. It is 5 meters vertically from the ground floor to the test area. 2. 50 Hz, 60 Hz, and 400 Hz are power panels for alternating current. 3. The antenna may be positioned horizontally 3, 10 or 30 meters from the center of the turntable. 4. The circle is a 6.7 meter diameter turntable. 5. A ground plane is in the plane of this sheet. 6. The test sample is shown in the azimuthal position representing zero degrees. EUT 0 90270 180 60 Hz 50 Hz 400 Hz Shielded Enclosure ANTENNA
