RTKI4C0CARBONADO SMART PTT CASE FOR IPHONE/IPHONE SMART COVER

User Manual Carbonado Smart PTT case for iPhone Copyright 2013, Kodiak Networks, Inc. 2 Table of Contents GENERAL INFORMATION.................................................................................................................................. 3 MODEL COVERED .......................................................................................................................................... 3 NETWORK SERVICES ....................................................................................................................................... 3 CARBONADO SMART PTT CASE SUPPORT INFORMATION ......................................................................................... 3 SAFETY GUIDELINES ....................................................................................................................................... 3 PRECAUTIONS TO USE THE BATTERY ................................................................................................................... 4 BATTERY REPLACEMENT .................................................................................................................................. 4 CHILD SAFETY ............................................................................................................................................... 4 GETTING STARTED ......................................................................................................................................... 5 SETTING UP YOUR CARBONADO SMART PTT CASE .................................................................................................. 5 INSERTING THE CARBONADO SMART PTT CASE ..................................................................................................... 5 CHARGING THE CARBONADO SMART PTT CASE BATTERY ......................................................................................... 5 DEVICE SPECIFICATIONS .................................................................................................................................. 6 BASICS OF YOUR CARBONADO SMART PTT CASE .................................................................................................... 7 CARBONADO SMART PTT CASE LAYOUT .............................................................................................................. 7 CARBONADO SMART PTT CASE FRONT LAYOUT ..................................................................................................... 7 CARBONADO SMART PTT CASE BACK LAYOUT ...................................................................................................... 8 CARBONADO SMART PTT CASE RIGHT PROFILE LAYOUT........................................................................................... 8 CARBONADO SMART PTT CASE LEFT PROFILE LAYOUT ............................................................................................. 9 CARBONADO SMART PTT CASE TOP ................................................................................................................... 9 CARBONADO SMART PTT CASE BOTTOM ............................................................................................................. 9 KEY FUNCTION ............................................................................................................................................ 10 CONNECTIVITY AND CALLING .......................................................................................................................... 11 INSERTING OF CARBONADO SMART PTT CASE ..................................................................................................... 11 BLUETOOTH CONNECTIVITY ............................................................................................................................ 11 BLUETOOTH PAIRING OF CARBONADO SMART PTT CASE WITH IPHONE DEVICE ............................................................ 11 WHEN TO PERFORM BLUETOOTH CONNECTION ................................................................................................... 11 SMART PTT CASE VOLUME UP/DOWN ............................................................................................................. 12 PTT CALLING TO INDIVIDUALS AND GROUPS....................................................................................................... 12 RED BUTTON ............................................................................................................................................. 12 BEHAVIOR OF SIDE PTT BUTTON AND RED BUTTON ON CARBONADO SMART PTT CASE FOR DIFFERENT CALL SCENARIOS....... 13 FCC REGULATIONS ...................................................................................................................................... 14 Copyright 2013, Kodiak Networks, Inc. 3 General Information Welcome to the world of Carbonado Smart phone accessories. This smart accessory works as a add- on protection along with PTT features, the device has a feature-rich user interface, which allows you to make the best use of the available functions on your Carbonado smart PTT case. With iPhone taking high resolution pictures, browsing the web at full speed, using the phone to make PTT calls and the possibilities of this phone are almost endless. That’s where this 1500 mAh Extended Battery Smart PTT case along with smart features will come in handy. Over the years, smart phones have increased in power and functionality. Connecting this Bluetooth Smart PTT case to your iPhone you’ll have more features than your actual iPhone. Designed specifically for the iPhone, this Extended Bluetooth Smart PTT case provides a perfect fit and flawless compatibility. Cut-outs are available for the camera, Flash light, speaker, microphone, ear phone jack and side buttons, so you can still utilize the full functionality of your phone without having to take it out of the case. Easily recharge your Battery Pack through the Micro USB charger port available on to the righ…

Text truncated - open the document above for the full version.

Kodirk Networlq Ioc. l50l 101h sr@r. Suil. 130 Pldo. Tdd 75074 TELDPHONENO.T+l 214 621 ?284 FACSIMILE NO,:+l 972 665 0198 unrLab (sna.qh.i) c.,, Lrd, (!s. rlra,osnq isnaqef) .. oDr by un16 (shanqhdi) Rir,.*aDq erqe!) .xprr* 6n (od, 21,20111. 'r€ nor subjec. sulj.cr !o . &dar pe4\) .1v. o9

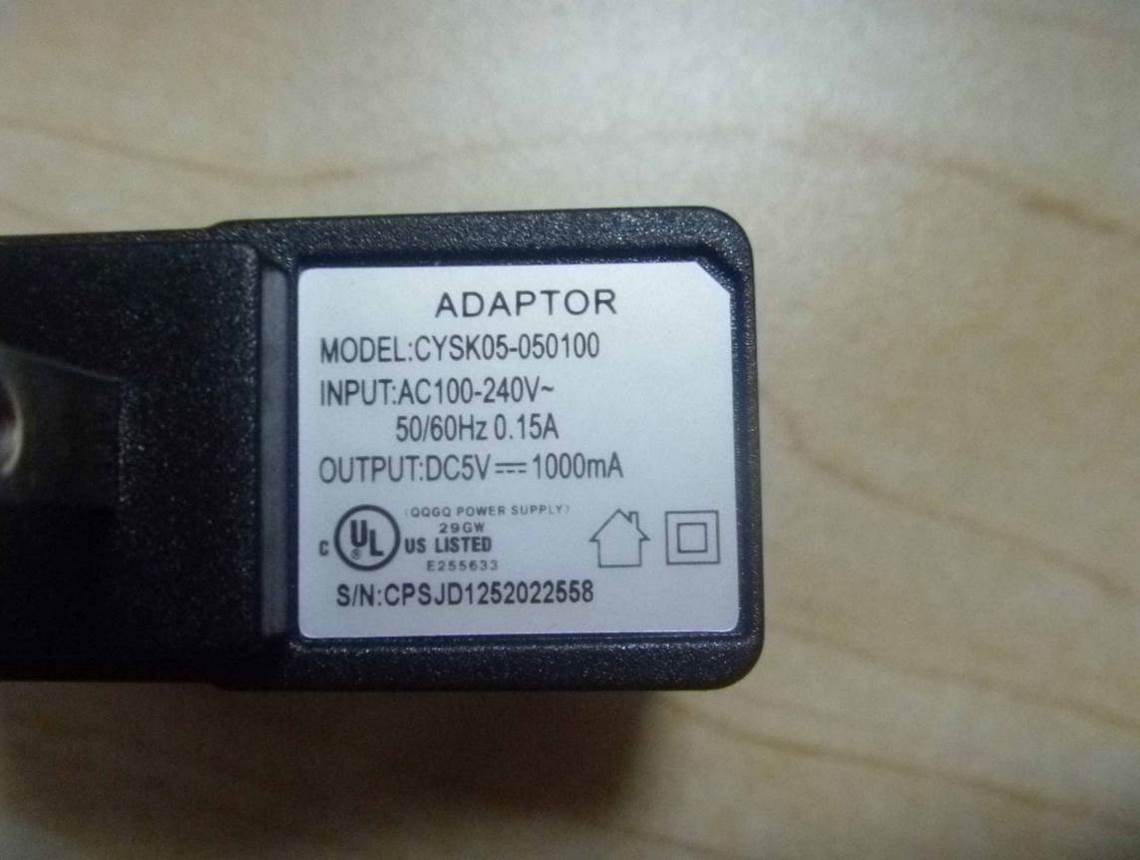

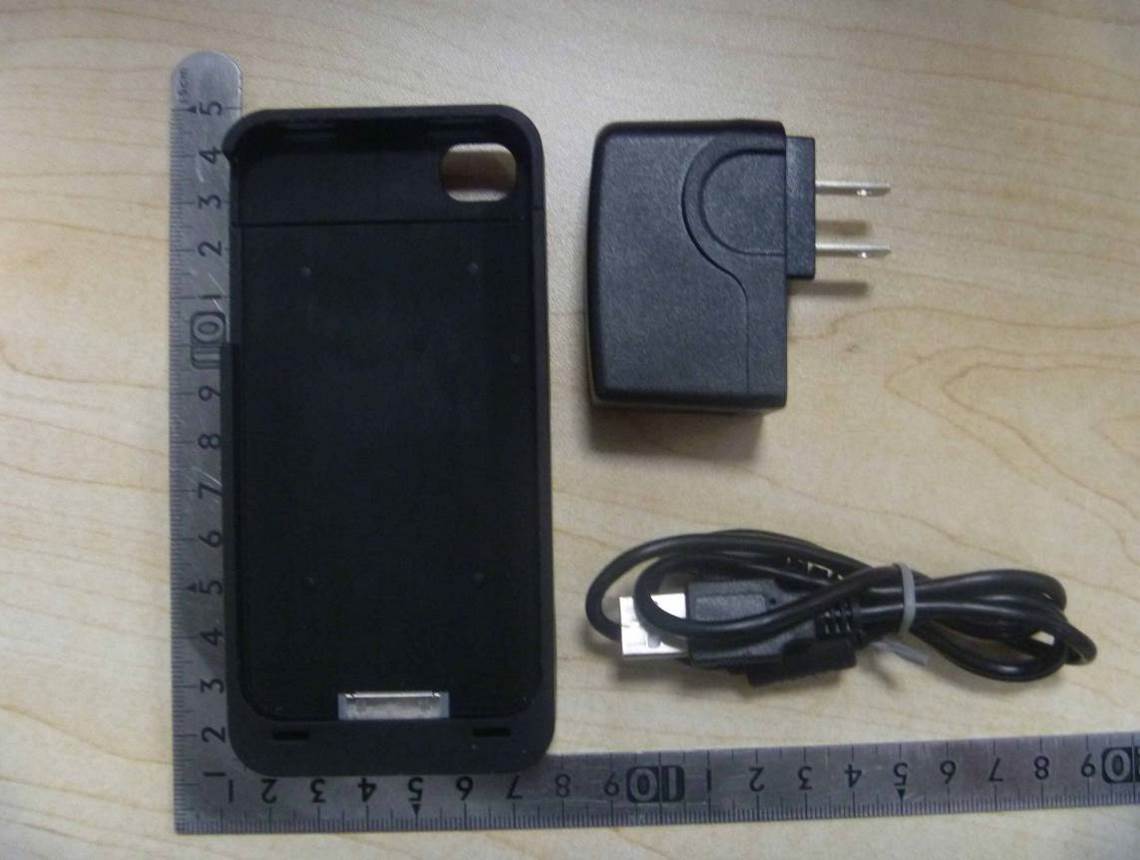

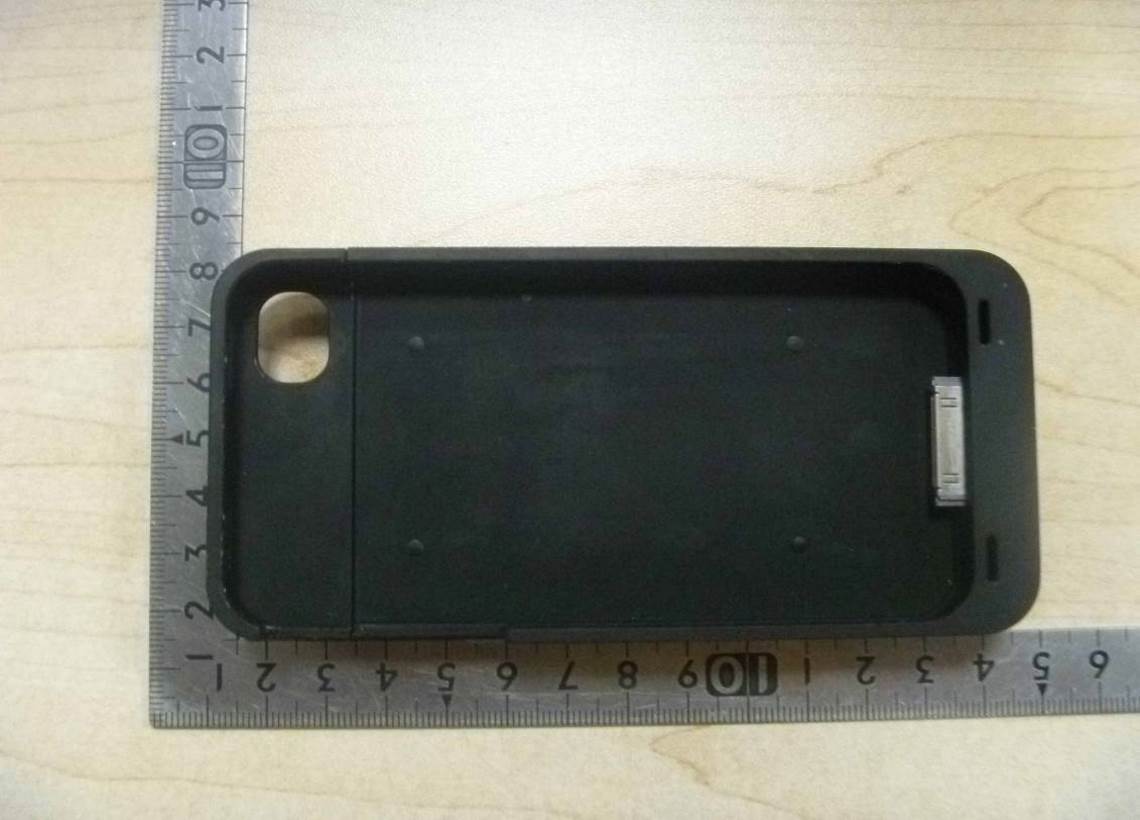

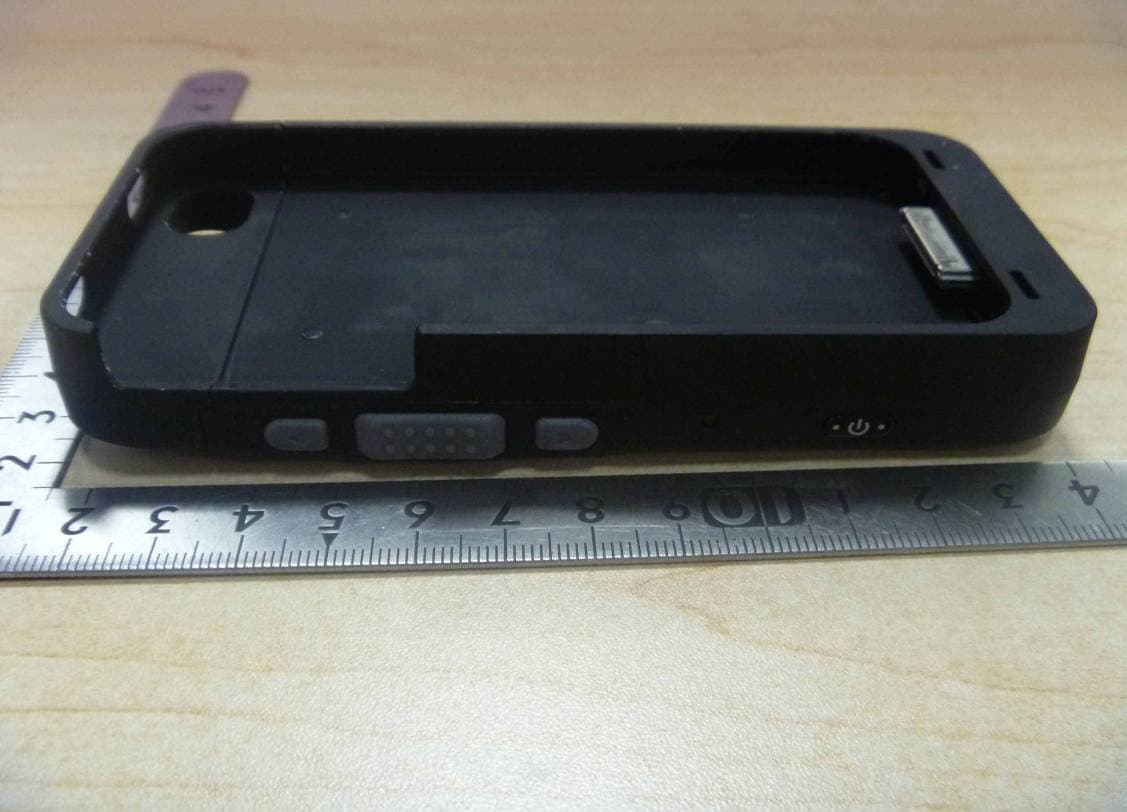

1 / 4 Product Name : Carbonado smart PTT case for iPhone Model Name : RTKI4C0 Report NO : UL05420130725FCC/IC001 1． External Photograph of EUT 1 2 / 4 3 / 4 4 / 4 2．Photograph of Accessory

RTKI4C0 Label location

MODEL NO.:RTKI4C0 FCC ID: RTKI4C0 IC: 11048A‐I4C0

1 / 5 Product Name : Carbonado smart PTT case for iPhone Model Name : RTKI4C0 Report NO : UL05420130725FCC/IC001 3．Internal Photograph of EUT 1 2 / 5 3 / 5 4 / 5 5 / 5

Report No. SET2013-05214 CCIC-SET/T-I (00) Page 1 of 222 SAR TEST REPORT Report No.： SET2013-05214 Product： Carbonado smart PTT case for iPhone Model No.： RTKI4C0 Brand Name： CARBONADO FCC ID： RTKI4C0 IC ID： 11048A-I4C0 Applicant： Kodiak Networks Address： 1501 10th Street, Suite 130 Plano, Texas 75074 Issued by： CCIC-SET Lab Location： Electronic Testing Building, Shahe Road，Xili, Nanshan District, Shenzhen, 518055, P. R. China Tel： 86 755 26627338 Fax：86 755 26627238 Mail： [email protected] Website：http://www.ccic-set.com This test report consists of 179 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No. SET2013-05214 CCIC-SET/T-I (00) Page 2 of 222 Test Report Product. ................................ : Kodiak Networks Model No. .........................: RTKI4C0 Brand Name.......................: CARBONADO FCC ID...............................: RTKI4C0 IC ID..................................: 11048A-I4C0 Applicant...........................: Kodiak Networks Applicant Address..............: 1501 10th Street, Suite 130 Plano, Texas 75074 Manufacturer.....................: Kodiak Networks Manufacturer Address.........: 1501 10th Street, Suite 130 Plano, Texas 75074 Rating .................................... : 3.7V 1500mAh Test Standards...................: IEEE Std. 1528-2003, 47CFR§2.1093 RSS-102 Issue 4 March 2010 Test Result........................: Pass Tested by ..........................: Signature: lei Lu Reviewed by......................: Signature:Shuangwen Zhang Approved by......................: Signature: Lian Wu Report No. SET2013-05214 CCIC-SET/T-I (00) Page 3 of 222 Contents 1. GENERAL CONDITIONS 2. ADMINISTRATIVE DATA 2.1. Identification of the Responsible Testing Laboratory 2.2. Identification of the Responsible Testing Location(s) 2.3. Organization Item 2.4. Identification of Applicant 2.5. Identification of Manufacture 3. GENERAL INFORMATION 3.1 Description of Equipment Under Test (EUT) 4. SAR SUMMARY 5. SPECIFIC ABSORPTION RATE (SAR) 5.1. Introduction 5.2. SAR Definition 5.3. Phantoms 5.4. Device Holder 5.5. Probe Specification 6. OPERATIONAL CONDITIONS DURING TEST 6.1. Schematic Test Configuration 6.2. SAR Measurement System 6.3. Equipments and results of validation testing 6.4. SAR measurement procedure 6.5. Antennas position and test position 7. ANTENNA LOCATION 8. CHARACTERISTICS OF THE TEST 8.1. Applicable Limit Regulations 8.2. Applicable Measurement Standards 9. LABORATORY ENVIRONMENT 9.1. The Ambient Conditions during SAR Test 10. EUT TESTING POSITION 11. MEASUREMENT PROCEDURE 11.1. Conducted power measurement 11.2. SAR measurement 12. CONDUCTED RF OUTPUT POWER 12.1. Conducted RF Output Power for Model A1332 12.2. Conducted RF Output Power for Model A1387 13. SAR TEST RESULTS 13.1. SAR data for iphone without BT iphone case 13.1.1 The results for Model A1332 13.1.2 The results for Model A1387 13.2. Standalone Head SAR data with BT iphone case 13.3. Standalone Body Worn SAR data with BT iphone case Report No. SET2013-05214 CCIC-SET/T-I (00) Page 4 of 222 13.4. Standalone Hotspot SAR data with BT iphone case 13.5. Highest SAR Plots 13.5.1 The results for iphone without BT iphone case 13.5.2 The results for iphone with BT iphone case 14. SIMULTANEOUS TRANSMISSION ANALYSIS 15. MEASUREMENT UNCERTAINTY 16. MAIN TEST INSTRUMENTS This Test Report consists of the following Annexes: Annex A: Test Layout Annex B: Sample Photographs Annex C: System Performance Check Data Annex D: Calibration Certificate of Probe and Dipoles Report No. SET2013-05214 CCIC-SET/T-I (00) Page 5 of 222 1．GENERAL CONDITIONS 1.1 This report only refers to the item that has undergone the test. 1.2 This report standalone does not constitute or imply by its own an approval of the product by the certification Bodies or competent Authorities. 1.3 This document is only valid if complete; no partial reproduction can be made without written approval of CCIC-SET 1.4 This report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of CCIC-SET and the Accreditation Bodies, if it applies. Report No. SET2013-05214 CCIC-SET/T-I (00) Page 6 of 222 2. ADMINISTRATIVE DATA 2.1. Identification of the Responsible Testing Laboratory Company Name: CCIC-SET Department: EMC & RF Department Address: Electronic Testing Building, Shahe Road, Nanshan District, ShenZhen, P. R. China Telephone: +86-755-26629676 Fax: +86-755-26627238 Responsible Test Lab Managers: Mr. Wu Li’an 2.2. Identification of the Responsible Testing Location(s) Company Name: CCIC-SET Address: Electronic Testing Building, Shahe Road, Nanshan District, Shenzhen, P. R. China 2.3. Organization Item CCIC-SET Report No.: SET2013-05214 CCIC-SET Project Leader: Mr. Li Sixiong CCIC-SET Responsible for accreditation scope: Mr. Wu Li’an Start of Testing: 2013-08-28 End of Testing: 2013-08-29 2.4. Identification of Applicant Company Name: Kodiak Networks Address: 1501 10th Street, Suite 130 Plano, Texas 75074 2.5. Identification of Manufacture Company Name: Kodiak Networks Address: 1501 10th Street, Suite 130 Plano, Texas 75074 Notes: This data is based on the information by the applicant. Report No. SET2013-05214 CCIC-SET/T-I (00) Page 7 of 222 3. General Information 3.1. Description Of Equipment Under Test (EUT) Sample Name: CARBONADO Type Name: Carbonado smart PTT case for iPhone Brand Name: CARBONADO FCC ID: RTKI4C0 HW Version V2.0 SW Version V2.0 General descr…

Text truncated - open the document above for the full version.

Report No. SET2013-05214 CCIC-SET/T-I (00) Page 121 of 222 14 SIMULTANEOUS TRANSMISSION ANALYSIS The test mode as follows: With Model A1332 Simultaneous Transmission Configurations Portable Handset Exposure positions Head Body-wornPTT GSM(Voice) + WLAN 2.4GHz(Data) Yes Yes - WCDMA(Voice/data) + WLAN 2.4GHz(Data) Yes Yes - GPRS/EDGE(Data) + WLAN 2.4GHz(Data) - Yes - GSM(Voice) + Bluetooth PTT+BT iphone - - Yes WCDMA(Voice/data) + Bluetooth PTT+BT iphone- - Yes With Model A1387 Simultaneous Transmission Configurations Portable Handset Exposure positions Head Body-wornHotspot PTT CMDA2000(Voice) + WLAN 2.4GHz(Data) Yes Yes - - GSM(Voice) + WLAN 2.4GHz(Data) Yes Yes - - WCDMA(Voice) + WLAN 2.4GHz(Data) Yes Yes - - CMDA2000(Data) + WLAN 2.4GHz(Data) - - Yes - GPRS/EDGE(Data) + WLAN 2.4GHz(Data) - - Yes - WCDMA(Data) + WLAN 2.4GHz(Data) - - Yes - DMA2000(Voice/data) + Bluetooth PTT+BT iphone Yes GSM(Voice) + Bluetooth PTT+BT iphone Yes WCDMA(Voice/data) + Bluetooth PTT+BT iphone Yes Note: 1. WLAN 2.4GHz and Bluetooth (iphone) share the same antenna, and cannot transmit simultaneously. 2. EUT will choose either GSM or WCDMA or CDMA2000 according to the network signal condition; therefore, they will not transmit simultaneously. 3. The reported SAR summation is calculated based on the same configuration and test position. 4. For simultaneous transmission SAR, repeat the simultaneous transmission SAR test exclusion analysis in the SAR report for BCG-E2380B and BCG-E2430A by substituting any measured SAR with BT iphone case attached to AT&T iphone. 5. Per KDB 447498 D01v05r01, simultaneous transmission SAR is compliant if, a) Scalar SAR summation < 1.6W/kg. b) SPLSR = ሺSAR1൅SAR2ሻ ଵ.ହ / (min. separation distance, mm), and the peak separation distance is determined from the square root of [ሺx1െx2ሻ ଶ + ሺy1െy2ሻ ଶ +ሺz1െz2ሻ ଶ ], where (x1, y1, z1) and (x2, y2, z2) are the coordinates of the extrapolated peak SAR locations in the zoom scan. If SPLSR ≤ 0.04, simultaneously transmission SAR measurement is not necessary c) Simultaneously transmission SAR measurement, and the reported multi-band SAR < 1.6W/kg 5. For simultaneous transmission analysis, per KDB 447498 D01v05r01, the 1-g and 10-g SAR test Report No. SET2013-05214 CCIC-SET/T-I (00) Page 122 of 222 exclusion threshoilds for 100 MHz to 6GHz at test separation distances ≤ 50mm are determined by. a) [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[ f (GHz)/x] ≤3.0 for 1-g SAR and ≤7.5 10-g extremity SAR f(GHz) is the RF channel transmit frequency in GHz; Power and distance are rounded to the nearest mW and mm before calculation; The result is rounded to one decimal place for comparison; PPT test distance is 25mm; Bluetooth Tune-up Maximum Power(dBm) mW Test Distance (mm) Frequency(GHz) Exclusion thresholds 3.5 2.2 25 2.48 0.14 6. Per KDB 447498 D01 v05r01 exclusion thresholds is 0.14 < 3, RF exposure evaluation is not required. 7. BT iphone case is attached to an AT&T iphone, when the BT iphone case is actively operating in PTT mode and transmitting, as long as PTT is supported by a mechanical PTT button only and BT iphone case maximum output power at 25mm (PTT test distance) qualifies for standalone SAR test exclusion in KDB 447498, simultaneous transmission SAR test exclusion analysis is not required. Model A1332 Head Exposure Conditions Position WWAN WLAN 2.4G WWAN+WLAN(2.4G) Summed SAR(W/kg) WWAN Band SAR(W/kg)SAR(W/kg) Left Cheek GSM 850 0.574 0.061 0.635 WCDMA V 0.396 0.061 0.457 WCDMA II 1.256 0.061 1.317 Left Titled GSM 1900 0.262 0.078 0.340 Body Exposure Conditions Position WWAN WLAN 2.4G WWAN+WLAN(2.4G) Summed SAR(W/kg) WWAN Band SAR(W/kg)SAR(W/kg) Front Side GSM 850 1.319 0.071 1.390 GSM 1900 0.490 0.071 0.561 WCDMA II 0.704 0.071 0.775 Left Side WCDMA V 0.800 0.041 0.841 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 123 of 222 Model A1387 Head Exposure Conditions Position WWAN WLAN 2.4G WWAN+WLAN(2.4G) Summed SAR(W/kg) WWAN Band SAR(W/kg)SAR(W/kg) Left Cheek CDMA2000 Cell 0.191 0.364 0.555 CDMA2000 PCS 0.594 0.364 0.958 GSM 850 0.769 0.364 1.134 GSM 1900 0.553 0.364 0.917 WCDMA V 0.702 0.364 1.066 WCDMA II 0.370 0.365 0.735 Body Exposure Conditions Position WWAN WLAN 2.4G WWAN+WLAN(2.4G) Summed SAR(W/kg) WWAN Band SAR(W/kg)SAR(W/kg) Front Side CDMA 2000 PCS 0.918 0.065 0.983 GSM 850 1.235 0.065 1.300 WCDMA V 0.660 0.065 0.725 Back Side WCDMA II 0.281 0.186 0.467 GSM 1900 0.636 0.186 0.822 Hotspot Exposure Conditions Position WWAN WLAN 2.4G WWAN+WLAN(2.4G) Summed SAR(W/kg) WWAN Band SAR(W/kg)SAR(W/kg) Front Side CDMA 2000 Cell 0.774 0.065 0.839 CDMA 2000 PCS 0.462 0.065 0.527 GSM 850 0.742 0.065 0.807 GSM 1900 0.881 0.065 0.946 WCDMA V 0.904 0.065 0.969 WCDMA II 0.502 0.065 0.567 We can get that the maximum scalar SAR summation value is 1.390W/Kg according to the analysis from above data, it less than 1.6W/Kg, so simultaneous transmission SAR is compliant per KDB 447498 D01v05r01. Report No. SET2013-05214 CCIC-SET/T-I (00) Page 124 of 222 15 Measurement Uncertainty Table 23:Measurement Uncertainty according to IEEE 1528 No. Uncertainty Component Type Uncertainty Value (%) Probability Distribution k ci Standard Uncertainty (%) ui(%) Degree of freedom Veff or vi Measurement System 1 －Probe Calibration B 6 N 1 1 3.5 ∞ 2 －Axial isotropy B 4.7 R 1.7321 2.7 ∞ 3 －Hemispherical Isotropy B 9.4 R 1.7321 5.4 ∞ 4 －Boundary Effect B 11.0 R 1.7321 6.4 ∞ 5 －Linearity B 4.7 R 1.7321 2.7 ∞ 6 －System Detection Limits B 1.0 R 1.7321 0.6 ∞ 7 －Readout Electronics B 1.0 N 1 1 1.00 ∞ 8 －Response Time B 0.00 R 1.7321 0.00 ∞ 9 －Integration Time B 0.00 R 1.7321 0.00 ∞ 10 －RF Ambient Conditions B 3.0 R 1.7321 1.73 ∞ 11 －Probe Position Mechanical tolerance B 0.4 R 1.7321 0.2 ∞ 12 －Probe Position with respect to Phantom Shell B 2.9 R 1.7321 1.7 ∞ 13 －Extrapolation, Interpolation and Integration Algorithms for Max. SAR evaluation B 3.9 R 1.7321 2.3 ∞ Report No. SET2013-05214 CCIC-SET/T-I (00) Page 125 of 222 Uncertaint…

Text truncated - open the document above for the full version.

Report No. SET2013-05214 CCIC-SET/T-I (00) Page 181 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 182 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 183 of 222 SID1900 Dipole Calibration Ceriticate Report No. SET2013-05214 CCIC-SET/T-I (00) Page 184 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 185 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 186 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 187 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 188 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 189 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 190 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 191 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 192 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 193 of 222 Probe Calibration Ceriticate Report No. SET2013-05214 CCIC-SET/T-I (00) Page 194 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 195 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 196 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 197 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 198 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 199 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 200 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 201 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 202 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 203 of 222 SID835 Dipole Calibration Ceriticate Report No. SET2013-05214 CCIC-SET/T-I (00) Page 204 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 205 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 206 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 207 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 208 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 209 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 210 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 211 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 212 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 213 of 222 SID1900 Dipole Calibration Ceriticate Report No. SET2013-05214 CCIC-SET/T-I (00) Page 214 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 215 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 216 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 217 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 218 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 219 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 220 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 221 of 222 Report No. SET2013-05214 CCIC-SET/T-I (00) Page 222 of 222 ———End of the Report———

Unilab(Shanghai) Co.,Ltd. Report No. : UL05420130725FCC/IC001 Page 1 of 98 FCC Part 15C Test Report Product Name : Carbonado smart PTT case for iPhone Model Name : RTKI4C0 Prepared for: Kodiak Networks. 1501 10th Street, Suite 130 Plano, Texas 75074 Prepared by: Unilab (Shanghai) Co., Ltd. FCC 2.948 register number is 714465 No. 1350, Lianxi Rd. Pudong New District, Shanghai, China TEL: +86-21-50275125 FAX: +86-21-50275126 Report Number : UL05420130725FCC/IC001 Date of Report : 2013-10-24 Date of Test : 2013-10-18~2013-10-24 Notes： The test results only relate to these samples which have been tested. Partly using this report will not be admitted unless been allowed by Unilab. Unilab is only responsible for the complete report with the reported stamp of Unilab. Unilab(Shanghai) Co.,Ltd. Report No. : UL05420130725FCC/IC001 Page 2 of 98 Applicant: Kodiak Networks. 1501 10th Street, Suite 130 Plano, Texas 75074 Manufacturer: Kodiak Networks. 1501 10th Street, Suite 130 Plano, Texas 75074 Product Name: Carbonado smart PTT case for iPhone Brand Name: CARBONADO Model Name: RTKI4C0 FCC ID: RTKI4C0 IC ID: 11048A-I4C0 Serial Number: N/A Technical Data: AC input: AC 100~240V 50/60Hz Rated voltage: 3.4V~4.2V Date of Receipt: 2013-10-18 Test Standard: FCC CFR Tile 47 Part 15: 2013 ANSI C 63.4: 2009 DA 00705 Test Result: Complied Date of Test 2013-10-18~2013-10-24 Prepared by : (Technical Engineer: Andy Wei) Reviewed by : (Senior Engineer: Forest Cao) Approved by : (Supervisor: Eva Wang) Unilab(Shanghai) Co.,Ltd. Report No. : UL05420130725FCC/IC001 Page 3 of 98 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................... 5 1.1 EUT DESCRIPTION ................................................................................... 5 1.2 TEST MODE .............................................................................................. 6 2. TEST METHODOLOGY ........................................................................................ 6 2.1 EUT CONFIGURATION ............................................................................. 6 2.2 EUT EXERCISE ......................................................................................... 6 2.3 GENERAL TEST PROCEDURES .............................................................. 6 2.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .................. 7 2.5 DESCRIPTION OF TEST MODES ............................................................. 7 3. TECHNIACL SUMMARY ...................................................................................... 8 3.1 SUMMARY OF STANDARDS AND TEST RESULTS ................................ 8 3.2 TEST UNCERTAINTY ................................................................................ 8 3.3 TEST EQUIPMENT LIST ........................................................................... 8 3.4 TEST FACILITY ......................................................................................... 9 3.5 TEST SETUP CONFIGURATION .............................................................. 9 4. CHANNEL SEPARATION ................................................................................... 10 4.1 TEST SETUP ........................................................................................... 10 4.2 LIMITS ...................................................................................................... 10 4.3 TEST PROCEDURE ................................................................................ 10 4.4 TEST RESULT ......................................................................................... 11 5. MINIMUM HOPPING CHANNELS ...................................................................... 12 5.1 TEST SETUP ........................................................................................... 12 5.2 LIMITS ...................................................................................................... 12 5.3 TEST PROCEDURE ................................................................................ 12 5.4 TEST RESULT ......................................................................................... 13 6. OCCUPIED BANDWIDTH .................................................................................. 14 6.1 TEST SETUP ........................................................................................... 14 6.2 LIMITS ...................................................................................................... 14 6.3 TEST PROCEDURE ................................................................................ 14 6.4 TEST RESULTS ....................................................................................... 15 7. DWELL TIME ...................................................................................................... 19 7.1 TEST SETUP ........................................................................................... 19 7.2 LIMITS ...................................................................................................... 19 7.3 TEST PROCEDURE ................................................................................ 19 7.4 TEST RESULTS ....................................................................................... 20 8. PEAK OUTPUT POWER (CONDUCTION) ......................................................... 24 8.1 TEST SETUP ........................................................................................... 24 8.2 LIMITS ...................................................................................................... 24 8.3 TEST PROCEDURE ................................................................................ 24 8.4 RESULTS & PERFORMANCE ................................................................. 25 9. SPURIOUS EMISSIONS (CONDUCTION) ......................................................... 29 9.1 TEST SETUP ................................................................................…

Text truncated - open the document above for the full version.

Unilab(Shanghai) Co.,Ltd. Report No. : UL05420130725FCC/IC001 Page 66 of 98 Bluetooth 8-DPSK, traffic mode; Channel 39 H: V: Frequency (MHz) Polarization (H/V) Reading (dBuV/m) Correction Factor (dB/m) Measure Level (dBuV/m) Limit (dBuV/m) Over Limit (dB) Detector 0.02 H 31.38 18.37 49.75 100.66 -50.91 Peak 0.02 V 26.42 18.37 44.79 100.66 -55.87 Peak 0.37 H 32.30 19.14 51.44 75.32 -23.88 Peak 0.49 V 26.66 18.43 45.09 52.80 -7.71 Peak H: Horizontal V: Vertical Measure Level(dBuV/m) = Reading (dBuV/m) + Correction Factor (dB/m) Unilab(Shanghai) Co.,Ltd. Report No. : UL05420130725FCC/IC001 Page 67 of 98 Bluetooth 8-DPSK, traffic mode; Channel 78 H: V: Frequency (MHz) Polarization (H/V) Reading (dBuV/m) Correction Factor (dB/m) Measure Level (dBuV/m) Limit (dBuV/m) Over Limit (dB) Detector 0.03 H 29.84 19.53 49.37 97.14 -47.77 Peak 0.01 V 29.80 18.66 48.46 106.68 -58.22 Peak 0.17 H 29.06 19.34 48.40 82.08 -33.68 Peak 0.18 V 26.55 19.65 46.20 81.58 -35.38 Peak H: Horizontal V: Vertical Measure Level(dBuV/m) = Reading (dBuV/m) + Correction Factor (dB/m) Unilab(Shanghai) Co.,Ltd. Report No. : UL05420130725FCC/IC001 Page 68 of 98 From 30MHz to 1GHz: Bluetooth GFSK, traffic mode; Channel 0 Unilab(Shanghai) Co.,Ltd. Report No. : UL05420130725FCC/IC001 Page 69 of 98 Unilab(Shanghai) Co.,Ltd. Report No. : UL05420130725FCC/IC001 Page 70 of 98 Bluetooth GFSK, traffic mode; Channel 39 Unilab(Shanghai) Co.,Ltd. Report No. : UL05420130725FCC/IC001 Page 71 of 98 Unilab(Shanghai) Co.,Ltd. Report No. : UL05420130725FCC/IC001 Page 72 of 98 Bluetooth GFSK, traffic mode; Channel 78 Unilab(Shanghai) Co.,Ltd. Report No. : UL05420130725FCC/IC001 Page 73 of 98 Unilab(Shanghai) Co.,Ltd. Report No. : UL05420130725FCC/IC001 Page 74 of 98 Bluetooth 8-DPSK, traffic mode; Channel 0 Unilab(Shanghai) Co.,Ltd. Report No. : UL05420130725FCC/IC001 Page 75 of 98 Unilab(Shanghai) Co.,Ltd. Report No. : UL05420130725FCC/IC001 Page 76 of 98 Bluetooth 8-DPSK, traffic mode; Channel 39 Unilab(Shanghai) Co.,Ltd. Report No. : UL05420130725FCC/IC001 Page 77 of 98 Unilab(Shanghai) Co.,Ltd. Report No. : UL05420130725FCC/IC001 Page 78 of 98 Bluetooth 8-DPSK, traffic mode; Channel 78 Unilab(Shanghai) Co.,Ltd. Report No. : UL05420130725FCC/IC001 Page 79 of 98 Unilab(Shanghai) Co.,Ltd. Report No. : UL05420130725FCC/IC001 Page 80 of 98 Above 1GHz: 3DH5 on time/100ms(count pulses) plot on channel 39 NOTE:1. Duty cycle=on time/100 ms = 2*2.90/100=5.8% 2. Duty cycle correction factor = 20*log(Duty cycle) = -24.73dB 3. 3DH5 has the highest duty cycle and is reported 4. Average Level=Peaklevel+20*log(Duty cycle) 5. Level=Read Level+Antenna Factor+CableLos…

Text truncated - open the document above for the full version.
