RTQLPT100SB02Tablet

Manual 2013.01.10 Ver:1.0 1. Booting 1. Download verification OS, and check logo for verification OS. 2. Setting(1/7) 1. Run by selecting the “Settings" icon on the Home screen. 2. Setting(2/7) 2. Select 'WiFi(1)‘, and move button from OFF to ON (2). (2 ) (1 ) 2. Setting(3/7) 3. When the scan is completed, the screen will appear briefly scanned AP list. Select the AP you want to connect to. The number of terminal per AP limit as 20. 2. Setting(4/7) 4. When the AP connection password settings screen, enter the password (1), and press ‘Access’(2) button. (2 ) (1 ) 2. Setting(5/7) 5. Screen of the AP connecting. 2. Setting(6/7) 6. Screen of the AP connection complete. 2. Setting(7/7) 7. When the connection is completed, press the "HOME" button, and go to the main screen, . 3. Wi-Fi(1/5) 8. Run by selecting the “Browser" icon on the Home screen. 3. Wi-Fi(2/5) 9. Click your web browser address bar (1), and enter "smart.kbs.co.kr/live". (1 ) 3. Wi-Fi (3/5) 10. Once connected the test web page, select "KBS24". The number of terminal per broadcast limit as 20. 3. Wi-Fi (4/5) 11. When information pop-up appeared, select "OK“button. 3. Wi-Fi (5/5) 12. Check that broadcasting is normal during 12 hours. •This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. •This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interferencewill not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •- Reorient or relocate the receiving antenna. •- Increase the separation between the equipment and receiver. •- Connect the equipment into an outlet on a circuit different from that to which the receiver •is connected. •- Consult the dealer or an experienced radio/TV technician for help. •CAUTION : Changes or modifications not expressly approved by theparty responsible for compliance could void the user’s authority to operate the equipment. •FCC RF Radiation Exposure Statement: •This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. •This device is restricted to indoor use when operated in the 5.15 to 5.25 GHz frequency range. The tablet(LPT-100SB) is attached to the body of the robot. Not used alone to remove the tablet from the robot.

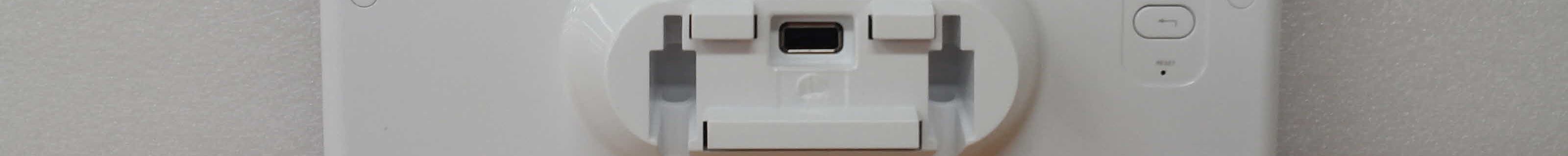

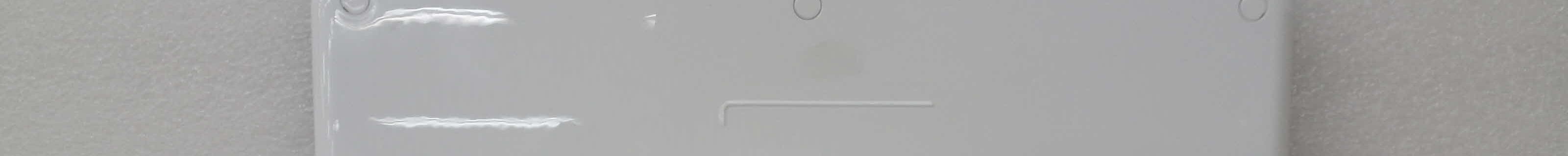

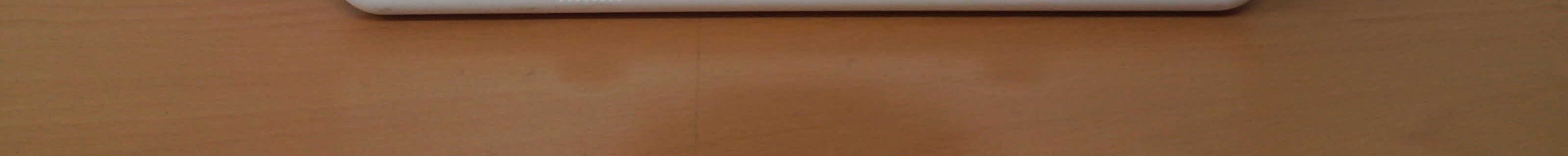

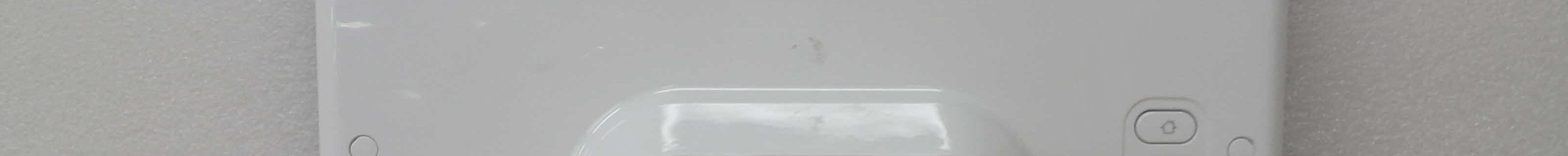

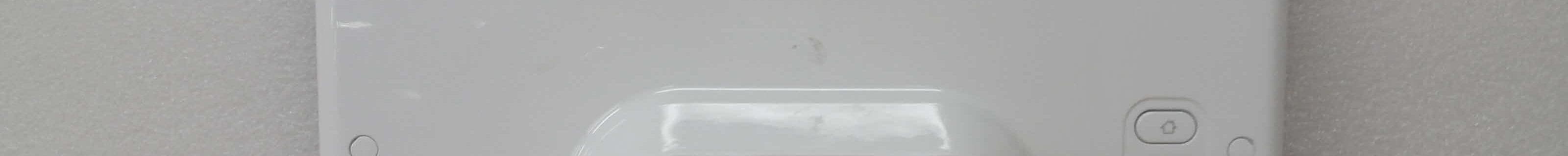

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com EUT External Photographs CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com EUT Internal Photographs CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page 1 of 3 RF EXPOSURE EVALUATION Applicant : LG CNS CO., LTD. Applicant Address : 21F, FKI Tower, 24, Yeoui-daero, Yeongdeungpo-gu, Seoul, 150-881, Korea Kind of Product : Tablet Equipment model name : LPT-100SB Antenna type : Dipole antenna Antenna Gain ANT_1 : 2.23 dBi(2.4 GHz), 1.40 dBi(5GHz) ANT_2 : 2.16 dBi(2.4 GHz), 2.63 dBi(5GHz) CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page 2 of 3 ** MPE Calculations ** The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. The MPE calculation for this exposure is shown below. The peak radiated output power (EIRP) is calculated as follows: EIRP = P + G Where, P = Power input to the antenna (mW) G = Power gain of the antenna (dBi) The numeric gain(G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain / 10) Power density at the specific separation: S = PG/(4R 2 π) Where, S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The Maximum permissible exposure (MPE) for the general population is 1 mW/cm 2 . The power density at 20cm does not exceed the 1 mW/cm 2 limit. Estimated safe separation: R = √(PG / 4π) Where, P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page 3 of 3 (5GHz) Mode P (dBm) P (mW) G (dBi) S (mW/cm2) R (cm) 802.11a 11.76 15.00 0.0055 1.48 802.11an HT20 9.20 8.32 0.0030 1.10 802.11an HT40 9.06 8.05 2.63 0.0029 1.08 (2.4GHz) Mode P (dBm) P (mW) G (dBi) S (mW/cm2) R (cm) 802.11b 16.78 47.64 0.0158 2.52 802.11g 18.95 78.52 0.0261 3.23 802.11n HT20 17.85 60.95 0.0203 2.85 802.11n HT40 16.13 41.02 2.23 0.0136 2.34 (5GHz) ANT_1 + ANT_2 Mode P (dBm) P (mW) G (dBi) S (mW/cm2) R (cm) 802.11n HT20 11.77 15.03 0.0096 1.96 802.11n HT40 11.68 14.72 5.069 0.0094 1.94 (2.4GHz) ANT_1 + ANT_2 Mode P (dBm) P (mW) G (dBi) S (mW/cm2) R (cm) 802.11n HT20 20.42 110.15 0.0726 5.39 802.11n HT40 19.01 79.62 5.205 0.0525 4.58 ※ The tablet(LPT-100SB) is attached to the body of the robot. Not used alone to remove the tablet from the robot. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

FCC TEST REPORT Report No.: FR0O1817AI SPORTON International Inc. Report Format Version: a FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart C § 15.247 Equipment : 802.11abgn Wireless USB Module Model No. : WUBR-507N(M); WUBR-507N(MU) Brand Name : SparkLAN Filing Type : New Application Applicant : SparkLAN Communications, Inc. 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, Taipei, Taiwan FCC ID : RYK-WUBR507N Manufacturer : SparkLAN Communications, Inc. 8F., No.257, Sec. 2, Tiding Blvd., Neihu District, Taipei, Taiwan Received Date : Oct. 14, 2010 Final Test Date : Nov. 12, 2010 Statement Test result included is only for the dipole antenna 802.11n (5725~5850 MHz / 2400~2483.5MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No. 52 Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No.: FR0O1817AI SPORTON International Inc. Page No. : i of ii TEL : 886-2-2696-2468 Issued Date : Nov. 10, 2010 FAX : 886-2-2696-2255 FCC ID : RYK-WUBR507N Table of Contents 1 SUMMARY OF THE TEST RESULT .......................................................................................................................2 2 GENERAL INFORMATION ......................................................................................................................................3 2.1 Product Details .................................................................................................................................................................................... 3 2.2 Table for Filed Antenna ....................................................................................................................................................................... 3 2.3 Table for Carrier Frequencies .............................................................................................................................................................. 4 2.4 Table for Test Modes .......................................................................................................................................................................... 5 2.5 Table for Testing Locations ................................................................................................................................................................. 5 2.6 Table for Supporting Units ................................................................................................................................................................... 5 2.7 Table for Parameters of Test Software Setting .................................................................................................................................... 6 2.8 EUT Operation during Test ................................................................................................................................................................. 7 2.9 Test Configuration ............................................................................................................................................................................... 7 3 TEST RESULT .........................................................................................................................................................9 3.1 AC Power Line Conducted Emissions Measurement ........................................................................................................................... 9 3.2 Peak Output Power Measurement ..................................................................................................................................................... 13 3.3 Power Spectral Density Measurement............................................................................................................................................... 18 3.4 6dB Spectrum Bandwidth Measurement ........................................................................................................................................... 27 3.5 Radiated Emissions Measurement .................................................................................................................................................... 37 3.6 Band Edge and Fundamental Emissions Measurement .................................................................................................................... 65 3.7 Antenna Requirements...................................................................................................................................................................... 75 4 LIST OF MEASURING EQUIPMENTS ................................................................................................................. 76 5 TEST LOCATION .................................................................................................................................................. 78 6 TAF CERTIFICATE OF ACCREDITATION .......................................................................................................... 79 APPENDIX A. MAXIMUM PERMISSIBLE EXPOSURE ................................................................................. A1 ~ A3 APPENDIX B. TEST PHOTOS ........................................................................................................................ B1 ~ B7 APPENDIX C. PHOTOGRAPHS OF EUT ..................................................................................................... C1 ~ C14 FCC TEST REPORT Report No.: FR0O1817AI SPORTON International…

Text truncated - open the document above for the full version.

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Test Report No.: CTK-2014-00896 Date: 2014-07-29 Page 1 of 36 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) TEST REPORT FCC Standards : FCC 47CFR part 15 subpart C Test Report No. : CTK-2014-00896 Date of Issue : 2014-07-29 FCC ID : RTQLPT100SB02 Model/Type No. : LPT-100SB Kind of Product : Tablet Applicant : LG CNS CO., LTD. Applicant Address : 21F, FKI Tower, 24, Yeoui-daero, Yeongdeungpo-gu, Seoul, 150-881, Korea Manufacturer : ARTVIEW CO., LTD. Manufacturer Address : 1027-8, Hogye-dong, Dongan-gu, Anyang-si, Gyeonggi-do, Korea Contact Person : Lee, Jae hee / Manager Telephone : +82-2-2099-0167 Received Date : 2014-06-09 Test period : Start : 2014-07-01 End : 2014-07-17 The test results presented in this report relate only to the object tested. Tested by Reviewed by Won-Jae, Hwang Test Engineer Young-Joon, Park Technical Manager Date: 2014-07-29 Date: 2014-07-29 CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Test Report No.: CTK-2014-00896 Date: 2014-07-29 Page 2 of 36 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) REPORT REVISION HISTORY Date Revision Page No 2014-07-29 Issued (CTK-2014-00896) All This report shall not be reproduced except in full, without the written approval of CTK Co., Ltd. This document may be altered or revised by CTK Co., Ltd. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by CTK Co., Ltd. will constitute fraud and shall nullify the document. CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Test Report No.: CTK-2014-00896 Date: 2014-07-29 Page 3 of 36 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) TABLE OF CONTENTS REPORT REVISION HISTORY...........................................................................................2 1.0 General Product Description................................................................................4 1.1 Tested Frequency...............................................................................................5 1.2 Tested Mode......................................................................................................5 1.3 Device Modifications...........................................................................................6 1.4 Peripheral Devices.............................................................................................6 1.5 Calibration Details of Equipment Used for Measurement.........................................6 1.6 Test Facility.......................................................................................................6 1.7 Laboratory Accreditations and Listings..................................................................7 2.0 Summary of tests..............................................................................................8 2.1 Technical Characteristic Test......................................................................................9 2.1.1 6dB Bandwidth............................................................................................9 2.1.2 Maximum peak Conducted Output Power......................................................11 2.1.3 Power Spectral Density...............................................................................13 2.1.4 Band - edge..............................................................................................15 2.1.5 Field Strength of Emissions.........................................................................16 2.1.6 AC Conducted Emissions.............................................................................33 APPENDIX A – Test Equipment Used For Tests.................................................................36 CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Test Report No.: CTK-2014-00896 Date: 2014-07-29 Page 4 of 36 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) 1.0 General Product Description Equipment model name LPT-100SB Serial number Prototype EUT condition Pre-production, not damaged Frequency Range 802.11a/n_HT20 : 5745 MHz - 5825 MHz 802.11n_HT40 : 5755 MHz - 5795 MHz 802.11b/g/n_HT20 : 2412 MHz - 2462 MHz 802.11n_HT40 : 2422 MHz – 2452 MHz RF output power 802.11a : 11.76 dBm 802.11b : 16.78 dBm 802.11g : 18.95 dBm 802.11n_HT20(2.4GHz) : 20.42 dBm 802.11n_HT20(5 GHz) : 11.77 dBm 802.11n_HT40(2.4GHz) : 19.01 dBm 802.11n_HT40(5 GHz) : 11.68 dBm Number of channels 802.11a/n_HT20(5GHz) : 5 802.11b/g/n_HT20(2.4GHz) : 11 802.11n_HT40(5GHz) : 3 802.11n_HT40(2.4GHz) : 9 Transfer Rate 802.11b : 11 / 5.5 / 2 / 1 Mbps 802.11a/g : 54 / 48 / 36 / 24 / 18 / 12 / 9 / 6 Mbps 802.11n : up to 300 Mbps Type of Modulation 802.11b : DSSS 802.11a/g/n : OFDM Duty cycle TX power 1.0 Power Source DC 5 V (Power from USB) Antenna Type Dipole antenna_1 Gain : 2.23 dBi(2.4 GHz), 1.40 dBi(5GHz) Dipole antenna_2 Gain : 2.16 dBi(2.4 GHz), 2.63 dBi(5GHz) CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Test Report No.: CTK-2014-00896 Date: 2014-07-29 Page 5 of 36 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) 1.1 Tested Frequency 802.11b, 802.11g, 802.11n_20MHz LOW MID HIGH Frequ…

Text truncated - open the document above for the full version.

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Test Setup Photos and Configuration Radiated Electric Field Emissions CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Conducted Voltage Emissions
