RTV-ESP-T2-13WCFL

浙江普源控股有限公司 ZHEJIANG PUYUAN HOLDINGS COMPANY LIMITED Add：260 XINGPING WEST ROAD，DONGYANG ，ZHEJIANG Tel：+86-579-86882958 Fax：+86-579-86882955 User’s manual 1. Use only on 120volt 60Hz circuits. 2. Not suitable for dimming or electronic switches. 3. Not suitable for sealed fixtures. 4. Do not hold the glass-tube during the installation precess. 5. Suitable to the ambient temperature: -5 °C to 50°C . 6. Not suitable to be used in the locations water can splash on. 7. Please contrast the weight of the changed lamp with the original one. In case there is a difference that may cause an unstable mechanical function. 8. This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45-30 MHz. 9. Warning: This device complies with Part 18 of FCC rules. Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

ZHEJIANG PUYUAN HOLDINGS COMPANY LIMITED 120V ESP-T2 13W block diagram circuit L N 120V/60Hz input Rectification EMI Filter Circuit Circuit Filter Circuit Oscillation Lamp Circuit HF Feedback

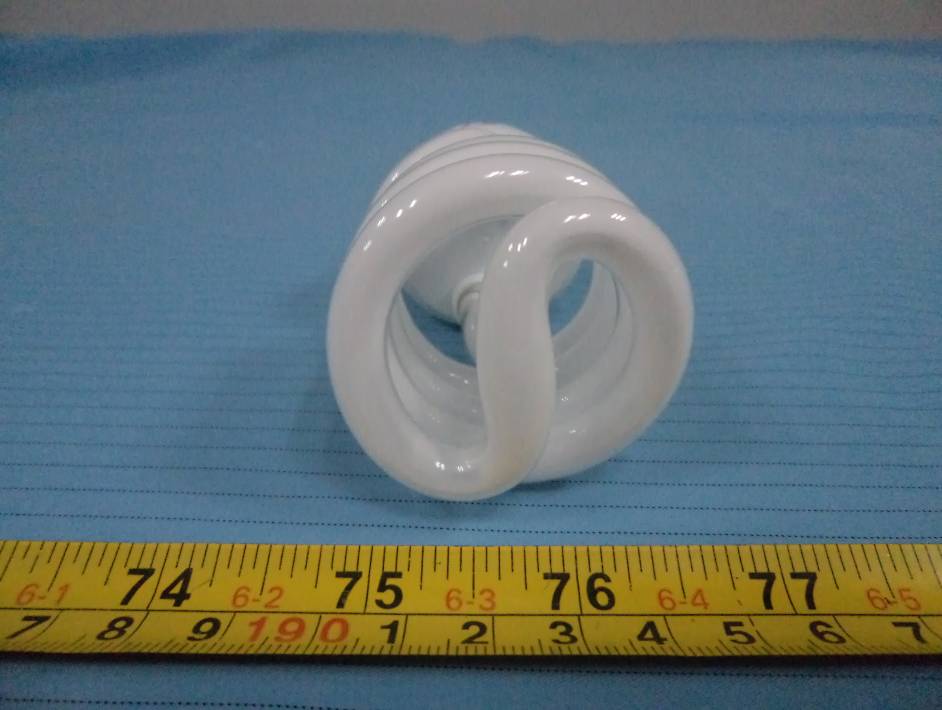

EXHIBIT B - EUT EXTERNAL PHOTOGRAPH EUT – Front View EUT – Rear View EUT – Side View

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Specifications : Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Label Here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View EUT – Main Board Top View EUT – Main Board Bottom View

浙江普源控股有限公司 ZHEJIANG PUYUAN HOLDINGS COMPANY LIMITED Add：260 XINGPING WEST ROAD，DONGYANG ，ZHEJIANG Tel：+86-579-86882958 Fax：+86-579-86882955 120V ESP-T2 13W BOM Component Model and Ratings L1 Input Choke，1.0mH，280mA，4×8，300×0.1×1 L2 Resonant Inductor，EE13，155°C，3.8mH～4.0mH，13.5×13.5×6 276×0.21×1 N Top Connecting Wire, PVC 0.5/1.5 24AWG 60mm L Fusible Resistor, 10R/1W D1～D4 Diode, 1N4007, 1 A, 1000V D5 SMD Diode, 1N4007S, 1 A , 1000V DB3 SMD Trigger Diode, 32V R1, R2 SMD Resistor, 680KΩ, ½ W R3, R4 SMD Resistor, 15 Ω, ½ W C3 SMD Capacitor， 223K 50VDC C1，C5 Capacitor, 47nF, 250V C2 Electrolytic Capacitor, 10uF, 200V C4 Capacitor, 0.82nF, 1000V C6 Capacitor, 2.7nF, 1000V C7 Capacitor, 2.2nF, 1000V Q1，Q2 Transistor，1.2A/400V (TO-92)， T Torroid, 7×3×3，5∶3∶5×0.3

ZHEJIANG PUYUAN HOLDINGS COMPANY LIMITED 120V ESP-T2 13W schematic circuit diagram:

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and shall be marked with an asterisk “★” FCC PART 18 TEST REPORT For ZHEJIANG PUYUAN HOLDINGS COMPANY LIMITED 260 XINGPING WEST ROAD, DONGYANG, ZHEJIANG, CHINA FCC ID: RTV-ESP-T2-13W Report Type: Original Report Product Name: CFL Test Engineer: Andrew Shu Report Number: RSZ130115551-00 Report Date: 2013-03-18 Reviewed By: Dick Zhang EMC Leader Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ130115551-00 FCC Part 18 Page 2 of 16 TABLE OF CONTENTS GENERAL INFORMATION ...................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .................................................................................... 3 OBJECTIVE................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................ 3 TEST METHODOLOGY.................................................................................................................................................. 3 TEST FACILITY............................................................................................................................................................ 3 SYSTEM TEST CONFIGURATION ......................................................................................................................... 5 JUSTIFICATION............................................................................................................................................................. 5 EUT EXERCISE SOFTWARE.......................................................................................................................................... 5 SPECIAL ACCESSORIES................................................................................................................................................ 5 EQUIPMENT MODIFICATIONS....................................................................................................................................... 5 SUPPORT EQUIPMENT LIST AND DETAILS.................................................................................................................... 5 EXTERNAL CABLE....................................................................................................................................................... 5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 SUMMARY OF TEST RESULT................................................................................................................................. 7 FCC §18.307 - AC LINE CONDUCTED EMISSIONS ............................................................................................. 8 APPLICABLE STANDARD.............................................................................................................................................. 8 EUT SETUP................................................................................................................................................................. 8 EMI TEST RECEIVER SETUP........................................................................................................................................ 9 TEST PROCEDURE........................................................................................................................................................ 9 TEST EQUIPMENT LIST AND DETAILS.......................................................................................................................... 9 TEST RESULTS SUMMARY........................................................................................................................................... 9 TEST DATA................................................................................................................................................................ 10 FCC §18.305 – FIELD STRENGTH ......................................................................................................................... 12 APPLICABLE STANDARD............................................................................................................................................ 12 EUT SETUP............................................................................................................................................................... 12 EMI TEST RECEIVER SETUP AND SPECTRUM ANALYZER SETUP............................................................................... 12 TEST PROCEDURE...................................................................................................................................................... 13 CORRECTED AMPLITUDE CALCULATION................................................................................................................... 13 TEST EQUIPMENT LIST AND DETAILS........................................................................................................................ 13 TEST RESULTS SUMMARY.....................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS AC Line Conducted Emissions – Front View AC Line Conducted Emissions – Side View Field Strength – Front View Field Strength – Rear View
