RU6-32IPCCloud Camera

FI-321 user manuals 1 IP Camera (HD Cloud Camera ) User's manual M M o o d d e e l l : : F F I I ‐ ‐ 3 3 2 2 1 1 Note: To protect your privacy, please modify the default password after landing, and please take good care of your username and password. Manual version: Version Dates Description V1.0 Sep. 16, 2012 V1.1 Nov. 23, 2012 Adjustment of interface Note: in practical application, it is possible that the instruction functions are a little different from the function of the machine . FI-321 user manuals 2 Content Product Overview:.............................................................................................................................3 Packing List................................................................................................................................3 System Requirements................................................................................................................3 Introduction ..............................................................................................................................3 Features ....................................................................................................................................4 Overview of the Hardware view................................................................................................5 Installation ........................................................................................................................................7 Hardware Installation................................................................................................................7 Camera Installation Wizard....................................................................................................7 Wireless Installation Considerations.......................................................................................10 Homepage.......................................................................................................................................11 First: Camera status bar: .........................................................................................................11 Second: Image settings and PTZ control bar. ..........................................................................12 Playback ..........................................................................................................................................13 Management...................................................................................................................................15 2. Equipment:..........................................................................................................................15 3. Media stream: .....................................................................................................................16 Audio...............................................................................................................................17 4. Network:..............................................................................................................................18 2. Wireless Network:.......................................................................................................19 5. OSD:.....................................................................................................................................20 6. SD card: ............................................................................................................................21 7. Alarm:..................................................................................................................................22 8.Joural....................................................................................................................................22 9. Date / Time: ........................................................................................................................24 10. System maintenance:........................................................................................................24 11. Others:...............................................................................................................................25 Troubleshooting ..............................................................................................................................26 Wireless Infrastructure ...................................................................................................................30 Wireless Security.............................................................................................................................32 Technical parameters ...................................................................................................................34 Warnings .........................................................................................................................................35 FI-321 user manuals 3 Product Overview: Packing List 9 A set of network Camera 9 An Ethernet cable 9 A set of 5V power adapter 9 A piece of CD 9 Quick Installation Guidelines 9 A set of bracket (base) and mounting 9 A warranty card Note: The use of non‐product rated voltage power supply, will result in equipment damage, and does not enjoy the product warranty. If something is missing of these items, please contact your dealer. System Requirements • With Microsoft Windows ® 7, Vista ®, XP ®, Mac OS or Linux system computer • CPU clocked at 1.3G or higher, at least 128MB of RAM • Internet Explorer 7 or higher, Firefox 3.5 or higher, Safari 4 and Chrome 8.0 or higher. Introduction Congratulations on your purchase of the Cloud Camera. The Cloud Camera has multiple functions, is dedicated to the small office and home solutions. Unlike traditional IP Camera, Cloud Camera has a complete system with built‐in CPU and web server, can transmit high‐quality images, the implementation of the security monitoring. Cloud Camera can be access…

Text truncated - open the document above for the full version.

DATE : Nov 26 , 2012 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint _ Greatwall International Approval Co., Limited Unit 04,7/F,Bright Way Tower, No.33 Mong Kok Road, Kowloon, Hong Kong _, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with ShenZhen Fujikam Industry Development Co., Ltd / 6F.West,1st Building,Innovative Industrial Park,Nanshan Cloud Valley,No.1183,Liuxian Avenue,Nanshan District,SZ,CN. Dated this November 26 , 2012 By: Gao Shen Fei Signature Printed Title: Manager On behalf of : ShenZhen Fujikam Industry Development Co., Ltd Telephone: 86-755-26518999

ShenZhen Fujikam Industry Development Co., Ltd Address:6F.West,1st Building,Innovative Industrial Park,Nanshan Cloud Valley,No.1183,Liuxian Avenue,Nanshan District,SZ,CN. To: Greatwall International Approval Co., Limited Date: 2012-11-26 Statement We need adding model for CE-R&TTE and FCCID approval is FI-320WP；FI-321；FI321N；FI-322 The basic Model No. FI-320W We hereby state that these models are identical in interior structure, electrical circuits and components, and just model names and appearance color are different for the marketing requirement. Your assistance on this matter is highly appreciated. Dated this November 26 , 2012 By: Gao Shen Fei Signature Printed Title: Engineer On behalf of : ShenZhen Fujikam Industry Development Co., Ltd Telephone: 86-755-26518999

DATE : Nov 26 , 2012 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: RU6-32IPC Product Name: Cloud Camera Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this November 26 , 2012 By: Gao Shen Fei Signature Printed Title: Manager On behalf of : ShenZhen Fujikam Industry Development Co., Ltd Telephone: 86-755-26518999

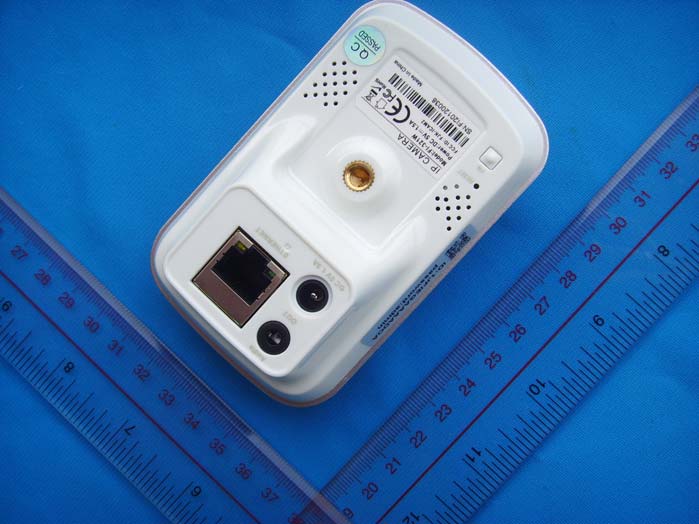

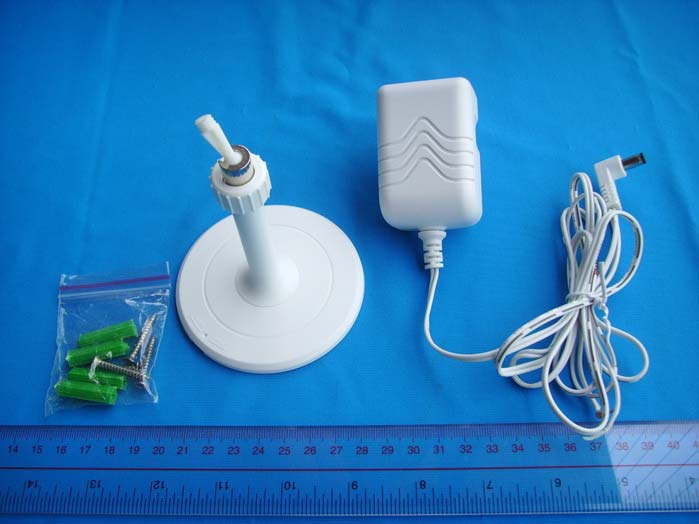

Details of: Front view Details of: Rear view Details of: Accessories

Label Location

Details of: Internal view 1 Details of: Main PCB Details of: Main PCB Details of: Internal view Details of: Infrared LED PCB and Lens Details of: Infrared LED PCB and Lens

Maximum Permissible Exposure Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. (a) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 , ︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 , ︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100000 1.0 30 Note: f=frequency in MHz; *Plane-wave equivalent power density MPE Calculation Method E (V/m) = (30*P*G) 0.5 /d Power Density: Pd (W/m 2 ) = E 2 /377 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = (30*P*G) / (377*d 2 ) From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Calculated Result and Limit Antenna Gain: 3.5dBi Antenna Gain (Numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2.239 16.13 41.02 0.018 1 Compiles Note: the worse case was recorded.

The Test Report issued under the responsibility of : Greatwall International Approval Co., Limited Unit 04,7/F,Bright Way Tower, No.33 Mong Kok Road, Kowloon, Hong Kong Tel:00852-69425539 Fax: 00852-35902333 Report No. : E86.12.361.010 This Test Report is Prepared for ShenZhen Fujikam Industry Development Co., Ltd 6F.West,1st Building,Innovative Industrial Park,Nanshan Cloud Valley,No.1183,Liuxian Avenue,Nanshan District,SZ,CN. Product Name: Cloud Camera Model No.: FI-320W,FI-320WP,FI-321,FI321N,FI-322 Brand Name: FUJIKAM Applicable standards: FCC Part 15 Subpart C, Paragraph 15.247 Test result: The FCC testing has been performed on the submitted samples and found in compliance with ANSI 63.4-2003 and FCC Part15.247 Prepared by : Shirley Xu Assistant Reviewer : Mary Huang/Supervisor Approved & Authorized Signer : Mike Wang/ Manager Note: This report shall not be reproduced except in full, without the written approval of Greatwall International Approval Co., Ltd. This document may be altered or revised by Greatwall International Approval Co., Ltd. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample Report No: E86.12.361.010 Page 2 of 95 Date: 2012-12-24 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Greatwall International Approval Co., Limited. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Greatwall International Approval Co., Limited to his customer. Supplier or others persons directly concerned. Greatwall International Approval Co., Limited will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Greatwall International Approval Co., Limited reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 3 1.1 Test Lab Details................................................................................................ 3 1.2 Applicant Details.............................................................................................. 3 1.3 Description of EUT .......................................................................................... 3 2.0 List of Measurement Equipment......................................................................... 4 3.0 Technical Details............................................................................................. 5 3.1 Summary of Test Results..................................................................................... 6 3.2 Test Standards.................................................................................................. 6 4.0 EUT Modification............................................................................................. 6 5.0 Power Line Conducted Emission Test...................................................................... 7 5.1 Schematics of the Test........................................................................................ 7 5.2 Test Method and Test Procedure............................................................................ 7 5.3 Configuration of the EUT.................................................................................... 7 5.4 EUT Operating Condition....................................................................................8 5.5 Conducted Emission Limit................................................................................... 8 5.6 Test Result...................................................................................................... 8 6.0 Radiated Emission test...................................................................................... 11 6.1 Test Method and Test Procedure............................................................................ 11 6.2 Configuration of the EUT.................................................................................... 11 6.3 EUT Operation Condition....................................................................................11 6.4 Radiated Emission Limit..................................................................................... 12 7.0 6dB Bandwidth Measurement................................................................................ 35 8.0 Maximum Peak Output Power............................................................................... 54 9.0 Power Spectral Density Measurement......................................................................57 10.0 Out of Band Measurement................................................................................... 76 11.0 Antenna Requirement........................................................................................ 87 12.0 FCC ID Label.................................................................................................. 88 13.0 Photo of Test Setup and EUT View......................................................................... 89 Report No: E86.12.361.010 Page 3 of 95 Date: 2012-12-24 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Greatwall International Approval Co., Limited. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Greatwall International Approval Co., Limited to his customer. Su…

Text truncated - open the document above for the full version.

Conducted Emission Test Setup: Radiated Emission Test Setup:
