RUC-JLYREMG14Jelly Flashlight Remote

Thank you for purchasing the Square Jellyfish Jelly Flashlight Remote. This device is designed to communicate with your smartphone or devices via Bluetooth. To set up your remote, please follow these instructions. Android or Apple – The remote is configured for the Apple devices. If you have an Android device perform the following: Remove the battery cover and remove the battery. Gently slide the small switch on the PCB down for Android. Replace battery and cover (For the Apple system the remote can pair with iPhone, iPod, iPad and Apple Computers with Bluetooth. Note that not all functions are available on computer systems or smartphones. With the wide range of Android phones capability is unknown.) Pairing – Press and hold the bottom half of the oval button (about 5 seconds) the RED LED will start to blink. The remote is now in the pairing mode. Go to the Bluetooth settings menu and look for SJF_G14BR2 and select “Pair” or connect. (Please note: After pairing do not press any other buttons while in the pairing menu.) Camera Mode – Open the camera application on your device. Push the button on the Jelly Flashlight Remote and your device will take a picture. Flashlight – Press the logo and the LED will light. Press the logo again and the light will turn off. The color of the LED was selected for photography . Sleep Mode – If no buttons are pushed for 5 minutes, remote will enter sleep mode. Press any the button to wake the remote up. The logo will blink three times to show that the remote is trying to establish two-way communication. After communication is reestablished it will blink once more. Press the desired function a second time to complete the operation. Please wait for communication to be reestablished; pressing buttons several times will only delay the process. Pairing Problems – 1. The Jelly Flashlight Remote uses two way Bluetooth communication to talk with your device. It can only be paired with one device at a time. If you attempt to pair the Jelly Flashlight Remote to more than one device this could cause a problem. 2. If for some reason you cannot pair the remote, the first step is to go to the setting menu and ask your device to forget or remove the remote from the list. 3. Press and hold the bottom half of the oval button for several seconds until the device appears on the list. Changing Battery – If the remote no longer functions properly, the battery has probably been exhausted. Replace the battery with a AAA alkaline battery. Caution – Do not use the Bluetooth remote to wake up your phone. It is better to wake up your phone before you use the remote. Protected under US Patents: D546,989S and 6,793,366 Limited Warranty This Jelly Flashlight Remote is warranted against defects in materials and workmanship for a period of one (1) year from the date of the original retail purchase. If a defect exists, Square Jellyfish will, at its option and to the extent permitted by law, (1) repair the product at no charge using new or refurbished parts; or (2) exchange the product with a functionally equivalent product that is new or refurbished; or (3) refund the original purchase price. This warranty excludes damage resulting from abuse, accident, modifications, or other causes that are not defects in the materials or workmanship. To the extent permitted by applicable law, the manufacturer is not liable for any direct, indirect, incidental, or consequential damage arising out of the use or service of the product, including, but not limited to damage which may be caused to any electronic device, or other device utilized in conjunction with the Jelly Flashlight Remote. To the extent permitted by applicable law the manufacturer of the Jelly Flashlight Remote disclaims all implied and statutory warranties, including warranties of merchantability and fitness for a particular purpose. If implied warranties cannot be disclaimed, then such warranties are limited in duration to the duration of this warranty. This warranty gives you specific legal rights, and you may have other rights, which vary from state to state. To obtain warranty service contact Square Jellyfish using the information provided at www.squarejellyfish.com. To the extent permitted by applicable law Square Jellyfish will require proof of purchase for all warranty repairs or replacement. JeLLy FLashLight remote User’s manUaL Apple/ Android Switch Battery FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful i nterference, and (2) this device must accept anyinterference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Shoreline Electronics, Inc. PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date: 12/26/13 Authority to Act as an Agent We declare that the following representative (agent) NameTerry Yang PositionGeneral Manager Company Name Shenzhen Super Test Service Co., Ltd. AddressNo.5, 2 nd Langshan Road, North District, Hi-Tech Industrial Park, Nanshan, Shenzhen, Guangdong, China Tel / Fax86-755-86170306/86-755-86170310 [email protected] to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Name Jelly Flashlight Remote Model NameJLYREMG1 4 Brand NameSquare Jellyfish We also authorizeShenzhen Super Test Service Co., Ltd., Terry Yang(address:No.5, 2 nd Langshan Road, North District, Hi-Tech Industrial Park, Nanshan, Shenzhen, Guangdong, China ) to process the application. Yours sincerely, Signatory In case of FCC, we certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. Name James K Chun Position President Company Name Shoreline Electronics, Inc. Address4321 Ingot St. Fremont, Ca. 94538 USA Tel / Fax 510-490-3400/510-490-3402 E-Mail [email protected]

Shoreline Electronics, Inc. Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: Shoreline Electronics, Inc. FCC ID:RUC-JLYREMG14 FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 we hereby requests permanent confidentiality of the following documents for the subject application: Exhibit TypeDescription ☒SchematicsAll circuitry of devices and component values ☒Block DiagramsDetails of device showing the frequency of all oscillators ☒Operational Description Description of the circuit functions Note: Exhibit types that are commonly held confidential are: (1) Schematics, (2) Block Diagrams, (3) Bill Of Materials, (4) Operational Descriptions. Any exhibit NOT granted confidentiality is viewable on the FCC website as soon as a grant is issued. These documents contain detailed system and equipment description and related information about the product which we considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, we consider that this information would be of benefit to its competitors and that the disclosure of the information in these documents wouldgive competitors an unfair advantage in the market. Yours sincerely, Signatory Name James Chun Position President Company Name Shoreline Electronics, Inc. Address4321 Ingot St. Fremont, Ca. 94538 USA Tel / Fax 510-490-3400/510-490-3402 E-Mail [email protected]

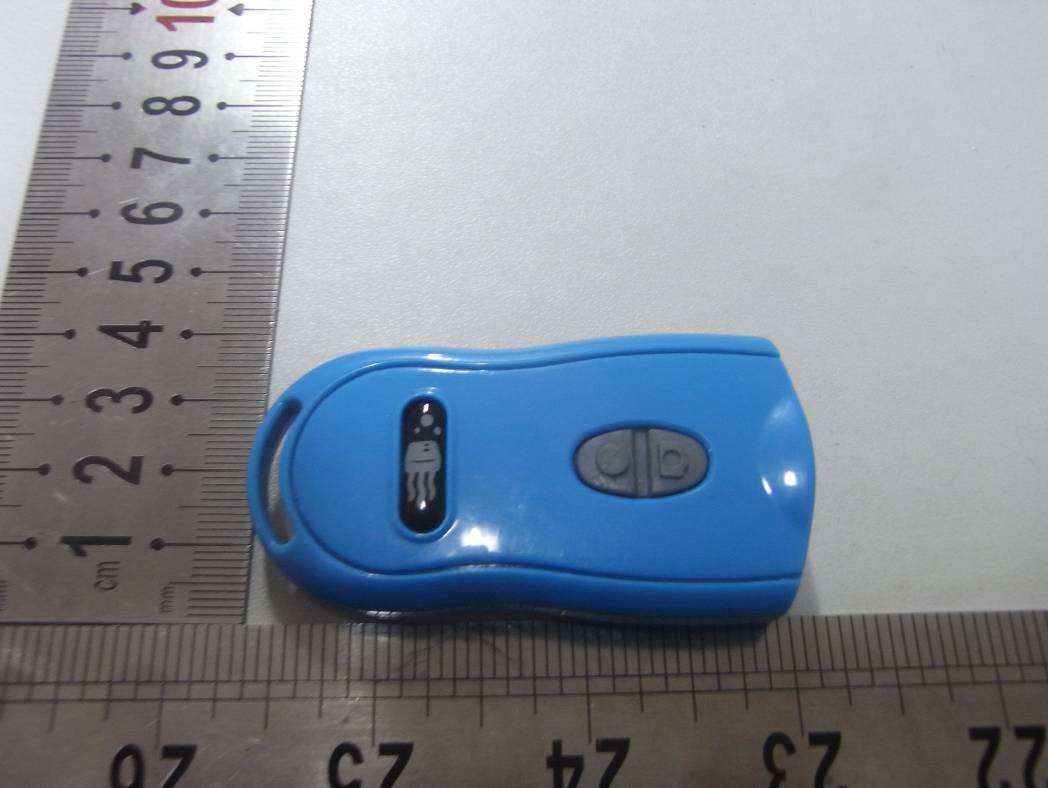

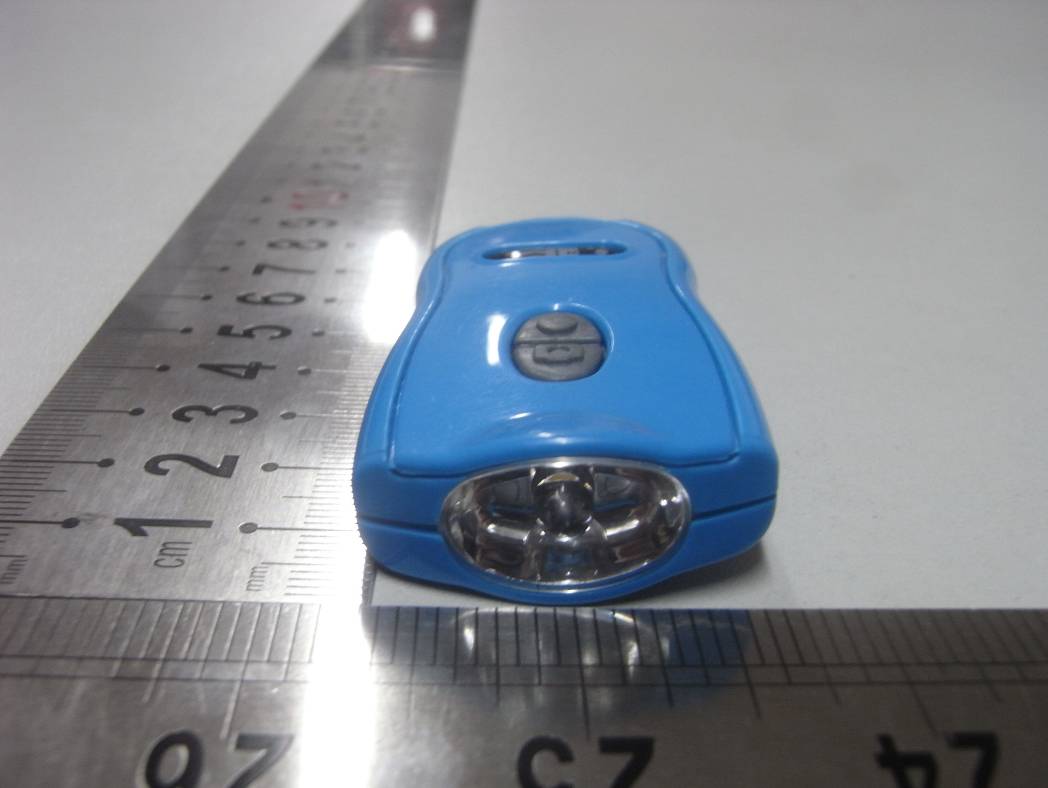

FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE TOP VIEW OF SAMPLE BOTTOM VIEW OF SAMPLE

INTERNAL PHOTO OF SAMPLE – 1 INTERNAL PHOTO OF SAMPLE – 2 INTERNAL PHOTO OF SAMPLE –3 INTERNAL PHOTO OF SAMPLE –4 INTERNAL PHOTO OF SAMPLE –5 INTERNAL PHOTO OF SAMPLE –6

FCC 47 CFR PART 15 SUBPART C TEST REPORT For Applicant: Shoreline Electronics, Inc. Address: 4321 Ingot St. Fremont, Ca. 94538 USA Product Name: Jelly Flashlight Remote Model Name: JLYREMG14 Brand Name: Square Jellyfish FCC ID: RUC-JLYREMG14 Report No.: STS131201F1 Date of Issue: December 20, 2013 Issued by: Shenzhen Super Test Service Technology Co., Ltd. Address: No.5, Langshan 2nd Rd., North Hi-Tech Industrial park, Nanshan, Shenzhen, Guangdong, China Tel: 86-755-2795 8522 Fax: 86-755-2795 8022 The report consists 37 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by STS. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. FCC ID: RUC-JLYREMG14Report No.: STS131201F1 Page 2 of 37 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY...............................................................................................................................3 2. GENERAL INFORMATION..............................................................................................................................................4 2.1 Product Information.........................................................................................................................................................4 2.2 Objective...........................................................................................................................................................................5 2.3 Test Standards and Results...........................................................................................................................................5 2.4 Environmental Conditions..............................................................................................................................................5 3. TEST FACILITY.................................................................................................................................................................6 3.1TEST FACILITY................................................................................................................................................................6 3.2 GENERAL TEST PROCEDURES................................................................................................................................6 3.3 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS...............................................................................7 4. SETUP OF EQUIPMENT UNDER TEST......................................................................................................................8 4.1 SUPPORT EQUIPMENT...............................................................................................................................................8 4.2 TEST EQUIPMENT LIST...............................................................................................................................................9 5. 47 CFR Part 15C 15.249 Requirements.....................................................................................................................10 5.1 Spurious Emission Test................................................................................................................................................10 5.1.1 Requirement...............................................................................................................................................................10 5.1.2 Test Description..........................................................................................................................................................11 5.1.3 Test Description..........................................................................................................................................................12 5.1.4 Test Result..................................................................................................................................................................13 5.2 Band Edge......................................................................................................................................................................25 5.2.1 Requirement...............................................................................................................................................................25 5.2.2 Test Description..........................................................................................................................................................25 5.2.3Test Result...................................................................................................................................................................25 5.3 LINE CONDUCTED EMISSION TEST.....................................................................................................................36 5.3.1. LIMITS OF LINE CONDUCTED EMISSION TEST............................................................................................36 5.3.2. BLOCK DIAGRAM OF TEST SETUP...................................................................................................................36 5.3.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST...................................................37 5.3.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ...................................................................37 5.3.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST..............................................................................37 FCC ID: RUC-JLYREMG14Report No.: STS131201F1 Page 3 of 37 1. VERIFICATION OF CONFORMITY Equipment Under Test: Jelly Flashlight Remote Brand Name:Square Jellyfish Model Number:JLYREMG14 Series Model Difference description: N/A…
