3/16/04© 2004 All Rights Reserved. 90-100831-000 Rev 5 Internal-Antenna OmniAccess AP Quick Installation Guide Internal-Antenna Alcatel OmniAccess Wireless Access Point Quick Installation Guide System Release 2.0 This Guide contains several sections allowing you to install an OAW-1200BG or OAW-1200ABG Alcatel OmniAccess Wireless Access Point. These models contain internal 802.11a and 802.11b/g antennas and no connectors for optional external antennas. If you are installing an OAW-1200BGE or OAW-1200ABGE Alcatel OmniAccess Wireless Access Point or an OAW-1200ABGR Alcatel OmniAccess Remote Edge Access Point (OmniAccess AP 1200R) with internal 802.11a and 802.11b/g antennas and connectors for optional external 802.11a and 802.11b/g antennas, please refer to the External-Antenna Alcatel OmniAccess Wireless Access Point Quick Instal- lation Guide. •Overview •Step 1: Collecting Required Tools and Supplies •Step 2: Configuring the OmniAccess AP Before Installation •Step 3: Preparing Mounting Locations •Step 4: Mounting the OmniAccess APs •Step 5: Returning MAC Information •Planning Notes •FCC Statements for OmniAccess APs ATTENTION!Special Considerations While Alcatel OmniAccess Wireless Access Points have been engineered for easy installation, there are some guidelines that are very important to the end users: •PLACE Alcatel OmniAccess Wireless Access Points NO MORE THAN 140 FEET APART FROM EACH OTHER. Placing OmniAccess APs further apart almost always results in poor coverage. •DO NOT MOUNT OmniAccess APs OUTSIDE BUILDINGS. •DO NOT MOUNT OmniAccess APs ON BUILDING PERIMETER WALLS UNLESS THE OPERATOR WANTS TO PROVIDE COVERAGE OUTSIDE THE BUILDING. •MAKE SURE THAT THE Alcatel OmniAccess Wireless Access Points ARE INSTALLED VERTICALLY. Alcatel OmniAccess Wireless Access Points ARE DESIGNED TO BE INSTALLED VERTICALLY, hanging from a ceiling, to create the largest coverage area per OmniAccess AP. Hanging the OmniAccess AP from the ceiling provides the best RF coverage. 3/16/04Internal-Antenna Alcatel OmniAccess Wireless Access Point Quick Installation Guide 90-100831-000 Rev 5Alcatel OmniAccess Wireless Access Point Quick Installation Guide2 •DO NOT MOUNT Alcatel OmniAccess Wireless Access Point ANTENNAS WITHIN ONE METER (3 FT.) OF ANY METAL OBSTRUCTIONS. THE RF WAVES FROM Alcatel OmniAccess Wireless Access Points ARE BLOCKED AND/OR REFLECTED BY METAL OBJECTS, such as metal HVAC ducts, conduit, pipes, bookcases, elevator shafts, stairwells, and metal walls. REFER TO THE Alcatel OmniAccess Wireless Access Point Deployment Guide BEFORE MOUNTING OmniAccess APs NEAR METAL OBSTRUCTIONS. •WHEN MOUNTING OmniAccess APs IN THE CORNER OF A RIGHT-ANGLE HALLWAY INTERSECTION, MOUNT THE OmniAccess AP AT A 45-DEGREE ANGLE TO THE TWO HALLWAYS. The OmniAccess AP internal antennas are not omnidirectional, and will cover a larger area if mounted this way. 3/16/04Overview 90-100831-000 Rev 5Alcatel OmniAccess Wireless Access Point Quick Installation Guide3 OverviewOverview This guide is designed to provide you with the information needed to mount Alcatel OmniAccess Wireless Access Points (OmniAccess APs). OmniAccess APs are part of the innovative Alcatel Omni- Access Wireless Enterprise Platform (Alcatel OmniAccess Wireless System), and require no manual configuration after they are mounted. This document assumes that a site survey has been performed as described in the Alcatel OmniAccess Wireless Access Point Deployment Guide section in the Alcatel OmniAccess Wireless Product Guide, that OmniAccess AP locations and mounting options have been selected, and that you have one OmniAccess AP per indicated location. After the site survey is done, you should have a map indicating the following: •AP locations. •AP mounting options: in the middle of a ceiling/hallway, projecting away from the wall, or flat against the wall. •AP power options: power supplied by the AC-to-DC power supply orderable from the factory, or Power over Ethernet (PoE) from the OmniAccess Wireless Switch, another network device, or a PoE injector/hub (usually located in a wiring closet). If you do not have a map, make one so you can record the MAC addresses from each location and return them to the to the person who is planning or managing this wireless network. Refer to the following sections to install the OmniAccess APs. Note: When mounting OmniAccess APs, make sure to maintain a 20 cm (8 in.) separation between the OmniAccess APs and bystanders to comply with FCC RF exposure regulations. Refer to the FCC Statements for OmniAccess APs section for more information. For more details about OmniAccess AP installations, refer to the Planning Notes section at the end of this document. 3/16/04Step 1: Collecting Required Tools and Supplies 90-100831-000 Rev 5Alcatel OmniAccess Wireless Access Point Quick Installation Guide4 Step 1: Collecting Required Tools and SuppliesStep 1: Collecting Required Tools and Supplies •One OmniAccess AP per location. •OmniAccess AP Mounting Kits, factory-supplied with each OmniAccess AP. •Optional OmniAccess AP Mounting Kits, factory-orderable. •Optional external AC-to-DC power supplies, factory-orderable. •Map showing OmniAccess AP locations, and mounting and power options. •Screwdrivers, drills, and ladder. •An assortment of sheet metal and drywall screws and toggle bolts. •CAT-5 (or higher) cables to connect the OmniAccess AP locations and the OmniAccess Wireless Switch or other network device. •Optional Kensington MicroSaver Security Cable to secure each OmniAccess AP. Continue with Step 2: Configuring the OmniAccess AP Before Installation . 3/16/04Step 2: Configuring the OmniAccess AP Before Installation 90-100831-000 Rev 5Alcatel OmniAccess Wireless Access Point Quick Installation Guide5 Step 2: Configuring the OmniAccess AP Before InstallationStep 2: Configuring the OmniAccess AP Before Installation The following procedures are designed to make sure that your OmniAccess AP physical installation goes smoothly and that in…

Text truncated - open the document above for the full version.

3/16/04© 2004 All Rights Reserved. 90-100832-000 Rev 5 External-Antenna OmniAccess AP Quick Installation Guide External-Antenna Alcatel OmniAccess Wireless Access Point Quick Installation Guide System Release 2.0 This Guide contains several sections allowing you to install an OAW-1200BGE or OAW-1200ABGE Alcatel OmniAccess Wireless Access Point or an OAW-1200ABGR Alcatel OmniAccess Remote Edge Access Point (OmniAccess AP 1200R). These models contain internal 802.11a and 802.11b/g antennas and connectors for optional external 802.11a and 802.11b/g antennas. If you are installing an OAW-1200BG or OAW-1200ABG Alcatel OmniAccess Wireless Access Point with internal 802.11a and 802.11b/g antennas and no connectors for optional external antennas, please refer to the Internal-Antenna Alcatel OmniAccess Wireless Access Point Quick Installation Guide . •Overview •Step 1: Collecting Required Tools and Supplies •Step 2: Configuring the OmniAccess AP or OmniAccess AP 1200R Before Installation •Step 3: Preparing Mounting Locations •Step 4: Mounting the OmniAccess APs •Step 5: Returning MAC Information •Planning Notes •FCC Statements for OmniAccess APs ATTENTION!Special Considerations While Alcatel OmniAccess Wireless Access Points have been engineered for easy installation, there are some guidelines that are very important to the end users: •PLACE Alcatel OmniAccess Wireless Access Points NO MORE THAN 140 FEET APART FROM EACH OTHER. Placing OmniAccess APs further apart almost always results in poor coverage. •DO NOT MOUNT OmniAccess APs OUTSIDE BUILDINGS. •DO NOT MOUNT OmniAccess APs ON BUILDING PERIMETER WALLS UNLESS THE OPERATOR WANTS TO PROVIDE COVERAGE OUTSIDE THE BUILDING. •MAKE SURE THAT THE Alcatel OmniAccess Wireless Access Points ARE INSTALLED VERTICALLY. Alcatel OmniAccess Wireless Access Points ARE DESIGNED TO BE INSTALLED VERTICALLY, hanging from a ceiling, to create the largest coverage area per OmniAccess AP. Hanging the OmniAccess AP from the ceiling provides the best RF coverage. 3/16/04External-Antenna Alcatel OmniAccess Wireless Access Point Quick Installation Guide 90-100832-000 Rev 5Alcatel OmniAccess Wireless Access Point Quick Installation Guide2 •DO NOT MOUNT Alcatel OmniAccess Wireless Access Point ANTENNAS WITHIN ONE METER (3 FT.) OF ANY METAL OBSTRUCTIONS. THE RF WAVES FROM Alcatel OmniAccess Wireless Access Points ARE BLOCKED AND/OR REFLECTED BY METAL OBJECTS, such as metal HVAC ducts, conduit, pipes, bookcases, elevator shafts, stairwells, and metal walls. REFER TO THE Alcatel OmniAccess Wireless Access Point Deployment Guide BEFORE MOUNTING OmniAccess APs NEAR METAL OBSTRUCTIONS. •WHEN MOUNTING OmniAccess APs IN THE CORNER OF A RIGHT-ANGLE HALLWAY INTERSECTION, MOUNT THE OmniAccess AP AT A 45-DEGREE ANGLE TO THE TWO HALLWAYS. The OmniAccess AP internal antennas are not omnidirectional, and will cover a larger area if mounted this way. 3/16/04Overview 90-100832-000 Rev 5Alcatel OmniAccess Wireless Access Point Quick Installation Guide3 OverviewOverview This guide is designed to provide you with the information needed to mount OAW-1200BGE and OAW-1200ABGE Alcatel OmniAccess Wireless Access Points and OAW-1200ABGR Alcatel OmniAccess Remote Edge Access Points (OmniAccess 1200R APs). OmniAccess APs and OmniAccess 1200R APs are part of the innovative Alcatel OmniAccess Wireless Enterprise Platform (Alcatel OmniAccess Wireless System), and require no manual configuration after they are mounted. This document assumes that a site survey has been performed as described in the Alcatel OmniAccess Wireless Access Point Deployment Guide section in the Alcatel OmniAccess Wireless Product Guide, that OmniAccess AP and OmniAccess AP 1200R locations and mounting options have been selected, and that you have one OmniAccess AP or OmniAccess AP 1200R per indicated location. After the site survey is done, you should have a map indicating the following: •AP and OmniAccess AP 1200R locations. •AP and OmniAccess AP 1200R mounting options: in the middle of a ceiling/hallway, projecting away from the wall, or flat against the wall. •AP and OmniAccess AP 1200R power options: power supplied by the AC-to-DC power supply orderable from the factory, or Power over Ethernet (PoE) from the OmniAccess Wireless Switch, another network device, or a PoE injector/hub (usually located in a wiring closet). If you do not have a map, make one so you can record the MAC addresses from each location and return them to the to the person who is planning or managing this wireless network. Refer to the following sections to install the OmniAccess APs. Note: When mounting OmniAccess APs and OmniAccess 1200R APs, make sure to maintain a 20 cm (8 in.) separation between the OmniAccess APs or OmniAccess 1200R APs and bystanders to comply with FCC RF exposure regulations. Refer to the FCC Statements for OmniAccess APs section for more information. For more details about OmniAccess AP and OmniAccess AP 1200R installations, refer to the Planning Notes section at the end of this document. 3/16/04Step 1: Collecting Required Tools and Supplies 90-100832-000 Rev 5Alcatel OmniAccess Wireless Access Point Quick Installation Guide4 Step 1: Collecting Required Tools and SuppliesStep 1: Collecting Required Tools and Supplies •One OmniAccess AP or OmniAccess AP 1200R per location. •OmniAccess AP and OmniAccess AP 1200R Mounting Kits, factory-supplied with each OmniAccess AP. •Optional OmniAccess AP and OmniAccess AP 1200R Mounting Kits, factory-orderable. •Optional external AC-to-DC power supplies, factory-orderable. •Optional external 802.11b/g antennas. Note: Refer to the Alcatel OmniAccess Wireless System Release Notes for 802.11a external antenna information. Contact Alcatel Internetworking, Inc. for a list of approved 802.11a and 802.11b/g external antennas. •Map showing OmniAccess AP and OmniAccess AP 1200R locations, and mounting and power options. •Screwdrivers, drills, and ladder. •An assortment of sheet metal and drywall screws an…

Text truncated - open the document above for the full version.

To: Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: FCC 15.203 Compliance, Non-Standard Antenna Connector Requirement Gentlemen, The Alcatel Omni Access radios are available in versions that incorporate only internal antennas as well as a version that incorporates antenna connectors for connection to external antennas. FCC ID: RUT1200ABG Model 1200 FCC ID: RUT1200BG Model 1200B IC: 1737G-1200ABG Model 1200 IC 1737G-1200B Model 1200B These connectors used in these models are “Reverse TNC” connectors and are currently FCC 15.203 compliant. Additionally, it is Alcatel’s intent that these IEEE 802.11 access point radios be professionally installed and NOT installed by the end user of the system. If you have any questions, please do not hesitate to contact me at: [email protected] or (408) 832-7053 Sincerely, David Waitt Consultant representing Alcatel

To: Federal Communications Commission Industrie Canada From: Alcatel Internetworking Subject: Justification for Class A classification of the following products FCC: RUT1200ABG RUT1200BG IC: 1737G-1200ABG 1737G-1200BG Date: 5 Mar 2004 Gentlemen, The purpose of this letter is to provide justification for classifying the above products as Class A. The devices are similar IEEE802.11 access points with the exception that they are either A/B/G or B/G radios as indicated by their ID’s The Alcatel Omni Access series of products is intended only for industrial / corporate environments. Marketing of the products will not be targeted at individuals for residential use. The Omni Access will not be available for purchase at consumer oriented retail outlets. If any further information is required, please do not hesitate to contact me at the email address below. David Waitt Consultant representing Alcatel [email protected]

To: Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Confidentiality Request for Certification Application Gentlemen, On behalf of Alcatel Inc., I request that the following documents: • Any/All circuit schematics. • Any/All electrical block diagrams • Any/All parts lists • Associated with the following Part 15 Certification applications (FCC ID): RUT1200ABG RUT1200BG be withheld from public disclosure per Section 0.459 of the FCC Rules. This request is made under the provisions of Section 0.457(d) of the FCC rules and Sections 552(b)(4) of the Freedom of information Act. These Sections authorize withholding from public inspection, materials which would be privileged as a matter of law if retained by the person submitting them in addition to materials, which would not customarily be released to the public, by that person. If you have any questions, please do not hesitate to contact me at: [email protected] or (408) 832-7053 Sincerely, David Waitt Consultant representing Alcatel

To: Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Changes to FCC IDs and Authorization Letter Gentlemen, The authorization letter on file with this application references the following FCC IDs RUT1200ABGI RUT1200ABG RUT1200BGI RUN1200BG To reduce complexity, after the letter was prepared and signed, the FCC IDs were changed to : RUT1200ABG RUT122BG Because Alcatel had already indicated their consent to my representation for the certification application process, the authorization letter was not revised. David Waitt Consultant representing Alcatel

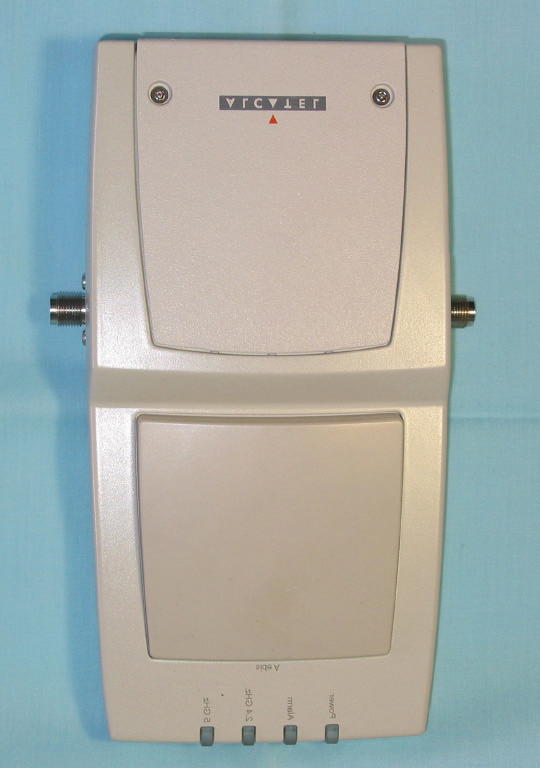

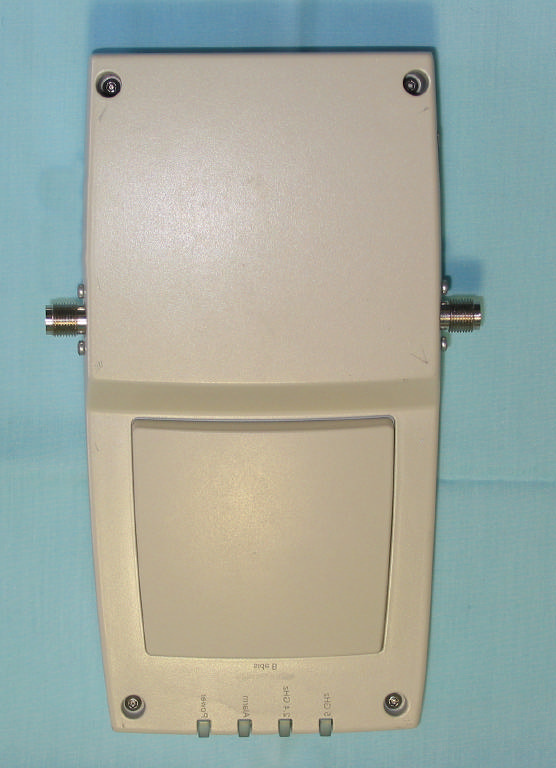

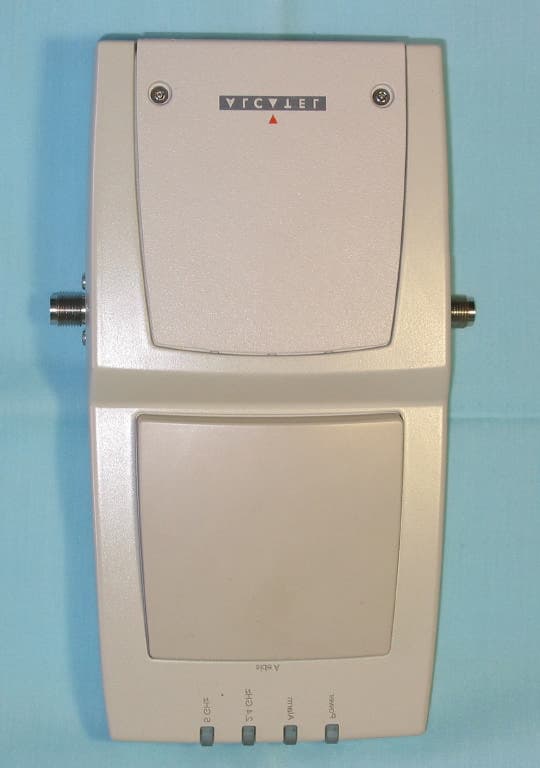

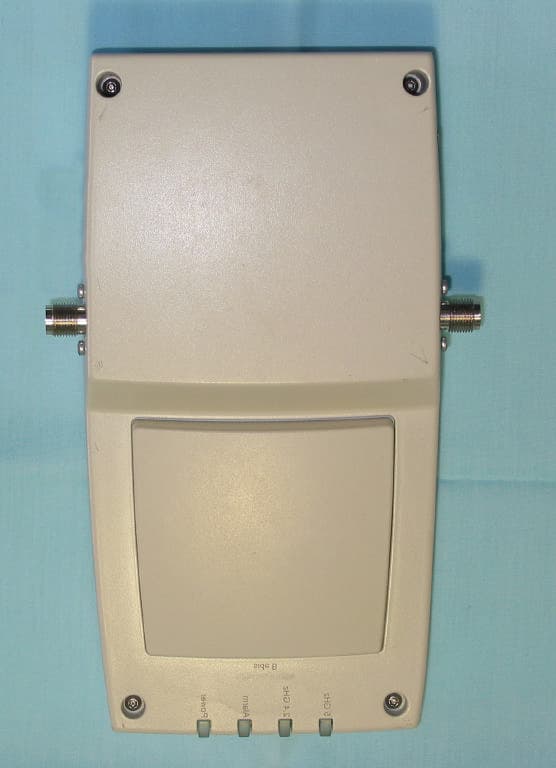

External Product Photos Alcatel IEEE 802.11 Access Point. Models: 1200B & 1200B INT (B/G Internal and External Antenna Versions) FCC Part 15 Certification Application Prepared by: David Waitt 202 Calvert Drive #217 Cupertino, Ca. 95014 [email protected] (408) 832 7053 ALCATEL Omni Access Point Radio, BG, EXT, Side 1 ALCATEL Omni Access Point Radio, BG, EXT, Side 2 ALCATEL Omni Access Point Radio, BG, EXT, LEFT and RIGHT sides Alcatel Access point, Side 1, Model 1200B INT Alcatel Access point, Side 2, Model 1200B INT Alcatel Access Point, Sides, Left and Right, Model 1200B INT Alcatel Access Point, Models 1200B and 1200B INT Security Screw detail Alcatel Access Point, Models 1200B and 1200B INT Security Screw detail

To: Office of Engineering and Technology Federal Communications Commission 445 12TH ST SW Washington DC 20554 Re: FCC ID: RUT1200BG IC: 1737G-1200BG Certification Application Regulatory Compliance Label Drawing Gentlemen, The label shown below will appear on the Alcatel Omni Access point radio specified above and will be located on the bottom of the unit as shown. Only ONE of the labels below will appear on the unit. The labels have the same FCC ID. The ONLY difference is the model number, denoting whether or not the unit is an internal antenna only radio. FCC ID: RUT1200BGIC: 1737G-1200BG FCC ID: RUT1200BGIC: 1737G-1200BG

Internal Product Photos Alcatel IEEE 802.11 Access Point. Models: 1200B & 1200B INT FCC Part 15 Certification Application Prepared by: David Waitt 202 Calvert Drive #217 Cupertino, Ca. 95014 [email protected] (408) 832 7053 802.11 Access Point PCA, 802.11 A side 802.11 Access Point PCA, 802.11 BG side Antenna Detail, BG side Antenna Detail, A side Module Detail, BG Side Coax to Ext 2.4 GHz antenna, Left Coax to Ext 2.4 GHz antenna, Right Module Detail Side 1 Module Detail Side 2

Alcatel Omni Access Point Models 1200 & 1200B 2.4 GHz External Antenna(s) Pictures and data sheets Prepared by: David Waitt 202 Calvert Drive #217 Cupertino, Ca. 95014 [email protected] (408) 832 7053 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: 2.4 GHz External Antenna Gentlemen, The attached data sheets for the 2.4 GHz external patch antennas indicates that the available gains in this series are 3dBi , 5dBi and 9 dBi. Alcatel is only using the 3dBi and 5 dBi antennas of this series. It is NOT using the 9dBi antenna If you have any questions, please do not hesitate to contact me at: [email protected] or (408) 832-7053 Sincerely, David Waitt Consultant representing Alcatel Features: Specifications: Element Type Air-Loaded Patch Frequency Range 2400-2500 MHz Peak Gain 3 dBi Polarization 1 Linear Impedance 50 ohms Maximum Input Power 50 watts VSWR (Min. Performance) 1.5:1 Connector Customer Choice Dimensions (cm) 6.4 x 6.3 x 1.7 cm Housing Coating Material ABS Operating Temperature -40º to +70ºC Storage Temperature -40º to +70ºC Includes a low-loss, RG 142, plenum rated “pigtail” cable. 1 Contains both vertical and horizontal components, the ratio of which varies with the spatial location. Cables & Connectors: Part Number Cable Connector CAF94101 12” RG-142 Plenum Rated Coax SMA-Male CAF94170 12” RG-142 Plenum Rated Coax N-Female CAF94150 36” RG-142 Plenum Rated Coax RP-TNC CAF94144 36” RG-142 Plenum Rated Coax RP-TNC 2400 MHz Sphere Part Number (P/N): CAF94101 CAF94170 CAF94150 CAF94144 2400 MHz Sphere – 10/30/02 Omnidirectional Antenna ƒ Omnidirectional antenna provides a considerable gain improvement over traditional dipole antennas, within a remarkably small case that perfectly blends into any environment. ƒ It is particularly applicable in environments such as offices and hospitals, where aesthetics are critical to successful wireless deployment and wide angle coverage is necessary. ƒ For easy installation, the Sphere quickly attaches to a ceiling tile frame with a standard metal clip. Azimuth Plane Cut perpendicular to the antenna and perpendicular to the cable Elevation Plane Cut perpendicular to the antenna alon g the cable axis Omni Plane Cut in the plane of the antenna parallel to the cable Sphere 2400 Xertex Products Reliability Without the Expense... FEATURES & OPTIONS: In-Building Reliable coverage is always a priority in streamlining the effectiveness of wireless devices. This is especially crucial in commercial, office, campus and residential environments that strive to cover a multitude of users in an open space or long corridor. Centurion’s Whisper directional and Terrace bi-directional antennas offer an affordable option for in-building antenna systems. Our innovative designs blend into any atmosphere and provide excellent coverage in high traffic areas. WHI SPER - Directional Antenna • Self contained in a durable sleek radome, the Whisper is designed to blend in anywhere - residential, campus or commercial • Inexpensive yet reliable, the Whisper utilizes Centurion's patented technology to achieve maximum efficiency. • Typical applications include wireless local loop, in-building wireless (voice and data), WLAN, DECT, WPBX, and broadband Internet access. TERRACE - Bi-directional Antenna • Utilizes a patented low-profile design to provide coverage in corridors or long hallways • Provides outstanding performance in healthcare and office environments, where a long hallway presents a design or coverage challenge DIRECTIONAL/BI-DIRECTIONAL ANTENNAS AntennasA www.centurion.com Telematics 802.11/Bluetooth In-Building Mobile Phones LMR Power Specifications subject to change without notice Copyright © 2001 Centurion Wireless Technologies, Inc. All Rights Reserved www.centurion.com 3425 N.44th St., LINCOLN, NE 68504 USA SALES PHONE 800.228.4563 • SALES FAX 800.826.3774 INTERNATIONAL PHONE 402.474.0706 • FAX 402.467.4528 In-Building DIRECTIONAL/BI-DIRECTIONAL ANTENNAS All centurion products are designed for maximum efficiency and are customizable and scalable to meet your frequency and application requirements. SPECIFICATIONS: PATTERNS: As displayed in these typical patterns, In-Building Directional and Bi- Directional antennas offer superior high-gain reception over a broad area. General specifications for In-Building Directional and Bi-Directional Antennas: ELEMENT TYPE Air-Loaded Patch FREQUENCY RANGE 806-2500 MHz PEAK GAIN 5.0-9.0 dBi POLARIZATION 1 Linear IMPEDANCE 50 ohms MAXIMUM INPUT POWER 50 watts FRONT/BACK RATIO 18-20 dBi VSWR (MIN. PERFORMANCE) 1.5:1-2.0:1 RADOME MATERIAL (INDOOR) ABS or Luran RADOME MATERIAL (OUTDOOR) Kydex 2 or Luran 2 1 Polarization axis is parallel to the cable axis, or along the long axis of the antenna for models without cable pigtails. 2 UV tolerance rated to 7 years of outdoor exposure. AZIMUTH PLANE cut perpendicular to the antenna and perpendicular to the cable ELEVATION PLANE cut perpendicular to the antenna along the cable axis OMNI PLANE Spherical Projection AZIMUTH PLANE cut perpendicular to the antenna and perpendicular to the cable ELEVATION PLANE cut perpendicular to the antenna along the cable axis OMNI PLANE cut perpendicular to the antenna along the cable axis TYPICAL WHISPER ANTENNA PATTERNS TYPICAL TERRACE ANTENNA PATTERNS Elevation Azimuth Centurion 2.4 GHz 3dBi (#94150) antenna Centurion 2.4 GHz 5dBi (#94149) antenna

To: Federal Communications Commission Industrie Canada From: Alcatel Internetworking Subject: Theory Of Operations FCC: RUT1200BG IC: 1737G-1200BG Date: 11 Mar 2004 Gentlemen, Below is a brief explanation of the operation of the Alcatel Omni Access Radio The Alcatel radio is an IEEE 802.11 B/G Access point (AP) intended to be professionally installed and configured in corporate and industrial environments. The device utilizes a mini PCI module manufactured by an outside vendor. The manufacturer of the module has received FCC modular approval. The Alcatel access point uses the module with a higher gain antenna than was certified for use with the module, therefore Alcatel is applying for their own grant. The modules incorporated into the Omni Access Point radio are IEEE802.11 A/B/G mini PCI modules. However the functionality of the module is determined by the mini PCI slot in which the module is inserted. (See internal photos) There are two slots within the access point, 802.11 A and 802.11 B/G. In the case of the B/G access point, the module is inserted into the B/G slot, therefore the A/B/G module functions ONLY as 802.11 B/G. The user cannot modify this selectivity behavior via the configuration software. INTERNAL ANTENNA VERSION The AP utilizes integral antennas on the 802.11 B/G band. The access point effectively includes only a single 2.4GHz patch antenna, however, there are actually two 2.4 GHz antennas internal to the access point chassis. The module switches rapidly between the two antennas and when a signal is detected, the access point uses the antenna offering the best transmission characteristics. At any one time, there is only one antenna connected to the internal PCI module. The effective gain of the 2.4 GHz internal antenna path (the antenna switch and the antenna itself) is 6.8dBi. The diagrams below outline the RF path from the output of the mini PCI module to the integral antennas within the access point. In the internal antenna version shown below, the software prohibits the switching of the FET antenna switches. 2.4 GHz RF Block Diagram (Internal Antenna Version) 802.11 mini PCI module Antenna Diversity FET Switch Approx -1dB Trace Internal Patch Antennas, 7.8 dBi Each Trace Net effective 2.4 GHz antenna gain: 6.8 dBi Primary Output Aux Output FET Switch Approx -1dB INTERNAL/EXTERNAL ANTENNA VERSION Additionally, there is a version of the access point which allows connection of external antennas. When External antennas are connected to the access point, the configuration software switches the internal antenna switches into the EXT position. The antenna diversity functionality described earlier works in the same manor for the external antennas. The external antennas used with the access point must be “patch” type antennas and have a net effective gain (antenna gain - cable loss) equal to 6.8 dBi or less. At any one time, ONLY the internal or external antennas may be selected. It is NOT possible to configure the access point to rapidly toggle between external and internal antennas. The only difference between the internal only version and the internal / external version of the access point is the addition of a small coax cable to an external 15.203 compliant antenna connector in the chassis. 2.4 GHz RF Block Diagram (Internal / External Antenna Version) If any further information is required, please do not hesitate to contact me at the email address below. David Waitt Consultant representing Alcatel [email protected] 802.11 mini PCI module Antenna Diversity FET Switch Approx -1dB Trace Internal Patch Antennas, 7.8 dBi Each Trace Net effective 2.4 GHz antenna gain: 6.8 dBi Primary Output Aux Output FET Switch Approx -1dB Power for the initial grant measured from this point.

Mobile Power Density Calculation for FCC ID: RUT1200BG The Alcatel access point, Model 1200B and 1200B INT are IEE802.11 B /G radios. The access points operate on the 2.4 GHz ISM band. Operating Environment: The operating environment for the for the radio in all cases is a fixed, uncontrolled environment, however, the devices are classified as being “Mobile”, Therefore the exposure at 20 cm is calculated. Fixed, Uncontrolled Environment: The FCC limit for the power density for uncontrolled exposure to RF devices operation at 2.4GHz at a distance of 20 cm is: 1 mW/cm 2 Power density is calculated from the following equation Exposure (mW/cm 2 ) = EIRP(mW) * Duty Cycle 4*PI* Radius 2 (cm) Where: Radius = 20 cm Duty Cycle = assumed to be 100% to yield a worst case result. NOTE: Maximum allowable certified external antenna gain: 6.8 dBi 2.4GHz ISM Band MPE distance Calculation Using the highest power measured on the 2.4 GHz ISM band. MAX Pout: 20.4 dBm (109.65 mW) MAX Ant Gain 6.8 dBi (4.78x) EIRP: 27.2 dBm (524.80 mW EIRP) Calculating power density at a distance of 20 cm yields: Delta = specification - result 1 mW/cm 2 - .1043 mw/cm 2 = .8956 mw/cm 2 = -9.817 dB below limit 524.127 5026.54 8 524.127 * 1 4 * Pi * 20 2 Power = Density .1043 mw/cm 2

EMI Test Report and Technical Documentation on Alcatel 802.11 Access Point. Models: 1200 & 1200 INT FCC ID: RUT1200BG FCC Part 15.247 Certification Application Industrie Canada RSS210 Certification Prepared by: David Waitt 202 Calvert Drive #217 Cupertino, Ca. 95014 [email protected] (408) 832 7053 Alcatel FCC Part 15 Certification Application Table of Contents Section Page General information------------------------------------------ 3 Detailed product information--------------------------------- 4 Results summary---------------------------------------------- 5 Test facilities---------------------------------------------- 6 Test Equipment----------------------------------------------- 7 Test methods------------------------------------------------- 8 Test Results Maximum power at RF Output------------------------------ 10 6dB Bandwidth------------------------------------------- 13 Power spectral density---------------------------------- 17 Out of band emissions ---------------------------------- 21 Radiated emissions in restricted bands------------------ 23 Radiated emissions in restricted bands (band edge)------ 26 AC Line conducted Emissions ---------------------------- 31 Alcatel FCC Part 15 Certification Application Unit(s) Under Test: Alcatel 802.11 Access Point (AP) Model: 1200 1200 INT Product Description: IEEE 802.11 B/G Access point FCC ID : RUT1200BG Tested For: Alcatel 26801 West Agoura Road Calabasas, CA 91301, USA Tested At: Elliott Laboratories 684 West Maude Ave Sunnyvale, CA 94086 Tested By: Juan Martinez, Sr. Test Engineer, Elliott Laboratories Chris Byleckie, Test Engineer, Elliott Laboratories Trinh Waitt, (Independent Consultant for Alcatel) Test Specifications: FCC CFR 47, Part 15.247, 2.4 GHz DSSS Test Date: Nov 2003 Requested Certification: Part 15.247 Certification General Information Alcatel FCC Part 15 Certification Application The Alcatel radio is an IEEE 802.11 B/G Access point (AP) intended to be professionally installed and configured in corporate and industrial environments. The device utilizes a mini PCI module manufactured by an outside vendor. The manufacturer of the module has received FCC modular approval. The Alcatel access point uses the module with a higher gain antenna than was certified for use with the mod…
