RUU-MU201888GSM TRACKER

San Jose Technology, Inc.
GSM TRACKER - FCC ID RUU-MU201888 - San Jose Technology, Inc.
Click to zoom

Application Details

Equipment Class
PCB - PCS Licensed Transmitter
Date of Grant
Apr 18, 2011
Application Purpose
Original Equipment
Date of Application
Apr 17, 2011
Equipment Note
GSM TRACKER
Frequency Range
1850.20000000 - 1909.80000000
Company
San Jose Technology, Inc.
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

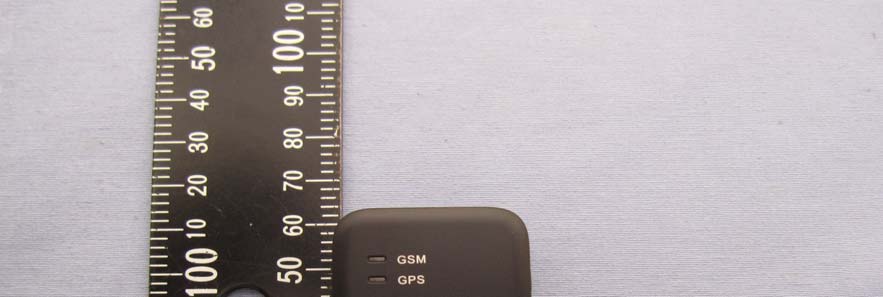

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

Parts List/Tune Up Info

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

a GPS/GPRS Nano Tracker MU-201 User Manual Revision: 1.0.1 Revision Date: 2011/1/5 b Content 1. Notification ........................................................................................... 1 1.1 Introduction: ............................................................................................................... 1 1.2 Disclaimer ..................................................................................................................... 1 1.3 Copyright ...................................................................................................................... 1 1.4 Document Amendments ......................................................................................... 2 2. Specifications: ....................................................................................... 3 2.1 Package Contents .......................................................................................................... 4 3.1 Front Face ......................................................................................................................... 5 3.1.1 LED light status of MU-201 .................................................................................... 5 3.3 Bottom Face .................................................................................................................... 6 3.4 Side Face .......................................................................................................................... 6 3.6 Charging MU-201 .......................................................................................................... 7 3.7 Dimension ......................................................................................................................... 7 4 SMS Command Setup for MU-201 ............................................................... 7 4 SMS Command Setup for MU-201 ............................................................... 8 4.1 Change Username ......................................................................................................... 9 4.2 Change Password ........................................................................................................ 10 4.3 Set up APN for Device Report ................................................................................ 11 4.4 Set up URL for Device Report ................................................................................. 12 4.5 Set up Phone Number List ....................................................................................... 13 4.6 Set up SOS Number ................................................................................................... 14 4.6.2 Set up SOS Report Interval ................................................................................. 16 4.6.3 Stop SOS Report (Exit from SOS Mode) ........................................................ 17 4.7 Set up Auto Report ..................................................................................................... 18 4.8 Acquire the Report of Current Position (SMS Polling) ................................... 19 4.9 Setup Report Interval When Park Is Triggered ............................................... 20 4.10 Setup Over Speed Detection ................................................................................ 21 4.11 Activate Over Speed Detection ........................................................................... 22 4.12 Setup Geofence Coordinate .................................................................................. 23 4.13 Setup Geofence Alarm Report Interval ............................................................ 24 4.14 Setup Voice Mode ..................................................................................................... 25 4.15 Setup TCP/UDP Server Address .......................................................................... 26 4.16 Setup Backup/Log Interval Mode (Pre-defined Backup Times) .............. 27 4.17 Setup SMS Google Map Report ........................................................................... 28 4.18 Setup Security Phone Book .................................................................................. 29 4.18.2 Enable/Disable Security Phone Book Detection ........................................ 30 5 Respond messages ............................................................................... 31 5.1 Output Format When The Router Is Set to HTTP, TCP or UDP ................. 32 c 5.2 Output Format when The Router Is Set to SMS ............................................. 33 5.3 NMEA 0183 GPRMC Sentence ................................................................................. 34 Warranty .............................................................................................. 35 1 1. Notification 1.1 Introduction: SANAV MU-201 is a more compact version of GPS tracker focusing on the covert, pets or asset tracking market. Its location can be real time tracked through internet or specified terminals. The user can communicate with the service server through GPRS/GSM network, transfer alarms of Emergency, Geo-fencing., Remote Control, and Lower power, and record the tracking history stored in internal memory through USB or website. This User Manual details the specification, hardware design, SMS commands, and Respond messages of MU-201. If you have any problem with the content in this manual, please contact SANAV Customer Service by e-mail to [email protected]. 1.2 Disclaimer This document, and all other related products, such as device, firmware, and software, is developed by San Jose Technology Inc. thoroughly. At the time of release, it is most compatible with specified firmware version. Due to the functionalities of the devices are being developed and improved from time to time, the change in the protocol, specification, and firmware functions are subjects to change without prior notice. SANAV is obligated to modify all t…

Text truncated - open the document above for the full version.

Cover Letter(s)

Mar. 3, 2011 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: No. 11, Wugong 6 th Rd., Wugu Towership, Taipei County 24891, Taiwan Mr. Rex Lai Job Title: Section Manager Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: SANAV/MU-201 (Model Name) FCC ID: RUU-MU201888 Product Name: GSM Tracker Name/Title: Honda Lien / System Engineering Company Name: SAN JOSE TECHNOLOGY, INC. Address: 11F.,No.2,Sec.4, Jhongyang Rd. ,Tucheng City,Taipei County ,Taiwan (R.O.C.) TEL: +886-2-2269-4456 #735 FAX: +886-2-2269-4451 Email: [email protected]

External Photos

Compliance Certification Services Inc. Report No.: T110221001 Date of Issue: March 15, 2011 A1 - 1 Total Page: 11 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T110221001 Date of Issue: March 15, 2011 A1 - 2 Total Page: 11 Rev. 00 Compliance Certification Services Inc. Report No.: T110221001 Date of Issue: March 15, 2011 A1 - 3 Rev. 00 Compliance Certification Services Inc. Report No.: T110221001 Date of Issue: March 15, 2011 A1 - 4 Rev. 00 Compliance Certification Services Inc. Report No.: T110221001 Date of Issue: March 15, 2011 A1 - 5 Rev. 00

Internal Photos

Compliance Certification Services Inc. Report No.: T110221001 Date of Issue: March 15, 2011 A1 - 6 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT PIFA Antenna Compliance Certification Services Inc. Report No.: T110221001 Date of Issue: March 15, 2011 A1 - 7 Rev. 00 Compliance Certification Services Inc. Report No.: T110221001 Date of Issue: March 15, 2011 A1 - 8 Rev. 00 Compliance Certification Services Inc. Report No.: T110221001 Date of Issue: March 15, 2011 A1 - 9 Rev. 00 Compliance Certification Services Inc. Report No.: T110221001 Date of Issue: March 15, 2011 A1 - 10 Rev. 00 Compliance Certification Services Inc. Report No.: T110221001 Date of Issue: March 15, 2011 A1 - 11 Rev. 00

Operational Description

MU-201 Antenna s p ec. p Manufacturer: GSM Antenna Frequency: 824~894MHz,880~960MHz,1710~1879MHz,1850~1990MHzBand: Quad-band, 850MHz, 900MHz,1800MHz, 1900MHzPeak Gain: -2.3dBi@850MHz, -0.3dBi@900MHz, 2.32dBi@1800MHz, 3.34dBi@1900MHzAntenna Type: PIFAAntenna material: Cu alloy (C7521)Antenna material: Cu alloy (C7521)Antenna drawing:

Parts List/Tune Up Info

料 量 立 量 度 六 金 度 離 離

RF Exposure Info

Compliance Certification Services Inc. Report No.: T110221001-RP FCC ID: RUU-MU201888 Date of Issue: March 14, 2011 Page 78 Rev. 00 APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT EUT Specification EUT GSM Tracker Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others: GSM / GPRS 850MHz: 824.2 ~ 848.8 MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Others __________________________ Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power ERP: 32.16 dBm (1644.37 mW) Antenna gain (Max) -2.3 dBi (Numeric gain: 0.58) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 32.16 dBm (1644.37 mW) at 848.80MHz (with 0.58 numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. TEST RESULTS No non-compliance noted. Compliance Certification Services Inc. Report No.: T110221001-RP FCC ID: RUU-MU201888 Date of Issue: March 14, 2011 Page 79 Rev. 00 Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure EUT output power = 1644.37 mW Numeric Antenna gain = 0.58 Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Æ Power density = 0.01897 mW / cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.) Compliance Certification Services Inc. Report No.: T110221001-RP FCC ID: RUU-MU201888 Date of Issue: March 14, 2011 Page 80 Rev. 00 EUT Specification EUT GSM Tracker Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.725GHz ~ 5.850GHz WLAN: 5.15GHz ~ 5.35GHz Others: GSM / GPRS: 1900: 1850.2 ~ 1909.8 MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Others __________________________ Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power ERP: 29.96 dBm (990.83 mW) Antenna gain (Max) 3.34 dBi (Numeric gain: 2.15) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 29.96 dBm (990.83 mW) at 1850.20MHz (with 2.15numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. TEST RESULTS No non-compliance noted. Compliance Certification Services Inc. Report No.: T110221001-RP FCC ID: RUU-MU201888 Date of Issue: March 14, 2011 Page 81 Rev. 00 Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure EUT output power = 990.83 mW Numeric Antenna gain = 2.15 Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Æ Power density = 0.42392 mW / cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Test Report

Compliance Certification Services Inc. Report No.: T110221001-RP FCC ID: RUU-MU201888 Date of Issue: March 14, 2011 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 84 Rev. 00 FCC 47 CFR PART 22 SUBPART H AND PART 24 SUBPART E TEST REPORT For GSM Tracker Model: MU-201 Trade Name: SANAV Issued to SAN JOSE TECHNOLOGY, INC. 11F.,No.2,Sec.4, Jhongyang Rd. ,Tucheng Dist., New Taipei City 236, Taiwan (R.O.C.) Issued by Compliance Certification Services Inc. No. 11, Wu-Gong 6 th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Compliance Certification Services Inc. Report No.: T110221001-RP FCC ID: RUU-MU201888 Date of Issue: March 14, 2011 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 DESCRIPTION OF TEST MODES................................................................................................. 6 4. INSTRUMENT CALIBRATION................................................................................................. 7 4.1 MEASURING INSTRUMENT CALIBRATION........................................................................... 7 4.2 MEASUREMENT EQUIPMENT USED .............................................................................. 8 4.3 MEASUREMENT UNCERTAINTY .................................................................................... 9 5. FACILITIES AND ACCREDITATIONS ................................................................................. 10 5.1 FACILITIES............................................................................................................................ 10 5.2 EQUIPMENT........................................................................................................................... 10 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.......................................................................... 11 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 12 6.1 SETUP CONFIGURATION OF EUT............................................................................................ 12 6.2 SUPPORT EQUIPMENT..................................................................................................... 12 7. FCC PART 22 & 24 REQUIREMENTS ................................................................................... 13 7.1 PEAK POWER......................................................................................................................... 13 7.2 AVERAGE POWER............................................................................................................... 15 7.1 ERP & EIRP MEASUREMENT .......................................................................................... 17 7.2 OCCUPIED BANDWIDTH MEASUREMENT ................................................................. 23 7.3 OUT OF BAND EMISSION AT ANTENNA TERMINALS .............................................. 31 7.4 FIELD STRENGTH OF SPURIOUS RADIATION MEASUREMENT ............................. 43 7.5 FREQUENCY STABILITY V.S. TEMPERATURE MEASUREMENT............................ 69 7.6 FREQUENCY STABILITY V.S. VOLTAGE MEASUREMENT ...................................... 72 7.7 POWERLINE CONDUCTED EMISSIONS.................................................................................... 75 APPENDIX I RADIO FREQUENCY EXPOSURE ........................................................................ 78 APPENDIX II PHOTOGRAPHS OF TEST SETUP ...................................................................... 82 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T110221001-RP FCC ID: RUU-MU201888 Date of Issue: March 14, 2011 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: SAN JOSE TECHNOLOGY, INC. 11F.,No.2,Sec.4, Jhongyang Rd. ,Tucheng Dist., New Taipei City 236, Taiwan (R.O.C.) Equipment Under Test: GSM Tracker Tr a d e N a m e : SANAV Model Number: MU-201 Date of Test: February 25 ~ March 10, 2011 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 22 Subpart H & Part 24 Subpart E No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in TIA/EIA-603-C: 2004 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rule FCC PART 22 Subpart H and PART 24 Subpart E. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Rex Lai Gina Lo Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: T110221001-RP FCC ID: RUU-MU201888 Date of Issue: March 14, 2011 Page 4 Rev. 00 2. EUT DESCRIPTION Product GSM T…

Text truncated - open the document above for the full version.

Test Setup Photos

Compliance Certification Services Inc. Report No.: T110221001-RP FCC ID: RUU-MU201888 Date of Issue: March 14, 2011 Page 82 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP Conducted Emission Set Up Photo Compliance Certification Services Inc. Report No.: T110221001-RP FCC ID: RUU-MU201888 Date of Issue: March 14, 2011 Page 83 Rev. 00 Radiated Emission Set up Photos Compliance Certification Services Inc. Report No.: T110221001-RP FCC ID: RUU-MU201888 Date of Issue: March 14, 2011 Page 84 Rev. 00 Powerline Conducted Emissions Setup Photos
