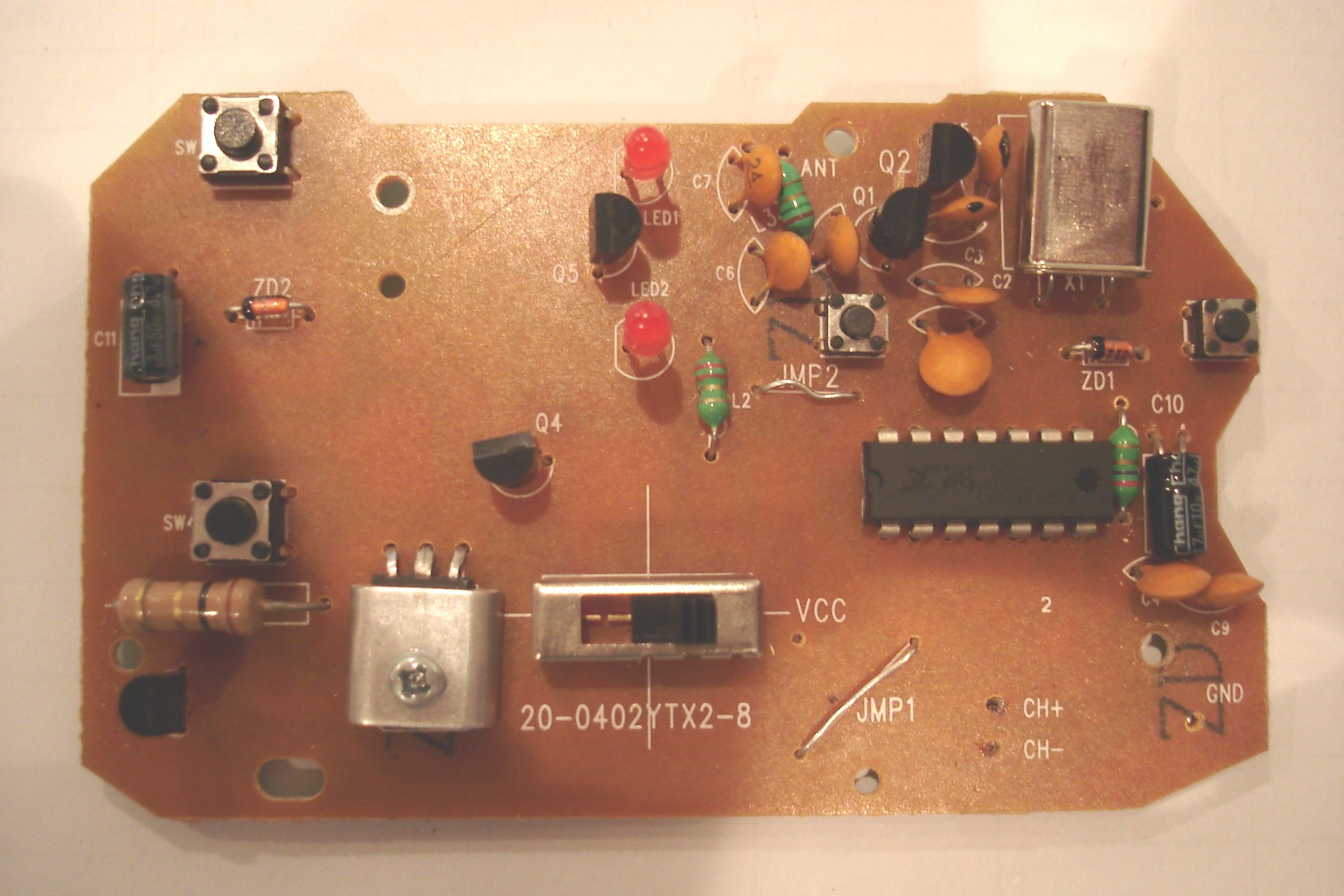

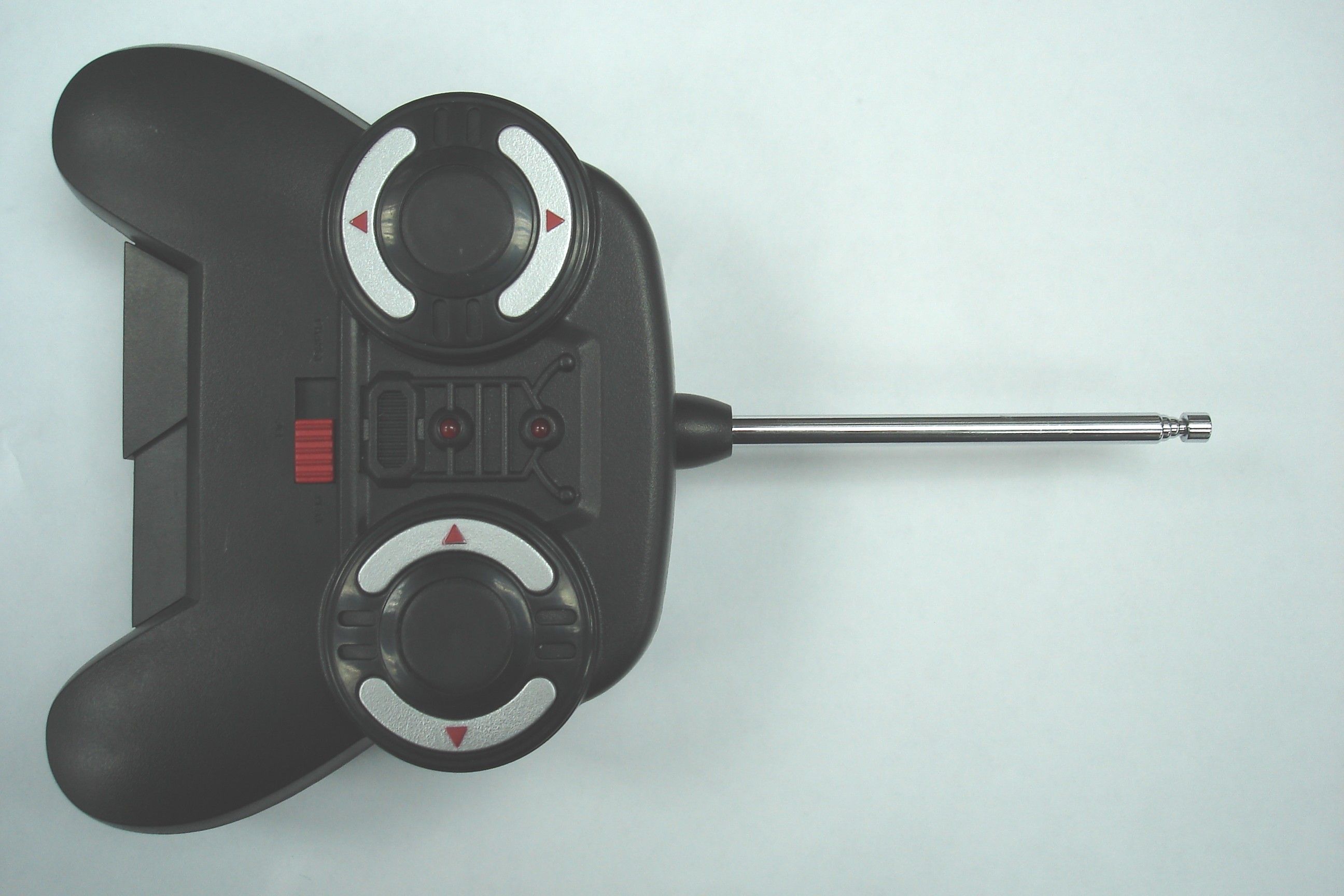

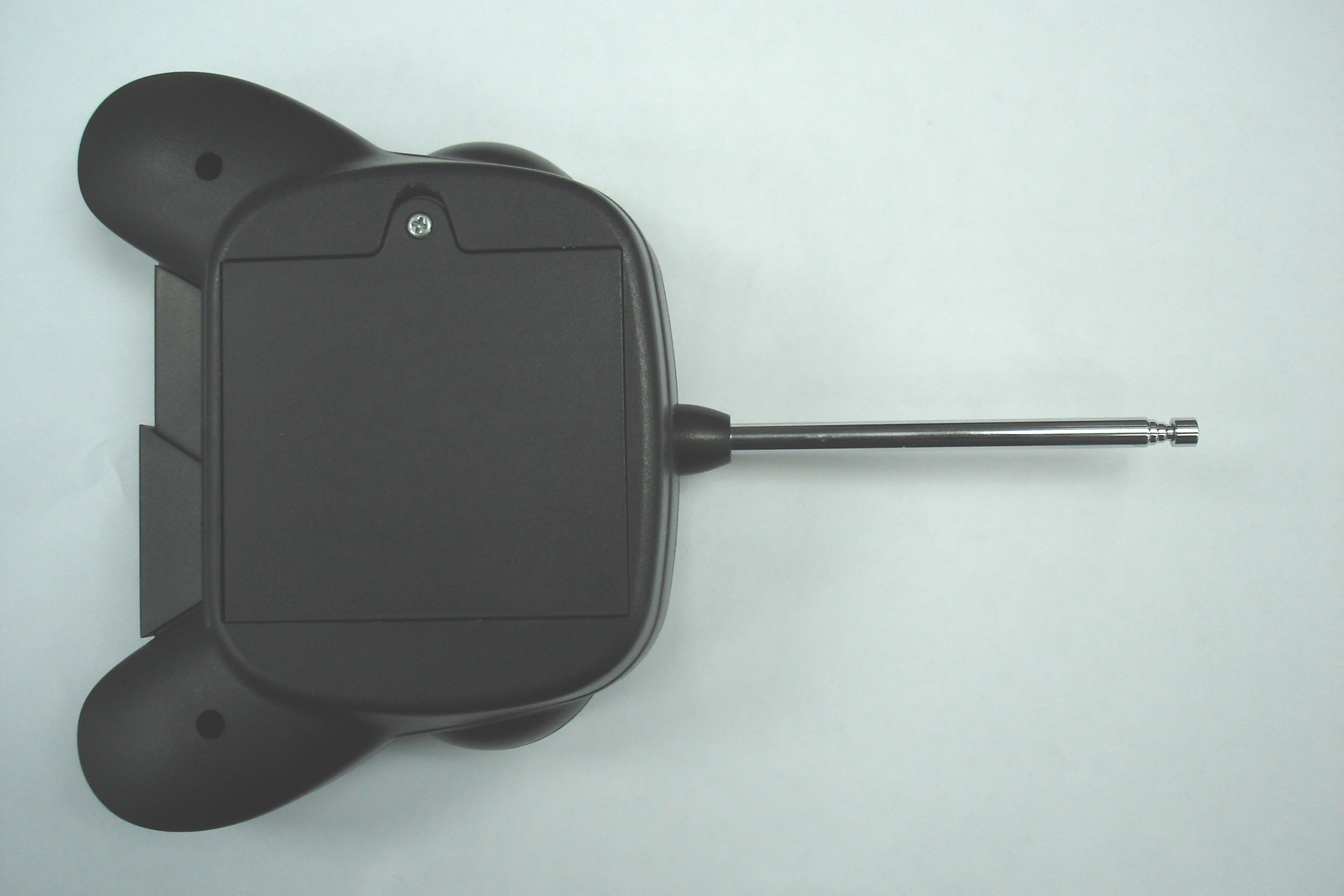

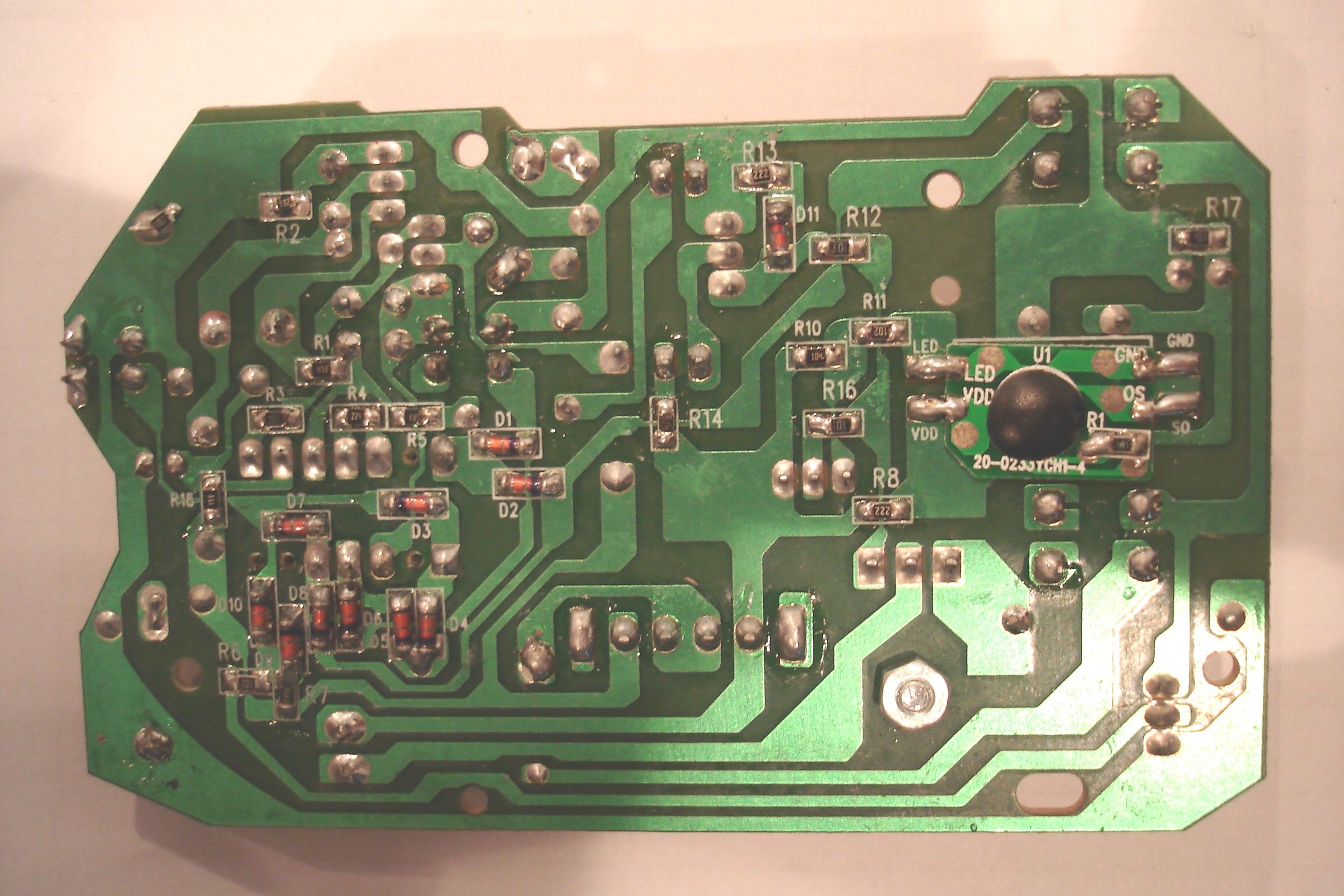

Operation Description The R/C Micro Quad is powered by 4 X 1.5V AA size battery. It operating at radio channel 27.145MHz and oscillated by crystal. It can select playing mode or receiver charging mode. When the control trigger is pressed once, it can transmit a radio signal for receive running. Refer to the circuit design, the circuit description is listed as below: Q1 and associate circuit act as RF amplify. X1, Q2 and associate circuit act as oscillator. ATS302T, Q3 and associate circuit act as encoder. Q4 ~Q6, CDT3332 and associate circuit act as charging unit.

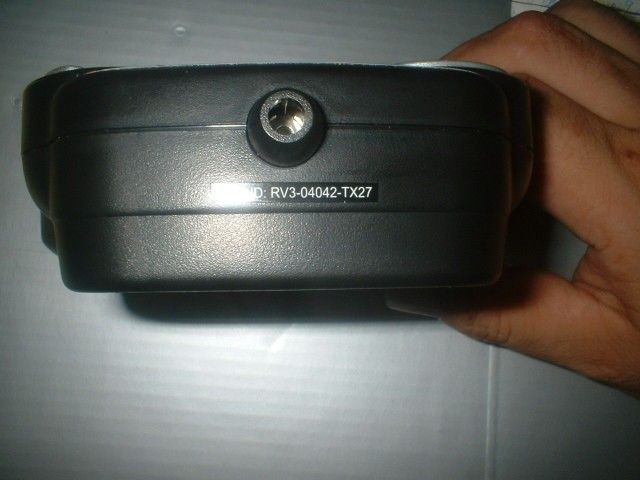

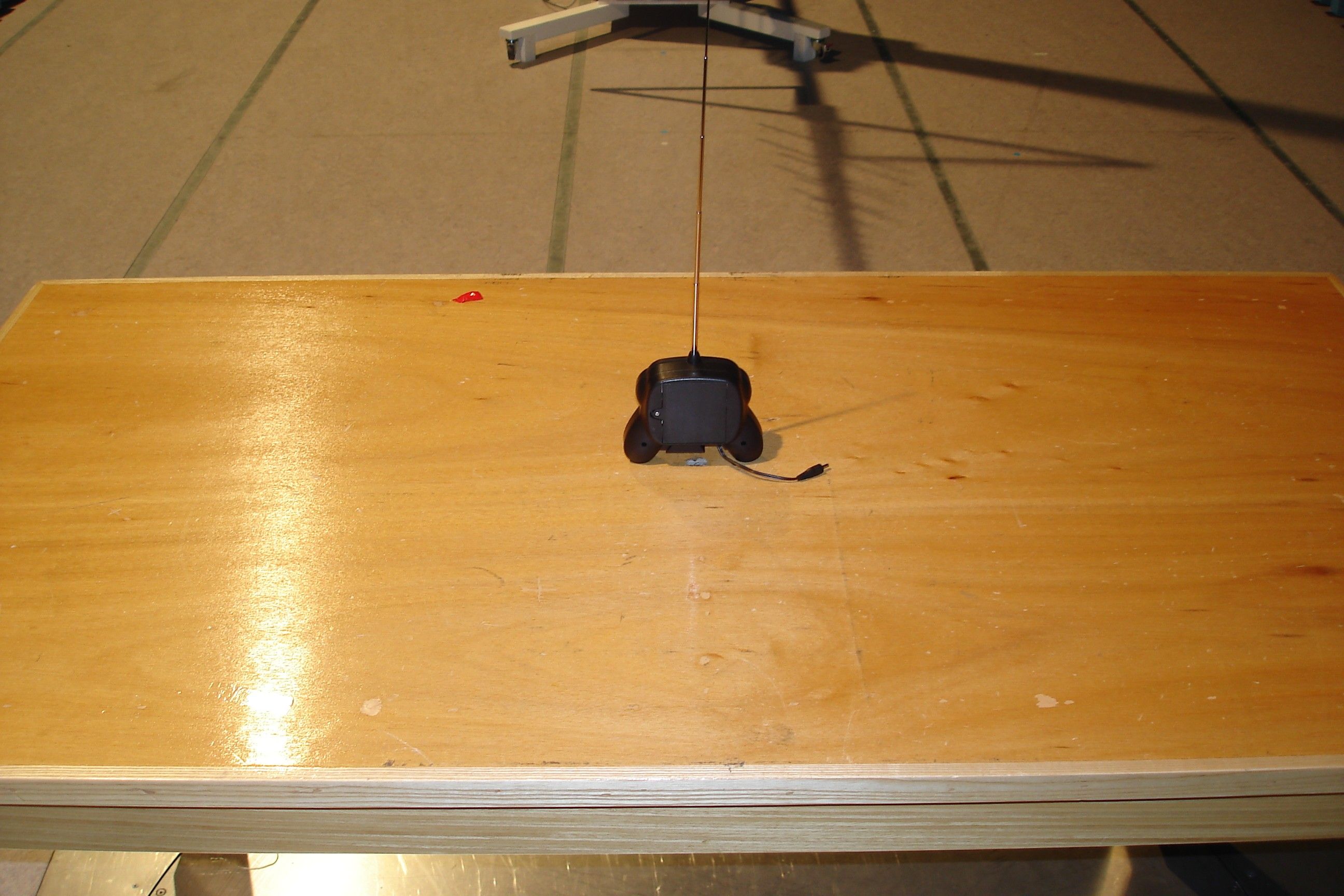

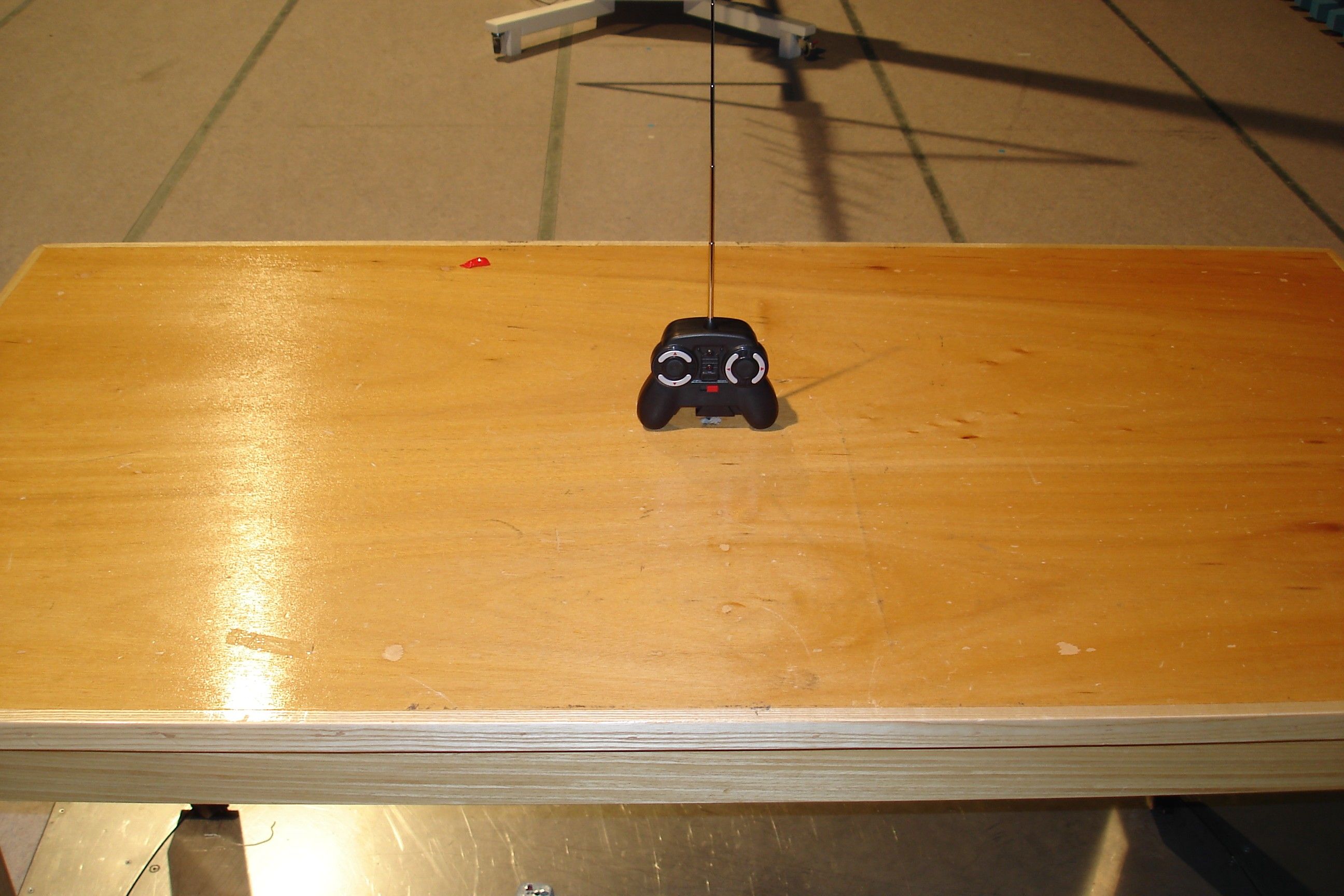

TEST REPORT Report No. : AF009935-001 Date : 2005 June 06 For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 11 Danny Chui EMC Engineer - EL. Division FCC ID : RV3-04042-TX27 This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Application No. : LF206788(9) Applicant : Super Grand Enterprise Ltd. Room 509, North Tower, Concordia Plaza, No. 1 Science Museum Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Sample Description : One(1) submitted sample stated to be R/C Micro Quad of Model No. 04042 and 60-4431 Rating : 4 x 1.5V AA size battery No. of submitted sample : Two (2) set (s)*** Date Received : Test Period : Test Requested : Test Method : Test Result : Conclusion : 2005 May 03 2005 May 03 – 2005 May 13 FCC Part 15 Certification FCC Rules and Regulations Part 15 – July 2004 ANSI C63.4 – 2003 See attached sheet(s) from page 2 to 11. The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. Remark : All two models are the same in circuitry and components; and therefore model 04042 was chosen to be the representative of the test sample. TEST REPORT Report No. : AF009935-001 Date : 2005 June 06 Page 2 of 11 FCC ID : RV3-04042-TX27 This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Table of Contents 1 General Information ..................................................................................................................... 3 1.1 General Description ............................................................................................................... 3 1.2 Location of the test site.......................................................................................................... 4 1.3 List of measuring equipment ................................................................................................. 5 2 Description of the radiated emission test ..................................................................................... 6 2.1 Test Procedure ....................................................................................................................... 6 2.2 Test Result ............................................................................................................................. 6 2.3 Radiated Emission Measurement Data.................................................................................. 7 3 Description of the Line-conducted Test .......................................................................................8 3.1 Test Procedure ....................................................................................................................... 8 3.2 Test Result ............................................................................................................................. 8 3.3 Graph and Table of Conducted Emission Measurement Data .............................................. 8 4 Photograph ................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission ................ 9 4.2 Photographs of the External and Internal Configurations of the EUT .................................. 9 5 Supplementary document ............................................................................................................ 10 5.1 Bandwidth............................................................................................................................ 10 5.2 Duty Cycle ............................................................................................................................ 10 6 Appendices .................................................................................................................................. 11 TEST REPORT Report No. : AF009935-001 Date : 2005 June 06 Page 3 of 11 FCC ID : RV3-04042-TX27 This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for R/C Micro Quad. Operating at 27.145MHz which is controlled by a crystal. The EUT is powered by 4 x 1.5V “AA” size batteries. When it switch on it can select playing mode or charging receiver mode. It has four buttons in front of EUT for transmit difference radio signal to receiver unit. The brief circuit description is listed as follows : - Q1 and associated circuit act as RF amplify. - X1, Q2 and associated circuit act as oscillator. - ATS302T, Q3 and associated circuit act as encoder. - Q4 ~ Q6, CDT3332 and associated circuit act as charging unit. The model(s) Micro R/C ATV are the same as model R/C Micro Quad in hardware aspect. The difference in model numbers serves as marketing strategy. TEST REPORT Report No. : AF009935-001 Date : 2005 June 06 Page 4 of 11 FCC ID : RV3-04042-TX27 This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1.2 …
Text truncated - open the document above for the full version.
CMA Testing and Certification Laboratories Job No.: WF-EL-EMC-15 Edition 3 2005 Mar 29 Page of Bandwidth Plot Bandwidth 1
CMA Testing and Certification Laboratories Job No.: WF-EL-EMC-15 Edition 3 2005 Mar 29 Page of Duty Cycle Duty Cycle 1 CMA Testing and Certification Laboratories Job No.: WF-EL-EMC-15 Edition 3 2005 Mar 29 Page of Duty Cycle 2 Duty Cycle 3
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 27.145 MHz - 27.145 MHz | - |
