SE-208BW User manual file:///N|/TSST-Project/EN/index.html[2011-11-08 오후 2:30:46] Safety precautions Important to read and understand at all times During installation During operation Others Cautions when storing and cleaning discs RoHS and WEEE Specifications Exterior LED status System requirements Product Specifications How to set up How to install your Optical Smart Hub How to connect the cables How to connect the USB storage device How to confirm USB 2.0 and installing the USB driver How to confirm the installation of the device driver How to remove the USB cable How to configure the basic setup of the Optical Smart Hub How to configure the Wi-Fi connection How to configure the local network connection How to configure the iSCSI Initiator How to configure the settings of the Optical Smart Hub How to log in the Optical Smart Hub How to configure System How to configure Network Service How to configure Maintenance How to use How to use the ODD How to use the discs How to use DVD±R/RW and other discs How to use the AV Connectivity function How to access the Optical Smart Hub How to access from mobile device How to access via internet Troubleshooting SE-208BW User manual file:///N|/TSST-Project/EN/index.html[2011-11-08 오후 2:30:46] FAQ (Frequently Asked Questions) Cautions for the possible errors Appendix Warranty statement Glossary Compliance Notice Samsung's OMS (Optical Media Solution) Customer Support Website (www.samsung-ODD.com) offers the latest versions of firmware for ODD products, user instructions and product information. SAFETY PRECAUTIONS Important to read and understand at all times Warning This symbol indicates explanations about extremely dangerous matters. If users ignore this symbol and handle the device the wrong way, this can cause serious injury or death. Caution This symbol indicates explanations about dangerous matters. If users ignore this symbol and handle the device the wrong way, this can cause damage to the product. ImportantImportant to read and understand at all times. NoteNote Important IF A SOFTWARE PROGRAM IS TO BE BUNDLED WITH THE Optical Smart Hub PROVIDED BY SAMSUNG, THEN YOU MUST HAVE A SEPARATE, VALID LICENSE FOR SUCH BUNDLED SOFTWARE WITH RESPECT TO THE MANUFACTURE, SALE OR DISTRIBUTION OF THE PRODUCT (SUCH AS A PERSONAL COMPUTER) CONTAINING THE OPTICAL DISC DRIVE AND THE BUNDLED SOFTWARE AS ITS COMPONENTS. OTHER THAN THOSE THIRD PARTY LICENSES EXPRESSLY STATED TO BE INCLUDED, SAMSUNG PROVIDES NO OTHER THIRD PARTY LICENSES, AND HEREBY DISCLAIMS ANY AND ALL LIABILITY WITH RESPECT THERETO. During installation Do not install the Optical Smart Hub on the unstable surface. SMARTLINK SE-208BW User manual file:///N|/TSST-Project/EN/index.html[2011-11-08 오후 2:30:46] Do not place the Optical Smart Hub in direct sunlight. Avoid very low or high temperatures. Avoid high humidity. During operation Handle the Optical Smart Hub carefully to prevent damage from an external shock. Do not drop the Optical Smart Hub. Protect the Optical Smart Hub from severe shocks. If you do not protect it, this can cause damage to the Optical Smart Hub Do not move the Optical Smart Hub while in operation. Do not attempt to open the disc tray by force. Make sure that you close all open applications before you open the tray. Always use the Eject button to open and close the tray. SE-208BW User manual file:///N|/TSST-Project/EN/index.html[2011-11-08 오후 2:30:46] Do not insert a pin into the emergency hole while the drive is in operation. Keep your hand away from the tray while the drive is in operation. This can result in damage to the product or human body. Do not use cracked, distorted or damaged discs. A disc with a crack can break while you use it, especially when the crack is near the center of the disc. Before you use the disc, always make sure that it does not have a crack. If the disc has a crack, we recommend to make a copy of the disc and then use the copy. When you continue to use a cracked disc, the size of the crack will increase. This will cause irreparable damage to the disc. Do not use low-quality discs (illegal, scratched, damaged, etc.). If you use such discs, Samsung is not responsible for the damage that this can cause. Do not put any heavy items on the Optical Smart Hub Be careful you do not hurt yourself with the sharp edge of the disc tray while you open or close it. Others Make sure that no foreign material enters the Optical Smart Hub casing. To protect against fire, do not use any flammable liquids such as alcohol or benzene on the Optical Smart Hub Do not disassemble, repair or modify the device without our approval. SE-208BW User manual file:///N|/TSST-Project/EN/index.html[2011-11-08 오후 2:30:46] To reduce the risk of damage, electric shock and fire. Cautions when storing and cleaning discs Important This part of the manual gives information to prevent damage or data loss. Read carefully and follow it correctly. Storing discs Do not place it in direct sunlight. Store discs so that they are lying face down on a flat surface. Do not scratch the disc or put a label on it. Handle the disc carefully to prevent damage from an external shock. Do not expose it to large temperature changes. (Exposure to such environment can cause congealing.) Cleaning discs Do not touch the surface of the disc. Put your fingers on the edge of the disc to hold it. Use a soft cotton cloth to clean the disc. Start from the center and move to the edge of the disc. Use only disc-cleaning liquids. Do not use benzene, paint thinner or other solvents. Note If the disc surface becomes dirty with fingerprints, foreign substances or dust, the disc will not function properly. SE-208BW User manual file:///N|/TSST-Project/EN/index.html[2011-11-08 오후 2:30:46] RoHS and WEEE RoHS Planet First logo This logo shows consumers that Samsung develops eco-friendly products and demonstrates Samsung’s continuous efforts to develop eco-friendly products. RoHS (Restriction of the use of certain hazardous substan…

Text truncated - open the document above for the full version.

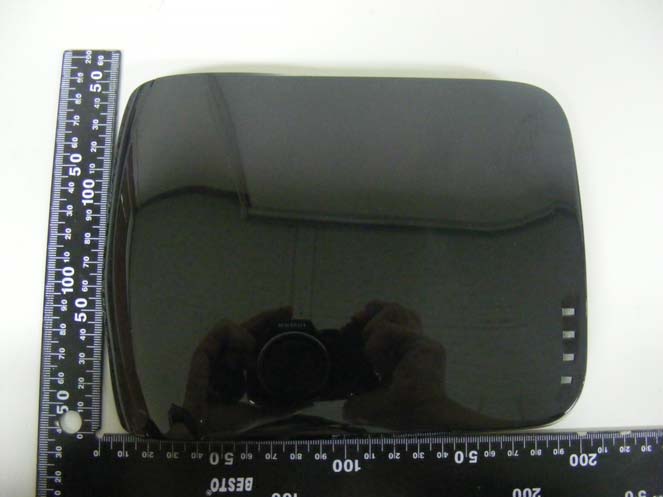

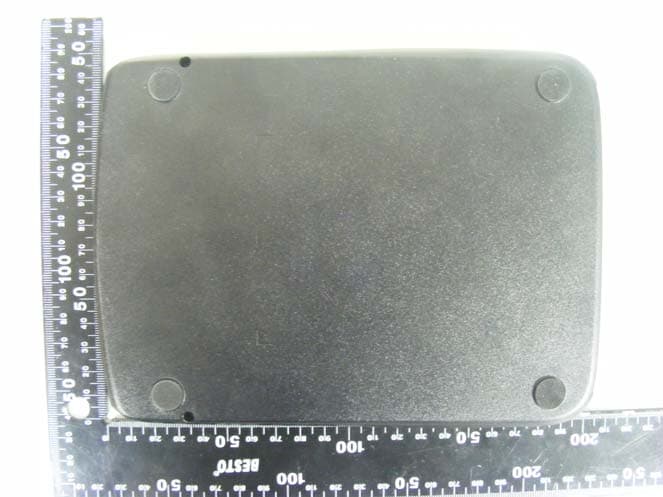

Model : SE-208BW External photos of EUT Model : SE-208BW Front view of EUT Rear view of EUT Model : SE-208BW Top view of EUT Bottom view of EUT Model : SE-208BW Side view of EUT

FCC/ IC Label 1. FCC/IC Label Drawing 2. FCC/IC Label Location TSSTIC: 10000A-SE208BWModel : SE-208BW CMIIT ID : XXXXXXXXXX ANATEL : XXXXXXXXXX 12222/SDPPL/2011/1682 CNC : C-9019 FCC ID : RWA-SE208BW COFETEL : RCPLELE07-848 Complies withIDA StandardsDB 123456 BG68-XXXXXA Rev.00

Model : SE-208BW Internal photos of EUT Model : SE-208BW Internal view of EUT Model : SE-208BW Top view of Main PCB Bottom view of Main PCB Model : SE-208BW Top view of RF module Bottom view of RF module Antenna Model : SE-208BW Top view of DVD Player Bottom view of DVD Player

Test Report No. : F690501/RF-EMG004182 Page : 2 of 25 Contents 1. General Information ................................................................................................... 3
1.1 Client Information ................................................................................................ 3
1.2 Test Laboratory ................................................................................................... 3
1.3 General Information of E.U.T. ............................................................................. 3
1.4 Operating Modes and Conditions ........................................................................ 3
1.5 Auxiliary Equipments .......................................................................................... 4
1.6 Cable List ............................................................................................................ 4
1.7 System Configurations ........................................................................................ 5
1.8 Test System Layout ............................................................................................ 5
1.9 Modifications ....................................................................................................... 5
1.10 Applicable Standards for Testing ...................................................................... 5
1.11 Summary of Test Results .................................................................................. 5
2. Emission Test ............................................................................................................ 6
2.1 Test Results ........................................................................................................ 6
2.2 Test Method and Limits ....................................................................................... 6
2.2.1 Test Method ............................................................................................... 6
2.2.2 Test Limits .................................................................................................. 6
2.3 Conducted Emission ........................................................................................... 7
2.3.1 Test Equipments ........................................................................................ 7
2.3.2 Test Site ..................................................................................................... 7
2.3.3 Environment Conditions ............................................................................. 8
2.4 Radiated Emission .............................................................................................. 9
2.4.1 Test Equipments ........................................................................................ 9
2.4.2 Test Site ..................................................................................................... 9
2.4.3 Environment Conditions ........................................................................... 10
2.5 Photographs of Conducted Emission ................................................................ 12
2.6 Photographs of Radiated Emission (3N method below 1ʁ) ............................ 13
2.7 Photographs of Radiated Emission (3 N method above 1ʁ) .......................... 14
3. Photographs of EUT ................................................................................................ 15
Appendix A : Conducted Emission .............................................................................. 23
Appendix B : Radiated Emission ................................................................................. 24
Test Report No. : F690501/RF-EMG004182 Page : 3 of 25 1. General Information 1.1 Client Information Applicant : Toshiba Samsung Storage Technology Korea Corporation. Address of Applicant : 14 th Floor, Bldg. No. 102, Digital Empire2, 486, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 443-734 Manufacturer : Toshiba Samsung Storage Technology Korea Corporation. Address of Manufacturer : 14 th Floor, Bldg. No. 102, Digital Empire2, 486, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 443-734 Factory : Sephil (Samsung Electronics Philippines Mfg Corp) Address of Factory : BLK 6 CPIP Barangay Batino/Prinza Calamba 4027 Languna Philippines 1.2 Test Laboratory Name and Address : SGS Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo, Gyeonggi-do, Korea 435-040 FCC Registration No. : 367021 IC Company No. : 4620F Phone : + 82 31 428 5700 Fax : + 82 31 427 2370 e-mail : [email protected] 1.3 General Information of E.U.T. Product Name Optical Smart Hub Model Name SE-208BW Serial No. - EMI Classification Class B Rated Voltage Input : (100 ~ 240) 7BD., (50 ~ 60) ɾ, 0.6 "
Output : 5.0
7ED., 4 " Test Voltage 120 7BD., 60 ɾ Highest Internal Frequency 2,472 ʀ 1.4 Operating Modes and Conditions Operating mode Operating condition USB Mode USB Data Communication Test Report No. : F690501/RF-EMG004182 Page : 4 of 25 1.5 Auxiliary Equipments
Description Model Serial No. Manufacturer USB Mouse 1344 9282303793242 Microsoft Local Area Network - - - USB Keyboard SKG-3300UBTAKB200205Z MONTEREY INTERNATION CORP. Notebook Computer LGX14 008QTEQ024836 LG LCD Monitor W2261VT 003NDWEKY873 LG Note: Auxiliary equipments are declared according to FCC procedure. 1.6 Cable List
Start END Cable Spec. Name I/O Port Name I/O Port Length Shield Optical Smart Hub PC/AV Notebook Computer USB 0.5 Shield DC IN AC Adapter- 1.5 Unshield AC Adapter AC IN AC Source - - - Notebook Computer USB USB Keyboard USB 1.1 Shield USB USB MouseUSB 1.8 Shield USB Optical Smart Hub PC AV 0.5 Shield RGB LCD Monitor RGB 1.8 Shield DC IN AC AdapterDC OUT 1.2 Unshield AC Adapter DC OUT Notebook Computer DC IN 1.2 Unshield AC IN AC Source - 1.0 Unshield LCD Monitor RGB Notebook Computer RGB 1.8 Shield AC IN AC Source - 1.5 Unshield Test Report No. : F690501/RF-EMG004182 Page : 5 of 25 1.7 System Configurations
1.8 Test System Layout 1.9 …

Text truncated - open the document above for the full version.

CE Front CE Rear RE Front RE Rear RE Front(GHz) RE Rear(GHz)
