Key#1, Key#2, Key#3,Key#4, Key#5, Key#6,Key#7, Key#8, Key#9,Key#10, Key#11, Key#12,Key Volume_Up,Key Volume_Down,Key Mute SPN860014TRANSMITTERI.C. CONTROL Y1, Q2OSCILLATING& MIX AMP. L4TUNNING ANTTx DC +6.0VPOWER SUPPLY MSP430F133MCU MICRF011RECEIVER I.C.CONTROL Q2, Q3AMP. F1SAWFILTER ANTRx DC +6.0VPOWER SUPPLY Tx BLOCK DIAGRAM Rx BLOCK DIAGRAM Phantomcalls II - Hunter, Pro Series Wired and Wireless DeviceTronicbros. & Eclat Createurs 2003-2004

FCC ID Location FCC ID Label Sample FCC ID: RWX04EDWC01PRO108 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

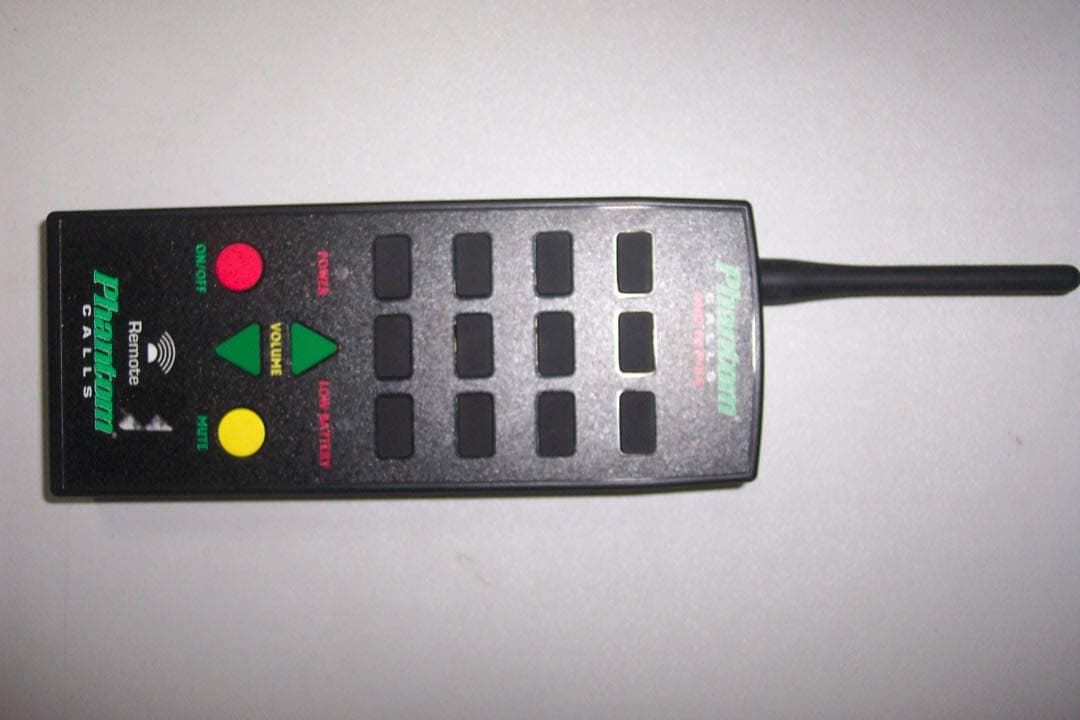

General Operating Description of Phantom Hunter-Series, Pro-Series Wired and Wireless Models The “Remote Unit” encodes the 16 dot-matrix key and transmits signal to “Main Unit”. After the receiver module and sound module, which were installed in “Main Unit”, receives transmitting frequency signal, it de-modulates and de-codes the signal. And then send them to MCU to perform same response sound effects (such as Predator, Whitetail, Turkey, Goose, Moose, Elk and Bear) and volume up & down or mute simple functions. The main unit also can work alone without receiver module just the sound module installed. The “Remote Unit” and “Main Unit” are connected with the frequency 418MHz. Both of them are normally function at DC 6V (“AA” battery / 4pcs. x 1.5V).
