RX771600R/C Flying Pteranodon

27MHz R/C Flying Pteranodon Tx Block Diagram ANT Battery Encode Amplifier




 U1 Q3 27.145MHz Oscillator Q1 & Y1 Voltage Control Q2, Z1

FCC Label Location Of RC Flying Pteranodon FCC ID: RX771600 Made in China This device complies with part 15 of the FCC Rules, Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

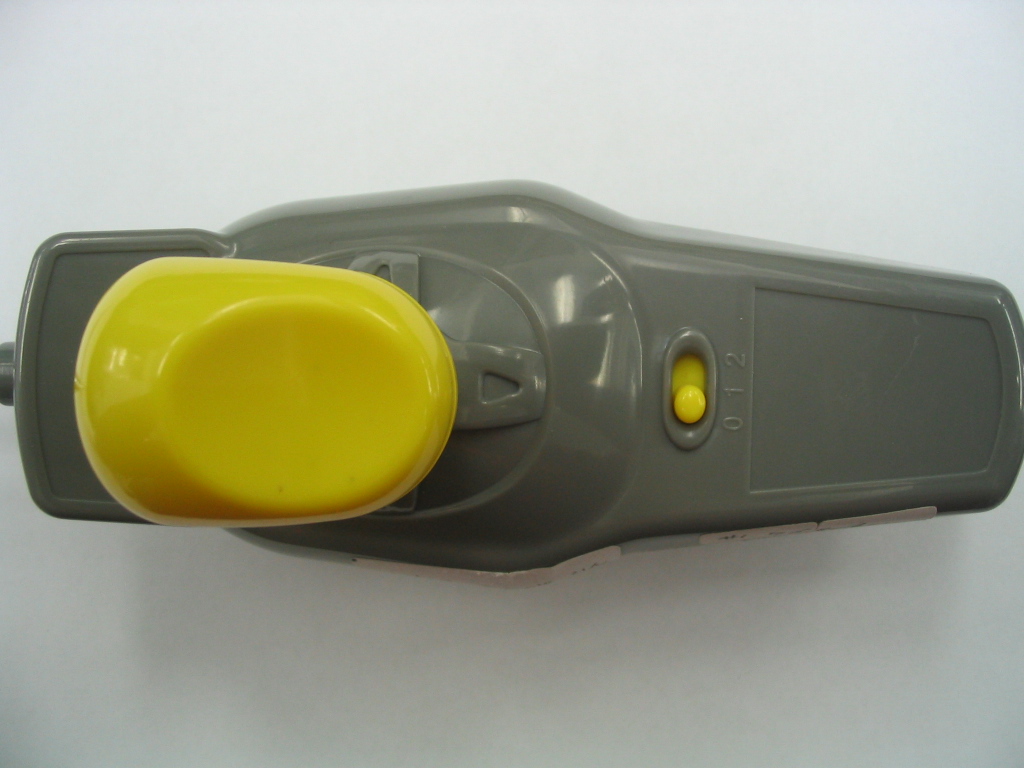

Operation Description R/C Flying Pteranodon The R/C Flying Pteranodon (27MHz) is powered by 9V battery. It has a joystick in the front of the transmitter. When pushed the joystick up or down, it will transmit a radio frequency for receiver going forward and backward. When pushed the joystick left or right, it will transmit a radio frequency for receiver turn left or right. Refer to the transmitter circuit design, the circuit description is listed as below:
 Y1, Q1 and associate circuit act as Oscillator
 Q3 and associate circuit act as amplifier.
U1 and associate circuit act as encoder.
 Q2, Z1 and associate circuit act as voltage control.

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE004869-1 Date : 2004 May 09 Client : Takara USA Corp 230 Fifth Ave, Suite 310, New York, 10001 United States. Sample Description : One(1) submitted sample stated to be R/C Flying Pteranodon of Model No. D668. Rating : 9 V battery No. of sample(s) : Three(3) pieces *** Date Received : 2004 March 31. Test Period : 2004 March 31 ñ 2004 April 23. 2004 April 29 ñ 2004 May 04 Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 ñ Dec 2003 ANSI C63.4 ñ 2001 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 11 Danny Chui EMC Engineer - EL. Division FCC ID : RX771600 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE004869-1 Date : 2004 May 09 Table of Contents 1 General Information........................................................................................................................ 3 1.1 General Description.................................................................................................................. 3 1.2 Related Submittal Grants.......................................................................................................... 3 1.3 Location of the test site............................................................................................................. 4 1.4 List of measuring equipment..................................................................................................... 5 2 Description of the radiated emission test.......................................................................................... 6 2.1 Test Procedure......................................................................................................................... 6 2.2 Test Result............................................................................................................................... 6 2.3 Radiated Emission Measurement Data....................................................................................... 7 3 Description of the Line-conducted Test............................................................................................ 8 3.1 Test Procedure......................................................................................................................... 8 3.2 Test Result............................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data...................................................... 8 4 Photograph..................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission.......................... 9 4.2 Photographs of the External and Internal Configurations of the EUT........................................... 9 5 Supplementary document............................................................................................................... 10 5.1 Bandwidth............................................................................................................................. 10 6 Appendices............................................................................................................................... 11 Page 2 of 11 FCC ID : RX771600 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE004869-1 Date : 2004 May 09 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for R/C Flying Pteranodon operating at 27.145 MHz which is controlled by a crystal. The EUT is powered by a 9 V battery. There is a joystick in the front of EUT. When the joystick push up or down, it will transmit a radio frequency for receiver going forward or backward. When the joystick push left or right, it will transmit a radio frequency for receiver turn left or right. The brief circuit description is listed as follows : - Y1, Q1 and associated circuit act as oscillator - Q3 and associated circuit act as amplifier - U1 and associated circuit act as encoder - Q2, Z1 and associated circuit act as voltage control 1.2 Related Submittal Grants This is a single application for certification of a transmitter. The receiver for this transmitter is exempted from the Part 15 technical rules per 15.101(b). Page 3 of 11 FCC ID : RX771600 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE004869-1 Date : 2004 May 09 1.3 Location of the test site Radiated emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 ñ 2001. An Op…

Text truncated - open the document above for the full version.

CMA Testing and Certification Laboratories P. of Report No.: AE004869-1 Bandwidth Plot Bandwidth 1

CMA Testing and Certification Laboratories P. of Report No.: AE004869-1 Duty Cycle 1 CMA Testing and Certification Laboratories P. of Report No.: AE004869-1 Duty Cycle 2 Duty Cycle 3
