RXLWKHM04R/C Helicopter

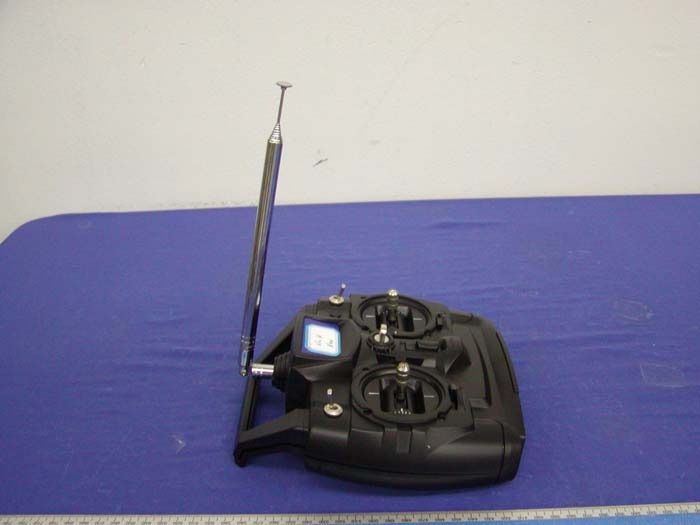

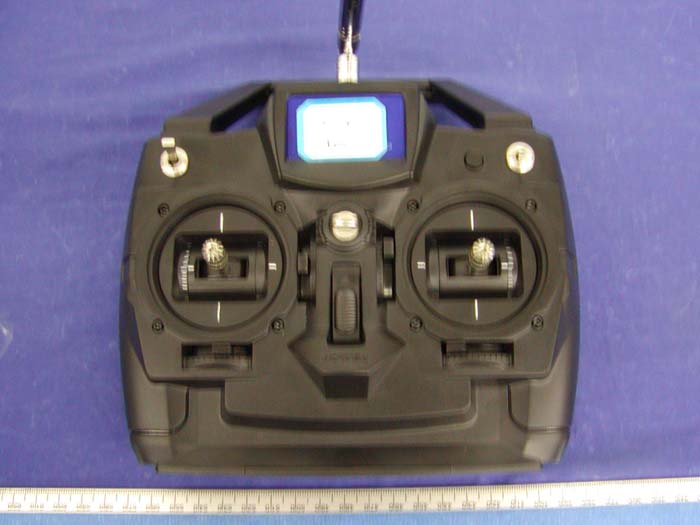

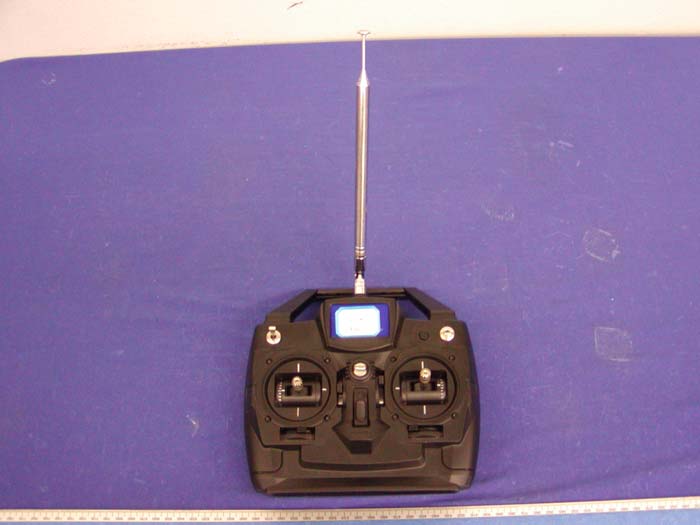

APPENDIX C - EUT EXTERNAL PHOTOGRAPHS Chassis - Front View Chassis – Rear View Chassis – Side View EUT and Antenna View

APPENDIX A - FCC ID LABELING AND LOCATION Proposed FCC ID Labeling Proposed FCC ID Location Back Side of EUT / Proposed Label Location Labeling Requirement Each equipment for which a type acceptance applications is filed on or after May 1, 1981, shall bear an identification plate or label pursuant to §2.295 (Identification of Equipment) and §2.926 (FCC identifier) In August 1996 the Federal Communications Commissions (FCC) adopted RF exposure guidelines with safety levels for hand-held wireless devices. Generally users manual contains a RF exposure statement to indicate compliance with FCC requirements. The users manual should also contain required information and instruction pursuant to 95.653. FCC ID: RXLWKHM04 FCC ID: RXLWKHM04

APPENDIX C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View Board 1 – Component View Board 1 – Solder View Board 2 – Component View Board 2 – Solder View

Power support: The transmitter is fed by 8 1.5AA battery. and the receiver use 750Mah/8.4V nidkel hydrogen battery. Antenna: The transmitter and receiver utilize different antenna. Dipole antenna for transmitter, wire line antenna for receiver. The pulse signal provided by IC(EM78P458) will modulate one carrier circuit which consists of one crystal oscillator, R25,audion (BD139) , choke and so on. on top of this, the carrier frequency(72MHz) will be transmitted in FM mode. RF(around 72MHz) signal will be received by the receiver of helicopter. And then those signal will be demodulated and transferred into digital signal which will be decoded by the above mentioned IC(EM78P458) .In result, it can control the driver machine connected. Thus ascending, descending, turn right, turn left, rotate etc, all kinds action can be done.

TUNE-UP PROCEDURE NO.4# 1. TRANSMITTING 1.1 Frequency Adjustment a) Connect the frequency counter to the L32 b) Replace the crystal Y2 for the operating frequency. c) Adjust T1 d) Specification : Tx Frequency +/-0.803% 1.2 TX POWER CHECK a) Connect the RF power meter to the L32. b) Switch on the transmitter. c) Check the TX power. d) Specification:24dbm+/-1dbm 1.3 MAX DEVIATION ADJUSTMENT a) Connect the deviation meter to the L32 b) Switch on the TX c) Adjust R17 d) Specification : 3KHz, Dev.+/-2KHz 2. RECEIVING 2.1 RX FREQUENCY CHECK a) Connect the RF Signal Generator to L3 b) Adjust B1 c) Check the level and make into maximum 2.2 Sensitivity Check a) Connect sinnader meter to the L32 b) Connect DC voltmeter to R17 c) Reduce the RF output level of signal generator below- -105dbm d) Adjust B1, make into DC level into maximum, and get 12 db of the sinnader.

Note: The test report is specially limited to the above company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 95 EMI MEASUREMENT AND TEST REPORT For GuangZhou Shi Walkera Technology Co., Ltd Walkera Technology Co., Ltd, Taishi Industrial Park, Yuwotou, Panyu, Guangzhou, China, 511475 FCC ID: RXLWKHM04 This Report Concerns: Original Report Equipment Type: Transmitter, R/C Test Engineer: Ming Jing / Report Number: R0406154 Report Date: 2004-06-24 Reviewed By: Ling Zhang / Prepared By: Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 GuangZhou Shi Walkera Technology Co., Ltd FCC ID: RXLWKHM04 Report # R0406154Rpt FCC Part 95 Test Report Page 2 of 17 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED GRANT/SUBMISSION.....................................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EUT EXERCISE SOFTWARE..........................................................................................................................................5 SPECIAL ACCESSORIES.................................................................................................................................................5 SCHEMATICS / BLOCK DIAGRAM.................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 CONFIGURATION OF TEST SYSTEM..............................................................................................................................5 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................6 REQUIREMENTS OF PROVISIONS ........................................................................................................................7 §2.1046, AND §95.639(B)(3) – RF OUTPUT POWER ...............................................................................................8 STANDARD APPLICABLE..............................................................................................................................................8 TEST PROCEDURE........................................................................................................................................................8 TEST EQUIPMENT.........................................................................................................................................................8 ENVIRONMENTAL CONDITIONS....................................................................................................................................8 TEST RESULTS.............................................................................................................................................................8 §2.1049, AND §95.633(B) - OCCUPIED BANDWIDTH OF EMISSION ................................................................9 STANDARD APPLICABLE..............................................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 TEST EQUIPMENT.........................................................................................................................................................9 ENVIRONMENTAL CONDITIONS....................................................................................................................................9 TEST RESULTS.............................................................................................................................................................9 §2.1053 AND §15.109(A) - RADIATED SPURIOUS EMISSION...........................................................................11 STANDARD APPLICABLE............................................................................................................................................11 TEST PROCEDURE......................................................................................................................................................11 TEST EQUIPMENT.......................................................................................................................................................11 ENVIRONMENTAL CONDITIONS..........................................…
