RYP06581CSuunto Bike Pod








      ! "#$%&$ '( "#)%
*+',,'* &&$)  -./0 1112/ 234


    5,2    ! 5,2"#$%&$ '( 5,2"#)% '*/(6++,/
*+ 5,2&&$) 0-.  1112/ 234       ,2    ! ,2"#$%&$ '( ,2"#)%
*+10/',,'* ,2&&$)  04 * 1112/ 234



    ,2    ! ,2"#$%&$ '(7 ,2"#)% '*(,,4(/+*
*+ ,2&&$) 001.(  1112/ 234
     ,2    ! ,2"#$%&$ '( ,2"#)% ',,'*
*+ ,2&&$) 0 *  1112/ 234
  ,    ! ,"#$%&$ '( ,"#)%
*+',,'* ,&&$)  -./0 1112/ 234          2    !  2"#$%&$ 8(  2"#)%
*+',,'*  2&&$)  9*::/09  1112/ 234
     ,2    ! ,2"#$%&$ 8( ,2"#)% ',,3*0
*+ ,2&&$)  /1..+,/ 1112/ 234 English .................. 4 Francaise .............. 8 Deutsch............... 13 Español............... 18 Italiano ................ 23 Nederlands ......... 28 Suomi.................. 33 Svenska .............. 37 Appendix............. 42 DE EN ES FI FR IT NL SV 4 1. INTRODUCTION Suunto Bike Pod is an accessory for your Suunto t6 wristop computer. It is a light-weight, wireless speed and distance sensor that combines new speed and distance functions with the detailed heart rate analysis and training benefits of your Suunto t6, creating one of the most advanced cycling-specific training tools available. Suunto Bike Pod measures your cycling speed and distance via a separate spoke magnet. Measurement is effortless and when properly calibrated, also very accurate. Suunto Bike Pod adds new features to your Suunto t6. When you have paired the Bike Pod with your Suunto t6, the wristop computer displays your current speed, the distance from start and the lap distance. Furthermore, it stores lap times automatically according to the distance set by the user, alarms for too fast or too slow speed, and offers a distance-based interval training function. NOTE: The Suunto t6 functions related to the use of your Suunto Bike Pod are explained in the Suunto t6 instruction manual. You can download the latest ver- sion of the manual in www.suunto.com. 2. BEFORE USE 2.1. PAIRING YOUR BIKE POD Before you can use your Suunto Bike Pod, you have to pair it with your Suunto t6. This process can be compared to the tuning of a normal radio. To be able to listen to a specific radio station, you have to tune the radio to the correct fre- quency. Similarly, to be able to use your Suunto t6 with a specific Bike Pod, you must pair them with each other. This is only necessary when you use your Bike Pod for the first time. To pair your Bike Pod with your Suunto t6: 1. Remove the Bike Pod battery. 2. Short-circuit the - and + metal plates in the battery compartment by connect- ing them with a metal instrument. 3. Select Pair in the Training menu of your Suunto t6. 4. Select Bike POD. The message ‘TURN ON NEW DEVICE’ is displayed. 5. Insert the battery in the battery compartment and wait for acknowledgement. Within 30 seconds, either ‘PAIRING COMPLETE’ or, if pairing failed, ‘NO DEVICES FOUND’ is displayed. 6. If pairing is successful, close the battery compartment cover. If pairing fails, remove the battery and repeat steps 2-5. 3. USING YOUR BIKE POD 3.1. ATTACHMENT Suunto Bike Pod is attached to the hub of the front wheel, and the spoke mag- net is attached to a spoke as close to the Bike Pod as possible. 1. Loosen the front wheel attachment mechanism. (You can attach the Bike Pod to forks that use both the quick-release mechanism and traditional axle bolts.) 2. Position your Bike Pod horizontally on the front axle between the fork and the hub in a way that the Bike Pod logo points towards the wheel. 3. Fasten the wheel attachment mechanism. 4. Attach the spoke magnet to a spoke of the front wheel at the same level as the sensor. The magnet must be facing the speed sensor, and pass it at a correct distance. A suitable distance is 4-6 mm (0.2"). 5 3.2. ACTIVATION AND DEACTIVATION Your Bike Pod is activated automatically when the spoke magnet passes the speed sensor i.e. when the front wheel spins. It stays active throughout the cycling trip and for half an hour after the sensor has stopped getting readings from the magnet. 3.3. CONNECTION To use your Bike Pod, you must establish a connection between it and your Suunto t6. This can be compared to listening to a radio. To be able to receive the radio broadcast signal, you need to switch the radio on. Similarly, for your Suunto t6 to be able to receive the signal from your Bike Pod, the devices must be connected. You need to establish the connection every time you want to use your Suunto t6 with your Bike Pod. 1. Spin the front wheel so that the spoke magnet passes the sensor. 2. Select Connect in the Speed/Distance menu of your Suunto t6. Suunto t6 informs you when the device has been found. If the connection fails, Suunto t6 displays the message ‘ NO DEVICES FOUND’. In this case, spin the front wheel again to ensure that the Bike Pod is active and try ag…

Text truncated - open the document above for the full version.

DATE Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf,I appointNemko Canada Inc. 303 River Road, Ottawa, Ontario, Canada K1V 1H2to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides withSuunto Oy, Valimotie 7, 01510 Vantaa, Finland. Dated this 08Day ofDecember2004 Agency agreement expiration date:12 Months By: Olli-Pekka Ojanen SignaturePrinted Title:Project manager On behalf of :Suunto Oy Telephone:+358 9 8758 7162

Suunto OyDec13, 2004 Valimotie 7 FIN-01510VANTAA FINLAND Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Re: Request for Confidentiality In reference to the application under FCC ID:RYP06581C, and pursuant to Sections 0.457(d)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of the accompanying information as outlined below: Schematics(06581_schematics.pdf) Block Diagram(blockdiagram.pdf) Operational description(06581_Operational_Description.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Olli-Pekka Ojanen Project Manager Suunto Oy Valimotie 7 FIN-01510 VANTAA FINLAND

Nicole (100658) Document number: 200001601, rev. A.1Bike POD Internal Photos OlOj 2004-12-031(2) 1 BIKE POD INTERNAL PHOTOS 1.1 Front 1.2 Back 1.3 Battery cover removed

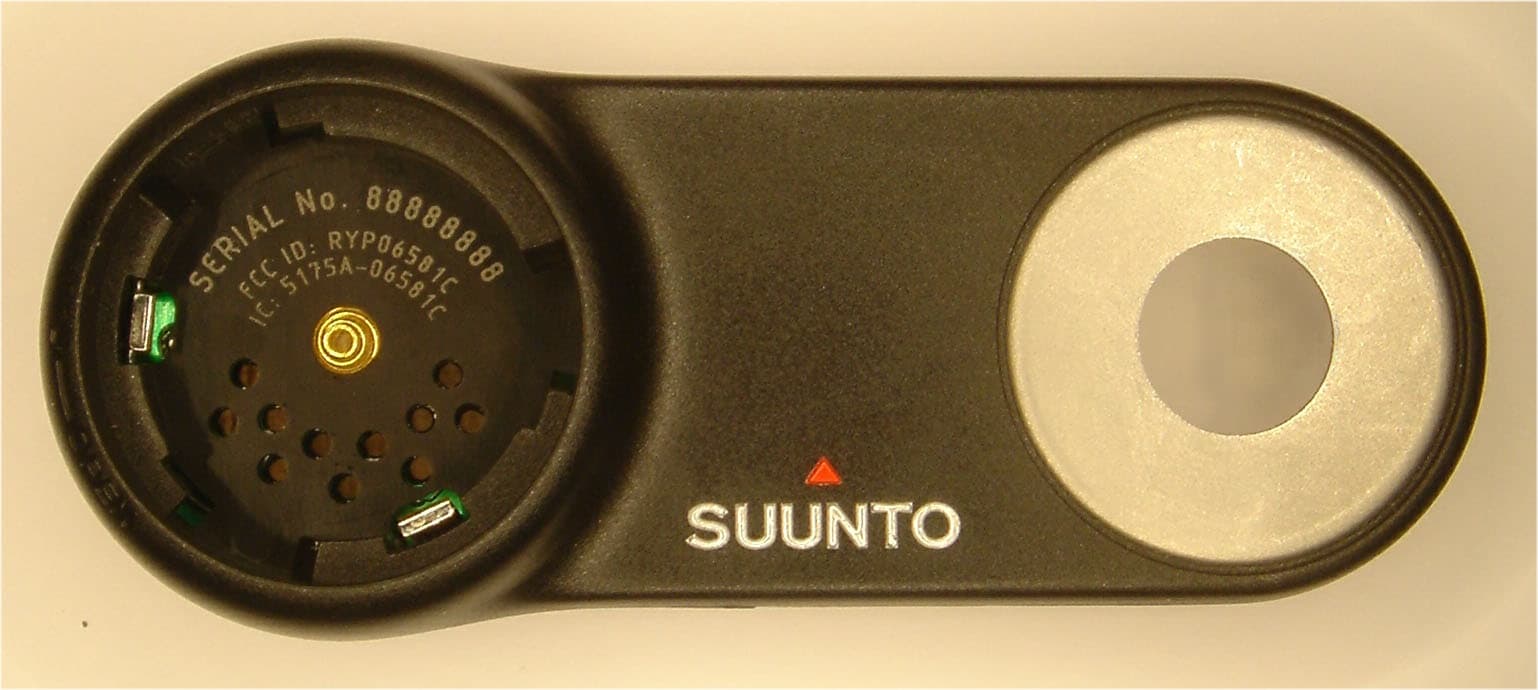

NICOLE(100658) Bike PODID Label RevisionA.1 Document n. 200001600 2004-12-03 Nicole(100658) Document number: 200001600, rev.A.1Bike PODID Label OlOj2004-12-031(1) 1BIKE PODID LABEL 1.1ID Label Marking ID label is laser markedinside of the battery compartmentof the Bike POD. Battery compartmentis plasticwith laser sensitive pigment in it. Marking is permanent and it does not wear off.Battery door can be opened with coin. 1.2Photo ofBike POD from battery compartment side 1.3Photo ofID Label

Nicole (100658) Document number: 200001601, rev. A.1Bike POD Internal Photos OlOj 2004-12-032(2) 1.4 Case opened 1.5 PCB from both sides

Nemko Oy • P.O.Box 19, FIN-02601 Espoo, Finland Street address: Perkkaantie 11, FIN-02600 Espoo Telephone +358 424 5454 1 • Telefax +358 9 5489 6371 Version R3.03 09092003 TEST REPORT TEST REPORT Date: ESPOO 15.12.2004 Page: 1 (14) Appendices 1 Date of handing in: 01.10.2004 Number: 1032471B No. 1 / 1 Tested by: Risto Hietanen, Test Engineer Reviewed by: Aarni Roth, Application Manager SORT OF EQUIPMENT: The transmitter of the velocity/distance meter system for the bike. MARKETING NAME: SUUNTO TYPE: Suunto Bike Pod MANUFACTURER: SUUNTO OY CLIENT: Suunto Oy ADDRESS: Valimotie 7, FIN-01510 Vantaa, Finland TELEPHONE: +358 9 875 870 / Olli-Pekka Ojanen TEST LABORATORY: Nemko Oy FCC REG. NO. 91087 August 27, 2001 IC FILE NO. IC 4627 July 2, 2003 SUMMARY: In regard to the performed tests the equipment under test fulfils the requirements defined in the test specifications, see page 2 for details. This test report includes the appendix: ”Occupied bandwidth (99% BW) measurement”. This Test report replaces Test report 1032471 dated on 28.10.2004. The test results are valid for the tested unit only. Without a written permission of Nemko Oy it is allowed to copy this report as a whole, but not partially. Type: Suunto Bike Pod Test report: 1032471B Page 2 (14) Date 15.12.2004 Summary of performed tests and test results Section in CFR 47 Section in RSS-210 Result 15.249 (a) 6.2.2 (m2) Field Strength of Fundamental PASS 15.209 (a) 6.2.2 (m2) Field Strength of Spurious Emissions PASS Explanations: PASS The EUT passed that particular test. FAIL The EUT failed that particular test. Type: Suunto Bike Pod Test report: 1032471B Page 3 (14) Date 15.12.2004 Contents Summary of performed tests and test results.......................................................................................... 2 1. EUT and Accessory Information ........................................................................................................ 4 1.1 EUT description........................................................................................................................ 4 1.2 EUT and accessories ............................................................................................................... 4 2. Standards and measurement methods ..............................................................................................5 3. Test results ......................................................................................................................................... 5 3.1 Field Strength of Fundamental................................................................................................. 5 3.1.1 Test method and limit............................................................................................................... 5 3.1.2 EUT operation mode ................................................................................................................ 5 3.1.3 Test data .................................................................................................................................. 6 3.1.4 EUT test setup ......................................................................................................................... 6 3.1.5 Result ....................................................................................................................................... 7 3.2 Field Strength of Spurious Emissions ...................................................................................... 8 3.2.1 Test method and limit............................................................................................................... 8 3.2.2 EUT operation mode ................................................................................................................ 9 3.2.3 Test data .................................................................................................................................. 9 3.2.4 EUT test setup ....................................................................................................................... 10 3.2.5 Spurious emissions results .................................................................................................... 10 4. List of test equipment ....................................................................................................................... 14 Type: Suunto Bike Pod Test report: 1032471B Page 4 (14) Date 15.12.2004 1. EUT and Accessory Information 1.1 EUT description EUT is the receiver of the heart rate monitoring system including also the transmitter. The highest internal frequency of the EUT was 2465 MHz. The lowest internal frequency generated was 32768 Hz. For the facilitation of the spurious emissions tests (for finding of maximum value) the customer delivered also the sample, which transmitted continuously, because duty cycle of the production model is only 0.001 (200 μs transmission every 200 ms). Therefore measuring results are peak values. Average level ≤ Peak level – 20 log (duty cycle). (Duty cycle = (200 ms + 200 μs) / 200 μs = 60 dB). Average level ≤ Peak level – 60 dB. 1.2 EUT and accessories unit type S/N EUT The transmitter of the velocity/distance meter system for the bike. Suunto Bike Pod - Power Supply of EUT Li-Mn Battery 3 V Varta CR 2032 - Type: Suunto Bike Pod Test report: 1032471B Page 5 (14) Date 15.12.2004 2. Standards and measurement methods The test were performed in guidance of the CFR 47 Part 15, Subpart B, Class B, RS-210, ANSI C63.4 (2001) and EN 55022. 3. Test results 3.1 Field Strength of Fundamental The test was performed as a compliance test. The test parameters concerned were as follows: Site name Nemko Oy / Perkkaa Date of testing 15.10.2004 Test equipment 350, 42, 525, 543, 184, 403 Test conditions 22.7 °C, 28.1 % RH Test result PASS 3.1.1 Test method and limit Vertical and horizontal polarizations in the frequency 2465 MHz was measured by using the peak detector. During the measurement the turntable was rot…

Text truncated - open the document above for the full version.

Type: Suunto Bike Pod Test report: 1032471B Page 7 (14) Date 15.12.2004 Photograph 2. Radiated emissions test setup 3.1.5 Result Frequency Level (PK) Horizontal/ Level (PK) Vertical Limit Remarks MHz mV/m mV/m mV/m 2465.0 6.7 2.5 50.00
