RYV-500Helios Charging Disc

CHARGING DISC MANUAL Modefl Number: LVWLC104111 The Helios™ Charging Disc was developed by Leggett & Platt ® , Incorporated. The Charging Disc uses inductive coupling to charge your Qi-certified device without the hassle of cords. Charging made simple, convenient, and effortless. © 2012 Leggett & Platt, Incorporated | 11624_200_3-12 Power For A Wireless World Power For A Wireless World SAFETY INFORMATION AND WARNINGS DANGER To reduce the risk of electrical shock, burns, fire, injury, death, or property damage: • Always unplug the appliance from the electrical outlet before removing • Do not reach for an appliance that has fallen into water; unplug it immediately • Do not disassemble or modify any part of this appliance • This product should not be used by children or persons with disabilities that may hinder their ability to understand all product information and use the product safely. Close supervision is necessary when this product is used near children or persons with disabilities • Use this product only for its intended use, as described in this manual • Never operate this product if it has a damaged housing, cord, plug cable, or if wet • Do not handle or operate this product with wet hands or where it may be in contact with wet clothing or other conditions that may damage the appliance or conduct electricity • Keep cord and product away from heated surfaces and liquids • Do not operate where aerosol products are being used or oxygen is being administered • This product is designed for indoor use only. Do not install or use this product outdoors • Do not use this appliance with an overloaded electrical outlet • Do not place or leave metallic objects between the char ging surface and device being charged • It is recommended that the Helios Charging Disc be placed to provide 10 cm of separation from persons • Do not use with a power supply cord other than the power supply cord shown in these instructions and originally supplied with the Helios Charging Disc IMPORTANT SAFETY INSTRUCTIONS 1. SAVE THESE INSTRUCTIONS – This manual contains important safety and operating instructions for finductfive charger Modefls: LVWLC104111 2. Before using the inductive charger, read all instructions and cautionary markings on the inductive charger, power supply, and product using the inductive charger 3. CAUTION – To reduce risk of injury, charge only Qi-certified products. Other types of inductive charging devices may cause personal injury and damage SAFETY INFORMATION AND WARNINGS (Continued) Safety is dependent on the proper installation and servicing of this charger. It is important to read and follow all instructions before using this product. You should not open the charger housings or make modifications to the Helios Charging Disc or components unless expressly approved in writing by an authorized representative of Leggett & Platt, Incorporated. Any changes or modifications will void the product warranty and may create an unsafe condition. During Setup • DO NOT connect this charger to an electrical outlet until ALL other electrical connections are made safely • DO NOT install equipment or route wiring cords in the path of any walkways or moving components After Setup • Test the Helios Charging Disc to ensure that it is working properly (See LED Indicator Lighting) • File these instructions in a safe place and refer to them as needed WARNING: Failure to follow all safety precautions and instructions may result in death, serious injury, or property damage. OPERATING INSTRUCTIONS Getting Started Before discarding any packaging materials, check the Helios Charging Disc shipping carton and verify the following items are included: (1) Helios Charging Disc LVWLC104111 Setup 1. Remove the Charging Disc and DC power supply from its packaging. Place the Helios Charging Disc on a flat surface. 2. Connect the supplied DC power supply into the Charging Disc, as seen in Figure 1. 3. Place the properly assembled Charging Disc into the desired location and prepare to plug the DC power supply into a nearby wall outlet. 4. Carefully insert the DC power supply into the wall outlet, as shown in Figure 2. 5. Place your Qi-compliant device (not supplied) on the center of the Char ging Disc, as shown in Figure 3. 6. If you are using a Qi-compliant after-market sleeve (not supplied), please see the operations manual provided by the manufacturer for installation. After you have properly installed your Qi-compliant sleeve, place the device on the center of the Charging Disc, as shown in Figure 4. 7. The LED indicator light on the Charging Disc will illuminate, indicating your device is charging, as shown in Figure 5. Trouble Shooting Phone Not Charging • Check for proper installation of the Qi sleeve per the manufacturer’s instructions • Confirm connection between power supply and the Charging Disc • Confirm connection at the wall outlet • Ensure that the phone is positioned properly on the Charging Disc • Verify that the phone is Qi-compatible • Confirm that the phone sleeve is Qi-compatible OPERATING INSTRUCTIONS (Continued) FCC STATEMENT Figure 1 Figure 2 Figure 3 LED INDICATOR LIGHT The Helios Charging Disc is equipped with a tri-color LED indicator light. The LED has four states: Green, Amber/Yellow, Red, and Off. Each state communicates the following: LED is Off = Helios Charging Disc is not charging • No secondary device is present • Secondary device is incompatible with the Helios Char ging Disc • Secondary device is not properly aligned • Power supply is not properly attached to the Helios Charging Disc • Power supply is not plugged into electrical outlet LED is Green = Helios Charging Disc is not charging and the secondary device is fully charged • Secondary device battery is fully charged • Secondary device coils are aligned and not charging LED is Amber/Yellow = Helios Charging Disc is charging • Secondary device battery is receiving a charge • Secondary device coils are aligned LED is Red = Error in chargin…

Text truncated - open the document above for the full version.

Guangdong Zhaoqing L&V Co., Ltd. January 30, 2013 To: SIEMIC, INC. 775 Montague Expressway Milpitas , CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We , Guangdong Zhaoqing L&V Co., Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Description: Helios Charging Disc Model name: LVWLC104111 FCC ID: RYV-500 We affirm that between SIEMIC and Guangdong Zhaoqing L&V Co., Ltd. , any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature: Client’s name / title: Kun Li / Oversea Sales Contact information / address: 21 Yingbing Road, Zhaoqing Hi-Tech, Guangdong, China

SCS-F19: Confidentiality Request Letter Page 1 of 1 Rev 2.0 Guangdong Zhaoqing L&V Co., Ltd. January 30, 2013 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: RYV-500 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic - Coil information document & KDB 493038 conversation History record Th e above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Client’s signature: Client’s name / title: Kun Li / Oversea Sales Contact information / address: 21 Yingbing Road, Zhaoqing Hi-Tech, Guangdong, China

FCC Certification label Sample FCC ID: RYV-500 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC Certification Label Location Sample Label location

Antenna

Page 1 of 9 FCC ID: RYV-500 ACCURATE TECHNOLOGY CO. LTD REPORT NO. ATE20130239 TEST REPORT for Guangdong Zhaoqing L&V Co., Ltd. Helios Charging Disc Model No.: LVWLC104111 Prepared for : Guangdong Zhaoqing L&V Co., Ltd. Address : 21 Yingbing Road, Zhaoqing Hi-Tech, Guangdong, China Prepared by : Accurate Technology Co., Ltd. Address : F1, Bldg. A&D, Changyuan New Material Port, Keyuan Rd., Science & Industry Park, Nanshan, Shenzhen 518057, P.R. China Tel: +86-755-26503290 Fax: +86-755-26503396 Report Number : ATE20130239 Date of Test : January 22-31, 2013 Date of Report : January 31, 2013 Page 2 of 9 FCC ID: RYV-500 ACCURATE TECHNOLOGY CO. LTD REPORT NO. ATE20130239 TABLE OF CONTENT Description Page TEST REPORT VERIFICATION 1. GENERAL INFORMATION .................................................................................................... 4 1.1. Description of Device (EUT) .............................................................................................................4 1.2. Special Accessory and Auxiliary Equipment .....................................................................................4 1.3. Description of Test Facility ................................................................................................................5 2. LIST OF TEST AND MEASUREMENT INSTRUMENTS ................................................... 6 3. TEST RESULT ........................................................................................................................... 7 3.1. Test Setup ...........................................................................................................................................7 3.2. Environmental evaluation and exposure limit according to FCC CFR 47 part1, 1.1307(c) and (d), 1.1310 8 3.3. E and H field strength.........................................................................................................................9 Page 3 of 9 FCC ID: RYV-500 ACCURATE TECHNOLOGY CO. LTD REPORT NO. ATE20130239 Test Report Certification Applicant : Guangdong Zhaoqing L&V Co., Ltd. Manufacturer : Guangdong Zhaoqing L&V Co., Ltd. Product : Helios Charging Disc Model No. : LVWLC104111 EUT Description : DC 19V/0.5A (Power by adapter) Measurement Procedure Used: FCC CFR 47 part1, 1.1307(c) and (d), 1.1310 The device described above is tested by Accurate Technology Co., Ltd. The measurement results are contained in this test report and Accurate Technology Co., Ltd. is assumed full of responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT (Equipment Under Test) is technically compliant with the FCC CFR 47 part1, 1.1307(c) and (d), 1.1310 requirements. This report applies to above tested sample only and shall not be reproduced in part without written approval of Accurate Technology Co., Ltd. Date of Test : January 22-31, 2013 Prepared by : (Engineer) Approved & Authorized Signer : (Manager) Page 4 of 9 FCC ID: RYV-500 ACCURATE TECHNOLOGY CO. LTD REPORT NO. ATE20130239 1. GENERAL INFORMATION 1.1. Description of Device (EUT) EUT : Helios Charging Disc Model Number : LVWLC104111 Power Supply : DC 19V/0.50A (Power by adapter) Adapter : M/N: E305917 Input: AC 100-240V; 50/60Hz 350mA Output: DC 19V/500mA Output line: Non-shielded, Non-detachable, 1.55m with a ferrite core Coil Information : Please see the annex document Operation Frequency : 137.2-158.0KHz Applicant : Guangdong Zhaoqing L&V Co., Ltd. Address : 21 Yingbing Road, Zhaoqing Hi-Tech, Guangdong, China Manufacturer : Guangdong Zhaoqing L&V Co., Ltd. Address : 21 Yingbing Road, Zhaoqing Hi-Tech, Guangdong, China Date of sample received : January 22, 2013 Date of Test : January 22-31, 2013 1.2. Special Accessory and Auxiliary Equipment iPhone 4S : Manufacturer: Apple Model: MD235ZP/A Serial No.: C8PJR7XCDTC0 Page 5 of 9 FCC ID: RYV-500 ACCURATE TECHNOLOGY CO. LTD REPORT NO. ATE20130239 1.3. Description of Test Facility EMC Lab : Accredited by TUV Rheinland Shenzhen Listed by FCC The Registration Number is 752051 Listed by Industry Canada The Registration Number is 5077A-2 Accredited by China National Accreditation Committee for Laboratories The Certificate Registration Number is L3193 Name of Firm : ACCURATE TECHNOLOGY CO. LTD Site Location : F1, Bldg. A, Changyuan New Material Port, Keyuan Rd. Science & Industry Park, Nanshan, Shenzhen, Guangdong P.R. China Page 6 of 9 FCC ID: RYV-500 ACCURATE TECHNOLOGY CO. LTD REPORT NO. ATE20130239 2. LIST OF TEST AND MEASUREMENT INSTRUMENTS Item Equipment Manufacturer Model Serial no. Calibrated date Calibrated until 1. Magnetic field probe 100cm 2 NARDA 2300/90.10 B-0137 Jan. 12, 2013 Jan. 11, 2014 2. Exposure level tester NARDA 2304/03 B-0138 Jan. 12, 2013 Jan. 11, 2014 3. Isotropic Electric Field Probe ETS Lindgren HI-6005 0008696 8 Jan. 12, 2013 Jan. 11, 2014 Page 7 of 9 FCC ID: RYV-500 ACCURATE TECHNOLOGY CO. LTD REPORT NO. ATE20130239 3. TEST RESULT 3.1. Test Setup Note: -The RF exposure test is performed in the shield room. -The test distance is between the edge of the charge and the geometric center of probe. -The iPhone 4S with specific receiver being charged by the transmitter during the field measurements. Page 8 of 9 FCC ID: RYV-500 ACCURATE TECHNOLOGY CO. LTD REPORT NO. ATE20130239 3.2. Environmental evaluation and exposure limit according to FCC CFR 47 part1, 1.1307(c) and (d), 1.1310 According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the Environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(c) and (d) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength(V/m) Magnetic Field Strength (A/m) Power Density (Mw/cm) Average Time (minutes) (A) Limits for Occupational/Control Exposures 0.3-3.0 614 1.63 *(100) 6 (B)Limits for general Population/ Uncontrol Exposures 0.3-1.34 614 1.63 *(100) 30 *=Plane wave equivalent power density Page 9 of 9 FCC ID: RYV-5…

Text truncated - open the document above for the full version.

Page 1 of 35 FCC ID: RYV-500 ACCURATE TECHNOLOGY CO. LTD REPORT NO. ATE20130119 FCC CERTIFICATION On Behalf of Guangdong Zhaoqing L&V Co., Ltd. Helios Charging Disc Model No.: LVWLC104111 FCC ID: RYV-500 Prepared for : Guangdong Zhaoqing L&V Co., Ltd. Address : 21 Yingbing Road, Zhaoqing Hi-Tech, Guangdong, China Prepared by : ACCURATE TECHNOLOGY CO. LTD Address : F1, Bldg. A, Changyuan New Material Port, Keyuan Rd. Science & Industry Park, Nanshan, Shenzhen, Guangdong P.R. China Tel: (0755) 26503290 Fax: (0755) 26503396 Report Number : ATE20130119 Date of Test : January 22-31, 2013 Date of Report : February 2, 2013 Page 2 of 35 FCC ID: RYV-500 ACCURATE TECHNOLOGY CO. LTD REPORT NO. ATE20130119 TABLE OF CONTENTS Description Page Test Report Certification 1. GENERAL INFORMATION .......................................................................................................... 4 1.1. Description of Device (EUT)....................................................................................................................4 1.2. Special Accessory and Auxiliary Equipment ...........................................................................................4 1.3. Description of Test Facility ......................................................................................................................5 1.4. Measurement Uncertainty.........................................................................................................................5 2. MEASURING DEVICE AND TEST EQUIPMENT ..................................................................... 6 3. SUMMARY OF TEST RESULTS................................................................................................... 7 4. RADIATED EMISSION FOR FCC PART 15 SECTION 15.209 ................................................ 8 4.1. Block Diagram of Test Setup....................................................................................................................8 4.2. The Field Strength of Radiation Emission Measurement Limits..............................................................9 4.3. Configuration of EUT on Measurement ...................................................................................................9 4.4. Operating Condition of EUT ....................................................................................................................9 4.5. Test Procedure ........................................................................................................................................10 4.6. The Field Strength of Radiation Emission Measurement Results ..........................................................11 5. AC POWER LINE CONDUCTED EMISSION FOR FCC PART 15 SECTION 15.207(A) .. 30 5.1. Block Diagram of Test Setup..................................................................................................................30 5.2. The Emission Limit ................................................................................................................................30 5.3. Configuration of EUT on Measurement .................................................................................................31 5.4. Operating Condition of EUT ..................................................................................................................31 5.5. Test Procedure ........................................................................................................................................31 5.6. Power Line Conducted Emission Measurement Results ........................................................................32 6. ANTENNA REQUIREMENT........................................................................................................ 35 6.1. The Requirement ....................................................................................................................................35 6.2. Antenna Construction .............................................................................................................................35 Page 3 of 35 FCC ID: RYV-500 ACCURATE TECHNOLOGY CO. LTD REPORT NO. ATE20130119 Test Report Certification Applicant : Guangdong Zhaoqing L&V Co., Ltd. Manufacturer : Guangdong Zhaoqing L&V Co., Ltd. EUT Description : Helios Charging Disc (A) MODEL NO.: LVWLC104111 (B) SERIAL NO.: N/A (C) POWER SUPPLY: DC 19V/0.5A (Power by adapter) Measurement Procedure Used: FCC Rules and Regulations Part 15 Subpart C Section 15.209 ANSI C63.4: 2009 The device described above is tested by ACCURATE TECHNOLOGY CO. LTD to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 15 Subpart C Section 15.209 limits. The measurement results are contained in this test report and ACCURATE TECHNOLOGY CO. LTD is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the Equipment Under Test (EUT) is to be technically compliant with the FCC requirements. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of ACCURATE TECHNOLOGY CO. LTD. Date of Test : January 22-31, 2013 Prepared by : (Engineer) Approved & Authorized Signer : (Manager) Page 4 of 35 FCC ID: RYV-500 ACCURATE TECHNOLOGY CO. LTD REPORT NO. ATE20130119 1. GENERAL INFORMATION 1.1. Description of Device (EUT) EUT : Helios Charging Disc Model Number : LVWLC104111 Power Supply : DC 19V/0.50A (Power by adapter) Adapter : M/N: E305917 Input: AC 100-240V; 50/60Hz 350mA Output: DC 19V/500mA Output line: Non-shielded, Non-detachable, 1.55m with a ferrite core Operation Frequency : 137.2-158.0KHz Applicant : Guangdong Zhaoqing L&V Co., Ltd. Address : 21 Yingbing Road, Zhaoqing Hi-Tech, Guangdong, China Manufacturer : Guangdong Zhaoqing L&V Co., Ltd. Address : 21 Yingbing Road, Zhaoqing Hi-Tech, Guangdong, China Date of sample received : January 22, 2013 Date of Test :…

Text truncated - open the document above for the full version.

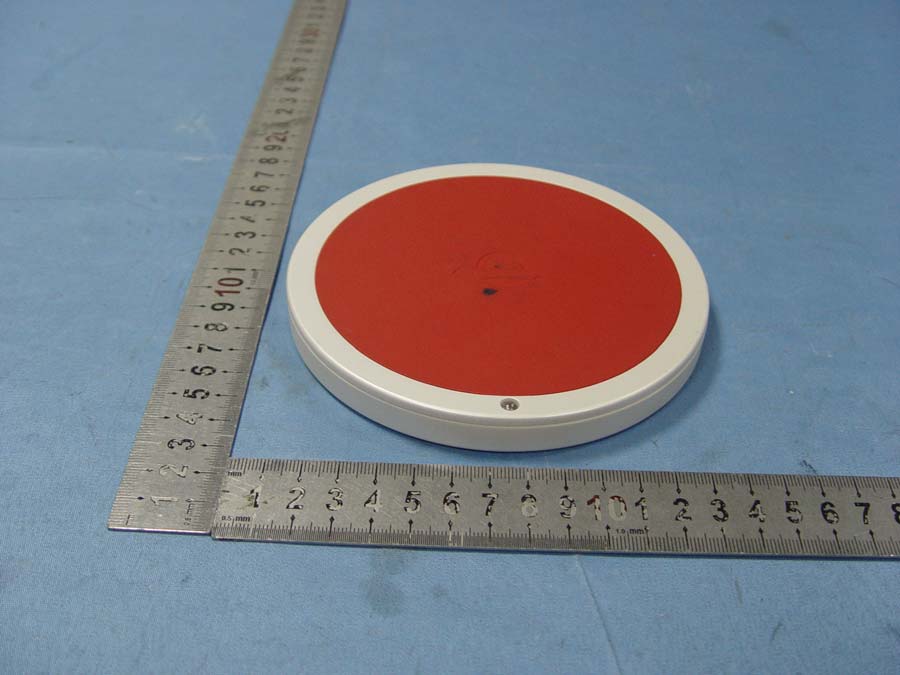

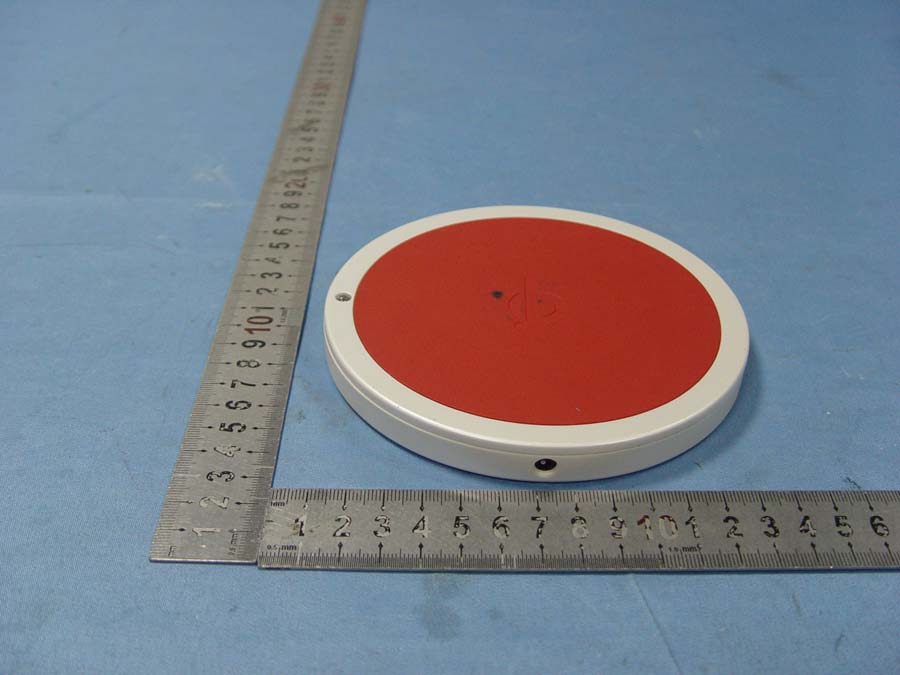

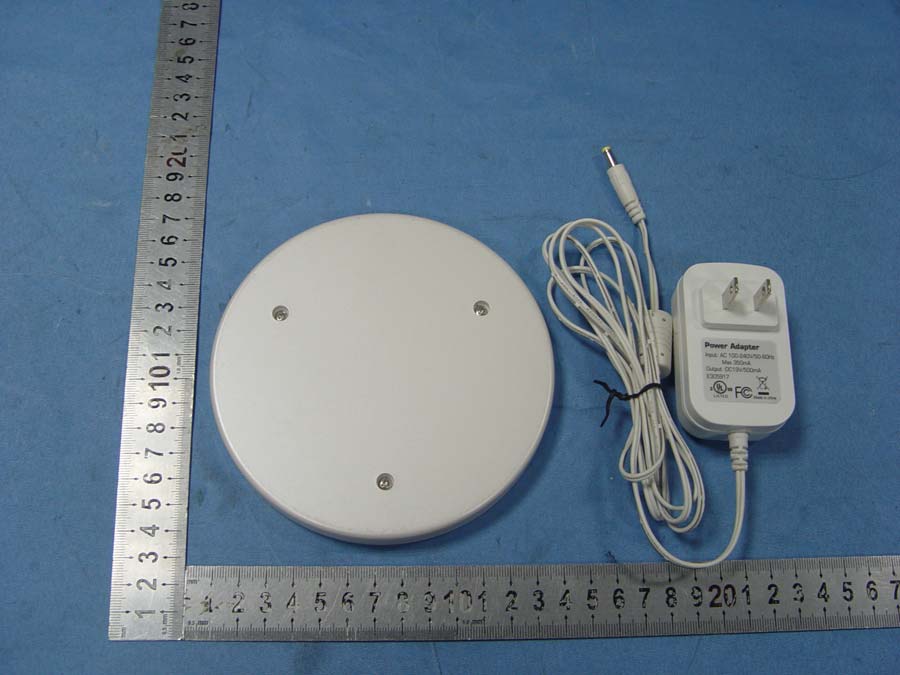

Test Photo

Conducted emissions test Radiated emissions test < 30MHz Radiated emissions test 30MHz- 1GHz
