RZH740010402T4Remote Control Toy Transmitter

APPENDIX D USER MANUAL INSERTS FOR PART 15 The users manual or instruction manual shall include the following statement: Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. In addition, for a Class B digital device or peripheral or cordless phone, the user manual shall include the following or similar statement, placed in a prominent location in the text of the manual: NOTE: This equipment has been tested and found to comply with the limits for a Class B Digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by one or more of the following measures: ® Reorient or relocate the receiving antenna. ® Increase the separation between the equipment and receiver. ® Connect the equipment into an outlet on a circuit different form that to which the receiver is needed. ® Consult the dealer or an experienced radio/TV technician for help. If shielded cables or special accessories are required for compliance, a statement must be include which instructs the user to employ them, for example: Shielded cables must be used with this unit to ensure compliance with the Class B FCC limits. FCC ID: RZH740010402T2 MADE IN CHINA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: RZH740010402T4 MADE IN CHINA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Product Name: 1/18 R/C bike Model Number: Item#74001

Function Switch EncoderMixer X'Tal OSC TX 49MHz Transmitter Block Diagram Model:ITEM#74001 49MHz RF ANT

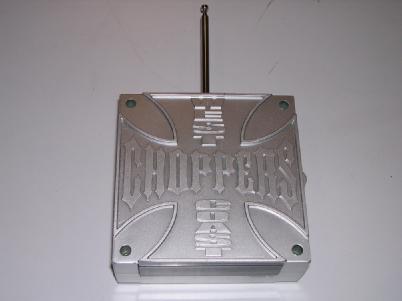

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

FCCID: RZH740010402T4 MADE IN CHINA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired Operation.

FCC ID:RZH74001XXXXXX POSITION OF FCC ID LABEL FOR 49MHZ FCC ID:RZH740010402T4

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

FCC ID: RZH740010402T4 Circuit Description The 49.86MHz crystal oscillator drives the base of Q1 the final/buffer amplifier. The modulation provided by IC. The output of Q1 has the matching network consisting of L4 and C4 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 34.6cm long metal antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 6 Volt (“AA” size battery x 4) primary battery

Date: 2004-06-08 TEST REPORT Page 1 of 18 No.: HM151010 This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre. Applicant: Funline Merchandise Co., Inc. Description of Samples: Model name: 1/18 R/C bike Model no.: Item#74001 Brand name: R/C Muscle Machines FCC ID: RZH740010402T4 Date Samples Received: 2004-05-07 Date Tested: 2004-06-05 Investigation Requested: FCC Part 15 Subpart C Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- K C Lee, EMC for Chief Executive Date: 2004-06-08 TEST REPORT Page 2 of 18 No.: HM151010 CONTENT: Cover Page 1 of 18 Content Page 2-3 of 18 1.0 General Details 1.1 Test Laboratory Page 4 of 18 1.2 Applicant Details Page 4 of 18 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 18 Description of EUT operation 1.4 Date of Order Page 5 of 18 1.5 Submitted Samples Page 5 of 18 1.6 Test Duration Page 5 of 18 1.7 Country of Origin Page 5 of 18 1.8 Additional Information of EUT Page 6 of 18 2.0 Technical Details 2.1 Investigations Requested Page 7 of 18 2.2 Test Standards and Results Summary Page 7 of 18 3.0 Test Results 3.1 Emission Page 8-11 of 18 3.2 Bandwidth Measurement Page 12-13 of 18 Date: 2004-06-08 TEST REPORT Page 3 of 18 No.: HM151010 Appendix A List of Measurement Equipment Page 14 of 18 Appendix B Duty Cycle Correction During 100 msec Page 15-16 of 18 Appendix C Photographs Page 17-18 of 18 Date: 2004-06-08 TEST REPORT Page 4 of 18 No.: HM151010 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong 1.2 Applicant Details Applicant Funline Merchandise Co., Inc. 15400 Don Julian Road, City of Industry, CA91745, USA HKSTC Code Number for Applicant GLT001 Manufacturer Cast Customs Ltd. Block A, 14/F Flat A, The Lianjian (Custom House) Building, Kou An Avenue 11 th , Chang Ping Town, The Railway Station of Dongguan City Date: 2004-06-08 TEST REPORT Page 5 of 18 No.: HM151010 1.3 Equipment Under Test [EUT] Description of Sample Model Name: 1/18 R/C bike Manufacturer: Cast Customs Ltd. Brand Name: R/C Muscle Machines Model Number: Item#74001 Input Voltage: 6Vd.c (“AA” size battery x 4) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a Funline Merchandise Co., Inc., 1/18 R/C bike. The transmitter is a 2 button transmitter. The EUT continues to transmit while button is being pressed, Modulation by IC. and type is pulse modulation. 1.4 Date of Order 2004-05-07 1.5 Submitted Sample(s): 2 Samples per model 1.6 Test Duration 2004-06-05 1.7 Country of Origin China Date: 2004-06-08 TEST REPORT Page 6 of 18 No.: HM151010 1.8 Additional Information of EUT Submitted Not Available User Manual Part List Circuit Diagram Printed Circuit Board [PCB] Layout Block diagram FCC ID Label Date: 2004-06-08 TEST REPORT Page 7 of 18 No.: HM151010 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.235 ANSI C63.4:2003 N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209 ANSI C63.4:2003 Class B Conducted Emissions on AC, 0.15MHz to 30MHz FCC 47CFR 15.207 ANSI C63.4:2003 Class B Note: N/A - Not Applicable Requirement of FCC Part 15 section 15.209 and 15.207 is equivalent to the requirement of RSS-210 (Low Power License-Exempt Radiocommunication Devices (All Frequency Bands)) section 6.2.1 and 9. The tests were performed according to FCC Part 15 which covers the scope of RSS-210. Date: 2004-06-08 TEST REPORT Page 8 of 18 No.: HM151010 3.0 Test Results 3.1 Emission 3.1.1 Radiated Emissions (30 – 1000MHz) Test Requirement: FCC 47CFR 15.235 Test Method: ANSI C63.4:2003 Test Date: 2004-06-05 Mode of Operation: On mode Test Method: The sample was placed 0.8m above the ground plane on the OATS *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. *: OATS [Open Area Test Site] located at HKSTC with a metal ground plane filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 90657. Test Setup: EUT Pre-Amplifier Distance = 3m Receiver Turn Table Computer Ground Plane Date: 2004-06-08 TEST REPORT Page 9 of 18 No.: HM151010 Limits for Field Strength of Fundamental Emissions [FCC 47CFR 15.235]: Frequency Range of Fundamental Field Strength of Fundamental Emission [Peak] Field Strength of Fundamental Emission [Average] [MHz] [μV/m] [μV/m] 49.82-49.90 100,000 10,000 Results: FrequencyCorrectionLimit @3mE-Field FactorPolarity MHzdBμV/mμV/m 49.8648.6010.258.8871.0100,000Vertical μ V/mdB μ V/m Field Strength dB μ V/m Field Strength of Fundamental Emissions Peak Value Measured Level @3m Field Strength FrequencyAdjusted byCorrectionLimit @3mE-Field Duty CycleFactorPolarity MHzdBdB μ V/m μ V/m 49.8644.6-4.010.254.8549.510,000Vertical μ V/mdB μ V/m Field Strength dB μ V/m Field Strength of Fundamental Emissions Average Measured Level @3m Field Strength According to FCC 47CFR15.35, the…

Text truncated - open the document above for the full version.

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
