RZUHJ1009M-RCRemote Controller

1 Important Precautions 1. This model applies to swimming pool with flat floor, please refer to instruction of 3) in 5.3.2 for swimming pool with slope. 2. In order to prevent severe damage to the cleaner, never power on the unit when it is outside of the swimming pool. 3. The power cord must be connected to leakage protective device and appropriate earthed socket. 4. Do not operate the cleaner when people are in the pool. 5. Do not try to move the floaters along the electric cable. Leave them always in the original positions. 6. Before power on, make sure the cable is fully released to avoid any winding, which could affect the cleaner’s performance or cause damage. 7. The filter bags should be cleaned every time you use the unit. This will prevent the dirty filter bags affecting the normal operation of the cleaner. 8. The cleaner should be stored in a cool and ventilated place, away from direct sunlight, when not in use. 9. The power supply unit should be placed in a shaded area. In order to avoid overheating and the potential damage of components, never cover the power supply unit. 10. Only authorized after sales service personnel should open the cleaner’s motor assembly and power supply unit, otherwise the warranty will be invalidated. 11. In order to avoid any accident/damage, the power supply unit should be steadily placed and fixed at a minimum distance of 3.5m from the pool edge. 12. Do not use the cleaner beyond the working environment/conditions stated in this manual. 13. Do not uncover the protective film which is sticked on the operating panel. 14. Close the filtering system of your pool when use this cleaner. 15. A piece of brush is installed on the bottom of the cleaner, please take it off in case it does not fit your pool floor. 2 17. Appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they hae been given supervision or instruction. 18. Children being spervised not to play with appliance 19. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. 20. Pollution of the liquid could occur due to leakage of lubricants. 21. The pump must be supplied through a residual curent device (RCD) having a rated residual operating current not exceeding 30 mA. 3 Note 1. Putting into or lifting out from pool with the cleaner bottom toward the wall to avoid any possible scratch to the pool surface. 2. Please store the cleaner in flat place, the cleaner body should not touch any hard article to avoid possible damage. 3. Do not press into or lift out the filter cartridge when install or take off it to avoid any damage to the chassis. Do not lift both sides of the filter cartridge Do not lift both sides of the cartridge at the same time at the same time. 4 Contents I. Introduction································································································P. 4 II. Safety········································································································P. 4 III. Specifications·····························································································P. 4 IV. Cleaner Structure························································································P. 5 V. Operation Instructions·················································································P. 6 VI. Trouble Shooting·························································································P. 17 VII. Packing List································································································P. 18 VIII Warranty·····································································································P. 19 5 I. Introduction: The automatic swimming pool floor cleaner HJ1009M is a new type of highly efficient swimming pool cleaning equipment with remote control and brush. It can clean the pool floor automatically without draining pool water. At the same time, it filters the pool water and gets rid of suspended particles and sediments. For safe operation, the cleaner works on 24V direct current. Please read this instruction manual carefully before use. . Safety:II 1, Position requirement of power supply unit：Refer to item 9 and 11 in “Important Precautions”. 2, Requirement of power: Refer to item 3 in “Important Precautions”. Before connecting the cleaner to power, please check that the local voltage and frequency (hertz) correspond to that of the power supply unit. III. Specifications: 1. Rated input voltage and frequency: 220V/50Hz or 110V/60Hz 2. Output Voltage: DC24V 3. Rated input and output power: 150W/135W or 200W/170W 4. Working cycle: 1h/1.5h/2h/2.5h 5. Cable length: 13m 6. Maximum cleaning area: 100m² 7. Filtering capacity: 18m³/h 8. Filtering capability: 150μm 9. Water temperature of use: 10°C - 35°C 10. Creeping speed: 15-30m/min 11. IP Grade：Cleaner-IP68 Power supply unit-IPX4 12. Working temperature: 10°C - 40°C 13. Pool depth: 2.5m 14. Climb slope: upto 40° 6 IV. Cleaner Structure Fig.4-1 Assembly the cleaner according to above structure 2 4 3 7 V. Operation Instruction 5.1 Cable connection 5.1.1 Plug the cable line into the socket on the power supply unit (note: make sure to plug it in the correct direction and position), and fasten the nuts on both sides of the plug. Fig. 5-1 5.1.2 Connect the plug with power Fig.5-2 Match point 8 5.2 Operation 5.2.1 Panel Chart 5-1. Buttons & indicator lights instructions 5.2.2 Remote control Fig. 5-4 Item Name Specification Function 1 POOL DISTANCE Pool distance selection button Select based on pool width 2 RUN TIME Auto running time selection button 3 STOP Stop button 4 FWD/REW Manual forward/backward button To move the cleaner to a certain location 5 AUTO RUN Automatic working button Cleaner starts running in automatic program 6 Automatic working time indicator light 7 Pool width indi…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 2013-4-13 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _____ TIANJIN WANGYUAN ENVIROMENTAL PROTECTION & TECHNOLOGY CO., LTD _____hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product ： Remote Controller Trade Name ： N/A Model Name： HJ1009M-RC Serial Model： N/A FCC ID : RZUHJ1009M-RC We affirm that between SIEMIC and ___ TIANJIN WANGYUAN ENVIROMENTAL PROTECTION & TECHNOLOGY CO., LTD ___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title : Bichang Wang / Manger Contact information / address : 3-D, ZhongXiaoYuan, Micro-Electronics Industrial Park (xiqing), TEDA, TianJin, China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 2013-4-13 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: RZUHJ1009M-RC We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title : Bichang Wang / Manger Contact information / address : 3-D, ZhongXiaoYuan, Micro-Electronics Industrial Park (xiqing), TEDA, TianJin, China

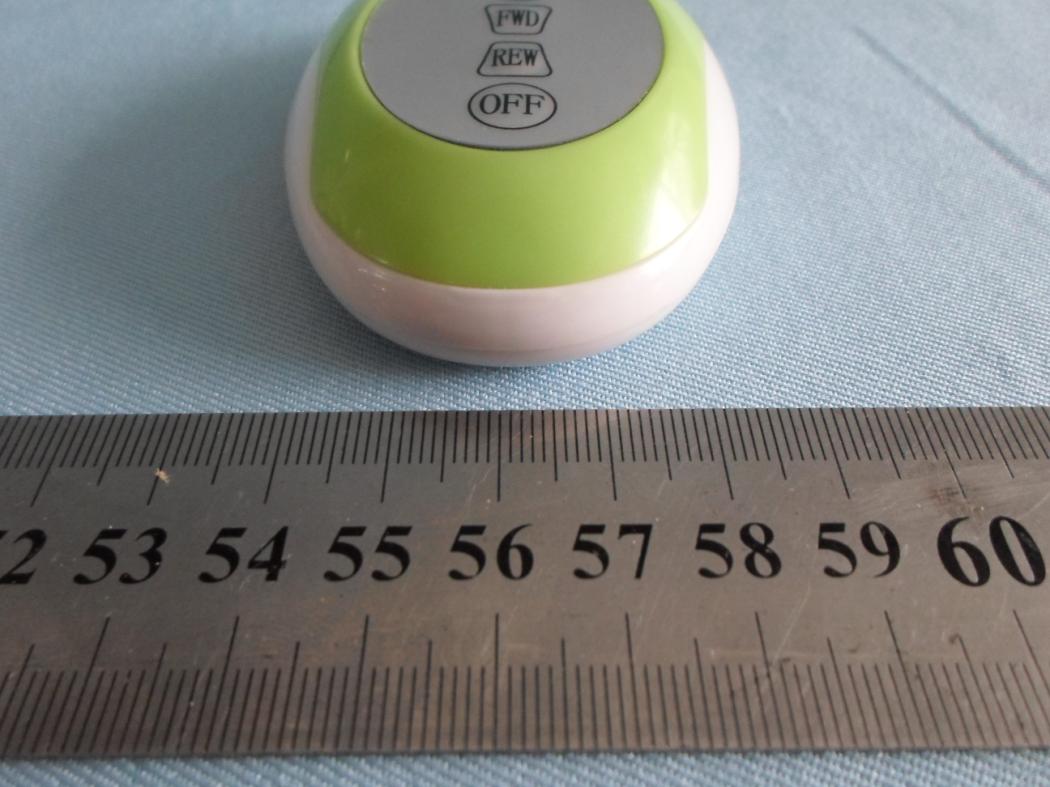

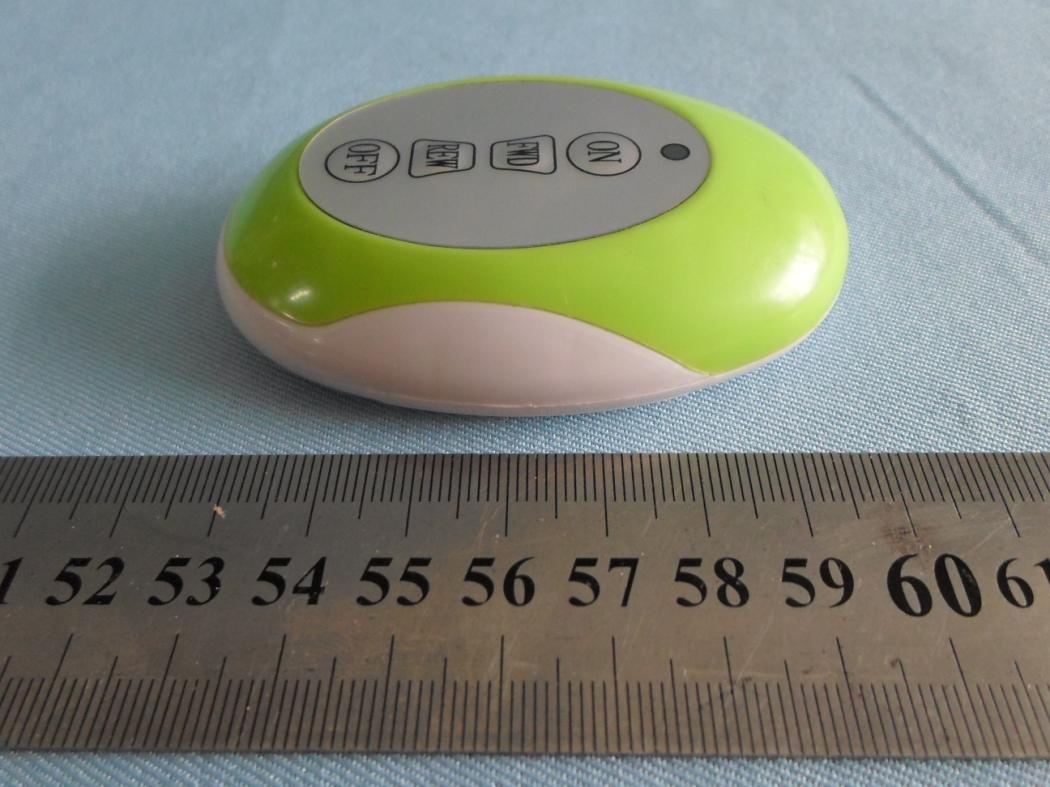

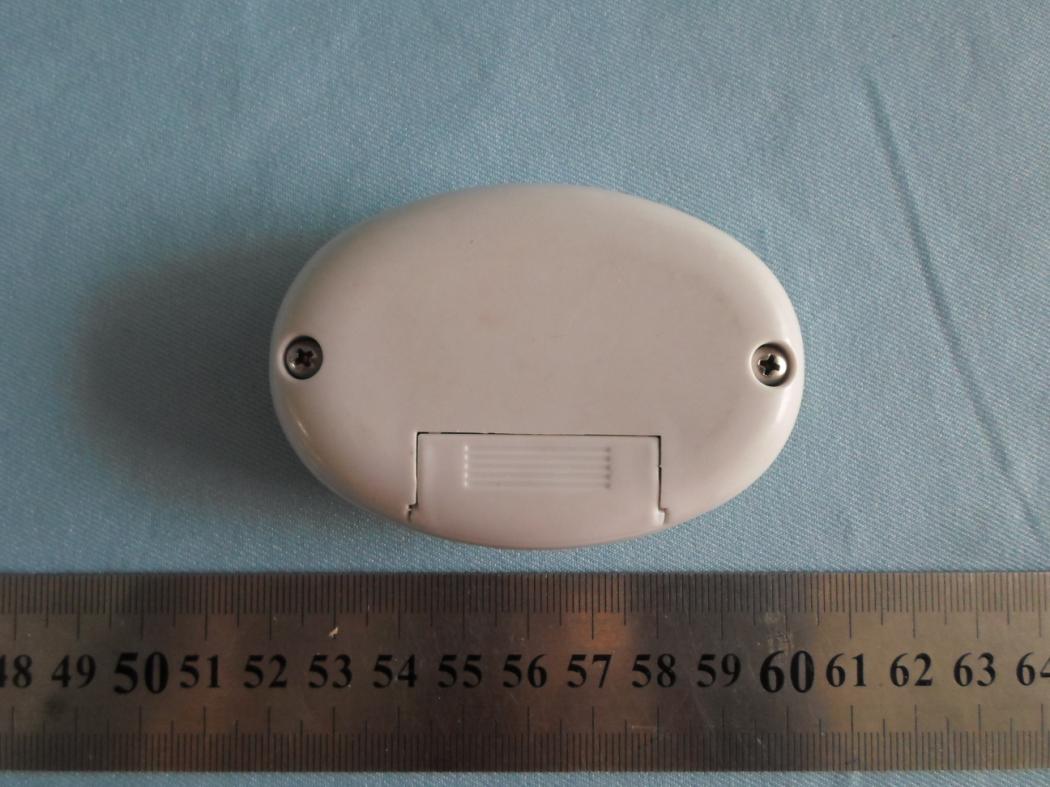

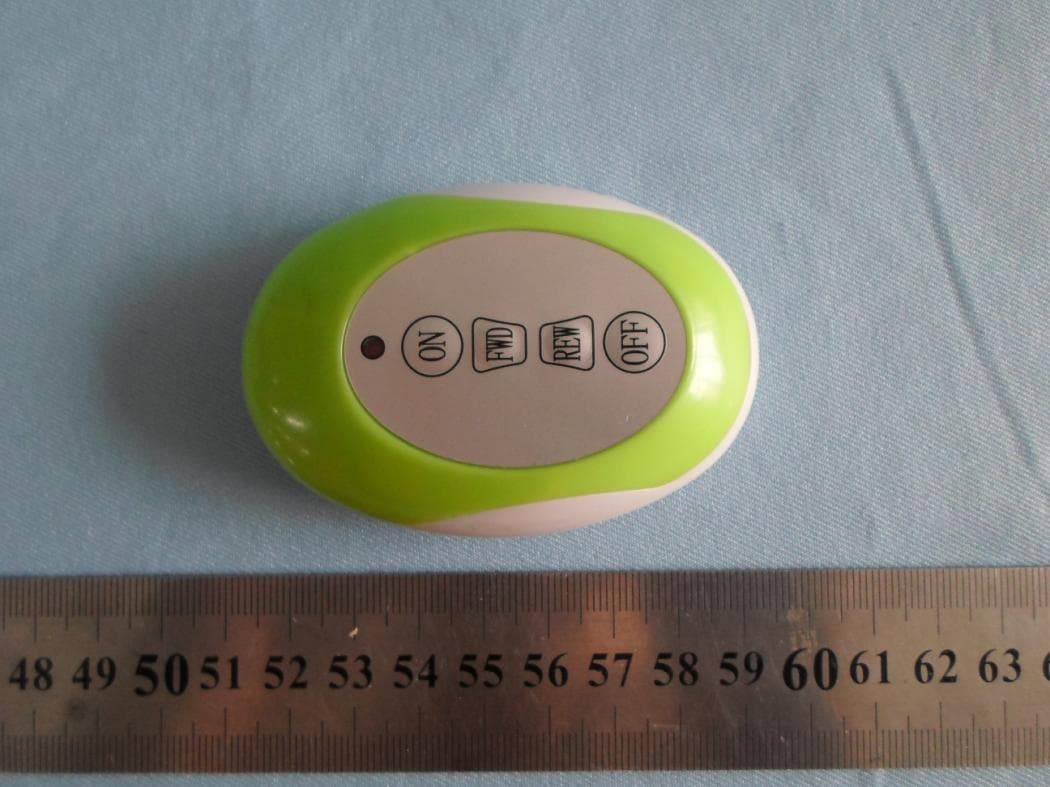

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

W*h=3.2* 2.1cm FCC Label Remote Controller Model No.: HJ1009M-RC FCC ID: RZUHJ1009M-RC Made in China

Photo 7 Photo 8

FCC RADIO TEST REPORT FCC ID: RZUHJ1009M-RC Product： Remote Controller Trade Name： N/A Model Name： HJ1009M-RC Serial Model： N/A Report No.： NTEK-2013NT0416080F Prepared for Tianjin Wangyuan Enviromental Protection & Technology Co., Ltd 3-D,ZhongXiaoYuan, Micro-Electronics Industial Park (Xiqing), TEDA, TianJin, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 26 Report No.: NTEK-2013NT0416080F ` TEST RESULT CERTIFICATION Applicant’s name ................. : Tianjin Wangyuan Enviromental Protection & Technology Co., Ltd Address ................................. : 3-D,ZhongXiaoYuan, Micro-Electronics Industial Park (Xiqing), TEDA, TianJin, China Manufacture's Name ............ : Tianjin Wangyuan Enviromental Protection & Technology Co., Ltd Address ................................. : 3-D,ZhongXiaoYuan, Micro-Electronics Industial Park (Xiqing), TEDA, TianJin, China Product description Product name............................ : Remote Controller Model and/or type reference : HJ1009M-RC Serial Model： N/A Rating(s) ................................ : DC 12V Standards ............................. : FCC Part15.231 Test procedure ............................... : ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date (s) of performance of tests ............. : 10 Apr. 2013 ~15 Apr. 2013 Date of Issue .......................................... : 16 Apr. 2013 Test Result.............................................. : Pass Testing Engineer : (Apple Huang) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) Page 3 of 26 Report No.: NTEK-2013NT0416080F ` Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 7 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 3 . ANTENNA REQUIREMENT 11 3.1 STANDARD REQUIREMENT 11 3.2 EUT ANTENNA 11 3.3 CONDUCTED EMISSION MEASUREMENT 12 3.3.1 POWER LINE CONDUCTED EMISSION LIMITS 12 3.3.2 TEST PROCEDURE 13 3.3.3 DEVIATION FROM TEST STANDARD 13 3.3.4 TEST SETUP 13 3.2.5 TEST RESULT 14 3.4 RADIATED EMISSION MEASUREMENT 15 3.4.1 RADIATED EMISSION LIMITS 15 3.4.2 TEST PROCEDURE 16 3.4.3 DEVIATION FROM TEST STANDARD 16 3.4.4 TEST SETUP 17 3.4.5 TEST RESULTS (BELOW 30MHZ) 19 3.4.6 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 20 4 . BANDWIDTH TEST 23 4.1 TEST PROCEDURE 23 4.2 DEVIATION FROM STANDARD 23 4.3 TEST SETUP 23 4.4 TEST RESULTS 24 5 . TRANSMITTER TIMEOUT 25 5.1 REQUIREMENTS 25 6 . EUT TEST PHOTO 26 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 4 of 26 Report No.: NTEK-2013NT0416080F ` 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.231) Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A Note(1) 15.203 Antenna Requirement Pass 15.231 Radiated Spurious Emission Pass 15.231 Occupied Bandwidth Pass 15.231 Transmitter Timeout Pass NOTE: (1) ” N/A” denotes test is not applicable in this Test Report. Page 5 of 26 Report No.: NTEK-2013NT0416080F ` 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 6 of 26 Report No.: NTEK-2013NT0416080F ` 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Remote Controller Trade Name N/A Model Name HJ1009M-RC Serial Model N/A Model Difference N/A Product Description The EUT is a Remote Controller Product Type Remote Control Operation Frequency: 315MHz Modulation Type: FM Number Of Channel 1CH. Antenna Designation: wire antenna Antenna Gain(Peak) 0.65 dBi Output Power: 72.18 dBuV/m (AV Max.) Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Channel List N/A Adapter N/A Battery DC 12V Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. 2. Table for Filed Antenna Ant . Brand Model Name Antenna Type Connector Gain (dBi) NOTE 1 N/A N/A PCB Antenna NA 0.65 Antenna Page 7 of 26 Report No.: NTEK-2013NT0416080F ` 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mode Description Mode 1 TX For Conducted Emission Final Test …

Text truncated - open the document above for the full version.

Page 26 of 26 Report No.: NTEK-2013NT0416080F ` 6. EUT TEST PHOTO Radiated Measurement Photos
