RZXMULTISCANAutomotive Handheld Scantool

EUT Type: Automotive Handheld Scantool FCC ID : RZXMULTISCAN Test Report No.: GETEC-E3-04-014 FCC Class B Certification APPENDIX G : USER’S MANUAL G G G ٻ ٻ ٻ ٻ CHAPTER 1 SAFETY AND WARRANTY I. SAFETY INSTRUCTIONS ............. 1 - 2 II. SAFETY PR ECAUTIO NS ............. 1 - 4 III. WAR RANT Y S ERVICE ............. 1 - 6 FCC RF INTERFERENCE STAT EMENT ............. 1 - 8 Han atech Co., Ltd. Chapter 1 G jˆ—›Œ™GXGTGXG Safety and Warranty G About this Manual All rights reserved by Hanatech Co., Ltd., Gumi, Korea. The contents of this manual are the result of contributions by dozens of individuals all w ho have added their vital expertise and experience to th e evo lut io n o f th e con ten ts o f this ma nu al. The information contained in this manual may contain printing errors and is subject to change without notice according to product upgrade. Hanatech shall not be liable for errors contained herein or for incidental or consequential damage in connection with the furnishing, performance, or use of this material. N o p a rt o f this m a nual ma y b e p ho t o co pie d , rep rodu ce d, or t ra nsla ted to another language in any way without the prior written consent of Hanatech Co., Ltd. ٻ ٻ ٻٻٻ ٻ Using this Ma nual It is recommended that the user become familiar with the o p e ratin g p ro ce du res , te rm in ologies and in fo rma ti on co nt aine d within this user’s m anual. This will help to increase the user’s effectiveness with this equipment . Vehicle system familiarity While this equipment provides very powerful functions with extensive vehicle coverage, it cannot replace knowledge and skill. To get the most out of this equipment, a full understanding of vehicle systems is required. It is recommended that the equipment be used in conjunction with the original service manual for the vehicle being tested. The equipment is designed for use by trained service personnel and this manual assumes that the service technician who is going to use this equipment has a familiarity with vehicle electronic control systems, h ow e ve r, th e la tes t se rvi ce man ua ls and bu lle tins s ho uld alw a ys be referenced before using this equipment. ٻ USER MANUAL For Mul tiscan G jˆ—›Œ™GXGTGYG I. SAFETY INSTRUCITONS ----------------------- Thank you for purchasing Multiscan. To get the maximum performance of the equipment, please carefully read this manual first, and keep it at hand. On delivery inspection When the equipment is delivered, a check should be made for any damaged or missing components. If the unit is damaged or fails to operate according to the specifications, contact your local distributor or the manufacturer, Hanatech Co., Ltd., Hana bldg., 80-1 Songjung-dong, Gumi-shi, Kyung-buk Republic of Korea 730-090. In the unli kel y e ve n t the eq uipm en t req uires sh ip ping ba ck to the ma nu fa ctu re r, ple as e use the original packing material. Safety s ymbols The following symbols are used throughout this manual: DANGER This mark means that dangerous consequences may arise, with the possibility of death or serious injury to the user, if the machine is handled incorrectly. WARNING This mark means dangerous consequences may arise, wi th the possibility of somewhat seri ous injury to the user and or damage to the machine and facilities, if the e q uipme n t is han dh eld in co rre ctl y. SYMBOL Description This symbol is affixed to locations on the equipment where t h e op e rat o r s h oul d cons ult co rresp on di ng top ics in this manual (which are also marked with the symbol) before using relevant functions of the equipment. In the manual, this symbol indicates explanations that are particularly important that the user is expected to read the manual before u sin g t h e eq ui pmen t. This sym bol represents DC (Direct Current) Han atech Co., Ltd. Chapter 1 G jˆ—›Œ™GXGTGZG Safety guideli ne In order to ensure proper operation and satisfactory performance, observe the ca u ti ons lis ted bel ow. DANG ER This equipment is designed to comply with IEC 61010-1 safety standards, and has been tested for safety prior to shipment. Excessive high voltage measurement or improper operation could result in personal injury, as well as damage to the equipment or the vehicle. Please read this manual carefully and be sure that you understand its contents before using the equipment. The manufacturer disclaims all responsibility for any accident except for that resulting due to defect in its product. WARNING For safety reasons, this equipment should not be used to measure circuits carrying more than 30Vrms or 42.4V peak. To a void el e ct ri ca l accid e nt th at co uld res ult i n i nju ry o r death, do not measure voltage in excess of these limitations. Maximum rated measurable voltage is 30Vrms or 42.4V peak. USER MANUAL For Mul tiscan G jˆ—›Œ™GXGTG[G G II. SAFETY PRECAUTIONS ----------------------- G DANGER When an engine is running, keep the workshop area WELL VEN TILATED or attach a building exhaust removal system to the engine exhaust system. Engines produce carbon monoxide, an odorless and poisonous gas that causes slower reaction time and may lead to serious injury or death. G G WARNING Brakes and wheel blocks Apply the hand brake and block the wheels before using the test equipment. It is highly recommended to block the wheels on front-wheel drive vehicles because the hand brake does not hold the driving wheels. G Drive Test D o not drive the vehicle and operate the test equipment at the same time. Any distraction may cause an accident. Have one person operate the test equipment while the other person drives the vehicle. N ever place the test equipment in front of you when driving the ve h icle be caus e th e test eq uipm en t ma y hi t yo u r bod y a nd caus e s e rious inj ury wh e n t he ai r ba g in fl a tes . D o no t t ry to tes t t h e SR S air b ag s ystem w hile d ri vi n g th e vehicle as unintended air bag inflation may result. Han atech Co., Ltd. Chapter 1 G jˆ—›Œ™GXGTG\G …

Text truncated - open the document above for the full version.

EUT Type: Automotive Handheld Scantool FCC ID : RZXMULTISCAN Test Report No.: GETEC-E3-04-014 FCC Class B Certification APPENDIX C : BLOCK DIAGRAM CPU Z80181 SRAM 1MByte ROM 64KByte +3.3V +5.0V -24.0V POWER Module RS232 CONNECTOR LCD DRIVER MSM6255 PULL UP/DN SELECT INPUT LEVEL SELECT ISO-9141 KW-2000 OBD I J1850 VPW, PWM CAN CONTROL BD to BD CONNECTOR I/O DECODER PORT CONTROL EPLD EXTEND Memory(NAND) CAR CONNECTOR ADDRESS Decoder I/O DECODER EPLD POWER CONNECTOR LCD CONNECTOR USB DRIVER PDIUSBD12 LOW HIGH BUS+ BUS- BAT+ Connector BAT+ ASIC CH1 MAX232C KEY SCAN 74HC138 KEY CONNECTOR USB CONNECTOR D+ D- Tx Rx LCD DATA LCD Control Key Scan Key Scan Out DATA [0..7] ADDRESS BUS PIA2 [0..3] PIA2 [4..6] DATA [0..7] ADDRESS BUS Memory Request I/O Request SCC Tx,Rx LCD Driver Control Nand Control USB Control DATA [0..7] ADDRESS BUS ROM/RAM CS DATA [0..7] DATA [0..7] Control SCC Tx,Rx ASIC CH1 Tx/Rx DATA [0..7] DATA [0..7] ADDRESS BUS I/O Request Multi Scan Block Diagram SCC Tx,Rx K-Line L-Line DATA [0..7] ADDRESS BUS SCC Tx,Rx I/O Request K-Line L-Line CAR Communication Control I/O Port Control INPUT Control PU/PN Control K/L Tx Control K/L Rx Control +5.0V +5.0V X-TAL 20MHz 5MHz +5.0V -24.0V +3.3V +5.0V 16MHz 6MHz +5.0V +5.0V +5.0V

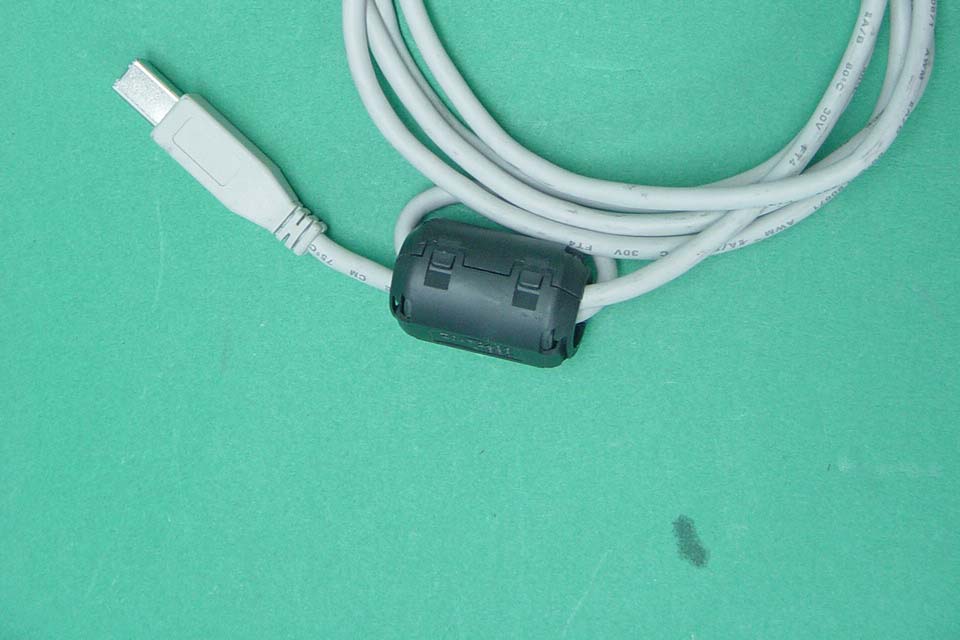

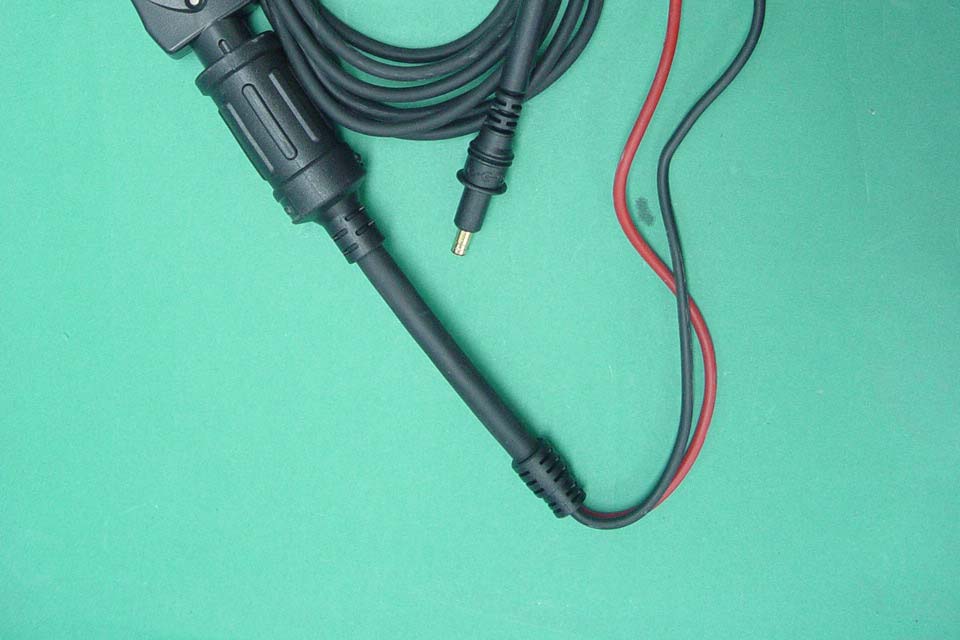

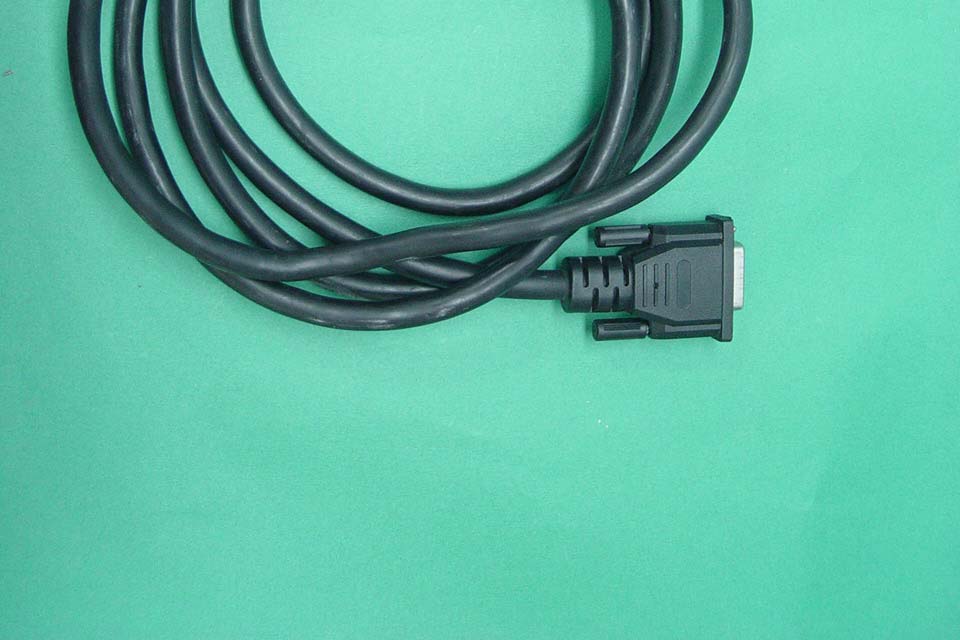

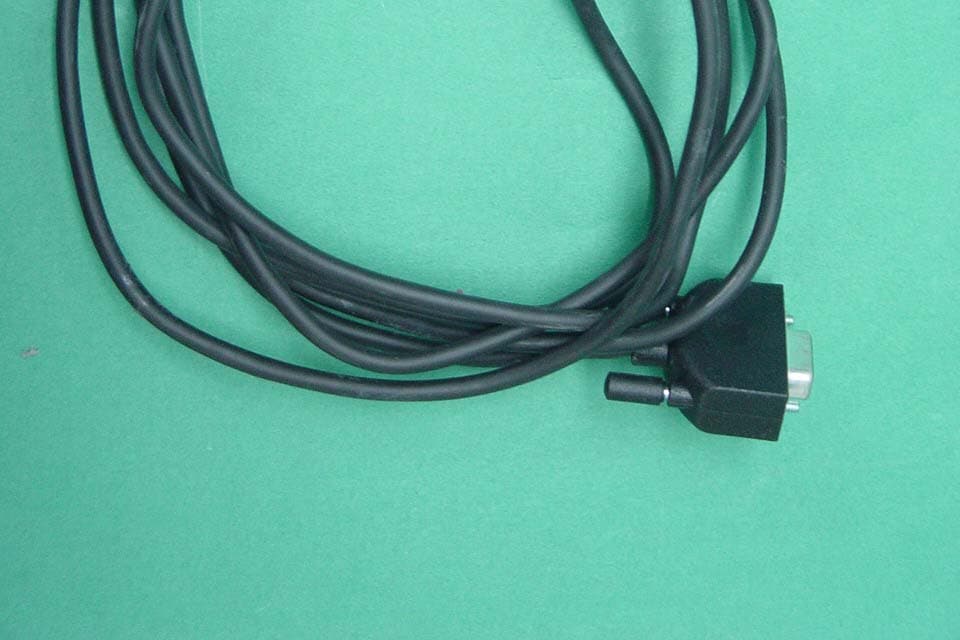

EUT Type: Automotive Handheld Scantool FCC ID : RZXMULTISCAN Test Report No.: GETEC-E3-04-014 FCC Class B Certification APPENDIX E : EXTERNAL PHOTOGRAPHS EUT Type: Automotive Handheld Scantool FCC ID : RZXMULTISCAN Test Report No.: GETEC-E3-04-014 FCC Class B Certification EUT Type: Automotive Handheld Scantool FCC ID : RZXMULTISCAN Test Report No.: GETEC-E3-04-014 FCC Class B Certification EUT Type: Automotive Handheld Scantool FCC ID : RZXMULTISCAN Test Report No.: GETEC-E3-04-014 FCC Class B Certification EUT Type: Automotive Handheld Scantool FCC ID : RZXMULTISCAN Test Report No.: GETEC-E3-04-014 FCC Class B Certification EUT Type: Automotive Handheld Scantool FCC ID : RZXMULTISCAN Test Report No.: GETEC-E3-04-014 FCC Class B Certification EUT Type: Automotive Handheld Scantool FCC ID : RZXMULTISCAN Test Report No.: GETEC-E3-04-014 FCC Class B Certification

EUT Type: Automotive Handheld Scantool FCC ID : RZXMULTISCAN Test Report No.: GETEC-E3-04-014 FCC Class B Certification APPENDIX B : ID SAMPLE LABEL & LOCATION EUT Type: Automotive Handheld Scantool FCC ID : RZXMULTISCAN Test Report No.: GETEC-E3-04-014 FCC Class B Certification LABELLING REQUIREMENTS The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. „ ID Label „ ID Label Location of EUT I.D Label

EUT Type: Automotive Handheld Scantool FCC ID : RZXMULTISCAN Test Report No.: GETEC-E3-04-014 FCC Class B Certification APPENDIX F : INTERNAL PHOTOGRAPHS EUT Type: Automotive Handheld Scantool FCC ID : RZXMULTISCAN Test Report No.: GETEC-E3-04-014 FCC Class B Certification EUT Type: Automotive Handheld Scantool FCC ID : RZXMULTISCAN Test Report No.: GETEC-E3-04-014 FCC Class B Certification EUT Type: Automotive Handheld Scantool FCC ID : RZXMULTISCAN Test Report No.: GETEC-E3-04-014 FCC Class B Certification EUT Type: Automotive Handheld Scantool FCC ID : RZXMULTISCAN Test Report No.: GETEC-E3-04-014 FCC Class B Certification EUT Type: Automotive Handheld Scantool FCC ID : RZXMULTISCAN Test Report No.: GETEC-E3-04-014 FCC Class B Certification EUT Type: Automotive Handheld Scantool FCC ID : RZXMULTISCAN Test Report No.: GETEC-E3-04-014 FCC Class B Certification EUT Type: Automotive Handheld Scantool FCC ID : RZXMULTISCAN Test Report No.: GETEC-E3-04-014 FCC Class B Certification EUT Type: Automotive Handheld Scantool FCC ID : RZXMULTISCAN Test Report No.: GETEC-E3-04-014 FCC Class B Certification EUT Type: Automotive Handheld Scantool FCC ID : RZXMULTISCAN Test Report No.: GETEC-E3-04-014 FCC Class B Certification EUT Type: Automotive Handheld Scantool FCC ID : RZXMULTISCAN Test Report No.: GETEC-E3-04-014 FCC Class B Certification EUT Type: Automotive Handheld Scantool FCC ID : RZXMULTISCAN Test Report No.: GETEC-E3-04-014 FCC Class B Certification

EUT Type: Automotive Handheld Scantool FCC ID : RZXMULTISCAN Page 2 of 13 Test Report No.: GETEC-E3-04-014 FCC Class B Certification CONTENTS 1. SCOPE...........................................................................................................................................................................3 2. INTRODUCTION ........................................................................................................................................................4 3. TEST CONDITIONS & EUT INFORMATION........................................................................................................5 3.1 DESCRIPTION OF EUT..............................................................................................................................................5 3.2 SUPPORT EQUIPMENT USED.....................................................................................................................................6 4. DESCRIPTION OF TESTS.........................................................................................................................................7 4.1 RADIATED EMISSIONS..............................................................................................................................................7 4.2 CONDUCTED EMISSION............................................................................................................................................7 5. RADIATED EMISSION ..............................................................................................................................................8 5.1 OPERATING ENVIRONMENT.....................................................................................................................................8 5.2 TEST SET-UP..............................................................................................................................................................8 5.3 MEASUREMENT UNCERTAINTY................................................................................................................................8 5.4 LIMIT........................................................................................................................................................................9 5.5 TEST EQUIPMENT USED............................................................................................................................................9 5.6 TEST DATA FOR RADIATED EMISSION.....................................................................................................................10 6. SAMPLE CALCULATIONS.....................................................................................................................................12 6.1 EXAMPLE 1 :...........................................................................................................................................................12 6.2 EXAMPLE 2 :...........................................................................................................................................................12 7. RECOMMENDATION & CONCLUSION..............................................................................................................13 APPENDIX A – ATTESTATION STATEMENT APPENDIX B – ID SAMPLE LABEL & LOCATION APPENDIX C – BLOCK DIAGRAM APPENDIX D – TEST SET-UP PHOTOGRAPHS APPENDIX E – EXTERNAL PHOTOGRAPHS APPENDIX F – INTERNAL PHOTOGRAPHS APPENDIX G – USER’S MANUAL EUT Type: Automotive Handheld Scantool FCC ID : RZXMULTISCAN Page 3 of 13 Test Report No.: GETEC-E3-04-014 FCC Class B Certification 1. Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and / or unintentional radiators for compliance with technical rules and regulations of the Federal Communications Commission . z FCC ID RZXMULTISCAN z EUT Type Automotive Handheld Scantool z Model No. MULTISCAN z Tra de Na me Hanatech z Rule Part(s) FCC Part 15 Subpart B z Test Procedure(s) ANSI C63.4 (1992) z Standard(s) EN55022:1998 (CISPR22:1997) z Dates of Test March 30, 2004 z Place of Test Gumi College EMC Center z Test Report No. GETEC-E3-04-014 Responsible Party: Hanatech Co., Ltd. Contact Person: Mr. Woo-jun Hwang / Senior engineer Manufacturer: Hana-B/D, 80-1, Songjung-dong, Gumi-si, Gyeongsangbuk-do, Korea Tel No.: +82-54-454-9009 EUT Type: Automotive Handheld Scantool FCC ID : RZXMULTISCAN Page 4 of 13 Test Report No.: GETEC-E3-04-014 FCC Class B Certification 2. Introduction The measurement procedure described in American National Standard for Methods of Measurement of Radio-Nose Emissions From Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ASNI C63.4- 1992) was used in determining radiated and conducted emissions emanating from Hanatech Co., Ltd. Automotive Handheld Scantool (Model No.: MULTISCAN) These measurement tests were conducted at Gumi College EMC Center. The site address is 407, Bugok-Dong, Gumi-City, Gyeongsangbuk-Do, Korea This test site is one of the highest point of Gumi 1 college at about 200 kilometers away from Seoul city and 40 kilometers away from Daege city. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of §2.948 according to ANSI C63.4 on October 19, 1992 Fig 1. The map above shows the Gumi College in vicinity area. GUMI COLLEGE EMC CENTER 407,Bugok-Dong, Gumi-City, Gyeongsangbuk-Do 730-711, Korea Tel: +82-54-440-1195 Fax: +82-54-440-1199 EUT Type: Automotive Handheld Scantool FCC ID : RZXMULTISCAN Page 5 of 13 Test Report No.: GETEC-E3-04-014 FCC Class B Certification 3. Test Conditions & EUT Information 3.1 Description of EUT The Equipmen…

Text truncated - open the document above for the full version.

EUT Type: Automotive Handheld Scantool FCC ID : RZXMULTISCAN Test Report No.: GETEC-E3-04-014 FCC Class B Certification APPENDIX D : TEST SET UP PHOTOGRAPHS EUT Type: Automotive Handheld Scantool FCC ID : RZXMULTISCAN Test Report No.: GETEC-E3-04-014 FCC Class B Certification -. Download mode „ Radiated Test Picture (Front) „ Radiated Test Picture (Rear) EUT Type: Automotive Handheld Scantool FCC ID : RZXMULTISCAN Test Report No.: GETEC-E3-04-014 FCC Class B Certification -. Stand by mode „ Radiated Test Picture (Front) „ Radiated Test Picture (Rear)
