Response to TCB Findings Tune-up procedure must be provided as an exhibit for licensed transmitters. Please provide the document. Per LOEA - The transceivers are configured in the factory and there are no tune-up requirements during the installation (this is a fixed frequency design) DC voltages and currents in final RF amplifier stage must be specified per 2.1033(c)(8). Per LOEA - There is no final RF amplifier stage in the Tx chain. A Gunn oscillator is the source of the Tx power and it runs off 9.6 volts and draws 200mA. The power level difference between the 73,5 and 83.5 GHz fundamentals must be justified. Please clarify with your client as the filing does not seem to provide power ratings and means of adjusting power levels (if applicable) about the device. It is not clear if this difference is intentional. Further examination of the calibration data of the mixer shows that there is a null within 100MHz of 83.5GHz. Our original mixer correction factor did not account for this null. The report has been updated with the new correction factor. Difficulties in making measurements at the high frequencies (alignment, reflections, etc) may also account for the readings of the 83.5GHz radio being less than that of the 73.5GHz version. Attached is an updated operational description, which indicates the maximum output of the device. 101.111(a)(2)(v), which calls 101.111(a)(2)(ii), requires a mask within the frequency range that is removed 50% to 250% of the authorized bandwidth from center frequency. Please justify/demonstrate how the device complies with the limit according to the mask formula provided in that section. The report has been updated with the mask data. Because mixers were used, we were unable to provide a plot. No emissions were found.

Frequency ranges are corrected to center frequencies. Thank you. Yunus Faziloglu TCB Review Engineer Curtis-Straus LLC

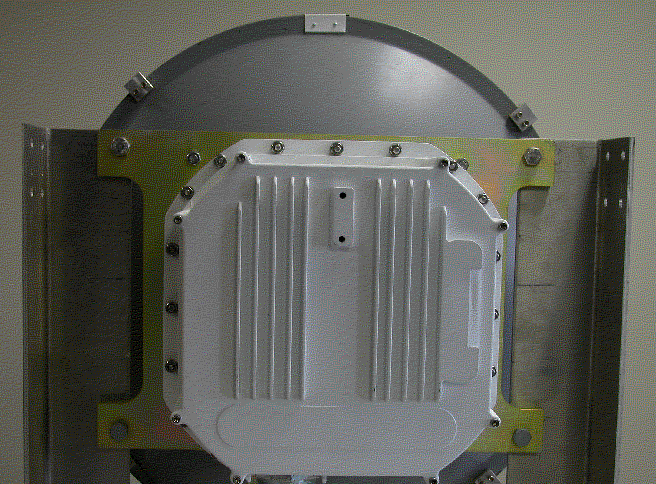

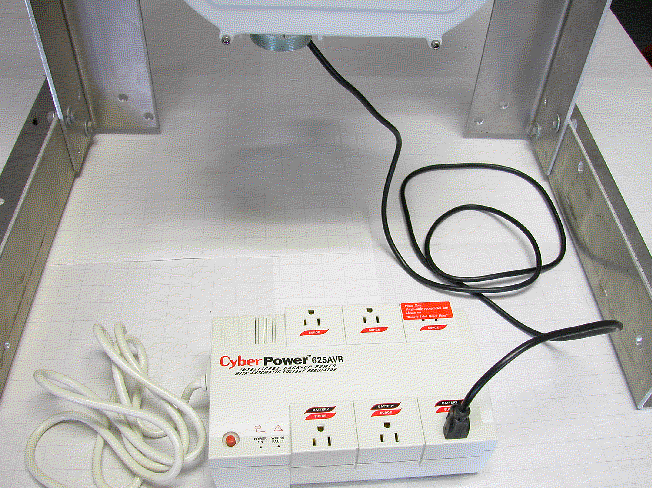

Document No. D-L2500-EP External Photographs 6/01/05 Company Confidential – LOEA Corporation 1 Model L-2500 Point to Point Radio System 71.0 to 76.0GHz & 81.0 to 86.0GHz External Photographs www.loeacom.com 10455 Pacific Center Court San Diego, CA. 92121 858-922-0030 Document No. D-L2500-EP External Photographs 6/01/05 Company Confidential – LOEA Corporation 2 Photo of EUT – Front oblique view Document No. D-L2500-EP External Photographs 6/01/05 Company Confidential – LOEA Corporation 3 Photo of EUT – Side view Document No. D-L2500-EP External Photographs 6/01/05 Company Confidential – LOEA Corporation 4 Photo of EUT – Rear view Document No. D-L2500-EP External Photographs 6/01/05 Company Confidential – LOEA Corporation 5 Photo of EUT – Ancillary equipment (UPS)

Document No. D-L2500-LBL ID Label 6/01/05 Company Confidential – LOEA Corporation 1 Model L-2500 Point to Point Radio System 71.0 to 76.0GHz & 81.0 to 86.0GHz ID Label www.loeacom.com 10455 Pacific Center Court San Diego, CA. 92121 858-922-0030 Document No. D-L2500-LBL ID Label 6/01/05 Company Confidential – LOEA Corporation 2 FCC ID Label The ID labels are shown below. Since there are two transceiver units each operating on a different frequency (an ‘A’ unit and ‘B’ unit) there are two labels to differentiate them. In addition the transceivers can be configured for operation at either GigE or OC-12 data rates. As a result four labels are shown below all with the same FCC ID #. GigE ‘A’ Unit label GigE ‘B’ Unit label Document No. D-L2500-LBL ID Label 6/01/05 Company Confidential – LOEA Corporation 3 OC-12 ‘A’ Unit label OC-12 ‘B’ Unit label The label material is made from G.E. Lexan film, velvet matte with an adhesive backing. Both adhesive and label material will last the lifetime of the product. Document No. D-L2500-LBL ID Label 6/01/05 Company Confidential – LOEA Corporation 4 FCC ID Label Location

Document No. D-L2500-IP Internal Photographs 6/01/05 Company Confidential – LOEA Corporation 1 Model L-2500 Point to Point Radio System 71.0 to 76.0GHz & 81.0 to 86.0GHz Internal Photographs www.loeacom.com 10455 Pacific Center Court San Diego, CA. 92121 858-922-0030 Document No. D-L2500-IP Internal Photographs 6/01/05 Company Confidential – LOEA Corporation 2 Photo of EUT showing service compartment with rear cover removed Photo of EUT showing backside of service compartment housing Service compartment housing Built-in power supply Document No. D-L2500-IP Internal Photographs 6/01/05 Company Confidential – LOEA Corporation 3 Internal photo of EUT with service compartment removed from main housing Power distribution board Control board Document No. D-L2500-IP Internal Photographs 6/01/05 Company Confidential – LOEA Corporation 4 Internal photo of EUT with absorber material removed AGC / Det board Document No. D-L2500-IP Internal Photographs 6/01/05 Company Confidential – LOEA Corporation 5 Internal photo of EUT with AGC/Det board removed showing mmWave circuitry Document No. D-L2500-IP Internal Photographs 6/01/05 Company Confidential – LOEA Corporation 6 Photo of Power distribution board – Top view Document No. D-L2500-IP Internal Photographs 6/01/05 Company Confidential – LOEA Corporation 7 Photo of Power distribution board – Bottom view Document No. D-L2500-IP Internal Photographs 6/01/05 Company Confidential – LOEA Corporation 8 Photo of Control board – Top view Netburner board Document No. D-L2500-IP Internal Photographs 6/01/05 Company Confidential – LOEA Corporation 9 Photo of Control board – Top view with Netburner board removed Document No. D-L2500-IP Internal Photographs 6/01/05 Company Confidential – LOEA Corporation 10 Photo of Netburner board – Bottom view Document No. D-L2500-IP Internal Photographs 6/01/05 Company Confidential – LOEA Corporation 11 Photo of Control board – Bottom view Document No. D-L2500-IP Internal Photographs 6/01/05 Company Confidential – LOEA Corporation 12 Photo of AGC/Det board – Top view Document No. D-L2500-IP Internal Photographs 6/01/05 Company Confidential – LOEA Corporation 13 Photo of AGC/Det board – Bottom view

Maximum Human Exposure Calculation The equation used for calculating the power density at the surface of a parabolic aperture antenna is as follows: S = 4P/A where: S = maximum power density at the antenna surface P = power fed to the antenna A = physical area of the aperture antenna This Application: P = 8.3dBm = 6.76mW A = pi*r 2 = pi*(30.48cm) 2 = 2918.6cm 2 S = 4(6.76mW)/2918.6cm 2 = 0.0093mW/cm 2 Since the surface power density of this product passes the limit of 1mW/cm 2 , then the only distance requirement that applies is the requisite 2m for fixed antennas.

Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Test Report Report No EF0429-1 Issue 2 Client Loea Corporation 164 West Street West Hatfield, MA 01088 Phone 1-413-247-9440 FRN 0013420088 Emission Designator K1D4G23 Model L-2500 FCC ID S2N-L2500-2 Equipment Type Licensed Non-Broadcast Station Transmitter Equipment Code TNB Results As detailed within this report Prepared by _____________________ Evan Gould – Test Engineer Authorized by __________________________ Michael Buchholz – EMC Manager Issue Date 8/1/05 Conditions of issue This Test Report is issued subject to the conditions stated in ‘terms and conditions’ section of this report. REPORT: EF0429-1 Issue 2 FCC ID: S2N-L2500-2 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 2 of 19 Table Of Contents Summary......................................................................................................................... 3 Test Methodology............................................................................................................ 3 EUT Configuration........................................................................................................... 4 Fundamental Measurement............................................................................................ 5 Spectral Density.............................................................................................................. 6 Occupied Bandwidth....................................................................................................... 7 Emission Mask................................................................................................................ 9 Radiated Spurious Emissions....................................................................................... 10 AC Line Conducted Emissions...................................................................................... 12 Frequency Stability........................................................................................................ 13 Terms And Conditions................................................................................................... 15 A2LA Accreditation........................................................................................................ 17 REPORT: EF0429-1 Issue 2 FCC ID: S2N-L2500-2 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 3 of 19 Summary This test report supports an application for a licensed transmitter operating pursuant to 47 CFR 101. The product is the Loea Corporation L-2500 Millimeter Wave Radio. It is a transmitter that operates at either 73.5GHz or 83.5GHz depending on whether it is the Lo or Hi version. Test Methodology Radiated emissions testing is performed according to the procedures specified in TIA- 603. Since the device is always installed in one orientation, emissions were maximized by rotating the device around it’s vertical axis as well as varying the test antenna’s height and polarity. Frequency range investigated: 150kHz – 200GHz Measurement distance: 150kHz – 30MHz Conducted 30 – 1000MHz 3m 1 – 18GHz 3m or 1m 18 – 26.5GHz 1m 26.5 – 200GHz 0.1m REPORT: EF0429-1 Issue 2 FCC ID: S2N-L2500-2 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 4 of 19 EUT Configuration EUT Configuration Work Order: F0429 Company: Loea Corporation Company Address: 164 West Street West Hatfield, MA 01088 Contact: John Hutchings Person Present: John Hutchings MNSN EUT: L-2500000117M (83.5GHz radio) L-2500000117F (73.5GHz radio) CyberPower UPS/Surge ProtectorCPS625AVRB1A3T1B06372 EUT Description: Millimeter Wave Radio EUT Max Fre quency: 83.5GHz Support Equipment: MNSN OC12 Generator Surise TelecomSunSet OCxSSOCX12C0346122385 Gigabit Ethernet Generator TektronixGTS1250B010207 EUT Cables: QtyShielded?LengthFerrites AC Power1No6ftNo Fiber pair1N/AN/AN/A Unpopulated EUT Ports: QtyReason DB9 Serial1Setup/Diag BNC AGC1Setup/Diag Ethernet1Not Used Software / Operating Mode Description: EUT was operating in TX and RX modes simultaneously. Both OC12 and Gig-E modulations were tested using pseudorandam data sequences. CW mode was used when needed as well. EUT has only one power level setting available. REPORT: EF0429-1 Issue 2 FCC ID: S2N-L2500-2 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 5 of 19 Fundamental Measurement LIMIT 55dBW (EIRP) [47 CFR 101.113] MEASUREMENTS Output Power (Conducted) Curtis-Straus LLC Date: 3-Jun-05 Engineer: Evan Gould Work Order: F0429 Company: Loea Corp EUT: L-2500 Fundamental Frequency: 73.5 or 83.5GHz Test Site: A Cable: N/A Power Meter: HP 437B Attenuator: N/A Sensor Head: HP W8486A Notes:CW mode AntennaAdjusted 47 CFR 101.113 RadioFrequencyReadingGainReadingEIRP LimitMarginResult (GHz)(dBm)(dBi)(dBW)(dBW)(dB)(Pass/Fail) 73.5GHz73.50012.750.633.355.0-21.7Pass 83.5GHz83.50011.750.932.655.0-22.4Pass REPORT: EF0429-1 Issue 2 FCC ID: S2N-L2500-2 _____________________________________________________________ _________________________________________________________…

Text truncated - open the document above for the full version.

REPORT: EF0429-1 FCC ID: S2N-L2500-2 EXHIBIT: Setup Photos MODEL: L-2500 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 1 of 4 RE Front RE Back REPORT: EF0429-1 FCC ID: S2N-L2500-2 EXHIBIT: Setup Photos MODEL: L-2500 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 2 of 4 Conducted Emissions Conducted Power REPORT: EF0429-1 FCC ID: S2N-L2500-2 EXHIBIT: Setup Photos MODEL: L-2500 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 3 of 4 Occupied Bandwidth Block Down-converter REPORT: EF0429-1 FCC ID: S2N-L2500-2 EXHIBIT: Setup Photos MODEL: L-2500 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 4 of 4 Frequency Stability
