S2O-AXM2100-9543IREPEATER

AXM2100-9543-ICS User Manual VERSION 0.2 3116 West Vanowen St. Burbank, CA 91505 Tel: 818-840-8131 Fax: 818-840-8138 www.adrftech.com Advanced RF Technologies, Inc. i Information in this document is subject to change without notice. Advanced RF Technologies, Inc. 1996-2013. All rights reserved. • Please send comments to: E-Mail: [email protected] Phone: (818) 840-8131 (800) 313-9345 Fax: (818) 840-8138 • Address: Advanced RF Technologies, Inc. Attention: Technical Publications Department 3116 Vanowen St. Burbank, CA 91505 USA www.adrftech.com Advanced RF Technologies, Inc. ii REVISION HISTORY CHANGE LIST Version Change list Contents Version Author Descriptions Date 0.1 ADRF Initial Release 02/07/ 2014 0.2 ADRF Installation Instruction in Sec. 4.4 21/05/ 2014 Advanced RF Technologies, Inc. iii TABLE OF CONTENTS 1. Introduction ...................................................................................................................................................... 10 1.1 Highlights ................................................................................................................................................... 10 1.2 Parts List..................................................................................................................................................... 11 1.3 Repeater Quick View ................................................................................................................................. 12 1.4 Warnings and Hazards ............................................................................................................................... 14 2. Overview ........................................................................................................................................................... 16 2.1 LED ............................................................................................................................................................. 16 2.2 Ethernet Port and Host/Remote Switch .................................................................................................... 16 2.2.1 Ethernet Ports .................................................................................................................................... 16 2.2.2 Host/Remote Switch ........................................................................................................................... 18 2.2.3 AC Power ............................................................................................................................................ 18 2.2.4 Back Up Battery Port .......................................................................................................................... 19 2.3 RF Ports ...................................................................................................................................................... 19 2.3.1 RF Ports............................................................................................................................................... 19 3. Alarms ............................................................................................................................................................... 20 3.1 Message Board Alarms and Notification ................................................................................................... 20 3.2 Alarms ........................................................................................................................................................ 21 4. Installation ........................................................................................................................................................ 22 4.1 Installation Procedures .............................................................................................................................. 22 4.1.1 Wall Mount Procedure ....................................................................................................................... 22 4.2 Grounding .................................................................................................................................................. 22 4.3 Antenna Separation/Isolation .................................................................................................................... 23 4.4. Installation Instruction: ................................................................................................................................ 24 4.5. Line of Sight ................................................................................................................................................... 25 5. AXM2100-9543-ICS Web-GUI Setup ................................................................................................................. 26 5.1 Repeater/PC Connection Using Web-GUI .................................................................................................. 26 5.2 Status Tab .................................................................................................................................................. 27 5.2.1 Band .................................................................................................................................................... 27 5.2.2 Power & Gain ...................................................................................................................................... 27 5.2.3 Alarm .................................................................................................................................................. 28 5.2.4 Message Board ................................................................................................................................... 28 5.2.5 Install and Power Status ..................................................................................................................... 29 5.2.6 Repeater Info / Repeater Location / Technical Support / Ins…

Text truncated - open the document above for the full version.

Advanced RF Technologies, Inc. Date: September 14, 2012 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize < HCT CO., LTD.>, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by < HCT CO., LTD.> on our behalf shall have the same effect as acts of our own. We, t he undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing < HCT CO., LTD. > as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Julie Song CEO Advanced RF Technologies, Inc REMARK: 1. This a uthorization le tter w ill b e s ent a long w ith y our a pplication w hen f iling w ith the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 1/10 EXTERNAL PHOTOGRAPHS FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 2/10 (Front) FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 3/10 (Rear) FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 4/10 (Left) FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 5/10 (Right) FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 6/10 (Top Side) FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 7/10 (Bottom Side) FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 8/10 (Open-1) FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 9/10 (Open-2) FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 10/10 (Open-3)

FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 1/3 ID LABEL INFORMATION AND LOCATION PHOTOS FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 2/3 1.1 ID Label Information Following is a copy of the label that will be placed on the rear side of the cabinet. Both the FCC ID and compliance statement are included in the product label Figure 1.1 PRODUCT LABEL [LABEL ] FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 3/3 1.2 Label Location Photos The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Figure 1.2 LOCATION

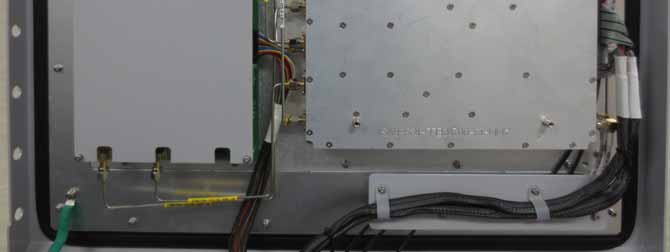

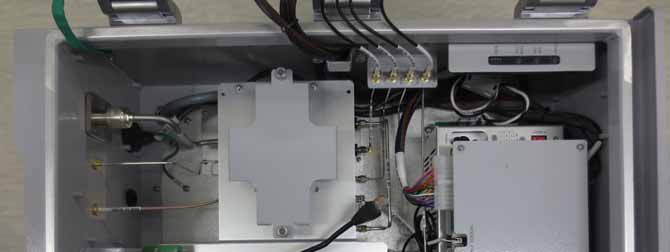

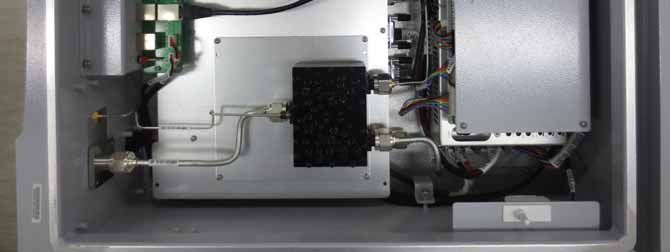

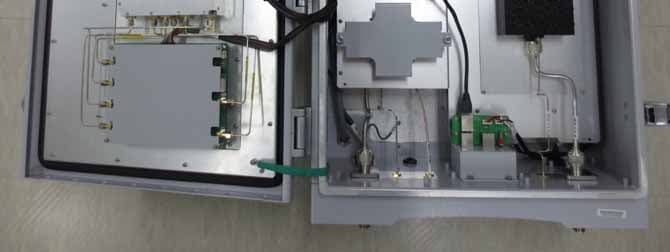

FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 1/21 INTERNAL PHOTOGRAPHS FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 2/21 ■ Module FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 3/21 FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 4/21 FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 5/21 FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 6/21 FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 7/21 oto FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 8/21 FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 9/21 FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 10/21 FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 11/21 FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 12/21 FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 13/21 FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 14/21 FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 15/21 FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 16/21 FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 17/21 FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 18/21 FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 19/21 FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 20/21 FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 21/21

HCT. CO., LTD. CERTIFICATION DIVISION 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 CERTIFICATE OF COMPLIANCE (ERM EVALUATION) FCC ID: APPLICANT: EUT Type: REPEATER Model: AXM2100-9543-ICS Frequency Ranges: DL : 2110 MHz ~ 2155 MHz UL : 1710 MHz ~ 1755 MHz Conducted Output Power: DL : 20 W(43 dBm) UL : 1 W(30 dBm) FCC Rules Part(s): CFR 47, Part 27 Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Part 27 of the FCC Rules under normal use and maintenance. Report prepared by : Yong Hyun Lee Test engineer of RF Team Approved by : Chang Seok Choi Manager of RF Team HCT CO., LTD. S2O-AXM2100-9543I Advanced RF Technologies, Inc. Manufacture: Advanced RF Technologies, Inc. 3116 West VANOWEN STREET, BURBANK, CA 91505 Date of Issue: Jun 02, 2014 Location: HCT CO., LTD., 74, Seoicheon-ro 578beon-gil, Majang- myeon, Icheon-si, Gyeonggi-do, Korea Test Report No.: HCT-R-1402-F022-6 IC RecognitionNo:5944A3 Report No.: HCT-R-1402-F022-6 FCC ID: S2O-AXM2100-9543I ` DATE : Jun 02,2014 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr - 2 /172- Version TEST REPORT NO. DATE DESCRIPTION HCT-R-1402-F022 February 21, 2014 - First Approval Report HCT-R-1402-F022-1 March 04, 2014 - Revised the RF output power limit and description. (RF Power Output => Conducted RF Output Power) HCT-R-1402-F022-2 March 07, 2014 - Revised the clause 2.2. (Add the worst case configuration) - Revised the clause 7. (Add the test for Out of Band Rejection) HCT-R-1402-F022-3 March 25, 2014 - Add The technologies CDMA, WCDMA, LTE 5 MHz, LTE 15 MHz, LTE 20 MHz HCT-R-1402-F022-4 April 02, 2014 - Revised the MPE uplink power HCT-R-1402-F022-5 April 15, 2014 - Add the TEST FACILITY & Accreditation on page 5 HCT-R-1402-F022-6 Jun 02, 2014 -Revised the MPE uplink Report No.: HCT-R-1402-F022-6 FCC ID: S2O-AXM2100-9543I ` DATE : Jun 02,2014 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr - 3 /172- CONTENTS 1. CLIENT INFORMATION ........................................................................................................................................... 4 2. FACILITIES AND ACCREDITATIONS ................................................................................................................... 5 2.1. FACILITIES ......................................................................................................................................... 5 2.2. EQUIPMENT ....................................................................................................................................... 5 3. TEST SUMMARY ........................................................................................................................................................ 6 3.1. STANDARDS ...................................................................................................................................... 6 3.2. MODE OF OPERATION DURING THE TEST .................................................................................... 6 4. STANDARDS ENVIRONMENTAL TEST CONDITIONS ...................................................................................... 7 5. TEST EQUIPMENT ..................................................................................................................................................... 8 6. RF OUTPUT POWER ................................................................................................................................................. 9 7. OCCUPIED BANDWIDTH ....................................................................................................................................... 39 8. SPURIOUS AND HARMONIC EMISSION AT ANTENNA TERMINAL .......................................................... 94 9. FIELD STRENGTH OF SPURIOUS RADIATION ............................................................................................. 164 10. FREQUENCY STABILITY OVER TEMPERATURE AND VOLTAGE VARIATIONS ................................ 169 11. RF EXPOSURE STATEMENT ............................................................................................................................ 171 Report No.: HCT-R-1402-F022-6 FCC ID: S2O-AXM2100-9543I ` DATE : Jun 02,2014 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr - 4 /172- 1. CLIENT INFORMATION{ TC "1. CLIENT INFORMATION" \f C \l "1" } The EUT has been tested by request of Company Advanced RF Technologies, Inc. 3116 West VANOWEN STREET, BURBANK, CA 91505 Contact Point Attention/ E-Mail: HK Song/ [email protected] Tel./ H.P. : +82-31-637-4435/ +82-10-3191-4773 ■FCC ID: S2O-AXM2100-9543I ■ APPLICANT: Advanced RF Technologies, Inc ■ EUT T y pe: REPEATER ■ Mo del:AXM2100-9543-ICS ■ Frequency Rang es: DL : 2110 MHz ~ 2155 MHz UL : 1710 MHz ~ 1755 MHz ■Conducted Output Po wer:D L : 20 W(43 dBm) UL : 1 W(30 dBm) ■ Antenna Gain(s) :18 dBi ■Date(s) of Test s: 2014. 02. 08. ~ 2014. 02. 14, 2014. 03. 17. ~ 2014.03.21 ■ FC C Rules Part(s): ■ Me asurement st andard(s): CF R Title 47 Part 27 Sub Part C ANSI/TIA-603-C-2004, KDB 971168 D01 v02r01 ■ Place of Tests:74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea. (IC Recognition No. : 5944A-3) Report No.: HCT-R-1402-F022-6 FCC ID: S2O-AXM2100-9543I ` DATE …

Text truncated - open the document above for the full version.

Report No.: HCT-R-1402-F022-6 FCC ID: S2O-AXM2100-9543I ` DATE : Jun 02,2014 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr - 94 /172- 8. SPURIOUS AND HARMONIC EMISSION AT ANTENNA TERMINAL Test Requirement(s): § 2.1051 Measurements required: Spurious emissions at antenna terminals: The radio frequency voltage or powers generated within the equipment and appearing on a spurious frequency shall be checked at the equipment output terminals when properly loaded with a suitable artificial antenna. Curves or equivalent data shall show the magnitude of each harmonic and other spurious emission that can be detected when the equipment is operated under the conditions specified in § 2.1049 as appropriate. The magnitude of spurious emissions which are attenuated more than 20 dB below the permissible value need not be specified. § 27.53 Emission limits (h) For operations in the 1710–1755 MHz and 2110–2155 MHz bands, the power of any emission outside a licensee's frequency block shall be attenuated below the transmitter power (P) by at least 43 + 10 log 10 (P) dB. Test Procedures: A modulated carrier generated by the signal generator carrier was connected to either the Uplink or Downlink RF port at a maximum level as determined by the spectrum analyzer was connected to either the Uplink or Downlink port depending on the circuitry being measured. The spectrum was investigated from 30 MHz to the 26.5 GHz of the carrier. Test Results: The EUT complies with the requirements of this section. There were no detectable Spurious emissions for this EUT. Report No.: HCT-R-1402-F022-6 FCC ID: S2O-AXM2100-9543I ` DATE : Jun 02,2014 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr - 95 /172- Plots of Spurious Emission Conducted Spurious Emissions (30 MHz – 1 GHz) [CDMA Downlink Low] [CDMA Downlink Middle] Report No.: HCT-R-1402-F022-6 FCC ID: S2O-AXM2100-9543I ` DATE : Jun 02,2014 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr - 96 /172- [CDMA Downlink High] Report No.: HCT-R-1402-F022-6 FCC ID: S2O-AXM2100-9543I ` DATE : Jun 02,2014 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr - 97 /172- [WCDMA Downlink Low] [WCDMA Downlink Middle] Report No.: HCT-R-1402-F022-6 FCC ID: S2O-AXM2100-9543I ` DATE : Jun 02,2014 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr - 98 /172- [WCDMA Downlink High] Report No.: HCT-R-1402-F022-6 FCC ID: S2O-AXM2100-9543I ` DATE : Jun 02,2014 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr - 99 /172- [LTE Downlink 5 MHz Low] [LTE Downlink 5 MHz Middle] Report No.: HCT-R-1402-F022-6 FCC ID: S2O-AXM2100-9543I ` DATE : Jun 02,2014 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr - 100 /172- [LTE Downlink 5 MHz High] Report No.: HCT-R-1402-F022-6 FCC ID: S2O-AXM2100-9543I ` DATE : Jun 02,2014 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr - 101 /172- [LTE Downlink 10 MHz Low] [LTE Downlink 10 MHz Middle] Report No.: HCT-R-1402-F022-6 FCC ID: S2O-AXM2100-9543I ` DATE : Jun 02,2014 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr - 102 /172- [LTE Downlink 10 MHz High] Report No.: HCT-R-1402-F022-6 FCC ID: S2O-AXM2100-9543I ` DATE : Jun 02,2014 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr - 103 /172- [LTE Downlink 15 MHz Low] [LTE Downlink 15 MHz Middle] Report No.: HCT-R-1402-F022-6 FCC ID: S2O-AXM2100-9543I ` DATE : Jun 02,2014 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr - 104 /172- [LTE Downlink 15 MHz High] Report No.: HCT-R-1402-F022-6 FCC ID: S2O-AXM2100-9543I ` DATE : Jun 02,2014 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr - 105 /172- [LTE Downlink 20 MHz Low] [LTE Downlink 20 MHz Middle] Report No.: HCT-R-1402-F022-6 FCC ID: S2O-AXM2100-9543I ` DATE : Jun 02,2014 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr - 106 /172- [LTE Downlink 20 MHz High] Report No.: HCT-R-1402-F022-6 FCC ID: S2O-AXM2100-9543I ` DATE : Jun 02,2014 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr - 107 /172- [CDMA Uplink Low] [CDMA Uplink Middle] Report No.: HCT-R-1402-F022-6 FCC ID: S2O-AXM2100-9543I ` DATE : Jun 02,2014 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr - 108 /172- [CDMA Uplink High] Report No.: HCT-R-1402-F022-6 FCC ID: S2O-AXM2100-9543I ` DATE : Jun 02,2014 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : +82 31 645 6300 FAX : +82 31 645 6401 www.hct.co.kr - 109 /172- [WCDMA Uplink Low] [WCDMA Uplink Middle] Report No.: HCT-R-1402-F022-6 FCC ID: S2O-AXM2100-9543I ` DATE : Jun 02,2014 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : +82 31 645 6300 FAX : +82…

Text truncated - open the document above for the full version.

FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 1/5 TEST SETUP PHOTOGRAPHS FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 2/5 ■ Test Setup Photo FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 3/5 FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 4/5 ■ Conducted Emission Test Setup Photo FCC ID : S2O-AXM2100-9543I HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr 5/5
