S2RBT-R88Tubular Motor Remote Control System

BT-R88 User Manual (A) Action key: 1. Up 2. Stop 3. Down 4. Off: 4.1 Press off-key the receiver will switch off until press stop-key. 4.2 The function of the panel is the same as the transmitter. 4.3 When the receiver accesses the opposite signal in the operation, its action will stop. If the operation is over the setting time, the machine will switch off. (B) Learning mode: 1. Press the stop-key and off-key simultaneously. 2. The receiver will beep 3 seconds to enter learning mode. 3. If it’s over 5 seconds without inputting any signal, the receiver will skip the learning mode. (C) After entering the learning mode, the user can change the action mode by pressing any key or add new transmitter as following, 1. Up-key: If it beeps one sound, the screen will up until you didn’t press the key. If it beeps 2 sounds, the screen will up to upper limits and you don’t need to keep pressing. 2. Down-key: If it beeps one sound, the screen will down until you didn’t press the key. If it beeps 2 sounds, the screen will down to lower limits and you don’t need to keep pressing. 3. Add new transmitter: press the stop-key of the new transmitter, the receiver will beep for 1 beep. And it stands for the transmitter has copied the code. The user can input several transmitters continuously. 4. Opposite action mode: after press the off key, you can change the action mode. When it beeps one sound, it stands for the action direction will depend on what key you press, for example, if you press UP, the screen will up. When it beeps 2 sounds, the action direction will be contrary, for example, when you press up, the screen will down. 5. The transmitter can change several action modes continually. After finishing all setting, the receiver will skip the learning mode with a long beep automatically over 5 seconds. (D) Code clear: 1. Take apart the receiver and find the switch SW4. 2. Cut off the power supply. 3. After 15 seconds, recover the power supply. 4. Press SW4 within 8 seconds and it will start to beep every second. 5. Then press the stop-key of the new transmitter within 5 seconds. The receiver will copy new code and remove the old one. 6. If you don’t press the stop-key of the transmitter, the receiver will still save the old code. (E) Total operation time counting mode 1. First, the screen must in its upper or lower limit location. 2. Take apart the receiver. Press the stop-key firstly, then press SW4. The LED will start to shine with beep every second. Now the receiver is in learning mode. 3. Let the screen start to raise or lower to opposite limit. 4. When the screen raises or lowers to the opposite limit location, the operation will stop and the timer circuit will save the total operation time equals to the operation time add 5 seconds. Then LED and beep also stop automatically. 5. The original setting of the total operation time is 90 seconds. The user can reset the total operation time. If it is over 250 seconds, the timer circuit will stop counting and won’t save any value. Page 1 Wiring diagram AC IN Tubular motor C：Common D：Down U：U p G ：Earthing line Clearance Earthing line ※The voltage of power supply are AC110V or AC220V ※The working voltage depends on its power supply. Page 2 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. . Consult the dealer or an experienced radio/TV technician for help. FCC Caution : To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation .

Bin Terng Enterprise Co., Ltd. No.21 An Lin 3rd St., Yin Chao Hsiang, Kaohsiung County, Taiwan R.O.C. Federal Communications Commission Dear Sir: We, the undersigned, hereby authorize ETS Dr.Genz Taiwan PS Co.,Ltd. to act on our behalf in all matters relating to application for“ ( Model : BT-R88, FCC ID: S2RBT-R88 )＂ authorization, including the signing of all documents relating to these matters. Any and all acts carried out by ETS Dr.Genz Taiwan PS Co.,Ltd. on our behalf shall have the same effect as acts of our own. The applicant certifies that in the case of an individual applicant ( e.g., corporation ), no party to the applicant is subject to a denial of federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-drug abuse Act of 1988, 21 U.S.C. 862. For a definition of a “party” for these purposes See 47 C.F.R. 1.2002 (b). By: By: Chang Chiu Jung (Signature) (Printed) Title : RD engineer Applicant : Bin Terng Enterprise Co., Ltd. Address : No.21 An Lin 3rd St., Yin Chao Hsiang, Kaohsiung County 824, Taiwan R.O.C. Tel : +886-7-616-7316 Fax:+886-7-616-7321 Date : March. 08, 2005

Bin Terng Enterprise Co., Ltd. No.21 An Lin 3rd St., Yin Chao Hsiang, Kaohsiung County, Taiwan R.O.C. Federal Communications Commission FCC ID: S2RBT-R88 Dear Sir: This is to request confidentiality on information submitted for above application. We would like to request confidentiality on some exhibits we submitted for above original application for the reason of trade secret. If those exhibits are available for public inspection, any person who once gets the information contained in those exhibits will be able to design and to make the same products very easily. This is a very serious problem and huge loss for us, because we did invest so much on it. Please be not made the Exhibit Types listed below routinely available for public inspection: Part List Schematics Block Diagram By: By: Chang Chin Jung (Signature) (Printed) Title : RD engineer Applicant : Bin Terng Enterprise Co., Ltd. Address : No.21 An Lin 3rd St., Yin Chao Hsiang, Kaohsiung County, Taiwan R.O.C. Tel : +886-7-616-7316 Fax:+886-7-616-7321 Date : March. 08, 2005

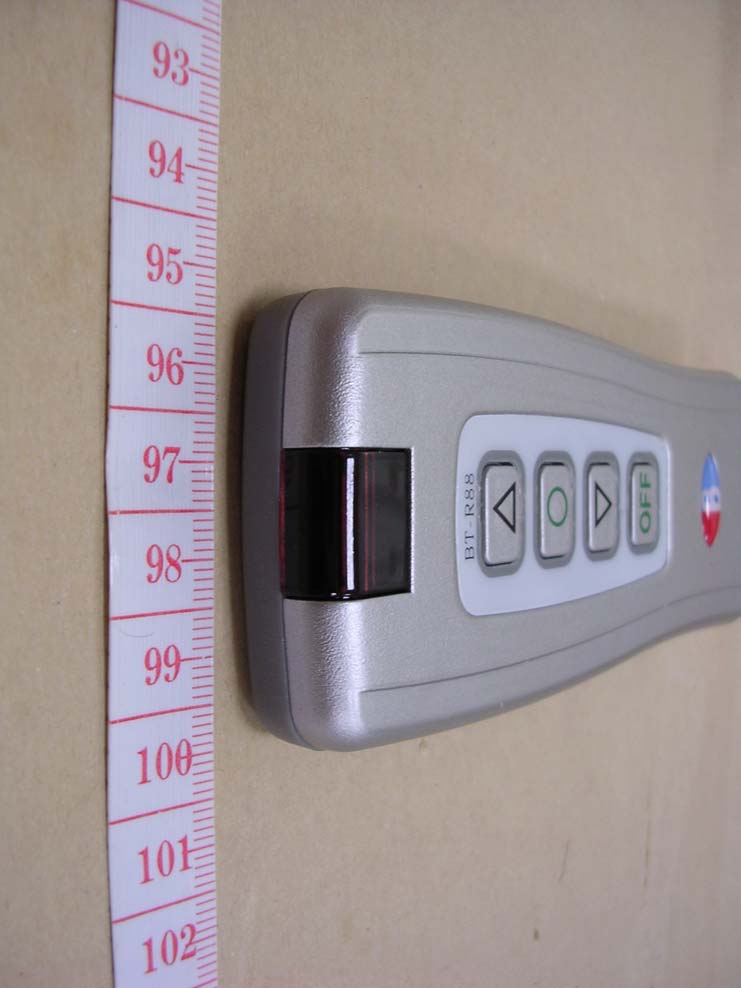

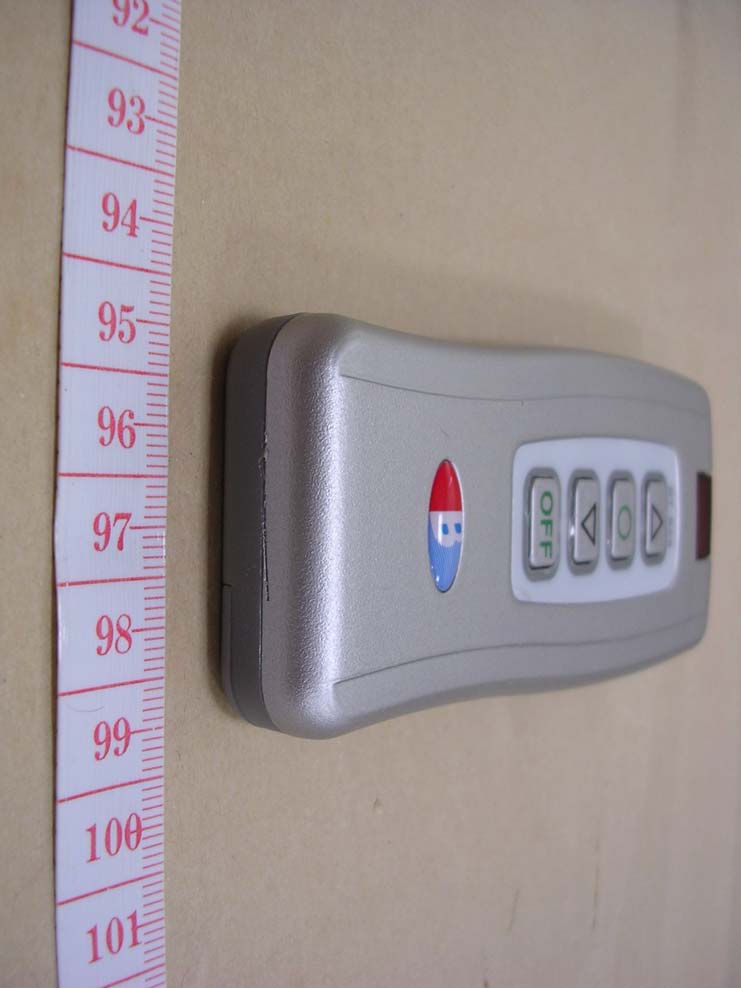

ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20502-5715-C-1 FCC ID: S2RBT-R88 ETS. Dr. Genz Taiwan PS Co., Ltd. External Photo ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20502-5715-C-1 FCC ID: S2RBT-R88 ETS. Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20502-5715-C-1 FCC ID: S2RBT-R88 ETS. Dr. Genz Taiwan PS Co., Ltd. ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20502-5715-C-1 FCC ID: S2RBT-R88 ETS. Dr. Genz Taiwan PS Co., Ltd.

BT-R88 (TX) FCC ID Label & Location 3cm 1.5cm

ETS Dr.Genz Taiwan PS Co., Ltd. FCC Registration No.: 930600 Accredited Testing Laboratory A2LA Cert.No.: 2300.01 TEST - REPORT FCC RULES PART 15 / SUBPART C FCC ID:S2RBT-R88 Test report no.: W6M20502-5715-C-1 FCC ETS DR. GENZ TAIWAN PS CO., LTD 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU, TAIPEI 114, TAIWAN, R.O.C. PHONE 886-2-66068877 FAX 886-2-66068879 ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20502-5715-C-1 FCC ID: S2RBT-R88 ETS Dr. Genz Taiwan PS Co., Ltd. Page 1 of 18 TABLE OF CONTENTS 1 General information 2 1.1 Notes 2 1.2 Testing laboratory 3 1.3 Details of approval holder 3 1.4 Application details 4 1.5 Test item 4 1.6 Test standards 5 2 Technical test 5 2.1 Summary of test results 5 2.2 Test environment 5 2.3 Test equipment utilized 6 2.4 General Test Procedure 9 3 Test Results 10 Appendix 18 ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20502-5715-C-1 FCC ID: S2RBT-R88 ETS Dr. Genz Taiwan PS Co., Ltd. Page 2 of 18 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS DR. GENZ TAIWAN PS CO., LTD Tester: 22. 03.2005 Orville Chang Date ETS-Lab. Name Signature Technical responsibility for area of testing: 22. 03.2005 Steven Chuang Date ETS Name Signature ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20502-5715-C-1 FCC ID: S2RBT-R88 ETS Dr. Genz Taiwan PS Co., Ltd. Page 3 of 18 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Shuang Sing Village, LiShuei Rd., Wanli Township, Taipei County 207, Taiwan (R.O.C.) Company ETS DR. GENZ TAIWAN PS CO., LTD. 6F, NO. 58, LANE 188, RUEY-KUANG RD. NEIHU, TAIPEI 114, TAIWAN R.O.C. Tel : 886-2-66068877 Fax : 886-2-66068879 1.2.2 Details of accreditation status Accredited testing laboratory A2LA-registration number: 2300.01 FCC filed test laboratory Reg. No. 930600 Industry Canada filed test laboratory Reg. No. IC 5679 1.3 Details of approval holder Name : Bin Terng Enterprise Co., Ltd. Street : No.21 An Lin 3rd St., Yin Chao Hsiang Town : Kaohsiung County Country : Taiwan R.O.C. Telephone : +886-7-616-7316 Fax : +886-7-616-7321 Contact : Ms. Sunny Wang Telephone : +886-7-616-7316 ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20502-5715-C-1 FCC ID: S2RBT-R88 ETS Dr. Genz Taiwan PS Co., Ltd. Page 4 of 18 1.4 Application details Date of receipt of application : 25.02.2005 Date of receipt of test item : 07.03.2005 Date of test : 07.03.2005 to 22.03.2005 1.5 Test item Description of test item : Tubular Motor Remote Control System Type identification : BT-R88 Serial number : Test sample without serial number Transmitting frequency : 433,92 MHz Operation mode : simplex Transmitting mode : K1N Voltage supply Transmitter : 12 V DC ( Battery ) Receiver : 120 V AC (If the device is using battery, please check if the device is tested under fresh battery condition.) Highest clock frequency : 433.92 MHz Antenna type Transmitter : integral (on board) Antenna Receiver : integral (on board) Antenna Photos : see Annex Manufacturer : (if applicable) Name : Street : Town : Country : Additional information : ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20502-5715-C-1 FCC ID: S2RBT-R88 ETS Dr. Genz Taiwan PS Co., Ltd. Page 5 of 18 1.6 Test standards Technical standard : FCC RULES PART 15 (07/12/2004) / SUBPART B § 15.109/ SUBPART C § 15.203, § 15.209, § 15.231 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 23 o C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa Details of power supply : Transmitter : 12 V DC ( Battery ) Receiver : 120 V AC ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20502-5715-C-1 FCC ID: S2RBT-R88 ETS Dr. Genz Taiwan PS Co., Ltd. Page 6 of 18 2.3 Test equipment utilized No. Test equipment Type Serial No. Manufactur er Next Cal. Date ETSTW-CE 001 EMI TEST RECEIVER ESHS10 842121/013 R&S 08.11.2005 ETSTW-CE 002 PREREULATOR MODE DC POWER SUPPLY ETSTW-CE 003 AC POWER SOURCE APS-9102 D161137 GW ETSTW-CE 004 ZWEILEITER-V-NETZNACHBILDUNG TWO- LINE V-NETWORK ESH3-Z5 840731/011 R&S 08.11.2006 ETSTW-CE 005 Line-Impedance Stabilisation Network NNBM 8126D 137 Schwarzbeck 03.11.2006 ETSTW-CE 006 IMPULS-BEGRENZER PULSE LIMITER ESH3-Z2 100226 R&S 10.11.2006 ETSTW-CE 007 SPECTRUM ANALYZER 5GHz FSB 849670/001 R&S ETSTW-CE 008 ABSORBING CLAMP MDS 21 3469 ABSORPTIONS- MESSWANDLER -ZANGE 04.11.2006 ETSTW-CE 009 TEMP.&HUMIDITY CHAMBER GTH-225-40-1P-U MAA0305-009GIANT FORCE 10.05.2005 ETSTW-CE 010 Comb Generator-conducted ETS ETSTW-CE 011 Power Line Conducted Emission Only ETS ETSTW-CS 001 SIGNAL GENERATOR SMX 849254/003 R&S 31.10.2005 ETSTW-CS 002 COUPLING AND DECOUPLING NETWORK CDN S751 19263 CHAFFNER 03.11.2006 ETSTW-CS 003 COUPLING AND DECOUPLING NETWORK CDN T400 19820 CHAFFNER 03.11.2006 ETSTW-CS 004 COUPLING AND DECOUPLING NETWORK CDN M016 20053 CHAFFNER 03.11.2006 ETSTW-CS 00…

Text truncated - open the document above for the full version.

ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20502-5715-C-1 FCC ID: S2RBT-R88 ETS. Dr. Genz Taiwan PS Co., Ltd. Set Up Photo ETS DR. GENZ TAIWAN PS CO., LTD Registration number: W6M20502-5715-C-1 FCC ID: S2RBT-R88 ETS. Dr. Genz Taiwan PS Co., Ltd.
