S2UNS100US

Brunswick New Technologies - Marine Electronics

VHF MARINE RADIO

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Apr 14, 2005
Application Purpose: Original Equipment
Date of Application: Apr 14, 2005
Equipment Note: VHF MARINE RADIO
Frequency Range: 156.02500000 - 157.42500000
Company: Brunswick New Technologies - Marine Electronics
Country: United States

Documents & Files

Select a file to view

Users Manual

External Photos

ID Label/Location Info

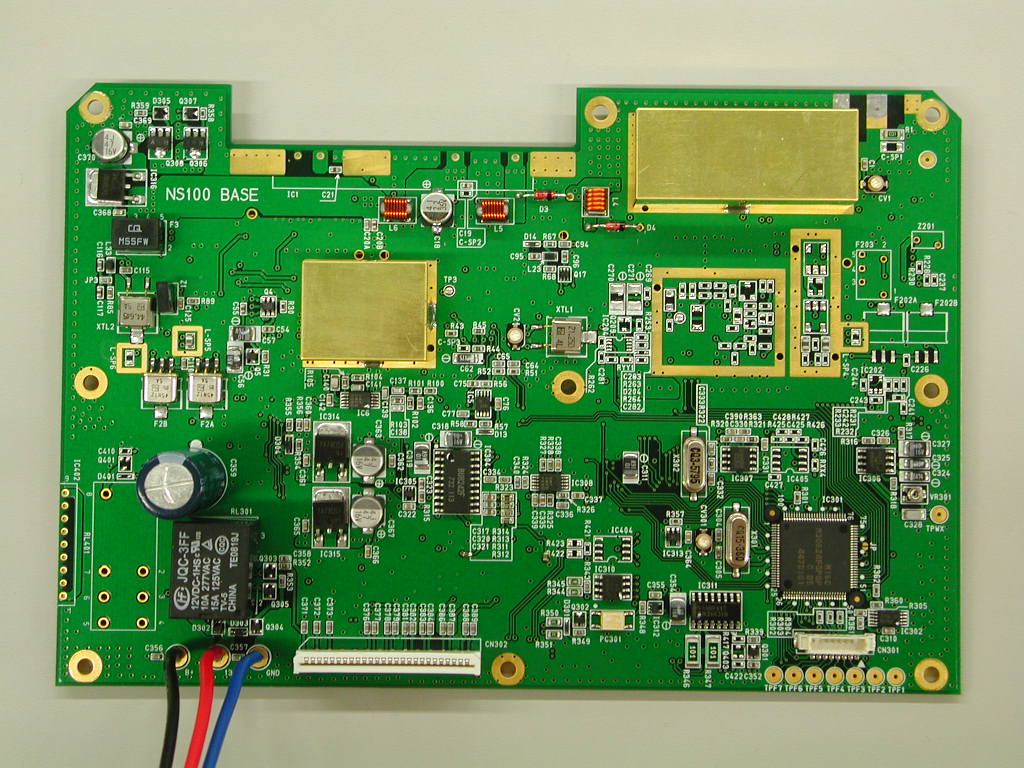

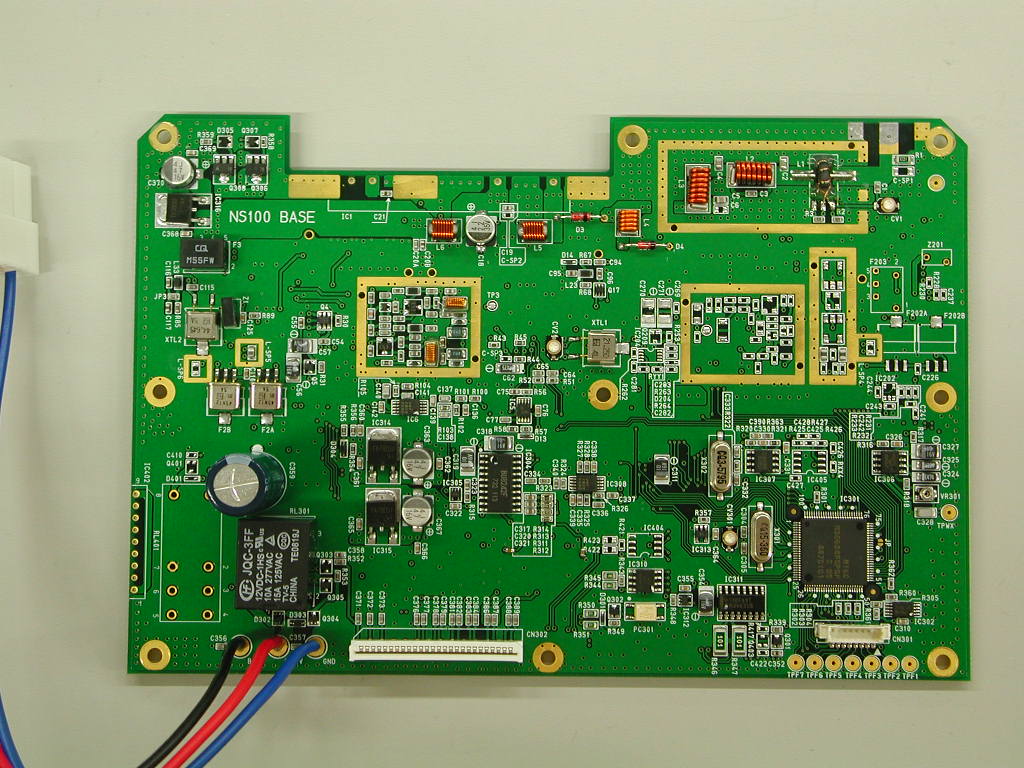

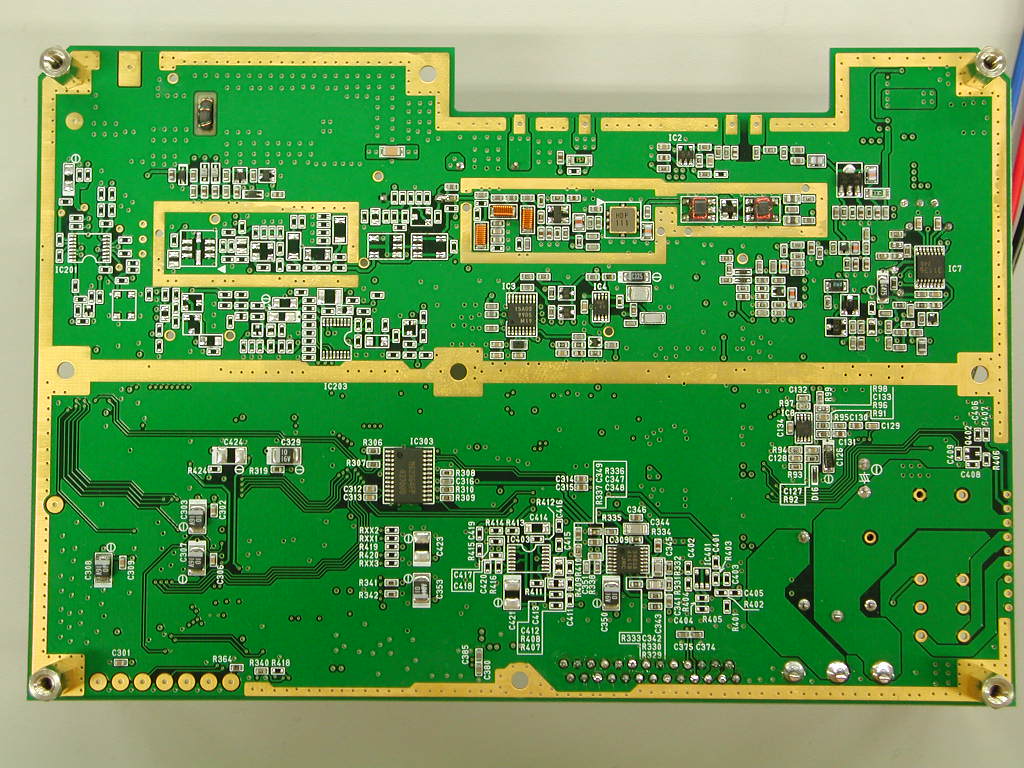

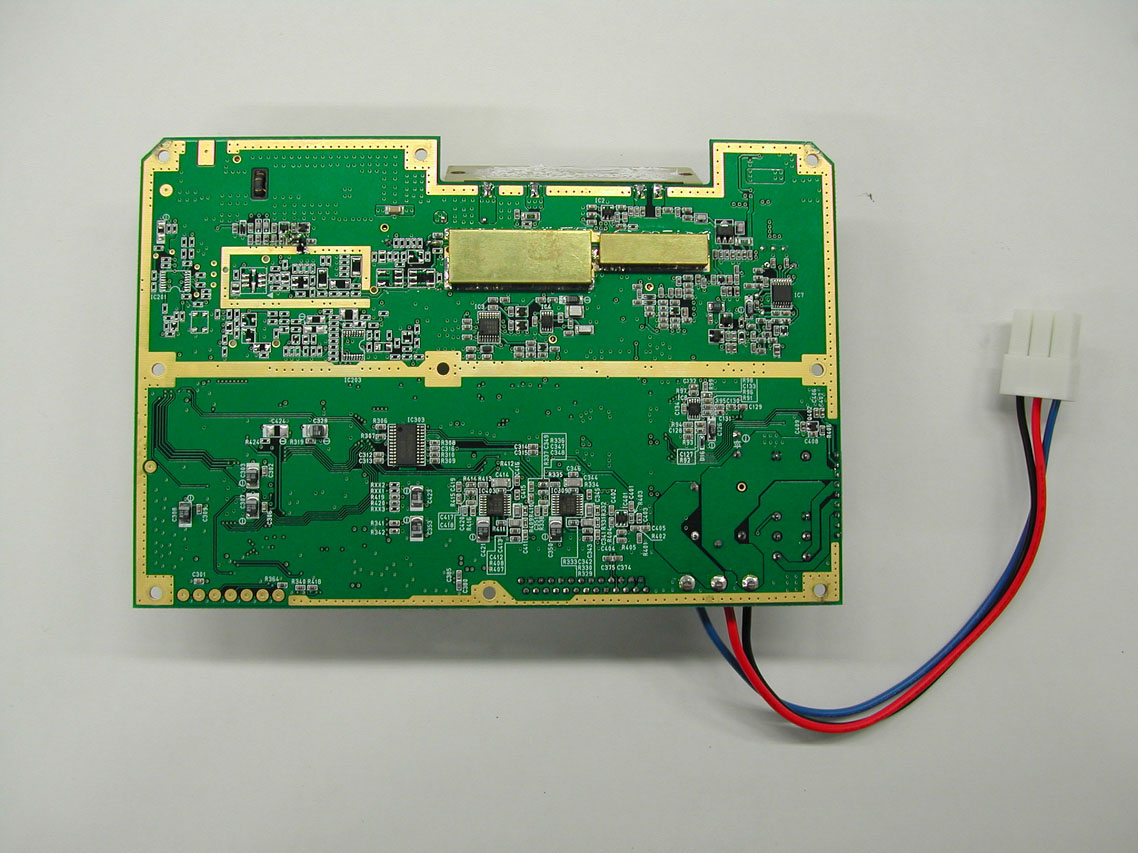

Internal Photos

Operational Description

Parts List/Tune Up Info

Schematics

Test Report

Contact Information

Applicant

Liz Landers

[email protected]978 889 2039Fax: 978 879 4491

Test Firm

Timco Engineering, Inc.S Sanders

[email protected]888-472-2424Fax: 352-472-2030

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
4	8	156.025 MHz - 157.425 MHz	1 W	16K0F3E	10 ppm

Grant Notes

Power listed is conducted. Maximum antenna gain is 5 dBd. The duty factor is not to exceed 50%. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 96 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
