S3671312TOMY06RC Hand Model: 71312

123456 A B C D 654321 D C B A R/C HAND CARCUTT PANE DLAGRAM V+ 3V Decoder application circult Encoder application circult RF1DODIN ROSCOUTROSC DO4 DO3 DO2 DO1 D O ( 5 : 0 ) R V O U T 2 I N 2 O U T 1 I N 1 V+ 3V M B F R/F L/F D14 D13 D12 D11 O S C I O S C O R O S C 49.86MHZ V+ 4.5V DOUT TEN TEN D1 TEN RF module RFO RF module Crystal SM6136B SM6135

DOC-FCC009 4/14/2005 Page 1 of 2 FEDERAL COMMUNICATIONS COMMISSION - FCC FORM 731 APPLICATION FOR EQUIPMENT AUTHORIZATION Approved by OMB 3060 - 0934 Expires 02/28/2005 Item 1. Applicant's complete, legal business name: Gakken (Hong Kong) Co., Ltd. Item 2. Applicant's mailing address Line 1: Room 702-3, Fourseas Building, Line 2: 208-212 Nathan Road, P.O.Box: City: Kowloon, State: Country (if foreign address): Hong Kong Zip/Postal Code: Item 3. FCC ID: Grantee code: S36 Equipment Product Code (14 characters maximum): 71312TOMY06 Item 4. Person at the applicant's address to receive grant or for contact: First Name: KC Mail Stop: Last Name: Lee Telephone: 852 26661807 Ext: Title: Manager E-mail: [email protected] Fax No: Item 5. Instead of Applicant, the original Grant is authorized to be mailed to: The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Tai Po Industrial Estate, N.T., Hong Kong. Contact: KC Lee E-mail: [email protected] Item 6. Technical Contact: Firm Name: The Hong Kong Standards and Testing Centre Ltd. Telephone: 852 26661807 Ext: Fax No: 852 2665 0848 First Name: KC Middle Initial: Last Name: Lee Address Line 1: 10 Dai Wang Street, P.O.Box: Address Line 2: Tai Po Industrial Estate City: Country (if foreign address):Hong Kong Zip/Postal Code: E-mail: [email protected] Item 7. Non-Technical Contact: Firm Name: The Hong Kong Standards and Testing Centre Ltd. Telephone: 852 26661807 Ext: Fax No: 852 2665 0848 First Name: KC Middle Initial: Last Name: Lee Address Line 1: 10 Dai Wang Street, P.O.Box: Address Line 2: Tai Po Industrial Estate City: Country (if foreign address):Hong Kong Zip/Postal Code: E-mail: [email protected] Item 8. * Does this application include a request for confidentiality for any portion(s) of the data contained in this application pursuant to 47 CFR § 0.459 of the Commission Rules? If "Yes" see instructions. (please mark as appropriate) x No Item 9. Does the applicant request that the Commission defer grant of this application pursuant 47 CFR § 0.457(d)(1)(ii)? (See instructions) If so, specify date when grant may be issued (MM/DD/YYYY format): Item 10. * Equipment Class: DXX * Description of Product as it is Marketed: Part 15 Low Power Communication Device Transmitter (NOTE: RC Hand) Item 11. * Application is for: (please mark as appropriate) x Original Equipment (See instructions) Ο Change in identification of presently authorized equipment: Original FCC ID: Grant Date (MM/DD/YYYY format): Ο Class II permissive change or modification of presently authorized equipment (See instructions) Item 12. Is the equipment in this application: * (a) a composite device subject to an additional equipment authorization? * (b) part of a system that operates with, or is marketed with, another device that requires an equipment authorization? If either of the above questions is answered "Yes" complete section 12(c). Ο Yes x No Ο Yes x No DOC-FCC009 4/14/2005 Page 2 of 2 (c) The related application: Ο has been granted under the FCC ID listed to the right Ο is in the process of being filed under the FCC ID listed to the right Ο is pending with the FCC under the FCC ID listed to the right FCC ID Item 13. Name of test firm and contact person on file with the FCC, if different from applicant or contact person: Firm Name: The Hong Kong Standards & Testing Centre Ltd. Last Name: KC Telephone 26661852 Ext Fax No. 26650848 E-mail: [email protected] Item 14. Enter any text that you would like to appear at the bottom of the Grant of Equipment Authorization. Read each certification carefully before answering and signing this application Equipment Specifications: Rule Part Frequency Range (MHz) Power (W) Frequency Tolerance and Units Emission Designator Note Codes 15 49.86 WILLFUL FALSE STATEMENTS MADE ON THIS FORM ARE PUNISHABLE BY FINE AND IMPRISONMENT (U.S. CODE, TITLE 18, SECTION 1001), AND/OR REVOCATION OF ANY STATION LICENSE OR CONSTITUTION PERMIT (U.S. CODE, TITLE 47, SECTION 312(a)(1)), AND/OR FORFEITURE (U.S. CODE, TITLE 47, SECTION 503). Item 15. *SECTION 5301 (ANTI-DRUG ABUSE) CERTIFICATION: The applicant must certify that neither the applicant nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Does the applicant or authorized agent so certify? x Yes Ο No Item 16. APPLICANT/AGENT CERTIFICATION: I certify that I am authorized to sign this application. All of the statements herein and the exhibits attached hereto, are true and correct to the best of my knowledge and belief. IN accepting a Grant of Equipment Authorization issued by the FCC as a result of the representations made in this application, the applicant is responsible for (1) labeling the equipment with the exact FCC ID specified in this application, (2) compliance statement labeling pursuant to the applicable rules, and (3) compliance of the equipment with the applicable technical rules. If the applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC's technical requirements. Authorizing an agent to sign this application, is done solely at the applicant's discretion; however, the applicant remains responsible for all statements in this application. If an agent has signed this application on behalf of the applicant, a written letter of authorization which includes information to enable the agent to respond to the above section 5301 (Anti-Drug Abuse) Certification statement has been provided by the applicant. It is understood that the letter of authorization must be submitted to the FCC upon request, and that the FCC reserves the right to contact the applicant directly at any ti…

Text truncated - open the document above for the full version.

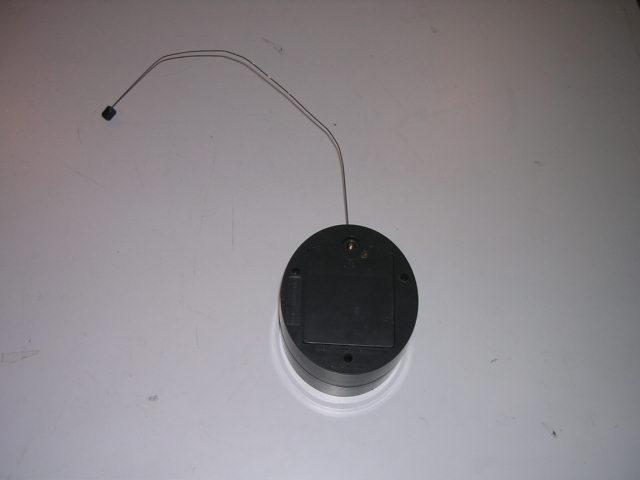

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

Application No.: HM156687 Date: 2006-07-10 FCC ID: S3671312TOM06 Circuit Description The 49.86 MHz crystal oscillator drives the base of Q2 the final/buffer amplifier. The modulation provided by IC. The output of Q2 has the matching network consisting of C4 and C8 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 27.6 long Metal Antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 4.5 Volt (“AA” size battery x 3) primary battery. Operation Descriptions The transmitter is a remote control toy operating at 49.86MHz band. The transmitter is powered by a 4.5Vd.c battery (“AA” x 3) and the transmitting frequency is crystal controlled. There are 2 buttons to control the forward reverse motor and director of movement. The operation is achieved by different combinations of form pulse modulating signal on the 49.86MHz carrier frequency. Remarks: The transmitter is a 2 Button s transmitter. The EUT continues to transmit while Button is being pressed. It is Pulse transmitter, Modulation by IC; and type is Pulse modulation.

NO parts No. No.of up 1 Crystal 49.86MHz, 30ppm, HC-49U 1X1 2 Capacitor Ceramic 25pF NPO，±5% 1C3 3 Capacitor Ceramic 10nF，±10% 1C5 4 Capacitor Ceramic 15pF NPO，±5% 1C7 5 Capacitor Ceramic 12pF NPO，±5% 1C8 6 Capacitor Ceramic 39pF NPO，±5% 1C2 7 Capacitor Ceramic 33pF NPO，±5% 1C4 8 Capacitor Ceramic 68pF NPO，±5% 1C10 9 Capacitor Ceramic 150pF NPO，±5% 1C6 10 Capacitor Ceramic 100nF，±10% 1C9 11 Resistor 47Ω, 1/4W,±5% 2R1,5 12 Resistor 100Ω, 1/4W,±5% 1R2 13 Resistor 1.2K, 1/4W ,±5% 1R8 14 Resistor 1K, 1/4W ,±5% 1R7 15 Resistor 15K, 1/4W, ±5% 1R6 16 Resistor 180K, 1/4W,±5% 1R3 17 Resistor 160K, 1/4W,±5% 1R4 18 Diode 1N4001 2D1,2 19 Transistor S9014, TO-92, NPN，β 250~400 1Q1 20 Transistor S9018, TO-92, NPN，β250~400 1Q2 21 Integrated Circuit SM6316B, DIP14 Type 1IC1 22 PCB 52x 46x 1.6mm, SS, PP1 23 On-off Switch 1P2T, SS-12H15-G4 NS 1K1 24 Switch RS-014R 2S1,2 25 Hollow Winding7KB-1172-00 1T1 26 Capacitor Electrolytic 0.1uF/16V, ±20%, 5(D)x 11mm 1C1 27 Solid Coil 1.5uH Q：＞50 ,±10% 2L1,2 28Regulatorn Diode 3.0V1ZD1 29 Sponge Pillow L13 x W5 x H2mm 1X1 30 LED Φ3 Red 1LED1 31LED Bracket L6mm xΦ3.2mm ABS 7571LED1 Assembly parts list 32 Standard Wire 3+50+3mm, AWG#28, Black1 33 Standard Wire 3+100+3mm, AWG#28, Red 1 34 Standard Wire 3+80+3mm, AWG#28, Red 1 1.0 Parts name/SpecificationPlace PCB -- ANT Page No. 1 of 1 Electronics CO.,LTD(BOM) Custemer Gakken Item R/C Hand 49.86MHz (TX) Document No. 2006.06.27 Ver Establish data DIP parts list PCB -- Battery Plate -ve PCB -- Battery Plate +ve

C9 100nF C3 25pF NPO C 7 1 5 p F N P O C5 10nF C6 150pF NPO ZD1 3.0V R 1 4 7 Ω 1 / 4 W R 2 1 0 0 Ω 1 / 4 W R3 180K 1/4W R 4 1 6 0 K 1 / 4 W R 5 4 7 Ω 1 / 4 W R6 15K 1/4W Q1 S9014 Q2 S9018 L1 1.5uH L2 1.5uH ANT1 S1 RS-104R S2 RS-104R GND C 1 0 . 1 u F / 1 6 V 49.86MHz X1 T1 D 1 I N 4 0 0 1 D 2 I N 4 0 0 1 Drawan: Check: Approved: Eng: Released: Company:Electronics Co.Ltd. Title: File: Scale:1:1 Date: 2006.06.27 V+ V- R/C hand Shoot the electric E:\design\RC HAND.ddb R 7 1 K 1 / 4 W LED1 Φ3 K 1 S S - 1 2 H 1 5 - G 4 N S 7KB-1172-00 1-2 0.65uH 2-3 0.65uH 4-5 0.70uH 1 2 34 5 + B A T T E R Y - 1234567 891 0 1 1 1 2 1 3 1 4 IC1 SW6136B C4 33PF C2 39pF C8 12PF R8 1.2K C10 68pF NPO

STC Test Report Date : 2006-07-10 Page 1 of 17 No. : HM156687 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant: Gakken (Hong Kong) Co., Ltd. Room 702-3, Fourseas Building, 208-212 Nathan Road, Kowloon, Hong Kong. Description of Samples: Model name: RC Hand Model no.: #71312 Brand name: Takara FCC ID: S3671312TOMY06 Date Samples Received: 2006-05-23, 2006-06-10, 2006-06-20 Date Tested: 2006-05-29 to 2006-07-04 Investigation Requested: FCC Part 15 Subpart C Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- TSANG Chi Ho, EMD For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2006-07-10 Page 2 of 17 No. : HM156687 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 17 Content Page 2-3 of 17 1.0 General Details 1.1 Test Laboratory Page 4 of 17 1.2 Applicant Details Page 4 of 17 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 17 Description of EUT operation 1.4 Date of Order Page 5 of 17 1.5 Submitted Samples Page 5 of 17 1.6 Test Duration Page 5 of 17 1.7 Country of Origin Page 5 of 17 2.0 Technical Details 2.1 Investigations Requested Page 6 of 17 2.2 Test Standards and Results Summary Page 6 of 17 3.0 Test Results 3.1 Emission Page 7-11 of 17 3.2 Bandwidth Measurement Page 12-13 of 17 STC Test Report Date : 2006-07-10 Page 3 of 17 No. : HM156687 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 13 of 17 Appendix B Duty Cycle Correction During 100 msec Page 14-15 of 17 Appendix C Photographs Page 16-17 of 17 STC Test Report Date : 2006-07-10 Page 4 of 17 No. : HM156687 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant Gakken (Hong Kong) Co., Ltd. Room 702-3, Fourseas Building, 208-212 Nathan Road, Kowloon, Hong Kong. Manufacturer Electronics Co., Ltd. Flat G, 6/F., Block 2, Kin Ho Industrial Building, 14-24 Au Pui Wan Street, Shatin, N.T., Hong Kong. STC Test Report Date : 2006-07-10 Page 5 of 17 No. : HM156687 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample Model Name: RC Hand Manufacturer: Electronics Co., Ltd. Brand Name: Takara Model Number: #71312 Input Voltage: 4.5Vd.c (“AA” size battery x 3) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a Gakken (Hong Kong) Co., Ltd., RC Hand. The transmitter is a 2 buttons transmitter. The EUT continues to transmit while button is being pressed. It is pulse transmission, Modulation by IC, and type is pulse modulation. 1.4 Date of Order 2006-05-23, 2006-06-10, 2006-06-20 1.5 Submitted Sample(s): 5 Samples per model 1.6 Test Duration 2006-05-29 to 2006-07-04 1.7 Country of Origin China STC Test Report Date : 2006-07-10 Page 6 of 17 No. : HM156687 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15:2005 and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.235 ANSI C63.4:2003 N/A Radiated Emissions, 30MHz to 1G…

Text truncated - open the document above for the full version.

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
