S3R05031401700BLUETOOTH GPS RECEIVER/TRANSMITTER

*** USER’S MANUAL *** FCC ID : S3R05031401700 The Federal Communication Commission Statement This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of more of the following measures: - - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced Radio/TV technician for help. Use only shielded cables to connect I/O devices to this equipment. You are cautioned that change or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERECE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. 1. This device may not cause harmful interference and 2. This device must accept any interference received, including interference that may cause undesired operation. Bluetooth GPS Receiver User Manual -20- ÿ Beside some buildings, GPS signal is disturbed. ÿ Inside forests, or too many covers, GPS signal is disturbed. n If you use G-Mouse inside the car, some sun-control film will makes the GPS signal low or lost. n GPS satellite is owned by America military, sometimes they will tune-down the accuracy by some reason. In such cases, the GPS position may not fixed exactly. 7.3 Problem of Position Fix Error The position fix problem below does not mean the G-Mouse GPS receiver’s malfunction: ÿ You are driving on the freeway, but the GPS navigation software shows you are on the road beside. Or the opposite situation. ÿ You are driving on a grid like lane, it is possible to show your car on an incorrect lane, if these 2 lane very near. ÿ If you translate the GPS receiver inside somewhere with no satellite signal, the GPS position may stay at the position before. 7.4 Problem of Position Fix Fail If you found [Not Fix] after you start up the map software, please consider about following: Bluetooth GPS Receiver User Manual -21- n Please wait longer. Inquire position from satellites may cost several minutes depends on your GPS signal quality. n Please make sure that you put the G-Mouse GPS receiver at a proper place. Some sun-control film for car may cutoff the satellite signal. You may replace it and try again. Please make sure that you are not inside of somewhere the GPS signal shaded. Please reference the chapter [Satellite Signal Problem] about this. 8. Order Information (1) Part No: FGPXBT01 (2) Color of shell available BK: Black shell (None transparent) BL: Blue shell (transparent) Bluetooth GPS Receiver Contents 1. INTRODUCTION..........................................................................................................................1 1.1. OVERVIEW ...............................................................................................................................1 1.2. MAIN FEATURES.......................................................................................................................1 2. TECHNICAL SPECIFICATIONS ................................................................................................... 2 3. OPERATION AND TEST.................................................................................................................3 3.1. HARDWARE DESCRIPTION........................................................................................................4 3.2. WHAT DO YOU GET IN THE BOX?..............................................................................................5 3.3. SOFTWARE INSTALL .................................................................................................................5 4. APPENDIX A TEST REFERENCE FOR ONLY..............................................................................10 1. Introduction 1.1. Overview The BT-R700 Bluetooth GPS receiver is a Global Position System Receiver with Bluetooth wireless technology. This BT GPS receiver allows you to receive GPS data on mobile handhelds wirelessly. By sending GPS position data over Bluetooth, you can position the receiver for the best possible reception all without wires. The advent of Bluetooth GPS receiver will become the next level of GPS receivers. The BT GPS receiver integrates Bluetooth module into GPS device. It shows the high performance, low power consumption, easily portable, rechargeable & removable battery function and wireless data transmission. If you have a Pocket PC or other portable devices enabled with Bluetooth function, for example ASUS-620, iPAQ 2210, HP and Palm , you can take advantage of your device’ s Bluetooth capability to wirelessly add GPS positioning technology. When you choose suitable navigation software, you can apply to personal, vehicle tracking, and marine navigation. If you use this Bluetooth GPS receiver, you will ignore the messy cords and antenna and add the portability of your Pocket PC. In addition, This Bluetooth GPS receiver can change the exhausted battery to full battery like battery of mobile phone. 1.2. Main Features ‹16 Channels “All-In-View” Trac…

Text truncated - open the document above for the full version.

55 44 33 22 11 D D C C B B A A GPS Module Bluetooth Module RS232 TXRS232 RX CPUEM78P153SN Power & Charge circuit <Doc> <Rev Code> <Title> A 11 Tuesday, December 07, 2004 TitleSize Document Number Rev Date: Sheet of Bluetooth state VBAT 3.3V GPS fix data GPS ANTENNA 1 Bluetooth ANT 1 BT1Li-Polymer BATTERY 12

FCC ID : S3R05031401700REPORT NO. : E940125 Page 49 of 52 PEPTesting Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236

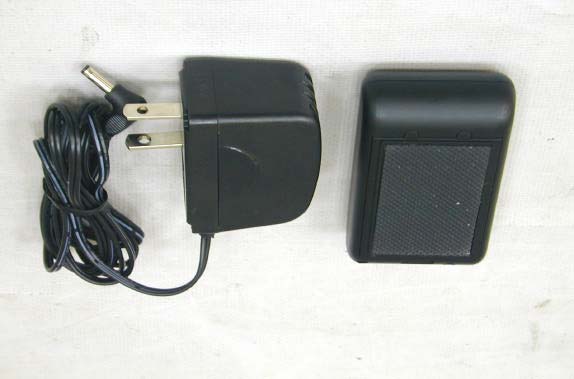

EUT Photos EUT Model No. BT-R700

FCC ID : S3R05031401700 REPORT NO. : E940125 PEP Testing Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 EUT Label

FCC ID : S3R05031401700 REPORT NO. : E940125 FCC ID Label Sample The sample label shown below shall be permanently affixed at a conspicuous location on the device, instruction manual or pamphlet supplied to the user and be readily visible to the purchaser at the time of purchase. However, when the device is so small wherein placement of the label with specified statement is not practicable, only the trade name, model number, and the FCC logo must be displayed on the device per Section 15.19 (b)(2) EUT Label Model No. : BT-R700 Bluetooth GPS Receiver FCC ID : S3R05031401700 20 mm 30mm PEP Testing Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236

FCC ID : S3R05031401700 REPORT NO. : E940125 Page 50 of 52 PEP Testing Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 FCC ID : S3R05031401700 REPORT NO. : E940125 Page 51 of 52 PEPTesting Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 FCC ID : S3R05031401700 REPORT NO. : E940125 Page 52 of 52 PEPTesting Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 FCC ID : S3R05031401700 REPORT NO. : E940125 PEP Testing Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 FCC ID : S3R05031401700 REPORT NO. : E940125 PEP Testing Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 FCC ID : S3R05031401700 REPORT NO. : E940125 PEP Testing Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 FCC ID : S3R05031401700 REPORT NO. : E940125 PEP Testing Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236

GPS Receiver BT-R700 Applications ‹ Automotive ‹ Fleet management/Asset tracking ‹ Personal/Portable Navigation (PDA, Pocket PC etc.) ‹ Location Based Services enabled devices ‹ Sports and Recreation ‹ Geographic Surveying The Wonder-X BT-R700 GPS Receiver with Bluetooth combines proven wireless technologies that allows you to receive positioning data and connect to mobile computing devices wirelessly. The EverMore BT-R700 provides high position accuracy and has reliable tracking capabilities. The ultra low power design gives you up to 18 hours of continuous usage and eliminates constant recharging between uses. With optional waterproof case, you can put it on the roof of a vehicle that boosts your reception capabilities when driving through congested urban. It’s easy to connect the GPS receiver to your mobile devices, such as pocket PCs, PDAs and mobile phones using Bluetooth wireless connectivity. A few simple steps will have you connected and navigating in minutes. Real-time navigating just got easier! Key Benefits Compact design -easy to carry Ultra low power -up to 18 hours after fully charged (850mA Li-ion Battery) High Integrated GPS receiver, Active antenna, and Bluetooth transceiver Light Weight Power consumption: [email protected] (typ.) GeneralAccuracy GPS ChipNEMERIX GPS ModulePosition FrequencyL1, 1575.42MHz3meters CEP (50%), without SA (Horizontal) 7 meters (90%) C/A Code1.023MHz chip rateVelocity0.1 m/sec. without SA Channels16 CH all in view trackingTimë́100 ns synchronized to GPS time Antenna (Intemal)Built-in low noise Datum Extemal Antenna Port Active MMCX AntennaWGS-84 (or by demanded) SensitivityDynamic Conditions To – 152Bm Tracking, Superior Urban Canyon PerformanceAltitude<18,000m Acquisition RateVelocity<515m/sec Cold Start60 sec, averageAcceleration<4g Warm Start38 sec, averageMotional Jerk20 m/sec. Hot Start12 sec, average Interface Reacquisition1secCommunication Protocol AccuracyCommunicate with host platform via Position5m CEP (50%), 9m (90%)Bluethooth (class 2) serial port profile Velocity0.1m/sec, without SABluethooth communication distance 10 M. TYP. Time±100ns synchronized to GPS timeGPS Protocol Power Built-in rechargeable 850mAh Li-ion battery and 5 V DC input Operation Current45mA (Typical) Default: NMEA-0183 (V3.01) – GGA(1), GSA(3), GSV(3), RMC(1),VTG(1),Band rate 9600 bps, Data bit : 8, stop bit : 1(Default) * Operation Time18hrs, after fully charged, in continuousDevice Size Charging time2.5hrs. (Typical)81 (L) X 44 (W) X 20 (H) mm Environmental3.2 (L) X 1.75 (W) X 0.79 (H) inch Operating Temperature - 20 кʳ̇̂ʳʾʳˉ˃ʳкAccessoriesAC adaptor (5.3V output, 500ma) Relative Humidity5% to 90% non-condensing *:(1):1sec output 1msg , (3): 3sec output 1msg Specifications All specifications are subject to change without notice Wonde Proud Technology Co., Ltd. 1F, No.61, Lane 8, Zhong 1 st Street., Xizhi City, Taipei County 221, Taiwan, R.O.C. Website: www.wondeproud.com E-mail: [email protected] Bluetooth is a trademark owned by Bluetooth SIG, Inc. Appendix : Software Specification NMEA Protocol The software is capable of supporting the following NMEA message formats NMEA Message PrefixFormatDirection SGPGGA(1)* GPS fix data.Out SGPGLLGeographic position Latitude / Longitude.Out SGPGSA(3)* GNSS DOP and actives satellitesOut SGPGSV(3)* Satellites in view.Out SGPRMC(1)* Recommended minimum specific GNSS data.Out SGPVTG(1)* Velocity and track over ground.Out SGPZDADate and time.Out *:(1): 1sec output 1msg , (3): 3sec output 1msg , 9600 baud rate (Standard output) General NMEA Format The general NMEAformat consists of an ASCII string commencing with a ‘$’ character and terminating with a <CR><LF> sequence. NMEA standard messages commence with ‘GP’ then a 3-letter message identifier. NemeriX specific messages commence with $PNMRX followed by a 3 digit number. The message header is followed by a comma delimited list of fields optionally terminated with a checksum consisting of an asterix ‘*’ and a 2 digit hex value representing the checksum. There is no comma preceding the checksum field. When present, the checksum is calculated as a bytewise exclusive of the characters between the ‘$’ and ‘*’. As an ASCII representation, the number of digits in each number will vary depending on the number and precision, hence the record length will vary. Certain fields may be omitted if they are not used, in which case the field position is reserved using commas to ensure correct interpretation of subsequent fields. The tables below indicate the maximum and minimum widths of the fields to allow for buffer size allocation. $GPGGA This messagetransfers global positioning system fix data. The $GPGGA message structure is shown below: FieldFormatMin charsMax charsNotes Message ID$GPGGA66GGA protocol header. UTC Timehhmmss.sss2,2,2.32,2,2.3Fix time to 1ms accuracy. Latitudefloat3,2.43,2.4Degrees * 100 + minutes. N/S Indicatorchar11N=north or S=south Longitudefloat3,2.43,2.4Degree * 100 + minutes. E/W indicator Char11E=east or W=west Position Fix Indictor Int110: Fix not available or invalid. 1: GPS SPS mode. Fix available. Satellites Used Int22Number of satellites used to calculate fix. HDOPFloat1.13.1Horizontal Dilution of Precision. MSL Altitude Float1.15.1Altitude above mean seal level UnitsChar11M Stands for “meters”. Geoid Separation Int(0) 14Separation from Geoid, can be blank. UnitsChar11M Stands for “meters”. Age of Differential Corrections int(0) 15Age in seconds Blank (Null) fields when DGPS is not used. Diff Reference Corrections int440000. Checksum*xx(0) 332 digits. Message terminator <CR> <LF>22ASCII 13, ASCII 10. $GPGLL This message transfers Geographic position, Latitude, Longitude, and time. The $GPGLL message structure is shown below: FieldFormatMin charsMax charsNotes Message ID$GPGLL66GLL protocol header. LatitudeFloat1,2.13,2.4Degree * 100 + minutes. N/S IndicatorChar11N=north or S=south. LongitudeFloat1,2.13,2.4Degree * 100 + minutes. E/W indicatorCharacter11E=east or W=…

Text truncated - open the document above for the full version.

55 44 33 22 11 D D C C B B A A <Doc> 1.0 <Title> B 14 Thursday, June 10, 2004 TitleSize Document Number Rev Date: Sheet of BAT 3.3V U3NDS356AP 3 1 2 D G S U2 S-80833ANMP 1 23 45 OUT VDDVSS NC1NC2 + C1 10u + C21u D2SB140 U1 RT9167-33CB 123 54 INGNDshdn VOUT BP BT1 BATTERY C310n J1DC5V 123 R19 0 C410uF U5 ADP3820 1 2 3 4 6 5 SD GND Vout GATE IS Vin R6120K R7360K R510k U4 S-80842CLMC 1 23 45 OUT VDDVSS NC1NC2 R3 0.5R4 0.5R1 0.5R2 0.5 GND3.3V BAT4.2V BAT3.6V GPBT PWR VBAT CHARGE 55 44 33 22 11 D D C C B B A A <Doc> <Rev Code> <Title> A 34 Thursday, June 10, 2004 TitleSize Document Number Rev Date: Sheet of SW1POWER SW LD3BTst LED R23100K C24220pF R12100R11100 LD1TWIN-LED C8104 R10100K C91UF R13100 U6 EM78P153E 1234567 891011121314 P50P67P66VDDP65/OSCIP64/OSCOP63/RST/VPP P62/TCC P61 P60/INT GND P53P52P51 VBAT PairBAT4.2VBAT3.6VGPBT PWR 2D/3D BTst GND POWER POWER CHARGE 2D/3D 55 44 33 22 11 D D C C B B A A BLUETOOTH RF MODULE 1.0 <Title> B 24 Thursday, June 10, 2004 TitleSize Document Number Rev Date: Sheet of GND UART_TX PIO4 RF_OUT/IN GNDGND RESET GND UART_RX GND BT3.3V PIO7 M1CONN PCB 17x2 080706 12345 100912111315141716 3029282726252423222120191831323334 08070612345100912111315141716 3029282726252423222120191831323334 L10 ANT1 ANTENNA C61.5p R8470K + C51u R90 C7104 TX RX 3.3V GND Pair BTst GND 55 44 33 22 11 D D C C B B A A <Doc> 1.0 <Title> A 44 Thursday, June 10, 2004 TitleSize Document Number Rev Date: Sheet of GPS3.3V C10104 R140 R17 1K U3 GPS 123456789 10 111213141516 GPIO4NC(MODE)TXRXNC(WAKEUP)RESETVBATGNDVDDGPIO0 DSU MUX DSUEN DSUBRE DSUTX DSURX DSUACT + C11 10u R27R R28R BT2 D1BAT54C 21 3 P2P1 N RX TX 3.3V GND 2D/3D

FCC ID : S3R05031401700REPORT NO. : E940125 Page 1 of 52 PEPTesting Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 RFI / EMI TEST REPORT APPLICANT:EverMore Technology, Inc. E U T Type:Bluetooth GPS Receiver MODEL NO.:BT-R700 FCC ID:S3R05031401700 REGULATION:CFR 47 , Part 15 Subpart C ,ClassB TEST SITE:PEP Testing Laboratory TESTENGINEER : TEST DATE:MAR.09, 2005 ISSUED DATE:MAR.18, 2005 REPORT NO.:E940125 FCC ID : S3R05031401700REPORT NO. : E940125 Page 2 of 52 PEPTesting Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 VERIFICATION WE HEREBY VERIFY THAT: The EUT listed below has completed RFI testing by PEP Testing Laboratory and it does comply with thelimitation of FCC Part 15, Section 15.247 limitations . The tested configurations and the facility complies with the radiated and AC line conducted test site criteria in ANSI C63 . 4 - 2001 . Any data in this RFI report is“ reference“ only . APPLICANT: EverMore Technology, Inc. PRODUCT: Bluetooth GPS Receiver FCC ID: S3R05031401700 MODEL: BT-R700 M.Y. TSUI / President PEP Testing Laboratory 12-3FL., NO. 27-1, Lane 169, Kang-Ning St., Hsi-Chi, Taipei Hsien, Taiwan, R. O. C. TEL : 886-2-6922097 FAX : 886-2-6956236 FCC ID : S3R05031401700REPORT NO. : E940125 Page 3 of 52 PEPTesting Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 TABLE OF CONTENTS I.GENERAL INFORMATION5 1.1 Description of EUT 1.2 Supporting Devices for EUT testing 1.3 EUT Test Setup Configuration 1.4 Channels Verification (15.205) II. 15.207 POWER LINE CONDUCTED EMISSION TEST11 2.1 Testing Description 2.2 Software Using 2.3Test Result 2.4 Conducted Emission Test Photo III. 15.247(a)(1): HOPPINGCHANNEL FREQUENCY SEPARATION15 3.1TestProcedure 3.2 Test result of Frequency Separation 3.3 Spectrum Plot Data IV. 15.247(a)(1) : 20dB BANDWIDTH16 4.1Test Procedure 4.2 Test Result of Bandwidth 4.3 Spectrum Plot Data V.15.247(a) (1): TIME OF OCCUPANCY(DWELL TIME)23 5.1Test Procedure 5.2 Test Result of Dwell Time 5.3 Spectrum Plot Data VI15.247(b) : THE MAXIMUM PEAK OUTPUT POWER ( Љʳ1WATT ) 25 6.1 Testing Description 6.2 Software Using 6.3 Test Result of Fundamental Emissions .ҍ15.247(b)(4) MAXIMUM PERMISSIBLE EXPOSURE (MPE) 33 7.1 MPE distance calculation 7.2 Device operating configurations exposure conditions 7.3Maximum Permissible Exposure (MPE) FCC ID : S3R05031401700REPORT NO. : E940125 Page 4 of 52 PEPTesting Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 Ҏˁʳʳ15.247(c) : SPURIOUS RADIATED EMISSIONS 35 8.1 Out side band below 1GHz 8.2 Out side band above 1GHz 8.2 Spurious Radiate Emission Testing Photos ҏˁʳʳ̺15.247(c) :BAND-EDGES COMPLIANCE 40 Ґˁ ̺15.247(d) :PEAK POWER SPECTRAL DENSITY 44 10.1Test Procedure 10.2 Test result of Peak Power Spectral Density 10.3 Spectrum Plot Data XI.LIST OF TEST INSTRUMENTS48 XII.ʳEUT PHOTOS 49 FCC ID : S3R05031401700REPORT NO. : E940125 Page 5 of 52 PEPTesting Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236
. General Information The equipment under test (EUT) isBluetooth GPSReceiver, FCC ID: S3R05031401700, model BT-R700. The EUT can be used to work for the applications such as car navigation purpose. The working frequency is 2.402GHz-2.480GHz. DC 3.7V from battery or DC 5.3V from AC-DC adaptor is required to operate EUT. For more detail specification about EUT, please refer to the user’s manual. Test method: According to the major function designed, the EUT placement on test table was arranged alone to proceed with test. The test was carried out on EUT operational condition of Tx-On mode: continuous transmission state. The worst-case test result of each test mode was recorded and provided in this report. At the frequencies where the peak values of the emission exceeded the quasi-peak limit, the emissions were also measured with the quasi-peak detectors. The average detector also measured the emission either (A) quasi-peak values were under quasi-peak limit but exceeded average limit, or (B) peak values were under quasi-peak limit but exceeded average limit. ʳ 1.1 Description of EUT EUT Type:Bluetooth GPS Receiver FCC ID:S3R05031401700 EUT Model No.:BT-R700 Frequency Range :2.4022.480GHz Support Channel:79 channels Modulation:QBSK Antenna Type:Comply with FCC Part 15, Section 15.203; Build-in PCB trace type, can’t be removed by the user Power Supply: 1) Manufacturer : DVE Model No. : DSA-0051-05C FUS 53050F Input : AC 100~240V, 0.2A Output : DC 5.3V, 0.5A Power Cord:N/A FCC ID : S3R05031401700REPORT NO. : E940125 Page 6 of 52 PEPTesting Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 1.2 Supporting Devices for EUT testing 1. Personal Computer (PC3)CPU : Intel P4 Socket 478 1.6GHz FCC IDDeclaration of Conformity(DoC) ManufacturerLEMEL Model NumberLMIH1A2 Power SupplySwitching Power CordNon-Shielded, Detachable, 1.8m Data CableN/A 2. Keyboard (KBS1 PS/2)FCC IDE5XKB5121WTH0110 ManufacturerBTC Model Number5121W Power Supply+5Vdc from PS2 of PC Power CordN/A Data Cable1 > Shielded , Non-detachable,1.6m 2 > Back Shell : Metal 3. Monitor (MON1 15”)FCC IDDeclaration of Conformity(DoC) ManufacturerSAMSUNG Model Number550S Power SupplySwitching Power CordNon-Shielded, Detachable, 1.8m Data Cable1 > Shielded , Non-detachable,1.2m 2 > Back Shell : Metal 4. Printer (PRN1)FCC IDB94C2642X ManufacturerHewlett-Packard Model NumberC2642E Power SupplyLinear, 30Vdc O/P Power CableNon-Shielded , Detachable,1.8m Data Cable1 > Shielded , Detachable,1.2m 2 > Back Shell : Metal FCC ID : S3R05031401700REPORT NO. : E940125 Page 7…

Text truncated - open the document above for the full version.

FCC ID : S3R05031401700REPORT NO. : E940125 Page 14 of 52 PEPTesting Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 2.4 Conducted Emission Test Photo EUT Model No. BT-R700 < FRONT VIEW > FCC ID : S3R05031401700REPORT NO. : E940125 Page 39 of 52 PEPTesting Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 8.3 Spurious Radiate Emission Testing Photos EUT Model No. BT-R700 < FRONT VIEW > < REAR VIEW >
