S3SFS1010ADigital Satellite Receiver

Appendix E. Block Diagram File No. E05.1114.FCC.703N, Page 1 of 1 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab :#584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETL(E)004A4001201-0 1 of 1

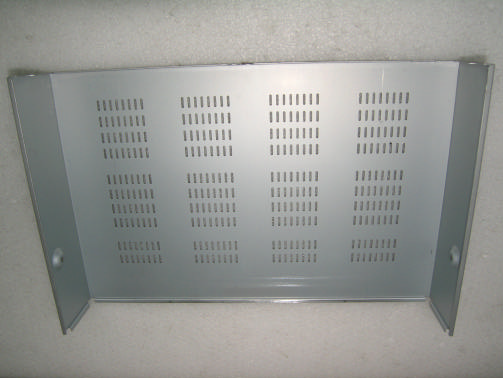

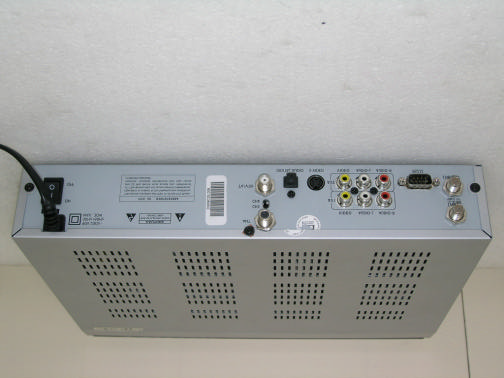

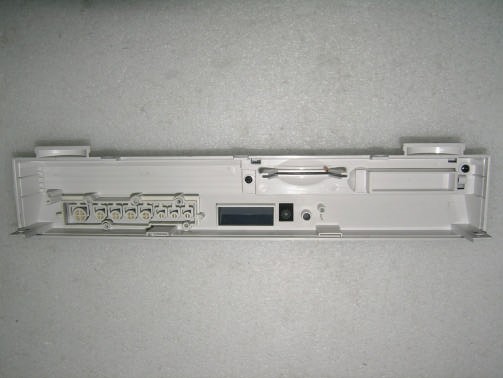

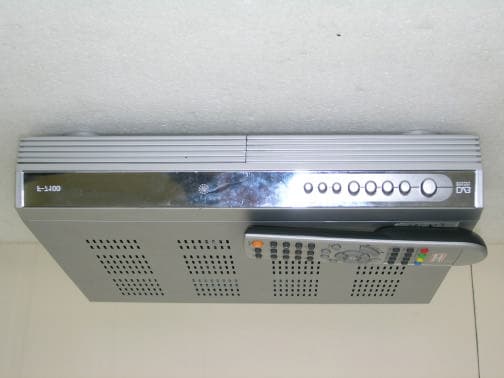

Appendix C. External Photographs File No. E05.1114.FCC.703N, Page 1 of 4 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETL(E)004A4001201-0 Front side View of The EUT Front model: S2 Front model: S4 Appendix C. External Photographs File No. E05.1114.FCC.703N, Page 2 of 4 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETL(E)004A4001201-0 Rear side View of The EUT View of Bottom cover Appendix C. External Photographs File No. E05.1114.FCC.703N, Page 3 of 4 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETL(E)004A4001201-0 View of Top cover View of Front Cover Front model: S2 Appendix C. External Photographs File No. E05.1114.FCC.703N, Page 4 of 4 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETL(E)004A4001201-0 View of Front Cover Front model: S2

Appendix A. FCC ID Label and Location File No. E05.1114.FCC.703N, Page 1 of 2 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETL(E)004A4001201-0 Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. DARI Tech Ltd. Digital Satellite Receiver FCC ID : S3SFS1010A Model No : FS-1010 POWER : AC 90~250V 50/60Hz, Max. 30W Serial No : N/A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation Manufacturer : Desay A&V Science and Technology Co.,Ltd Made in China Appendix A. FCC ID Label and Location File No. E05.1114.FCC.703N, Page 2 of 2 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETL(E)004A4001201-0 Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs File No. E05.1114.FCC.703N, Page 1 of 14 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETL(E)004A4001201-0 Inside View of The EUT Front model: S4 Appendix D. Internal Photographs File No. E05.1114.FCC.703N, Page 2 of 14 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETL(E)004A4001201-0 Front Model: S2 Appendix D. Internal Photographs File No. E05.1114.FCC.703N, Page 3 of 14 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETL(E)004A4001201-0 Component side view of Main board Appendix D. Internal Photographs File No. E05.1114.FCC.703N, Page 4 of 14 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETL(E)004A4001201-0 Solder side view of Main board Appendix D. Internal Photographs File No. E05.1114.FCC.703N, Page 5 of 14 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETL(E)004A4001201-0 view of RF Modulator Appendix D. Internal Photographs File No. E05.1114.FCC.703N, Page 6 of 14 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETL(E)004A4001201-0 view of Satellite tuner Appendix D. Internal Photographs File No. E05.1114.FCC.703N, Page 7 of 14 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETL(E)004A4001201-0 Component side view of Power board Appendix D. Internal Photographs File No. E05.1114.FCC.703N, Page 8 of 14 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETL(E)004A4001201-0 Solder side view of Power board Appendix D. Internal Photographs File No. E05.1114.FCC.703N, Page 9 of 14 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETL(E)004A4001201-0 Component side view of Smart card board Appendix D. Internal Photographs File No. E05.1114.FCC.703N, Page 10 of 14 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETL(E)004A4001201-0 Solder side view of Smart card board Appendix D. Internal Photographs File No. E05.1114.FCC.703N, Page 11 of 14 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETL(E)004A4001201-0 Component side view of Front board Front model: S4 Appendix D. Internal Photographs File No. E05.1114.FCC.703N, Page 12 of 14 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETL(E)004A4001201-0 Solder side view of Front board Front model: S4 Appendix D. Internal Photographs File No. E05.1114.FCC.703N, Page 13 of 14 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETL(E)004A4001201-0 Component side view of Front board Front model: S2 Appendix D. Internal Photographs File No. E05.1114.FCC.703N, Page 14 of 14 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETL(E)004A4001201-0 Solder side view of Front board Front model: S2

FS-1010 F – 1010 2 1.Technical specification Transmission Standards DVB,MPEG2 LNB/Tuner input(DVB-S) Connector 2 x F-type , IEC 169-24 (Loop Through) Input frequency 950-2150MHz Max Current 500mA max Supply Voltage 13V/18V DiSEqC 1.0 AND 2.0 RF Impedance 75 ohm Demodulator QPSK Symbol rate 2-45Ms/s SCPC and MCPC capable Video decoder MPEG-2 Main Profile @ Main Level Data rates up to 15Mbit/s Video formats 4:3(letterbox), 4:3(Pan & Scan) 16:9 Audio decoder MPEG-2 layer 1 & 2, MP3 Stereo, Mono, Dual channel, Joint stereo System resources Processor 81MHz Shared Memory for MPEG /CPU/Graphic 8Mbytes Flash ROM 2Mbytes Resolution 720X576 OSD 256 colors RF Modulator Output Channel ch 3, 4 Output Signal NTSC-M Input/Output Connectors 2XF-Type, ICE 169-24 Preset Channel 38 Audio Output Hi-Fi RCA (Cinch) connector S/PDIF Optical output Video Output RCA (Cinch) connector S-VHS Video Output Conditional Access System 1 Smart Card Reader Serial Data 9pin D-sub RS232C signal Baud rates 115200baud max Remote Controller Type CD5022G0 Operating distance 10 meters Batteries 2 x 1.5V AAA Rear Panel Interfaces 1x DVB-S TUNER IN/OUT RF modulator IN/OUT 2 x 2 RCA AUDIO (L/R, CINCH) 1 x 2RCA VIDEO (CVBS, CINCH) 1 x S /PDIF (OPTICAL DIGITAL OUTPUT) 1 x S-VHS(VIDEO) RS232C(9PIN D-SUB) POWER CONNECTOR RS232C (9pin D-Sub) Power Connector General Data Operating Temperature 5°C to 45°C Storage temperature -40°C to +70°C Supply Voltage 90~250V AC, 50 / 60Hz Power Consumption 30W Max Dimension(WXDXH)340X256X68 mm 3 2.Wire connection chart 1 3 5 Front PCB Main PCB <--> Front PCB Data Interface 1. AC POWER <---> SMPS PCB 2. SMPS PCB <---> MAIN PCB 3. MAIN PCB <--> Front PCB 4. MAIN PCB <--> SMART CARD PCB 5. MAIN PCB <---> PC RS-232 INTERFACE Main PCB AC Input Main PCB to PC RS-232 2 SMPS PCB <--> MAIN PCB Data Interface 4 Main PCB to SMART CARD PCB SMPS PCB SMART CARD PCB 4 3.Set Block Diagram (STi5518) (Tuner) F7VZ0194 (A/V Switch) MC14053B SMPS (LM317) (RS-232) (DAC) Display U-com AT89S52 Display / Button / IR RS-232C TV RCAVCR RCA REAR Panel RF Mod.(ch 3-4) (VCXO) (SDRAM) (Flash Memory) LNB InLNBS-VIDEO AC Inlet (RF Modulator) I2C I2C I2C CVBS/RGB AUDIO L/R SPDIF

FS-1010 Operational Description ’

www.etl.re.kr E-RAE Testing Laboratory This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL,Inc. Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF COMPLIANCE FCC Part 15 Certification Measurement This Digital Satellite Receiver, Model FS-1010 has been tested in accordance with the measurement procedures specified in ANSI C63.4-2001 at the ETL/EMC Test Laboratory and has been shown to complied with the electromagnetic radiated emission limits specified in FCC Rule Part 15 Subpart B: TV interface device. I attest to the accuracy of data. All measurement here in was performed by me or was made under my supervision and is correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system, which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Hyung Seok, Lee / Chief Engineer ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea PRODUCT : Digital Satellite Receiver MODEL/TYPE NO : FS-1010 FCC ID : S3SFS1010A APPLICANT / ADDRESS : DARI Tech Ltd. 2F, Dong-Nam B/D., 105-4 Imae-Dong, Bundang-Gu, Seongnam-Si, Gyeonggi-Do, 463-826, Korea Attn.:Jea Teak, Han / Manager MANUFACTURER : Desay A&V Science and Technology Co.,Ltd ADDRESS : Desay 3 rd industry Zone, Chenjiang Town , Huizhou City, Guangdong, 516229, China FCC CLASSIFICATION : HID : TV interface device FCC RULE PART(S) : FCC Part 15 Subpart B FCC PROCEDURE : Certification TRADE NAME : HSMD TEST REPORT No. : E05.1114.FCC.703N DATES OF TEST : October 19, 2005 - November 11, 2005 DATES OF ISSUE : November 14, 2005 TEST LABORATORY : ETL Inc. (FCC Registration Number: 95422) #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel: 82-31- 885-0072 Fax: 82-31-885-0074 FCC TEST REPORT File No. E05.1114.FCC.703N, Page of 21 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETL(E)004A4001201-0 Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Conducted Emission Test 5.3 Radiated Emission Test 5.4 Antenna Power Conduction Meaurement 5.5 Output Signal Level Measurement 5.6 Output Terminal Conducted Spurious Emission Measurement 5.7 Transfer Switch Measurement 6. Sample Calculation 7. List of test Equipment used for Measurements Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. Operating Manual ATTACHMENT A: COVER LETTER(S) FCC TEST REPORT File No. E05.1114.FCC.703N, Page 3 of 21 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETL(E)004A4001201-0 FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information l Model Number : FS-1010 l FCC Identifier : S3SFS1010A l S/N : N/A l Freq. Range : 61.25MHz – 71.75MHz l FCC Rule Part(s) : Part 15 Subpart B l Test Procedure : ANSI C63.4-2001 l FCC Classification : TV Interface Device l RF Channels : Ch. 3 / Ch. 4 l Dates of Tests : October 19, 2005 - November 11, 2005 l Place of Tests : ETL Inc. 584, Sangwhal-Ri, Kanam-Myun, Yoju-Kun, Kyounggi-Do, Korea Tel : 82-31- 885-0072 Fax : 82-31- 885-0074 l Test Report No. : E05.1114.FCC.703N Applicant Name : DARI Tech Ltd. Address : 2F, Dong-Nam B/D., 105-4 Imae-Dong, Bundang-Gu, Seongnam-Si, Gyeonggi-Do, 463-826, Korea Manufacturer : Desay A&V Science and Technology Co.,Ltd Address : Desay 3 rd industry Zone, Chenjiang Town , Huizhou City, Guang Dong, 516229, China Attention : Jea Teak, Han / Manager FCC TEST REPORT File No. E05.1114.FCC.703N, Page 4 of 21 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETL(E)004A4001201-0 1. INTRODUCTION The measurement test for radiated and conducted emission test were conducted at the shielded anechoic chamber room and open area test site of E-RAE Testing Laboratory Inc. facility located at 584, Sangwhal-ri, Ganam-myun, Youju-kun, Kyoungki-do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-2001 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2001 and registered to the Federal Communications Commission(Registration Number : 95422 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-2001) was used in determining radiated and conducted emissions from the DARI Tech Ltd. Digital Satellite Receiver, Model : FS-1010 FCC TEST REPORT File No. E05.1114.FCC.703N, Page 5 of 21 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-ku…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs File No. E05.1114.FCC.703N, Page 1 of 5 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETL(E)004A4001201-0 Radiated Emission Test Setup Front model: S4 Appendix B. Test Setup Photographs File No. E05.1114.FCC.703N, Page 2 of 5 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETL(E)004A4001201-0 Front model: S2 Appendix B. Test Setup Photographs File No. E05.1114.FCC.703N, Page 3 of 5 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETL(E)004A4001201-0 Conducted Emission Test Setup Appendix B. Test Setup Photographs File No. E05.1114.FCC.703N, Page 4 of 5 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETL(E)004A4001201-0 Antenna Power Conduction Measurement Test Setup Output Signal Level Measurement Test Setup Appendix B. Test Setup Photographs File No. E05.1114.FCC.703N, Page 5 of 5 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel:82-31-885-0072, Fax:82-31-885-0074 ETL(E)004A4001201-0 Output Terminal Conducted Spurious Emission Measurement Test Setup Antenna Transfer Switch Measurement
