S3VATRG2-MODField disturbance device for detecting presence and speed of passing vehicles

Rhein Tech Laboratories, Inc. Client: Mesa Engineering, Inc. 360 Herndon Parkway Model: ATRG2-MOD Suite 1400 FCC ID: S3VATRG2-MOD Herndon, VA 20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2013037 25 of 42 Appendix J: Manual Please refer to the following pages. Mesa Engineering G2 Vehicle Detection Module User Manual TABLE OF CONTENTS 1. Purpose 2. General Specifications 3. Installation 3.1 General Recommendations 3.2 Exposure Cautions 3.3 Co -Location Warnings 3.4 FCC Statement 3.5 Field Tune 4. Calibration 5. Interface 6. Data Format 6.1 Power Up Message 6.2 Measurement Message 6.3 ATR Reporting format Quick Reference 7. Command Guide 1.0 Purpose The G-2 Vehicle detection module is a self contained Doppler radar sensor designed for the purpose of detecting and counting vehicle passages with speed and length data supplied. Suitable applications are traffic logging systems and speed enforcement systems. The system consists of a Gunn oscillator driven autodyne detected Doppler system with a single horn lens antenna with a 4X15 degree response pattern suitable for use in ATR traffic radar applications calibrated for a 22.5 degree traffic offset angle. Base band signals from the transceiver are amplified and processed with digital logic to produce a track for each dominant Doppler return received. Tracks are analyzed for consistency duration and frequency offset to create an individual output for each track, listing its speed, duration and overall reading quality. Output and control are provided via an ASCII coded serial interface provided with a full duplex rs485 or RS232 interface, for connection to external computing of logging equipment. 2.0 General Specifications Frequency 34.6 GHz +-100MHz Transmitter power level -8dBm Antenna Horn-Lens 30dBi gain Supply voltage – current -connector 10.5-14.8 VDC 750mA max Output ASCII serial 115.2k Baud RS232/DB9 or RS485/RJ-11 Mechanical Rectangular chassis 8"x3"x10"deep 4x6-32 mounting screws Microwave port 6.25"x2.75" 3.0 Installation 3.1 General Recommendations Unit should be installed with antenna level horizontally, tilted down to meet the roadway midway down its measurement range and at an offset angle of 22.5 degrees from the direction of traffic flow. Unit should be 5-10 feet from the nearest lane. The sensor should be placed far enough from intersections that vehicles traveling in other directions should not cross into the beam. The microwave port can be covered by an approved microwave transparent window. 3.2 Exposure Cautions Operating and maintenance personnel should maintain a separation of at least 20 cm from the port. Mounting should also preclude exposure to pedestrians or drivers. 3.3 Co-Location Warnings Additional radiators should not be co-located with the microwave aperture. 3.4 FCC Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Changes or modifications not expressly approved by Mesa Engineering could void the user’s authority to operate this equipment. 3.5 Field Tune Recommended field tune command sequence. This command is performed with a microwave absorbing foam block securely in front of the antenna horn. The Sequence adjusts the detector threshold for a background noise trigger rate dependant on the sensitivity threshold setting. Larger sensitivity settings have high noise trigger rates, hence higher signal sensitivity. Alignment should be performed anytime the sensor environment is changed, like switching vehicles or reinstalling a fixed unit. For directions on sending commands, see Command Guide section below. TN02 -- set sensitivity threshold to 2 TA Threshold -> 02 -- Auto tune thresholds ........ 04/0000/F7 ........ 03/0000/FA ........ 02/0002/FB ........ 01/0000/FC 4.0 Calibration Unit operating frequency should be certified at least once per year and electronic tuning fork test can be performed on starting and ending each deployment. 5.0 Interface Power Molex 39-01-4031 Pin: 1 3 GND +12 Data 115.2 kBaud 8 bit, no parity, no handshake RS232 9 Pin Sub-D Female Pin: 2 3 5 Out In GND RS485 RJ-11 Pin: 1 2 3 4 5 6 GND IN+ IN- Out- Out+ NC 6.0 Data Format 6.1 Power Up Message Alignment ch4 -> ch1 => F7 FA FB FC ATR g3 v3.0 FPGA revision 97 D9 1C The power up message provides the current field tune alignment, firmware revision level and the fpga revision level 6.2 Measurement Message The measurement message is a 30 byte message followed by an optional variable flag message terminated by cr-lf. The following reference contains decoding information. One message is output for each vehicle track observed by the sensor. 6.3 ATR Reporting Format Quick Reference 0000000000111111111122222222223333333333 0123456789012345678901234567890123456789 | | ||| | | | | RE061 010 K+074 t 0000 00011D10 f RE059 009 K+074 t 0000 0001054D f RE059 009 K+074 t 0000 0001054D f RE -Radar Event per earlier software 059 -The signal strength, BCD format 009 -The apparent vehicle length in meters, BCD format K -Units of measure, Kph in this case, M if this is MPH + -The direction of travel, + is approaching the radar 074 -The vehicle speed, BCD format T -The track termination mechanism, usually t, s, or r 0000-The track history standard deviation in HEX format 0001054D -The track duration in 8 usec units "f" -Informational flags, multiple possibilities These ARE VOID codes. If the flag field contains any one or more of these …

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: Mesa Engineering, Inc. 360 Herndon Parkway Model: ATRG2-MOD Suite 1400 FCC ID: S3VATRG2-MOD Herndon, VA 20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2013037 16 of 42 Appendix B: Agency Authorization Please refer to the following page.

Rhein Tech Laboratories, Inc. Client: Mesa Engineering, Inc. 360 Herndon Parkway Model: ATRG2-MOD Suite 1400 FCC ID: S3VATRG2-MOD Herndon, VA 20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2013037 17 of 42 Appendix C: FCC Confidentiality Request Letter Please refer to the following page.

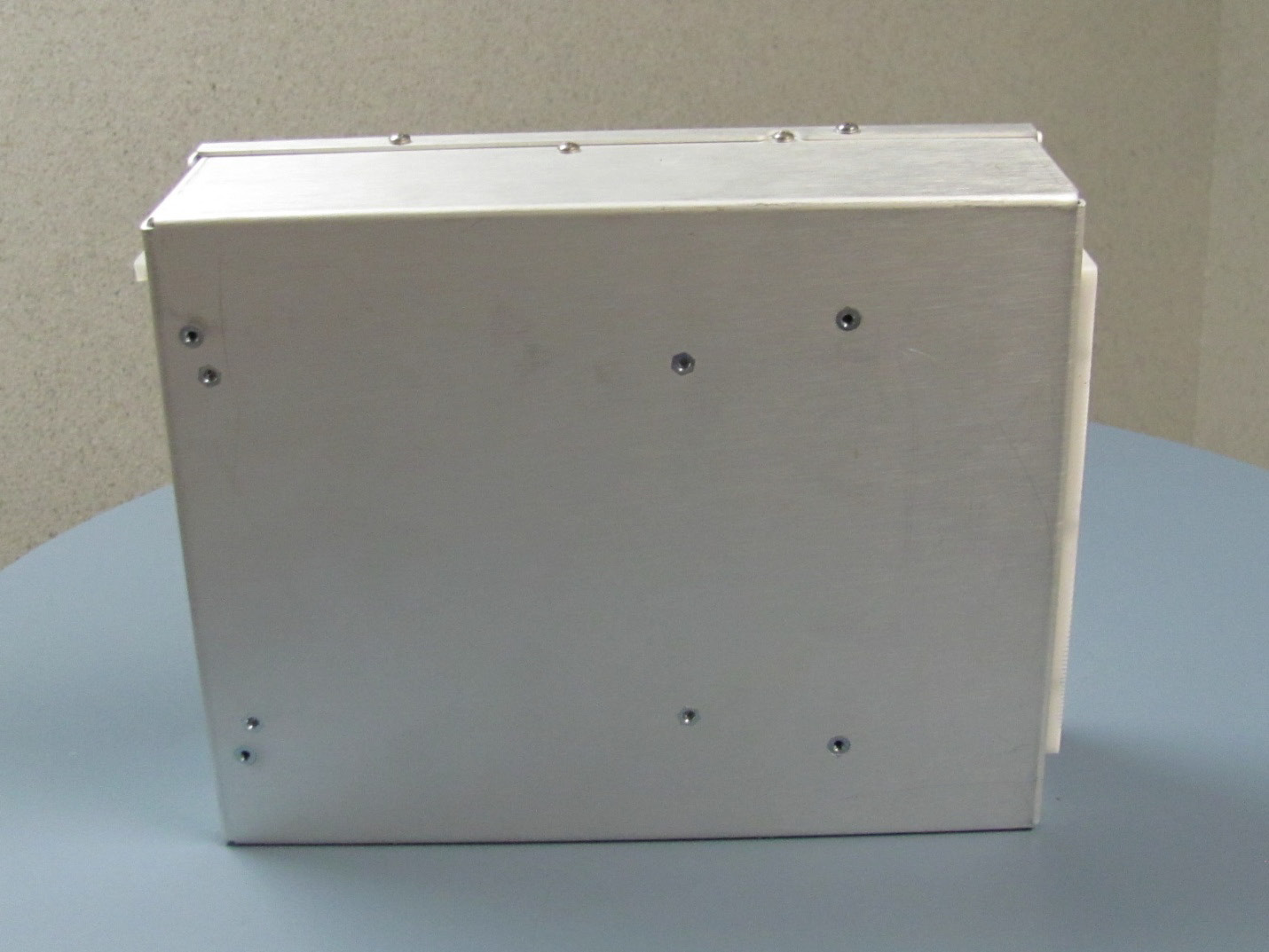

Rhein Tech Laboratories, Inc. Client: Mesa Engineering, Inc. 360 Herndon Parkway Model: ATRG2-MOD Suite 1400 FCC ID: S3VATRG2-MOD Herndon, VA 20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2013037 26 of 42 Appendix K: External Photographs Photograph 3: Top Rhein Tech Laboratories, Inc. Client: Mesa Engineering, Inc. 360 Herndon Parkway Model: ATRG2-MOD Suite 1400 FCC ID: S3VATRG2-MOD Herndon, VA 20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2013037 27 of 42 Photograph 4: Bottom Rhein Tech Laboratories, Inc. Client: Mesa Engineering, Inc. 360 Herndon Parkway Model: ATRG2-MOD Suite 1400 FCC ID: S3VATRG2-MOD Herndon, VA 20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2013037 28 of 42 Photograph 5: Left Side Rhein Tech Laboratories, Inc. Client: Mesa Engineering, Inc. 360 Herndon Parkway Model: ATRG2-MOD Suite 1400 FCC ID: S3VATRG2-MOD Herndon, VA 20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2013037 29 of 42 Photograph 6: Right Side Rhein Tech Laboratories, Inc. Client: Mesa Engineering, Inc. 360 Herndon Parkway Model: ATRG2-MOD Suite 1400 FCC ID: S3VATRG2-MOD Herndon, VA 20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2013037 30 of 42 Photograph 7: Rear View

Rhein Tech Laboratories, Inc. Client: Mesa Engineering, Inc. 360 Herndon Parkway Model: ATRG2-MOD Suite 1400 FCC ID: S3VATRG2-MOD Herndon, VA 20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2013037 18 of 42 Appendix D: ID Label Information Photograph 1: FCC ID Label Sample Rhein Tech Laboratories, Inc. Client: Mesa Engineering, Inc. 360 Herndon Parkway Model: ATRG2-MOD Suite 1400 FCC ID: S3VATRG2-MOD Herndon, VA 20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2013037 19 of 42 Photograph 2: ID Label Location ID Label Location

Rhein Tech Laboratories, Inc. Client: Mesa Engineering, Inc. 360 Herndon Parkway Model: ATRG2-MOD Suite 1400 FCC ID: S3VATRG2-MOD Herndon, VA 20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2013037 31 of 42 Appendix L: Internal Photographs Photograph 8: Assembly Top View Rhein Tech Laboratories, Inc. Client: Mesa Engineering, Inc. 360 Herndon Parkway Model: ATRG2-MOD Suite 1400 FCC ID: S3VATRG2-MOD Herndon, VA 20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2013037 32 of 42 Photograph 9: Assembly PCB Rhein Tech Laboratories, Inc. Client: Mesa Engineering, Inc. 360 Herndon Parkway Model: ATRG2-MOD Suite 1400 FCC ID: S3VATRG2-MOD Herndon, VA 20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2013037 33 of 42 Photograph 10: PCB Top View Rhein Tech Laboratories, Inc. Client: Mesa Engineering, Inc. 360 Herndon Parkway Model: ATRG2-MOD Suite 1400 FCC ID: S3VATRG2-MOD Herndon, VA 20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2013037 34 of 42 Photograph 11: PCB Bottom with Shield Rhein Tech Laboratories, Inc. Client: Mesa Engineering, Inc. 360 Herndon Parkway Model: ATRG2-MOD Suite 1400 FCC ID: S3VATRG2-MOD Herndon, VA 20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2013037 35 of 42 Photograph 12: PCB Bottom without Shield Rhein Tech Laboratories, Inc. Client: Mesa Engineering, Inc. 360 Herndon Parkway Model: ATRG2-MOD Suite 1400 FCC ID: S3VATRG2-MOD Herndon, VA 20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2013037 36 of 42 Photograph 13: Microwave Top View Rhein Tech Laboratories, Inc. Client: Mesa Engineering, Inc. 360 Herndon Parkway Model: ATRG2-MOD Suite 1400 FCC ID: S3VATRG2-MOD Herndon, VA 20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2013037 37 of 42 Photograph 14: Microwave Bottom View Rhein Tech Laboratories, Inc. Client: Mesa Engineering, Inc. 360 Herndon Parkway Model: ATRG2-MOD Suite 1400 FCC ID: S3VATRG2-MOD Herndon, VA 20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2013037 38 of 42 Photograph 15: Horn Top View Rhein Tech Laboratories, Inc. Client: Mesa Engineering, Inc. 360 Herndon Parkway Model: ATRG2-MOD Suite 1400 FCC ID: S3VATRG2-MOD Herndon, VA 20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2013037 39 of 42 Photograph 16: Horn Bottom View Rhein Tech Laboratories, Inc. Client: Mesa Engineering, Inc. 360 Herndon Parkway Model: ATRG2-MOD Suite 1400 FCC ID: S3VATRG2-MOD Herndon, VA 20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2013037 40 of 42 Photograph 17: Scale, Microwave Top View and Horn Top View

Rhein Tech Laboratories, Inc. Client: Mesa Engineering, Inc. 360 Herndon Parkway Model: ATRG2-MOD Suite 1400 FCC ID: S3VATRG2-MOD Herndon, VA 20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2013037 15 of 42 Appendix A: FCC Part 1.1307, 1.1310, 2.1091, 2.1093: RF Exposure – MPE Calculation Using FCC 1.1310 Table 1B as guidance, the maximum permissible RF exposure for an uncontrolled environment is 1 mW/cm 2 for the frequency used in this device. The worst case power as shown in section 5 of this report is used for the calculation below. The actual power density for the EUT calculated as shown below. )4/()( 2 dGPS×××=π or SGPd⋅⋅⋅=π4/( where: S = power density (mW/cm 2) P = transmitter conducted power in (mW) G = antenna numeric gain d = distance to radiation center (cm) Frequency (MHz) Antenna Gain (dBi) Conducted Power (W) Separation Distance (cm) Calculated Power Density (mW/cm 2 ) Power Density Limit (mW/cm 2 ) 34600 30 0.0002 20 0.03 1.0 Notice: Radiation Exposure Statement The calculated power density for this equipment at 20 cm is well below the FCC limit. Therefore, the minimum safe distance for this equipment for uncontrolled environments is 20 cm.

Engineering Solutions & Electromagnetic Compatibility Services 360 Herndon Pkwy | Suite 1400 | Herndon | Virginia 20170 Phone: 703.689.0368 | Fax: 703.689.2056 | www.rheintech.com FCC Certification Report Mesa Engineering, Inc. 5801 Dierker Drive Houston, TX 77041 (713) 895-7000 Model: ATRG2-MOD FCC ID: S3VATRG2-MOD March 26, 2013 Standards Referenced for this Report Part 2: 2012 Frequency Allocations and Radio Treaty Matters; General Rules and Regulations Part 90: 2012 Private Land Mobile Radio Services ANSI/TIA-603-C-2004 Land Mobile FM or PM Communications Equipment – Measurement and Performance Standards Frequency Range (MHz) Conducted Output Power (W) Frequency Tolerance (ppm) Emission Designator 34600 0.0002 305 NON Report Prepared By: Daniel Baltzell Document Number: 2013037 This report may not be reproduced, except in full, without the full written approval of Rhein Tech Laboratories, Inc. and Mesa Engineering, Inc. Test results relate only to the item tested. These tests are accredited and meet the requirements of ISO/IEC 17025 as verified by ANSI-ASQ National Accreditation Board/ACLASS. Refer to certificate and scope of accreditation AT-1445. Rhein Tech Laboratories, Inc. Client: Mesa Engineering, Inc. 360 Herndon Parkway Model: ATRG2-MOD Suite 1400 FCC ID: S3VATRG2-MOD Herndon, VA 20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2013037 2 of 42 Table of Contents 1 Test Result Summary ................................................................................................................................. 5 2 General Information .................................................................................................................................... 5 2.1 Test Facility ........................................................................................................................................... 5 2.2 Related Submittal(s)/Grant(s) ............................................................................................................... 5 2.3 Tested System Details .......................................................................................................................... 6 3 FCC Rules and Regulations Part 2.1033(C)(8): Voltages and Currents Through the Final Amplifying Stage .................................................................................................................................................................. 8 4 FCC Rules and Regulations Part 2.1046(a): RF Power Output: Part 90.205 Transmitting Power Limits .................................................................................................................................................................. 8 4.1 Test Procedure ...................................................................................................................................... 8 4.2 Test Data ............................................................................................................................................... 8 5 FCC Rules and Regulations Part 2.1053(a): Field Strength of Spurious Radiation; Part 90.210: Out of Band Emissions Limit ..................................................................................................................................... 9 5.1 Test Procedure ...................................................................................................................................... 9 5.2 Test Data ............................................................................................................................................... 9 5.2.1 CFR 47 Part 90.210 Requirements .............................................................................................. 9 6 FCC Rules and Regulations Part 2.1049(c)(1): Occupied Bandwidth ..................................................... 11 6.1 Test Procedure .................................................................................................................................... 11 6.2 Test Data ............................................................................................................................................. 11 7 FCC Rules and Regulation Part 2.1055 and 90.213: Frequency Stability .............................................. 13 7.1 Test Procedure .................................................................................................................................... 13 7.2 Test Data ............................................................................................................................................. 13 8 FCC Rules and Regulations Part 2.202: Necessary Bandwidth and Emission Bandwidth ..................... 14 9 Conclusion ................................................................................................................................................ 14 Rhein Tech Laboratories, Inc. Client: Mesa Engineering, Inc. 360 Herndon Parkway Model: ATRG2-MOD Suite 1400 FCC ID: S3VATRG2-MOD Herndon, VA 20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2013037 3 of 42 Table of Figures Figure 2-1: Configuration of Tested System ................................................................................................... 7 Table of Tables Table 2-1: Equipment Under Test (EUT) ....................................................................................................... 6 Table 2-2: Support Equipment ....................................................................................................................... 6 Table 4-1: RF Conducted Output Power – Measured ................................................................................... 8 Table 4-2: Test Equipment Used For Testing RF Power Output - Conducted .............................................. 8 Table 5-1: Test Data ...................................................................................................................................... 9 Table 5-2: T…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: Mesa Engineering, Inc. 360 Herndon Parkway Model: ATRG2-MOD Suite 1400 FCC ID: S3VATRG2-MOD Herndon, VA 20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2013037 41 of 42 Appendix M: Test Configuration Photographs Photograph 18: Radiated Emissions - Front View MOUSE MOUSE Rhein Tech Laboratories, Inc. Client: Mesa Engineering, Inc. 360 Herndon Parkway Model: ATRG2-MOD Suite 1400 FCC ID: S3VATRG2-MOD Herndon, VA 20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2013037 42 of 42 Photograph 19: Radiated Emissions - Rear View
