S4OAR6111-MXInductive Tag Reader

Fire & Security Products Siemens Building Technologies Card readerAR6111-MX Installation Clock/Data Interface Omron and Wiegand 2 Siemens Building TechnologiesAR6111-MX-Manual.doc Fire & Security Products02.2003 Safety regulations and warnings l The unit must only be used for the purpose intended by the manufacturer. l The installation instructions must be kept to hand and made available to every user. l Unauthorized changes and the use of spare parts and accessories which are not sold or recommended by the manufacturer of the unit could cause fire, electric shock or injury. Therefore, such measures will result in a renunciation of liability and the manufacturer will not accept any guarantee claims. l The manufacturer's guarantee terms in the version valid at the time of the sale are applicable to the unit. No liability will be accepted for unsuitably or incorrectly set parameters – whether automatic or manual – or for inappropriate use of the unit. l All repairs must be carried out by the manufacturer. l The user is responsible for ensuring that the unit is set up and connected in ac- cordance with the recognized technical regulations in the country of installation and any other guidelines valid in the relevant region. l Before opening the unit, always switch off the power supply and take measure- ments to ensure that there is no power to the unit. l If an operating display goes out, this does not necessarily mean that the unit is disconnected from the mains and has no power. If you are working on an open device, remember that live components may be exposed. Introduction Thank you for deciding to purchase the AR6111-MX. The ID card reader AR6111-MX in a wall switch housing is part of the new Access reader range. The reader reads proximity ID cards of 13.56 MHz technologies: ISO14443 Type A - like Mifare® 1k, 4k or UltraLight, my-D proximity (SLE55Rxx), ISO14443 Type B - like my-C (SLE66CL160S) and ISO15693 - like my-D vicinity, I-Code SLI, TagIT-HFI. The card number will be transmitted to the Access control system for processing. 3 Siemens Building TechnologiesAR6111-MX-Manual.doc Fire & Security Products02.2003 Approval If used according to the instructions, this radio system meets the basic require- ments of article 3 and the remaining applicable conditions of the R&TTE directive (1999/5/EG) of March 1999. Equipment Classification according to ETSI EN 300 330: Class 2 FCC ID: S4OAR6111-MX This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 4 Siemens Building TechnologiesAR6111-MX-Manual.doc Fire & Security Products02.2003 Technical specifications Housingplastic (potted electronic) Colorgray (like RAL 7004) Degree of protectionIP 65 Power supply9 - 15 V DC Power consumptionmax. 2,6 W Temperature range-25 °C to +60 °C Relative air humidity95% (no dew formation) Antennainternal Operating frequency13,56 MHz transmitter power 200 mW ± 2 dB Qualified Transponders (read serial number) ISO14443A: Mifare Standard 1k and 4k (UID, S/B, MAD), Mifare UltraLight (UID, B), Mifare DESfire (UID), my-D proximity (UID, B) ISO14443B: my-C (SLE66CL160S) (UID) ISO15683: my-D vicinity, I-Code SLI, TagIT HFI, STM LRI512 (all UID) connecting cable50 cm (LiYY 12 * 0,2 mm 2 ) Transducer1 x LED red 1 x LED green 1 x beeper Digital Inputs4 (maximum cable length 3 m) Interfaces:Clock / Data - Magnetic stripe format - Wiegand RS232-TTL (for service only) 5 Siemens Building TechnologiesAR6111-MX-Manual.doc Fire & Security Products02.2003 Installation The reader is designed to be wall-mounted on or without flush-mounting boxes. Notes: l The reader should not be mounted directly onto conductive materials, such as metal surfaces, metal frames (reinforcement) or metal-plated surfaces, as these surfaces will reduce the reader's range. The clearance to such surfaces should be at least 30 cm. l The distance between readers of the same design should not be less than 30 cm. l Before final installation, the planned installation site should be checked for suitability. 83,5 60 7,7 3,5 4,2 6 Siemens Building TechnologiesAR6111-MX-Manual.doc Fire & Security Products02.2003 Connecting the reader ColorFunctionDescription redVcc (9 - 15 V DC) blackGround* power supply greenData-/Clock (Data / Data0) whiteData-/Clock (Clock / Data1) violetData-/Clock (CLS / Card Present) Data-/Clock Interface greyLED green brownLED red yellowBeeper blueHold digital inputs ** orangeRS232-TTL (Rx) white / blackRS232-TTL (Tx) Service -Interface white / brown- N.C. - Notes: *) If an external power supply is used the ground signal from the power supply and the host must be connected. **) The digital inputs can only be connected to Ground. Any connection to external voltage might damage the unit! 7 Siemens Building TechnologiesAR6111-MX-Manual.doc Fire & Security Products02.2003 Function and Functional Testing Digital Inputs: LED green:Activates the green LED while the input is switched to ground LED red:Activates the red LED while the input is switched to ground Beeper:Activates the beeper while the input is switched to ground Hold:While input "Hold" is switched to ground the reader doesn't accept any Transponder Configuration Mode: After the power supply is switched on the reader starts his configuration mode for 8 seconds. The configuration mode is indicated by alternating blinking of the red and green LED. While the configuration mode is active the reader could be configured with a spe- cial ConfigCard. In this mode the reader accepts only ConfigCards. Please contact your supplier to get further information's about ConfigCards. After the configuration modes has finished the reader changed into the normal op- eration mode. Normal Operation Mode In the normal operation mode the LED and the beeper are controlled by the digital inputs. …

Text truncated - open the document above for the full version.

Request for Confidentiality in accordance with 47 CFR 0.459 Date: 08 July 2005 PHOENIX TEST-LAB GmbH Kˆnigswinkel 10 D32825 Blomberg Germany RE: Certification Application FCC ID: S4OAR6111-MX Please be advised that the following information is to be held confidential on behalf of Siemens Building Technologies: • Schematics • Parts Lists • Block Diagram • Technical Description The application contains technical information which Siemens Building Technologies deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter.

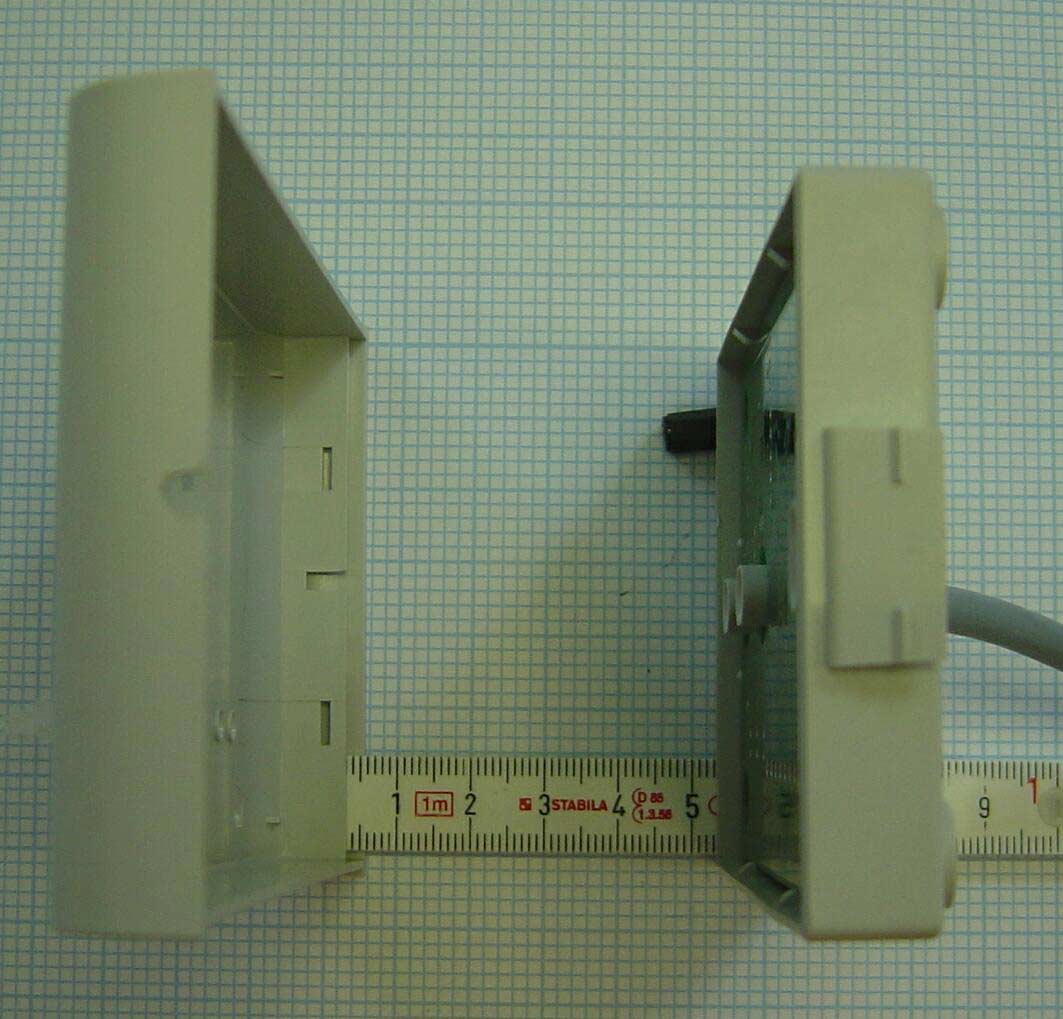

External Photographs AR6111-MX 1 / 7 FCC ID No: S4OAR6111-MX File : EXTERNAL PHOTOS FEIG050220 Date : 19.04.2005 The reproduction of this document as well as the utilization and communication of its contents are strictly forbidden, as far as not expressly conceded. Any contravention will lead to a liability for damages. All rights reserved for the case of patent grant respectively the registration of a utility or design. Siemens Buildung Technologies External Photographs AR6111-MX Front of unit External Photographs AR6111-MX 2 / 7 FCC ID No: S4OAR6111-MX File : EXTERNAL PHOTOS FEIG050220 Date : 19.04.2005 The reproduction of this document as well as the utilization and communication of its contents are strictly forbidden, as far as not expressly conceded. Any contravention will lead to a liability for damages. All rights reserved for the case of patent grant respectively the registration of a utility or design. Siemens Buildung Technologies External Photographs AR6111-MX Rear of unit External Photographs AR6111-MX 5 / 7 FCC ID No: S4OAR6111-MX File : EXTERNAL PHOTOS FEIG050220 Date : 19.04.2005 The reproduction of this document as well as the utilization and communication of its contents are strictly forbidden, as far as not expressly conceded. Any contravention will lead to a liability for damages. All rights reserved for the case of patent grant respectively the registration of a utility or design. Siemens Buildung Technologies External Photographs AR6111-MX Bottom side of unit External Photographs AR6111-MX 6 / 7 FCC ID No: S4OAR6111-MX File : EXTERNAL PHOTOS FEIG050220 Date : 19.04.2005 The reproduction of this document as well as the utilization and communication of its contents are strictly forbidden, as far as not expressly conceded. Any contravention will lead to a liability for damages. All rights reserved for the case of patent grant respectively the registration of a utility or design. Siemens Buildung Technologies External Photographs AR6111-MX right or left side of unit External Photographs AR6111-MX 7 / 7 FCC ID No: S4OAR6111-MX File : EXTERNAL PHOTOS FEIG050220 Date : 19.04.2005 The reproduction of this document as well as the utilization and communication of its contents are strictly forbidden, as far as not expressly conceded. Any contravention will lead to a liability for damages. All rights reserved for the case of patent grant respectively the registration of a utility or design. Siemens Buildung Technologies External Photographs AR6111-MX top side of unit

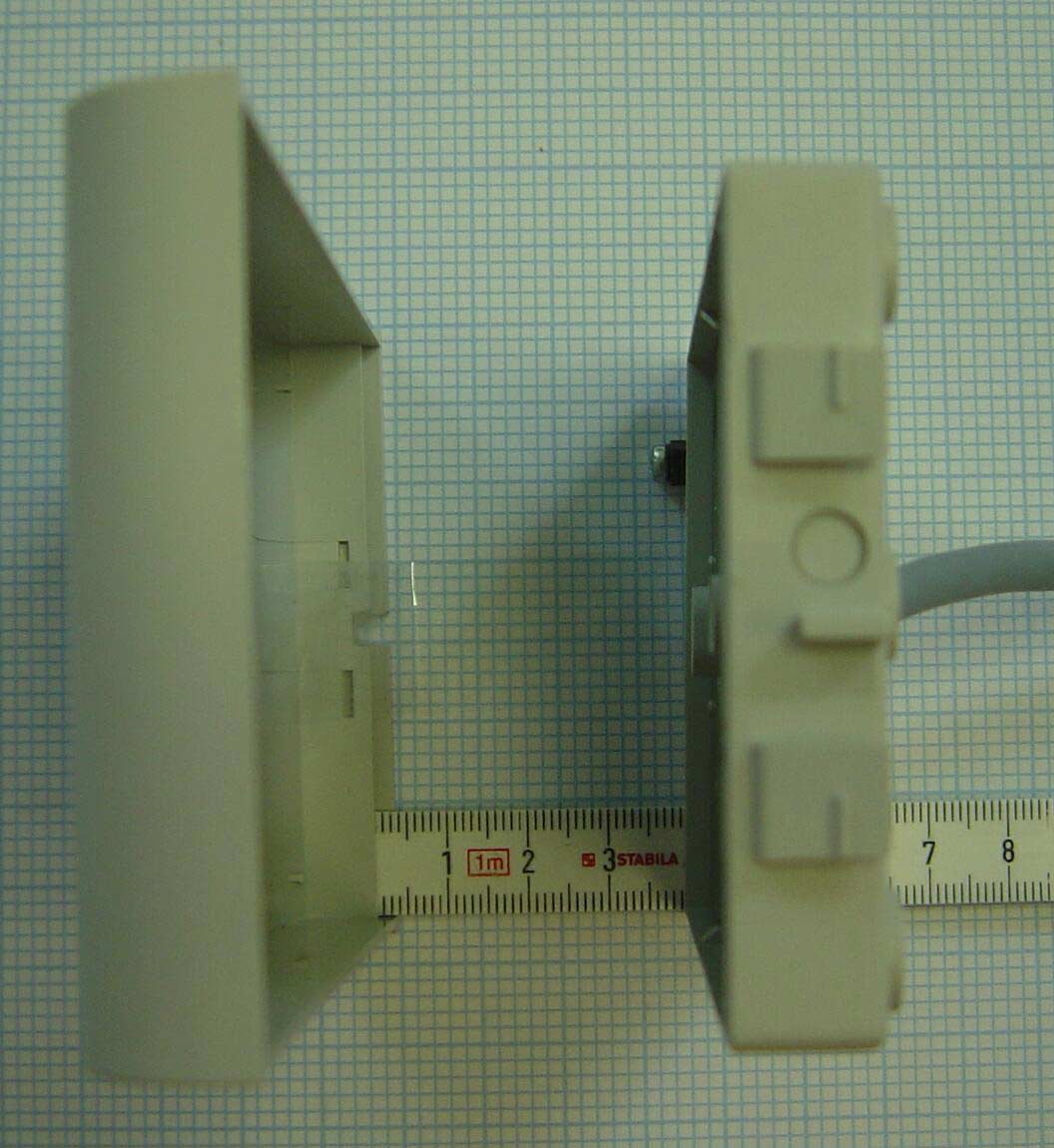

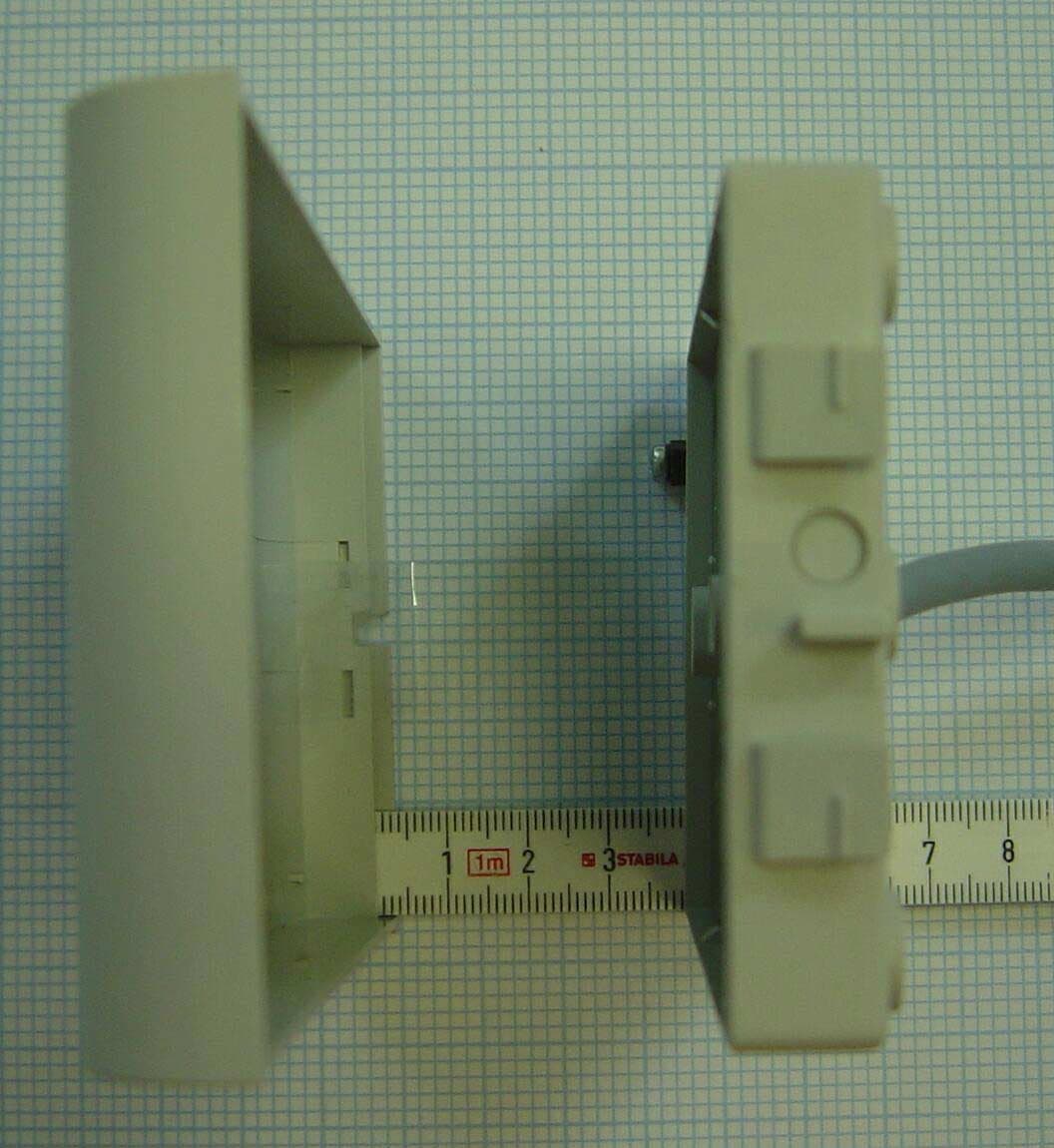

External Photographs AR6111-MX 2 / 7 FCC ID No: S4OAR6111-MX File : EXTERNAL PHOTOS FEIG050220 Date : 19.04.2005 The reproduction of this document as well as the utilization and communication of its contents are strictly forbidden, as far as not expressly conceded. Any contravention will lead to a liability for damages. All rights reserved for the case of patent grant respectively the registration of a utility or design. Siemens Buildung Technologies External Photographs AR6111-MX Rear of unit

Internal Photographs AR6111-MX 1 / 1 FCC ID No: S4OAR6111-MX File : AR6111-MX-INTERNAL-PHOTOS Date : 19.04.2005 The reproduction of this document as well as the utilization and communication of its contents are strictly forbidden, as far as not expressly conceded. Any contravention will lead to a liability for damages. All rights reserved for the case of patent grant respectively the registration of a utility or design. Siemens Buildung Technologies Internal AR6111-MX Top view of printed board Internal Photographs AR6111-MX 1 / 1 FCC ID No: S4OAR6111-MX File : AR6111-MX-INTERNAL-PHOTOS Date : 19.04.2005 The reproduction of this document as well as the utilization and communication of its contents are strictly forbidden, as far as not expressly conceded. Any contravention will lead to a liability for damages. All rights reserved for the case of patent grant respectively the registration of a utility or design. Siemens Buildung Technologies Internal AR6111-MX Bottom view of printed board

Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Note: The test data of this report is related only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. Test Report No. 50602-050220-1 (Edition 1) Page 1 of 47 Pages Straubing, Mai 30, 2005 T E S T - R E P O R T No. 50602-050220-1 (Edition 1) for AR6111-MX Inductive TAG Reader Applicant: Siemens Building Technologies Fire and Security Products GmbH & Co. oHG Test Specifications: FCC Code of Federal Regulations, CFR 47, Part 15, Sections 15.205, 15.207, 15.215 and 15.225 Industry Canada Radio Standards Specification RSS-210 Issue 5, Sections 6.2.2(e), 6.3 and 6.6 (Category I Equipment) Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50602-050220-1 (Edition 1) Page 2 of 47 Pages Table of Contents 1 Description of the Equipment Under Test (EUT) ........................................................ 3 2 Administrative Data..................................................................................................... 4 3 Identification of the Test Laboratory ........................................................................... 5 4 Summary .................................................................................................................... 6 5 Operation Mode and Configuration of EUT................................................................. 7 6 Measurement Procedures........................................................................................... 8 6.1 Bandwidth Measurements .................................................................................... 8 6.2 Conducted AC Powerline Emission ...................................................................... 9 6.3 Radiated Emission Measurement 9 kHz to 30 MHz ........................................... 11 6.4 Radiated Emission in Fully or Semi Anechoic Room.......................................... 13 6.5 Radiated Emission at Open Field Test Site........................................................ 15 6.6 Carrier Frequency Stability ................................................................................. 16 7 Photographs Taken During Testing .......................................................................... 18 8 Test Results .............................................................................................................. 25 8.1 Occupied Bandwidth........................................................................................... 27 8.2 Emission Bandwidth ........................................................................................... 30 8.3 Designation of Emissions ................................................................................... 32 8.4 Conducted Powerline Emission Measurement 150 kHz to 30 MHz................... 33 8.5 Spectrum Mask................................................................................................... 35 8.6 Radiated Emission Measurement 9 kHz to 30 MHz .......................................... 38 8.7 Radiated Emission Measurement 30 MHz to 1 GHz ......................................... 40 8.8 Carrier Frequency Stability ................................................................................. 42 8.9 Exposure of Humans to RF Fields...................................................................... 45 9 Referenced Regulations ........................................................................................... 46 10 Charts taken during testing ....................................................................................... 47 Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50602-050220-1 (Edition 1) Page 3 of 47 Pages 1 Description of the Equipment Under Test (EUT) General data of EUT Type designation 1 : AR6111-MX Parts 2 : Serial number(s): 01 Manufacturer: Siemens Building Technologies Fire and Security Products GmbH & Co. oHG Type of equipment: Inductive TAG Reader Version: FCC ID: S4OAR6111-MX Additional parts/accessories: Technical data of EUT Application frequency range: 13.553 - 13.567 MHz Frequency range: Operating frequency: 13.56 MHz Type of modulation: ASK Pulse train: Pulse width: Number of RF-channels: 1 Channel spacing: Designation of emissions 3 : 10K0A1D Type of antenna: Integrated Loop Coil Size/length of antenna: 65 x 100 mm Connection of antenna: detachable not detachable Type of power supply: DC supply Specifications for power supply: nominal voltage: 12.0 V minimum voltage: 9.0 V maximum voltage: 15.0 V 1 Type designation of the system if EUT consists of more than one part. 2 Type designations of the parts of the system, if applicable. 3 Also known as "Class of Emission". Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50602-050220-1 (Edition 1) Page 4 of 47 Pages 2 Administrative Data Application details Applicant (full address): Siemens Building Technologies Fire and Security Products GmbH & Co. oHG Siemensalle 84 D-76187 Karlsruhe Germany Contact person: Mr. Arthur Rihm Contract identification: EB203148 / 16483 Receipt of EUT: 27th April 2005 Date(s) of test: April - May 2005 Note(s): --- Report details Report number: 50602-050220-1 Edition: 1 Issue date: Mai 30, 2005 Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50602-050220-1 (Edition 1) Page 5 of 47 Pages 3 Identification of the Test Laboratory Details of the Test Laboratory Company name: Senton GmbH EMI/EMC Test Center Address: Aeussere Fruehlingstrasse 45 D-94315 Straubing Germany Laboratory accreditation: DAR-Registration No. DAT-P-171/94-02 FCC test site registration number 90926 Industry Canada test site registration: IC 3050 Contact person: Mr. Johann Roidt Phone: (+49) (0)9421 5522-0 Fax: (+49) (0)9421 5522-99 Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50602-050220-1 (Edition 1) Page …

Text truncated - open the document above for the full version.

Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50602-050220-1 (Edition 1) Page 19 of 47 Pages Test setup for conducted AC powerline emission measurement Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50602-050220-1 (Edition 1) Page 20 of 47 Pages Test setup for radiated emission measurement 9 kHz ñ 30 MHz Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50602-050220-1 (Edition 1) Page 21 of 47 Pages Test setup for radiated emission measurement 9 kHz ñ 30 MHz - continued - Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50602-050220-1 (Edition 1) Page 22 of 47 Pages Test setup for radiated emission measurement (fully anechoic room) Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50602-050220-1 (Edition 1) Page 23 of 47 Pages Test setup for radiated emission measurement (fully anechoic room) - continued - Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50602-050220-1 (Edition 1) Page 24 of 47 Pages Test setup for radiated emission measurement (open field test site)
