S4SEGOSWLWIRELESS OPTICAL MOUSE

Note: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment.

Applicant: Nortek International (China) Ltd. FCC ID: S4SEGOSWL

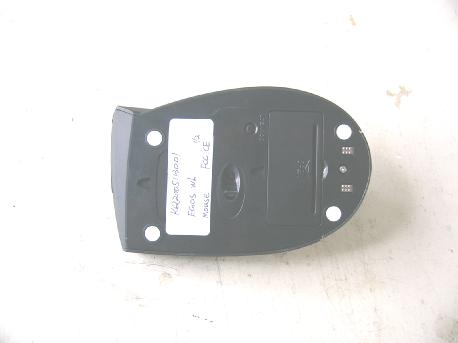

Applicant: Nortek International (China) Ltd. FCC ID: S4SEGOSWL EUT top view EUT bottom view

Applicant: Nortek International (China) Ltd. FCC ID: S4SEGOSWL This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Proposed Label Location on EUT EUT Bottom View/Proposed FCC ID Label Location FCC ID: S4SEGOSWL

Applicant: Nortek International (China) Ltd. FCC ID: S4SEGOSWL EUT inside whole view Main board component side Main board solder side Rx top view Rx bottom view Rx inside whole view Rx board component side Rx board solder side

Applicant: Nortek International (China) Ltd. FCC ID: S4SEGOSWL Operational Description X2 the 27.045 and X3 the 27.195 crystal oscillator driver the base of U1 the final/buffer amplifier into the same base (U1) is the modulation provided by U1 , the output of U1 has the matching network consisting of C6, C2, C3 and the C2,C3 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna ground and power source The antenna is extension, there is no external ground connection .the ground is only that of the printed circuit board. electric current is supplied by 2*AAA batteries.

1 2 34 ABCD 4 3 2 1 D CBA PCBANT C122PC522PC4104 SW6 C6100P C212P X1 76.8K C3220p C1633P C14 4P C1527P SW1SW2SW3 C1330P + C10220U C9104 VBT + C8 220U C7104 VCC BT21.5V/2.8V 12345678 910111213141516 XY-LEDREFB OSC1 GNDGNDVDD OSC2 SCLKXAXBYBYAREFA R_BIN PD SDIO U2 H2099 X4 18.432MHZ C170.1U C11 2.2U C120.1U LED1 Units Scale sheet mm 1 of 1 rev1.0 DR HUYUQING CHKD APPD Title: 01040- MLK1152(A6221S7K+2030 MLKIndustries(shenzhen)Limited OSC1 1 VSS 2 OSC2 3 VDD 4 RBUT 5 MBUT 6 LBUT 7 RFOUT 8 ORFIN1 9 ORFIN0 10 ORFO 11 TXD 12 PD 13 WA 14 WB 15 Z1IN 16 Z2IN 17 SDIO 18 SCLK 19 BATL 20 TYPE 21 TXCB 22 BBUT 23 FBUT 24 SVD_IN 25 DCVR 26 VL 27 VL_NM 28 U1MA6221_S7K R110M RX10R R7 1.2M R9910K R630K R816K R21K R3 15K L21.8uH X2 27.045MHz X3 27.195MHz SW7* L1100uH D11N5819 VCC PD PDSDIO SDIOSCLK SCLK DCVR DCVR SVDIN SVDIN VCC TYPE AEP010040512400 R100R R110R TYPE BATL BATL FBUTBBUT FBUT BBUT VCC 123 J1CON3 VBT PD VCC 12345 J2CON5 1:1

The test report consists 23 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Ke Mei Ou Laboratory Corporation. The test result in the report only applied to the tested sample. FCC TEST REPORT Under FCC 15 Subpart C, Paragraph 15.227 Prepared For: Nortek International (China) Ltd. Unit 1604-05, 16/F., Island Place Tower, Island Place, 510 King’s Road, North Point, Hong Kong. December 9, 2005 FCC ID: S4SEGOSWL EUT: Wireless Optical Mouse Model: EGOS WL Report Type: Original Report Test Engineer: Peter Lin Test Date: November 30, 2005 Review By: Apollo Liu / Manager Ke Mei Ou Laboratory Co., Ltd. 7A, Jiaxiangge, Jiahuixincheng, No.3027, Shennan Rd., Futian, Shenzhen, Guangdong, P.R.China. Zip Code: 518033 Tel: + 86 755 83642690 Fax: + 86 755 83297077 www.kmolab.com FEDERAL COMMUNICATIONS COMMISSION Registration Number: 125782 INDUSTRY CANADA Registration Number: IC4986 Nortek International (China) Ltd. FCC ID: S4SEGOSWL KMO FCC ID Report Report #: KSZ2005113001J01 Page 2 of 23 TABLE OF CONTENTS 1. General Information....................................................................................................................................................3 1. 1 Notes......................................................................................................................................................................3 1. 2 Testing Laboratory..................................................................................................................................................3 1. 3 Details of Applicant................................................................................................................................................3 1. 4 Application Details..................................................................................................................................................3 1. 5 Test Item.................................................................................................................................................................3 1. 6 Test Standards.........................................................................................................................................................3 2. Technical Test...............................................................................................................................................................4 2. 1 Summary of Test Results.........................................................................................................................................4 2. 2 Antenna Requirement..............................................................................................................................................4 3. EUT Modifications.......................................................................................................................................................4 4. Conducted Power Line Test.........................................................................................................................................5 4. 1 Test Equipment.......................................................................................................................................................5 4. 2 Test Procedure........................................................................................................................................................5 4. 3 Test Setup...............................................................................................................................................................5 4. 4 Configuration of The EUT.......................................................................................................................................6 4. 5 EUT Operating Condition........................................................................................................................................7 4. 6 Conducted Power Line Emission Limits..................................................................................................................7 4. 7 Conducted Power Line Test Result...........................................................................................................................7 5. Radiated Emission Test................................................................................................................................................9 5. 1 Test Equipment.......................................................................................................................................................9 5. 2 Test Procedure........................................................................................................................................................9 5. 3 Radiated Test Setup.................................................................................................................................................9 5. 4 Configuration of The EUT.....................................................................................................................................10 5. 5 EUT Operating Condition......................................................................................................................................10 5. 6 Radiated Emission Limit.......................................................................................................................................10 5. 7 Radiated Emission Test Result...............................................................................................................................11 6. Band Edge..................................................................................................................................................................12 6. 1 Test Equipment.....................................................................................…

Text truncated - open the document above for the full version.

Applicant: Nortek International (China) Ltd. FCC ID: S4SEGOSWL Radiated emission test view
