S5CCG-USB02-01USB Dongle

USB dongle 方塊圖.bmp

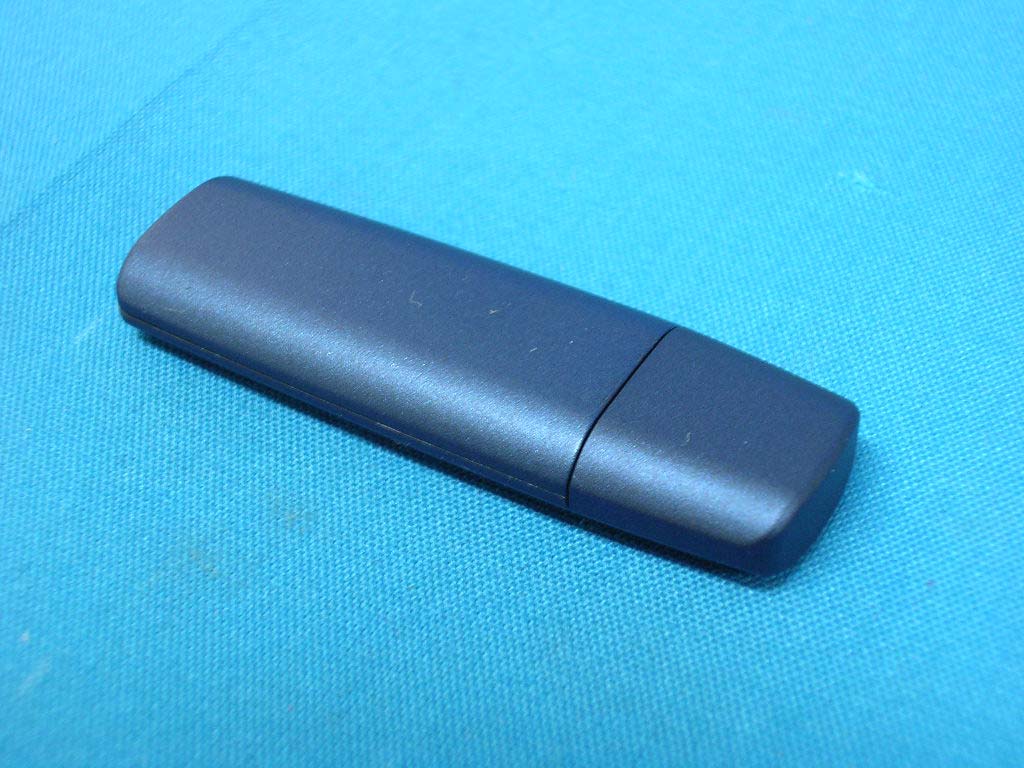

Report No： 053H049-F-R02-T Page: 52 of 57 Version:1.0 Attachement ¾ EUT Photograph (1) EUT Photo (2) EUT Photo Report No： 053H049-F-R02-T Page: 53 of 57 Version:1.0 (3) EUT Photo (4) EUT Photo

ChuanG International Holding Co., Ltd. Address: 1F, No. 12, Alley 1, Lane 125, Guolian Street 4 Lin, Wuhan Village, Longtan Township, Taoyuan, Taiwan, R.O.C. Tel: +886-3-4806067 FCC ID.: S5CCG-USB02-01 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. USB Dongle Model No.: CG-USB02-01 F F C C C C I I D D : : S S 5 5 C C C C G G - - U U S S B B 0 0 2 2 - - 0 0 1 1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan Trade name: ChuanG Model number.: CG-USB02-01

ChuanG International Holding Co., Ltd. Address: 1F, No. 12, Alley 1, Lane 125, Guolian Street 4 Lin, Wuhan Village, Longtan Township, Taoyuan, Taiwan, R.O.C. Tel: +886-3-4806067 FCC ID.: S5CCG-USB02-01 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. USB Dongle Model No.: CG-USB02-01 F F C C C C I I D D : : S S 5 5 C C C C G G - - U U S S B B 0 0 2 2 - - 0 0 1 1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan Trade name: ChuanG Model number.: CG-USB02-01

Report No： 053H049-F-R02-T Page: 54 of 57 Version:1.0 (5) EUT Photo (6) EUT Photo Report No： 053H049-F-R02-T Page: 55 of 57 Version:1.0 (7) EUT Photo Report No： 053H049-F-R02-T Page: 56 of 57 Version:1.0 (8) EUT Photo Report No： 053H049-F-R02-T Page: 57 of 57 Version:1.0 (9) EUT Photo

Report No： 053H049-F-R02-T Page: 7 of 57 Version:1.0 1.2. Operational Description The EUT is an USB interface USB Dongle with 79 channels. This device provides wireless technology that revolutionizes personal connectivity. It is the solution for the seamless integration of Bluetooth technology into personal computer enabling short-range wireless connections between desktop/laptop computers, Bluetooth-enabled peripherals (printers, faxes,....), portable handheld devices, and connectivity to the Internet.

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 21-Mar-2005 Sheet of File: H:\ \ \NEW 2004817\ \ \ 計劃創業計劃 公司規劃 個人接案成本及設計技術資料模組開發案 Drawn By: VSS_ANA J2 VSS_ANA J4 VSS_RADIO D2 VSS_RADIO F2 VSS_RADIO E2 VSS_USB J9 VSS_USB K10 VSS_PIO A1 VSS_PIO A2 VSS_CORE E9 VSS_MEM B10 VSS_MEM J7 VSS_MEM A10 VSS_MEM B7 VSS_MEM B5 VSS_PADS D9 VSS F3 VDD_MEM J6 VDD_MEM A7 VDD_MEM A9 VDD_MEM H6 VDD_MEM A6 VDD_MEM K7 VDD_PADS D10 VDD_PIO A3 VDD_ANA K4 VDD_USB K9 XTAL_IN K3 SPKR_P J1 SPKR_N K1 MIC_P H3 MIC_N G3 VSS_ANA K2 XTAL_OUT J3 N/C A4 N/C A8 N/C A5 N/C K5 N/C B6 PIO[2] B3 PIO[3] B4 PIO[4] E8 PIO[5] F8 PIO[11] E3 EXT_FLASH B8 VREG_IN K6 PIO[10] C4 PCM_OUT G8 PCM_IN G9 PCM_SYNC G10 PCM_CLK H10 PIO[0] B1 PIO[1] B2 PIO[8] C5 PIO[6] F10 PIO[7] F9 UART_RTS H7 UART_CTS H8 UART_RX H9 UART_TX J10 SPI_MOSI C8 SPI_CSB C9 SPI_CLK C10 SPI_MISO B9 USB_DP J8 USB_DN K8 REST C7 TEST_EN C6 AIO[1] H5 AIO[2] J5 VDD_RADIO C1 VDD_RADIO C2 VDD_CORE E10 VDD_VCO H1 VSS_VCO G1 VSS_VCO G2 LOOP_FILTER H2 PIO[9] C3 AIO[0] H4 AUX_DAC D3 RF_IN D1 TX_B E1 TX_A F1 RESETB/MODE_SEL D8 U3BC313143 C610n 1 2 4 3 XT1 ( 16 MHz) C41u C9 C10 3V15 1V8 C2110n C7 15p R52R2 L3 1V8 1V8 L52n2H L62n2H C13 N C14 N 3 4 1 2 6 5 T1HHM-1517 IN 1 GND 3 GND 2 OUT 4 F1 C1233p L24n7 1V8 L44n7 CG-0823-0201 PIO7/EEPROM_DATAPIO8/EEPROM_WP R72K2 R62K2 R82K2 C310n 3V15 PIO6/EEPROM_CLK R1001K 1V8 VCC 8 WP 7 SCL 6 SDA 5 A0 1 A1 2 A2 3 GND 4 U2_S SerialEEPROM PIO7/EEPROM_DATAPIO6/EEPROM_CLKPIO8/EEPROM_WP 1V8 C515pF 1V8 C2615pF 3V15 C2010n 1V8 3V15 C2210nF 5V 1V8 1 14 J 1 38 J 1 35 J 1 28 J 1 27 J 1 23 J 1 25 J 1 24 J 1 22 J 1 6 J 1 7 J 1 5 J 1 4 J TX_ATX_B TX_ATX_B 1 42 J 1 44 J R2122 R2222 C19NF C23NF C2NF 5V 3V15 1 J43 ANT-1 1 2 3 4 5 USB101USB Header 4 TEST106D+ TEST103D- TEST102+5V TEST105GND USB_D- USB_D+ R10NF PIO2 USB_D+USB_D- PIO2 R9100 R C2410nF PIO0 1 2 LED101LED_1 Green/0603 PIO0 R23N L1 C15 1V8 R110 VSS 1 VOUT 2 VIN 3 Q1 C16 L7

Report No： 053H049-F-R02-T Page: 1 of 57 Version:1.0 Test Report Product Name：USB Dongle Model No. ：CG-USB02-01 FCC ID. ：S5CCG-USB02-01 Applicant ：ChuanG International Holding Co., Ltd. Address ：1F, No. 12, Alley 1, Lane 125, Guolian Street 4 Lin, Wuhan Village, Longtan Township, Taoyuan, Taiwan, R.O.C. Date of Receipt：2005/03/16 Issued Date ：2005/03/18 Report No. ：053H049-F-R02-T The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 053H049-F-R02-T Page: 2 of 57 Version:1.0 Test Report Certification Issued Date : 2005/03/18 Report No. : 053H049-F-R02-T Product Name ： USB Dongle Applicant ： ChuanG International Holding Co., Ltd. Address ： 1F, No. 12, Alley 1, Lane 125, Guolian Street 4 Lin, Wuhan Village, Longtan Township, Taoyuan, Taiwan, R.O.C. Manufacturer ： ChuanG International Holding Co., Ltd. Model No. ： CG-USB02-01 FCC ID. ： S5CCG-USB02-01 Rated Voltage : DC 5V EUT Voltage : DC 5V Trade Name ： ChuanG Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247: 2003 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By ： ( Carol Tsai ) Tested By ： ( Dampier Chang ) Approved By ： (James Chang) Report No： 053H049-F-R02-T Page: 3 of 57 Version:1.0 TABLE OF CONTENTS Description Page 1. General Information.................................................................................................................5 1.1. EUT Description..........................................................................................................................5 1.2. Operational Description.............................................................................................................7 1.3. Test Mode....................................................................................................................................8 1.4. Tested System Details................................................................................................................9 1.5. Configuration of tested System..............................................................................................10 1.6. EUT Exercise Software............................................................................................................11 1.7. Test Facility................................................................................................................................12 2. Conducted Emission.............................................................................................................14 2.1. Test Equipment.........................................................................................................................14 2.2. Test Setup..................................................................................................................................14 2.3. Limits...........................................................................................................................................15 2.4. Test Procedure..........................................................................................................................15 2.5. Test Specification......................................................................................................................15 2.6. Test Result.................................................................................................................................16 2.7. Test Photo..................................................................................................................................18 3. Peak Power Output................................................................................................................19 3.1. Test Equipment.........................................................................................................................19 3.2. Test Setup..................................................................................................................................19 3.3. Limits...........................................................................................................................................19 3.4. Test Specification......................................................................................................................19 3.5. Test Result.................................................................................................................................20 4. Radiated Emission.................................................................................................................21 4.1. Test Equipment.........................................................................................................................21 4.2. Test Setup..................................................................................................................................21 4.3. Limits...........................................................................................................................................22 4.4. Test Procedure..........................................................................................................................22 4.5. Test Specification......................................................................................................................22 4.6. Test Result.................................................................................................................................23 4.7. Test Photo..................................................................................................................................35 5. Band Edge........................................................................................…

Text truncated - open the document above for the full version.

Report No： 053H049-F-R02-T Page: 18 of 57 Version:1.0 2.7. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 1: Transmit Description： Back View of Conducted Emission Test Setup Report No： 053H049-F-R02-T Page: 35 of 57 Version:1.0 4.7. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup Test Mode ： Mode 1: Transmit Description： Back View of Radiated Emission Test Setup Report No： 053H049-F-R02-T Page: 36 of 57 Version:1.0 Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Horn)
