User’s Manual This light device has been tested and found to comply with the limits for Consumer RF Lighting Device, pursuant to Part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. 1 Use only on 120V/60Hz (in dry location). 2 Never disassemble or modify-any changes could void the user’ authority to operate this device. 3 Not for use in totally enclosed fixtures. 4 Risk of electric shock-do not use with where directly exposed to water. 5 This device is not intended for use with emergency exit fixtures or emergency exit lights. 6 This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45-30MHz. 7 To prevent burns, do not touch the bulb during operation or immediately after switching off. 8 Not for use with dimmers, electronic timer, electronic switches or photocell devices or occupancy sensor.

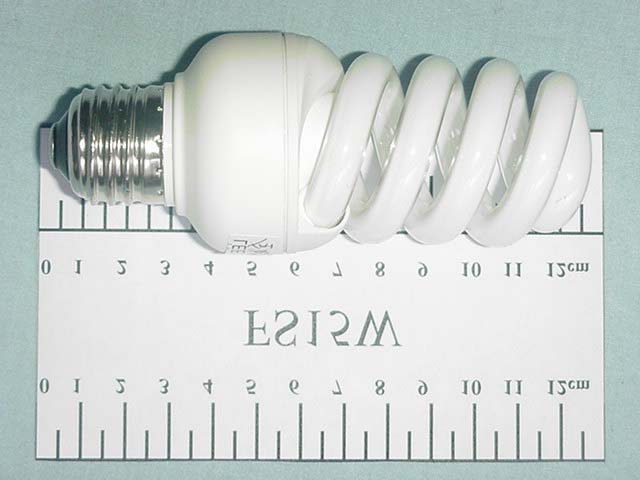

F IGURE 1 E NERGY S AVING L AMP (M/N: FS15W) G ENERAL A PPEARANCE F IGURE 2 E NERGY S AVING L AMP (M/N: FS20W) G ENERAL A PPEARANCE F IGURE 3 E NERGY S AVING L AMP (M/N: FS23W) G ENERAL A PPEARANCE
Label Location Information Refer to the below red arrow: (For example)
Label Drawing LEELITE FCC ID: S6K131S0305
F IGURE 1 E NERGY S AVING L AMP (M/N: FS15W) C OVER R EMOVED F IGURE 2 E NERGY S AVING L AMP (M/N: FS15W) M AIN B OARD (C OMPONENT S IDE ) F IGURE 3 E NERGY S AVING L AMP (M/N: FS15W) M AIN B OARD (S OLDERED S IDE ) F IGURE 4 E NERGY S AVING L AMP (M/N: FS20W) C OVER R EMOVED F IGURE 5 E NERGY S AVING L AMP (M/N: FS20W) M AIN B OARD (C OMPONENT S IDE ) F IGURE 6 E NERGY S AVING L AMP (M/N: FS20W) M AIN B OARD (S OLDERED S IDE ) F IGURE 7 E NERGY S AVING L AMP (M/N: FS23W) C OVER R EMOVED F IGURE 8 E NERGY S AVING L AMP (M/N: FS23W) M AIN B OARD (C OMPONENT S IDE ) F IGURE 9 E NERGY S AVING L AMP (M/N: FS23W) M AIN B OARD (S OLDERED S IDE )
Schematics APPENDIX F ORM OF C OMPONENTS MODEL NUMBER COMPONENTS Full spiral 15W Full spiral 20W Full spiral 23W Location Material Name SPECIFICATION Quantity Specification Quantity Specification Quantity C2 Electrolytic capacitor 15u/200V Φ 10×20 105 °C 1 22u/200V Φ 10×20 105 °C 1 22u/200V Φ 10×20 105 °C 1 C1 Capacitor 47n/400V CL21 1 47n/400V CL21 1 47n/400V CL21 1 C4 Capacitor 1n0/1200V CL11 1 1n0/1200V CL11 1 1n0/1200V CL11 1 C3 Capacitor 22n/160V CL11 1 22n/160V CL11 1 22n/160V CL11 1 C5 Capacitor 47n/400V CL11 1 47n/400V CL11 1 47n/400V CL11 1 C6 Capacitor 3n3/1200V CBB11 120 °C 1 3n3/1200V CBB11 120 °C 1 3n3/1200V CBB11 120 °C 1 C7 Capacitor 3n3/1200V CBB11 120 °C 1 3n3/1200V CBB11 120 °C 1 4n0/1200V CBB11 120 °C 1 D1~D5 Diode IN4007 5 IN4007 5 IN4007 5 D7 D9 Diode IN4007 2 -- - -- - D6 D8 Diode -- - IN4007 2 -- - DB3 Diac DB3 1 DB3 1 DB3 1 R1 R2 Resistor 470K Ω 1/2WS 2 470K Ω 1/2WS 2 470K Ω 1/2WS 2 R4 R6 Resistor 1 Ω 1/4W 2 -- - 0.5 Ω 1/4W 2 R3 R5 Resistor 20 Ω 1/4W 2 15 Ω 1/4W 2 15 Ω 1/4W 2 T1 T2 Transistor TO-126 4124PL 2 TO-126 4126PL 2 TO-126 4128PL 2 L3 Chock E16 1.7mH±4% PBT 180 °C 1 E19 1.4mH±4% PBT 180 °C 1 E19 1.55mH±4% PBT 180 °C 1 MODEL NUMBER COMPONENTS Full spiral 15W Full spiral 20W Full spiral 23W Location Material Name SPECIFICATION Quantity Specification Quantity Specification Quantity L1 Drum inductor 2mH Φ 8*10 WIRE:155 °C TUBE:125 °C 1 2mH Φ 8*10 WIRE:155 °C TUBE:125 °C 1 2mH Φ 8*10 WIRE:155 °C TUBE:125 °C 1 FU Fuse Φ 3.6×10 1A 125VAC 1 Φ 3.6×10 1.5A 125VAC 1 Φ 3.6×10 2A 125VAC 1 L2 Core Ring 9×5×4 1 9×5×4 1 9×5×4 1 J1 J2 Teminial 3PIN 2 3PIN 2 3PIN 2 Tape width:15mm length:55mm 1 width:15mm length:55mm 1 width:15mm length:55mm 1 PCB LDS-131 ( 42.8) 94V0 130 °C 1 LDS-131 ( 42.8) 94V0 130 °C 1 LDS-131 ( 42.8) 94V0 130 °C 1 Fiber glass sleeve Φ 1 23±1mm 2 Φ 1 23±1mm 2 Φ 1 23±1mm 2 Base E26 1 E26 1 E26 1 PVC wire 1015AWG22 65mm 1 1015AWG22 65mm 1 1015AWG22 65mm 1 Fiber glass sleeve Φ 1 15±1mm 4 Φ 1 15±1mm 4 Φ 1 15±1mm 4 Fiber glass sleeve Φ 3 45±1mm 1 Φ 3 45±1mm 1 Φ 3 45±1mm 1 Plastics D48 Full spiral PBT V0 1 D48 Full spiral PBT V0 1 D48 Full spiral PBT V0 1 Tube Full spiral 15W Φ 10 1 Full spiral 20W Φ 10 1 Full spiral 23W Φ 10 1
XIAMEN LEEDARSON IMPORT & EXPORT CO., LTD FCC ID: S6K131S0305 Page 1 of 16 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F05017 Application for FCC Certificate On Behalf of XIAMEN LEEDARSON IMPORT & EXPORT CO., LTD Energy Saving Lamp Model No.: FS15W, FS20W, FS23W Serial No.: F05012701, F05012702, F05012703 FCC ID: S6K131S0305 Prepared For : XIAMEN LEEDARSON IMPORT & EXPORT CO., LTD 6B, JINSHAN BUILDING, NO.862 XIAHE ROAD, XIAMEN, CHINA Prepared By : Audix Technology (Shanghai) Co., Ltd. 3F 34Bldg 680 Guiping Rd, Caohejing Hi-Tech Park, Shanghai, China 200233 Tel : +86-21-64955500 Fax : +86-21-64955491 Report No. : ACI-F05017 Date of Test : Mar 25-28, 2005 Date of Report : Mar 31, 2005 XIAMEN LEEDARSON IMPORT & EXPORT CO., LTD FCC ID: S6K131S0305 Page 2 of 16 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F05017 TABLE OF CONTENTS Page 1 GENERAL INFORMATION.......................................................................................................... 4 1.1 Description of Equipment Under Test........................................................................................4 1.2 Description of Test Facility ........................................................................................................ 5 1.3 Measurement Uncertainty .......................................................................................................... 5 2 AC POWERLINE CONDUCTED EMISSION TEST ................................................................. 6 2.1 Test Equipment........................................................................................................................... 6 2.2 Block Diagram of Test Setup ..................................................................................................... 6 2.3 Conducted Emission Limits ....................................................................................................... 7 2.4 Test Configuration...................................................................................................................... 7 2.5 Operating Condition of EUT ...................................................................................................... 7 2.6 Test Procedures .......................................................................................................................... 7 2.7 Test Results ................................................................................................................................ 8 3 MAGNETIC FIELD EMISSION TEST ...................................................................................... 12 3.1 Test Equipment......................................................................................................................... 12 3.2 Block Diagram of Test Setup ................................................................................................... 12 3.3 Magnetic Field Emission Limit ................................................................................................ 12 3.4 EUT Configuration on Test ...................................................................................................... 13 3.5 Operating Condition of EUT .................................................................................................... 13 3.6 Test Procedures ........................................................................................................................ 13 3.7 Test Results .............................................................................................................................. 13 XIAMEN LEEDARSON IMPORT & EXPORT CO., LTD FCC ID: S6K131S0305 Page 3 of 16 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F05017 TEST REPORT FOR FCC CERTIFICATE Applicant : XIAMEN LEEDARSON IMPORT & EXPORT CO., LTD Manufacturer : LEEDARSON LIGHTING CO., LTD EUT Description : Energy Saving Lamp (A) Model No. : FS15W, FS20W, FS23W (B) Serial No. : F05012701, F05012702, F05012703 (C) Power Supply : 120V/60Hz Test Procedure Used: FCC RULES AND REGULATIONS PART 18 CONSUMER DEVICES (2004.10) AND MP-5/1986 The device described above is tested by Audix Technology (Shanghai) Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 18 RF Lighting Device limits both conducted emissions and field strength. The test results are contained in this test report and Audix Technology (Shanghai) Co., Ltd. is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT (Please see the EUT Description above), which was tested in 3m anechoic chamber on Mar 25-28, 2005, to be technically compliant with the FCC official limits. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of Audix Technology (Shanghai) Co., Ltd. This report contains data that are not covered by the NVLAP accreditation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. Date of Test : Mar 25-28, 2005 Prepared by : Test Engineer : SARAH LIU (Assistant) DENNIS ZHANG (Engineer) Reviewer : Approved Signatory : SAMMY CHEN (Supervisor) BYRON KWO (Deputy Manager) XIAMEN LEEDARSON IMPORT & EXPORT CO., LTD FCC ID: S6K131S0305 Page 4 of 16 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F05017 1 GENERAL INFORMATION 1.1 Description of Equipment Under Test Description : Energy Saving Lamp Type of EUT : ; Production Pre-product Pro-type Model Number : FS15W, FS20W, FS23W Serial Number : F05012701, F05012702, F05012703 Note : Except the lamp shades, model numbers and serial numbers, they are the same product. The circuit card copper traces are in agreement with the schematic. Applicant : XIAMEN LEEDARSON IMPORT & EXPORT CO., LTD 6B, JINSHAN BUILDING, NO.862 XIAHE ROAD, XIAMEN, CHINA Manufacturer : LEEDARSON LIGHTING C…
