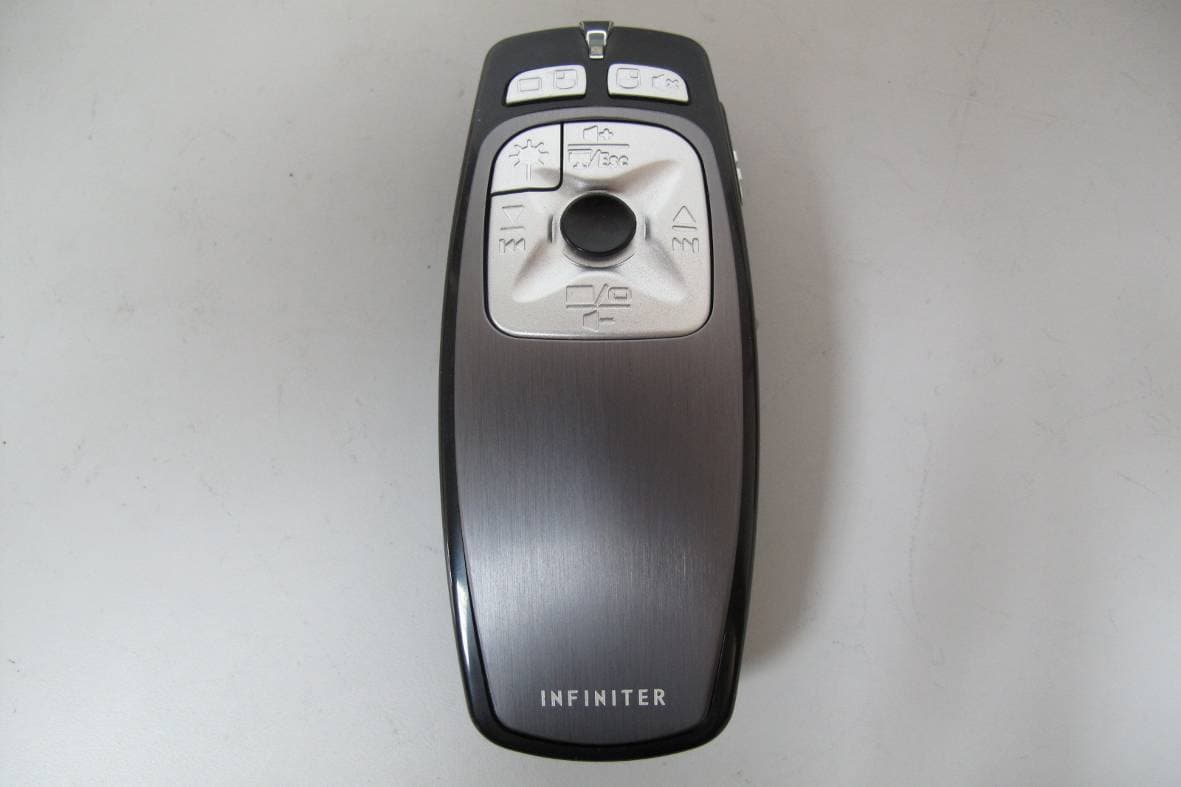

S751433LR2Laser Presenter

Quarton Inc.

Click to zoom

Application Details

Equipment Class: DSC - Part 15 Security/Remote Control Transmitter
Date of Grant: May 03, 2005
Application Purpose: Original Equipment
Date of Application: May 03, 2005
Equipment Note: Laser Presenter
Frequency Range: 433.92000000 - 433.92000000
Company: Quarton Inc.
Country: Taiwan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Block Diagram

Battery 1.5V Voltage Regulator(U1) VCC = 3V Code Generator(U2) Control Code Oscillator(U3) 433.92MHz Carrier Wave Amplifier(Q4) Amplify the Signal Antenna(L2) Transmit 433.92MHz Signal 433.92MHz Transmitter Block

External Photos

ID Label/Location Info

FCC ID LABEL FORMAT AND LOCATION Applicant:Quarton Inc. FCC ID:S751433LR2 FCC ID: S751433LR2 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCCIDLABELAREA

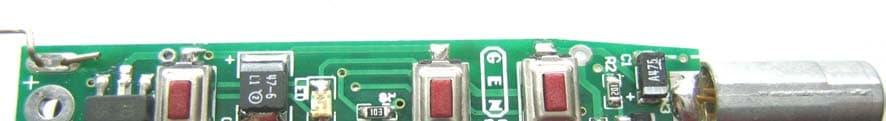

Internal Photos

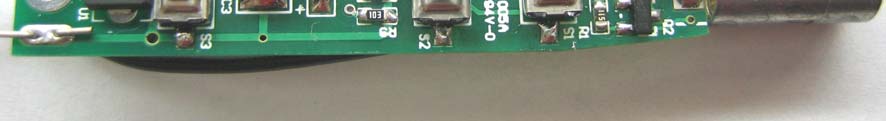

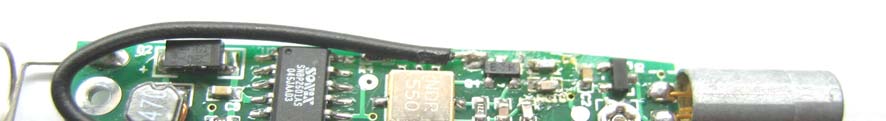

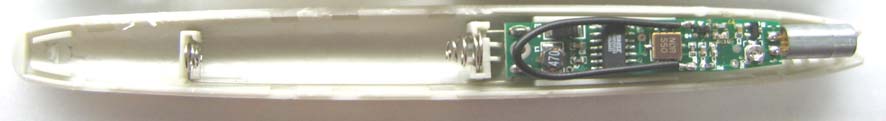

Report No: ER/2005/20012 ID: S751433LR2 Issue Date: Apr. 04, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA APPENDIX 3 INTERNAL PHOTOGRPHS OF EUT Report No: ER/2005/20012 ID: S751433LR2 Issue Date: Apr. 04, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Internal of EUT – Open Internal of EUT – 1 Report No: ER/2005/20012 ID: S751433LR2 Issue Date: Apr. 04, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Internal of EUT – 2

Operational Description

RF Operation Description 1. Make use of the SW1 and SW2 to open/short circuit for control code. 2. Use the U2 to create the code. 3. The code mixed the carrier wave by U3. 4. And amplified this mixed signal by U3. 5. Then, oscillated the mixed signal of TONE (433.92MHz) by Q4. 6. Make use of the L2 to send the RF signal to receiver.

Schematics

1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 15-Mar-2005 Sheet of File: C:\Documents and Se ttings\pcchang\ \371815503-1.ddb 桌面 Drawn By: Q4HFA3127 L2INDUCTOR R647R VCC C62.2p C747p R447K R5220R C88.2p RFO VCC R1510R C20.1u +C14.7u R21K 123 CON3LD+PD LX 3 Vout 2 VSS 1 U1XC6371A301PR L147uH + C347uF/16V D2SM17 VCC 1.5V Q22N2907A Q12N2222 P2.3 14 P2.4 13 P2.5 12 VSS 11 P0.0/INT0 10 P1.0 9 P5.4/PWM0/BZ0 8 RST/P1.1 7 XOUT/P1.2 6 XIN/P1.3 5 VDD 4 P2.0 3 P2.1 2 P2.2 1 U2SN8P2501 PgDn PgUp VCC VCC R810K R910K VR1100K R7220 LEDLED0 GND 1 Input 2 GND 3 GND 4 GND 5 Output 6 GND 7 GND 8 U3KS361 VCC PgUpPgDnRFO C90.1uF S1SW-SPST S2SW-SPST S3SW-SPST RC108.2p RC10 C6 C7 C8315 8.2p 2.2p 47p 8.2p433.92 5.1p 2p 100p 2p SMD,LR2(TX),433.92MHZ 371815503 01

Test Report

Report No: ER/2005/20012 ID: S751433LR2 Issue Date: Apr. 04, 2005 Page: 1 of 26 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Product Name: Laser Presenter Brand Name: INFINITER Model Name: LR2 FCC ID: S751433LR2 Report No.: ER/2005/20012 Issue Date: Apr. 04, 2005 FCC Rule Part: §15.231 Prepared for Quarton Inc. 5F, 175, Sec. 2, Ta-Tung Rd., Hsi-Chih, Taipei Hsien, Taiwan, R.O.C. Prepared by SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei County, Taiwan. Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. Report No: ER/2005/20012 ID: S751433LR2 Issue Date: Apr. 04, 2005 Page: 2 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA VERIFICATION OF COMPLIANCE Applicant: Quarton Inc. 5F, 175, Sec. 2, Ta-Tung Rd., Hsi-Chih, Taipei Hsien, Taiwan, R.O.C. Product Description: Laser Presenter FCC ID Number: S751433LR2 Brand Name: INFINITER Model No.: LR2 Model Difference: N/A File Number: ER/2005/20012 Date of test: Feb. 23, 2005 ~ Mar. 31, 2005 Date of EUT received: Feb. 21, 2005 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.231. The test results of this report relate only to the tested sample identified in this report. Test By: Date Apr. 04, 2005 Alex Hsieh Prepared By: Date Apr. 04, 2005 Eva Kao Approved By: Date Apr. 04, 2005 Vincent Su Report No: ER/2005/20012 ID: S751433LR2 Issue Date: Apr. 04, 2005 Page: 3 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Version Version No. Date 00 Apr. 04, 2005 Report No: ER/2005/20012 ID: S751433LR2 Issue Date: Apr. 04, 2005 Page: 4 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Table of Contents 1. GENERAL INFORMATION ........................................................................................... 6 1.1 PRODUCT DESCRIPTION................................................................................................................... 6 1.2 RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................. 6 1.3 TEST METHODOLOGY....................................................................................................................... 6 1.4 TEST FACILITY................................................................................................................................. 6 2. SYSTEM TEST CONFIGURATION .............................................................................. 7 2.1 EUT CONFIGURATION...................................................................................................................... 7 2.2 EUT EXERCISE................................................................................................................................. 7 2.3 TEST PROCEDURE............................................................................................................................. 7 2.4 LIMITATION...................................................................................................................................... 8 2.5 CONFIGURATION OF TESTED SYSTEM............................................................................................ 10 3. SUMMARY OF TEST RESULTS ................................................................................. 11 4. DESCRIPTION OF TEST MODES .............................................................................. 11 5. CONDUCTED EMISSIONS TEST (NOT APPLY IN THE REPORT) ................. 12 5.1 MEASUREMENT PROCEDURE: ........................................................................................................ 12 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................ 12 5.3 MEASUREMENT EQUIPMENT USED: ............................................................................................... 12 5.4 MEASUREMENT RESULT: ............................................................................................................... 12 6. RADIATED EMISSION TEST ................................................…
