S7A-SP03BLUETOOTH STREAM AUDIO ADAPTER

Bluetooth ® Stream Audio adapter for Polaris Victory, SENA PD10 Version 1.0 SENA www.senabluetooth.com Users Guide | PD10 2 TABLE OF CONTENTS INTRODUCTION ................................................................................................................................................................................. 3 USING THE PD10 ............................................................................................................................................................................... 4 Installation ......................................................................................................................... 4 Power ON & OFF .............................................................................................................. 4 Bluetooth pairing with a headset ....................................................................................... 4 Using with a headset ......................................................................................................... 4 Clearing the paring list (Factory Reset) ............................................................................. 4 LED INDICATOR ................................................................................................................................................................................. 5 | PD10 3 INTRODUCTION Enjoy wireless audio on the road with the PD10 Bluetooth® Dual Stream Audio Adapter for Victory Motorcycle stereo system. The SENA PD10 is a Bluetooth audio adapter for Polaris Victory Motorcycle. Key Specifications: z Bluetooth v2.1 +EDR z Bluetooth Class 1 z Profile Support: Advanced Audio Distribution Profile (A2DP) Audio Video Remote Control Profile (AVRCP) The PD10 features: z Bluetooth Adapter for motorcycle stereo systems z Music streaming to a Bluetooth headset z Auxiliary stereo input for GPS or radar/laser alarm | PD10 4 USING THE PD10 Installation Insert the PD10 into the audio connector of the Victory motorcycle. Power ON & OFF Turn the motorcycle main switch to ACC. ON or Ignition to power on the PD10. To power off, turn the switch to OFF. The audio adapter does not have a power button. Bluetooth pairing with a headset The PD10 must be paired with a Bluetooth headset, SMH10 before use. 1. Turn on the headset SMH10. (Refer to the headset user guide) 2. Make the SMH10 into pairing mode (Refer to the headset User Guide) 3. Start the motorcycle engine to turn on the PD10 audio adapter. 4. The PD10 finds and connects the SMH10 headset nearby. 5. Once PD10 is connected to the SMH10, you can hear the music from the motorcycle stereo system automatically. Please make sure that the motorcycle stereo system is already powered on beforehand. Using with a headset 1. Turn on the SMH10 that is already paired with the PD10. 2. Turn the motorcycle main switch to ACC. ON or Ignition to turn on the PD10 audio adapter. 3. The PD10 automatically connects to the SMH10, and you will hear the music from the motorcycle stereo system. 4. If you don’t hear any sound, press the Jog Dial on the SMH10 for 1 second until you hear a beep. (Refer to the headset user guide) ** Sena does not guarantee that PD10 supports all other Bluetooth headsets except for the SMH10. Clearing the paring list (Factory Reset) Power on the PD10 by switching on the motorcycle, and press the button on the PD10 for 10 seconds. | PD10 5 LED INDICATOR STATUS DESCRIPTION Idle Blinks every second Pairing Rapidly blinking Streaming Solid ON | PD10 6 CERTIFICATION AND SAFETY APPROVALS FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: - This device may not cause harmful interference, and - This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC RF Exposure Statement The antenna(s) used for this device must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. FCC Caution Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. | PD10 7 CE Declaration of Conformity This product is CE marked according to the provisions of the R&TTE Directive (99/5/EC). Hereby, SENA declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For further information please consult http://www.senabluetooth.com . Please note that this product uses radio frequency bands not harmonized within EU. Within the EU this product is intended to be used in Austria, Belgium, Denmark, Finland, France, Germany, Greece, Ireland, Italy, Luxembourg, The Netherlands, Portugal, Spain, Sweden, United Kingdom and within EFTA in Iceland, Norway…

Text truncated - open the document above for the full version.

Sena Technologies, Inc. 210 Yangjae-dong Seocho-gu Seoul 137-130 Korea Tel. +82-2-571-8283 Fax +82-2-573-7710 November 04, 2011 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 In re : Sena Technologies, Inc. FCC Application for FCC ID: S7A-SP03 To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Regards, YoungSam, KIM / Vice President Sena Technologies, Inc.

Sena Technologies, Inc. 210 Yangjae-dong Seocho-gu Seoul 137-130 Korea Tel. +82-2-571-8283 Fax +82-2-573-7710 November 04, 2011 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize LTA Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: S7A-SP03. including signing of all documents relating to these matters. Any and all acts carried out by LTA Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Sena Technologies, Inc. LTA Co.,LTD. (Contact Person) Contact name: You, HyunChae Position: Manager Phone:(82)31-323-6008 E-mail: [email protected] YoungSam, KIM / Vice President Sena Technologies, Inc.

Sena Technologies, Inc. 210 Yangjae-dong Seocho-gu Seoul 137-130 Korea Tel. +82-2-571-8283 Fax +82-2-573-7710 November 04, 2011 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Sena Technologies, Inc. FCC ID : S7A-SP03 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Sena Technologies, Inc.. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Sena Technologies, Inc.. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: Exhibit Type File Name CONFIDENTIAL Schematics CONF APPENDIX S7A-SP03 SCH DIA.pdf Parts list CONF APPENDIX S7A-SP03 PL.pdf Block diagram CONF APPENDIX S7A-SP03 BLK DIA.pdf Operational description CONF APPENDIX S7A-SP03 OpDes.pdf SHORT-TERM CONFIDENTIAL External Photos SHORT-TERM CONF S7A-SP03 EXT Photo.pdf Internal Photos SHORT-TERM CONF S7A-SP03 INT Photo.pdf Test-Setup Photos SHORT-TERM CONF S7A-SP03 Test Photo.pdf User’s Manual SHORT-TERM CONF S7A-SP03 Manual.pdf The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. YoungSam, KIM / Vice President Sena Technologies, Inc.

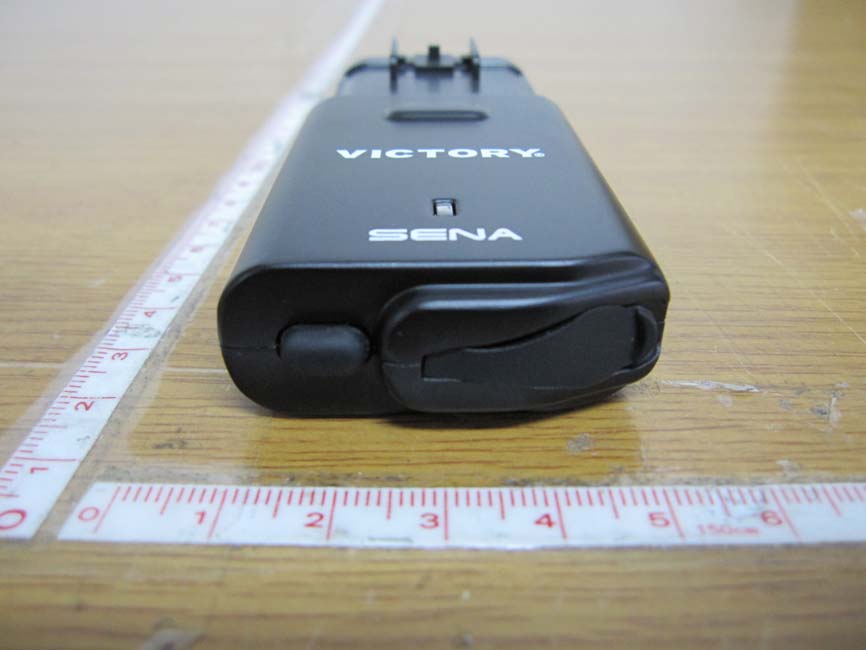

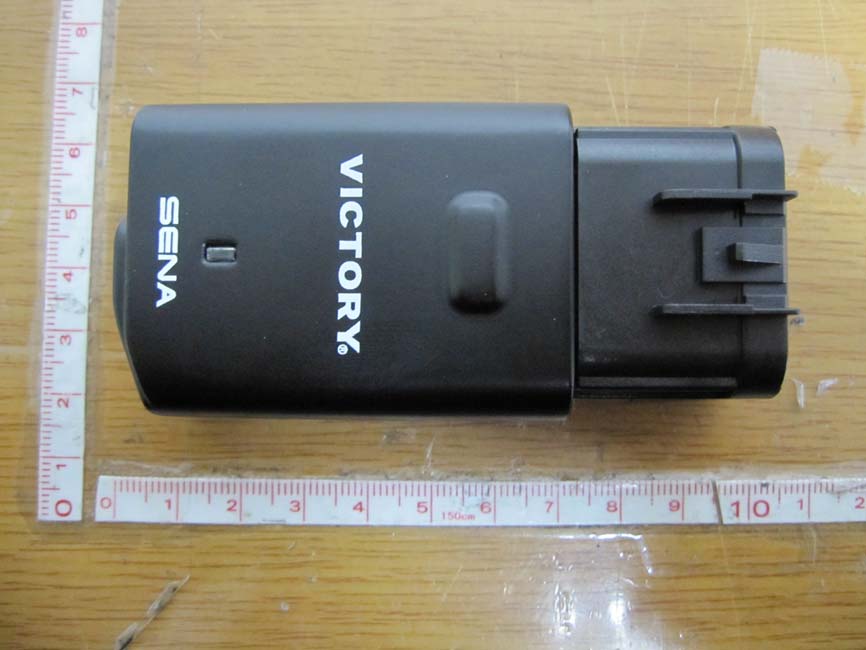

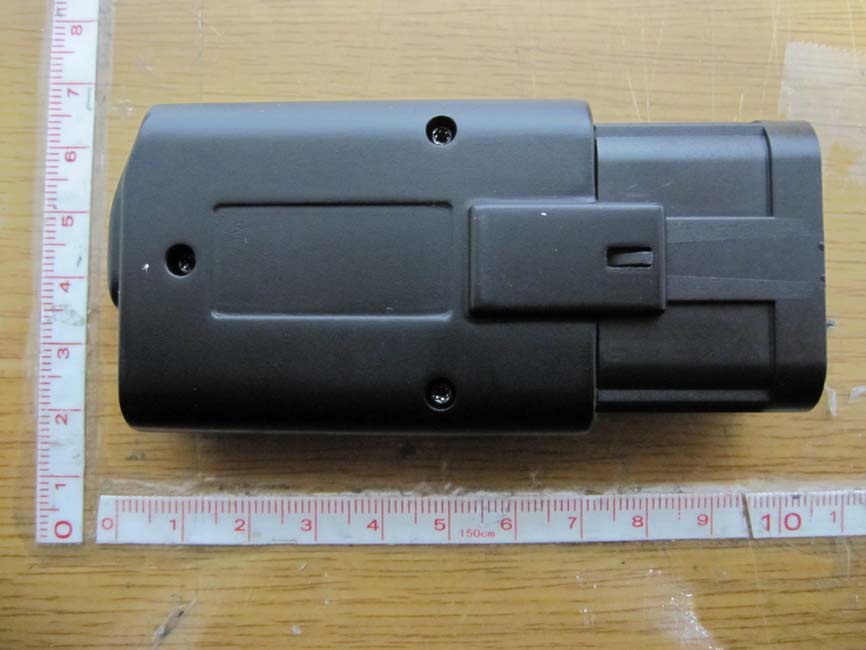

FCC ID: S7A-SP03 IC: 8154A-SP03 Copyright ○ c 2011, LTA Co., Ltd. Page 1 of 3 M/N: PD10 Upper Lower FCC ID: S7A-SP03 IC: 8154A-SP03 Copyright ○ c 2011, LTA Co., Ltd. Page 2 of 3 Front Rear FCC ID: S7A-SP03 IC: 8154A-SP03 Copyright ○ c 2011, LTA Co., Ltd. Page 3 of 3 ANTENNA- M/N: SENA_009

FCC ID: S7A-SP03 IC : 8154A-SP03 Copyright Ⓒ 2011, LTA Co., Ltd. SAMPLE LABEL & LOCATION

FCC ID: S7A-SP03 IC: 8154A-SP03 Copyright ○ c 2011, LTA Co., Ltd. Page 1 of 1 MainBoard - Front MainBoard - Rear

FCC ID: S7A-SP03 ATTACHMENT ** MPE Calculations ** The MPE calculation for this exposure is shown below. The peak radiated output power (EIRP) is calculated as follows: EIRP = P + G EIRP = 11.85dBm + 0.5dBi EIRP = 12.35 dBm Where, P = Power input to the antenna (mW) G = Power gain of the antenna (dBi) Power density at the specific separation: S = PG/(4R 2 π) Where, S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) S = (15.31 *1.12) / (4 * 20 2 * π) S = 0.0034 mW/cm 2 The Maximum permissible exposure (MPE) for the general population is 1 mW/cm 2 . The power density does not exceed the 1 mW/cm 2 limit. Therefore, the exposure condition is compliant with FCC rules. Estimated safe separation: R = √(PG / 4π) Where, P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) R = √(15.31* 1.12 / 4π) R = 1.17Cm The numeric gain(G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain / 10) G = Log -1 (0.5 / 10) G = 1.12

Ref. No.: LR500111111C Copyright ̺ c 2011, LTA Co., Ltd. Page 1 of 42G 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com G Dates of Tests: Oct 25 ~ Nov 3, 2011 Test Report S/N: LR500111111C Test Site : LTA CO., LTD. CERTIFICATION OF COMPLIANCE FCC ID IC APPLICANT Equipment Class : Part 15 Spread Spectrum Transmitter (DSS) Manufacturing Description : Bluetooth Stream Audio Adapter Manufacturer : Sena Technologies, Inc. Model name : PD10 Test Device Serial No.: : Identical prototype Rule Part(s): FCC Part 15.247 Subpart C; ANSI C-63.4-2003 RSS-210 and ISSUE No. :8 Date :2010 Frequency Range : 2402 ~ 2480MHz RF power : Max 11.85dBm - Conducted Data of issue : November 4 , 2011 G G G G G This test report is issued under the authority of: The test was supervised by: G G G G Hyun-Chae You, Manager Ki-Hun Cho, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Ϳ·ͽͲ΁͑ͽͲͳ͑ʹΠΕΖͫ͑ͣͨͣͤ͟͡͡͞͡ S7A-SP03 8154A-SP03 Sena Technologies, Inc. G Ref. No.: LR500111111C Copyright ̺ c 2011, LTA Co., Ltd. Page 2 of 42G G G TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.2.1 CARRIER FREQUENCY SEPARATION ---------------------------------------------------- 3.2.2 NUMBER OF HOPPING FREQUENCIES -------------------------------------------------- 3.2.3 20 dB BANDWIDTH ---------------------------------------------------------------------------- 3.2.4 TIME OF OCCUPANCY (Dwell Time) ------------------------------------------------------- 3.2.5 TRANSMITTER OUTPUT POWER ---------------------------------------------------------- 3.2.6 BAND – EDGE & SPURIOUS ----------------------------------------------------------------- 3.2.7 FIELD STRENGTH OF HARMONICS-Transmitter ------------------------------------------- 3.2.8 FIELD STRENGTH OF HARMONICS-Receiver ---------------------------------------------- 3.2.9 AC CONDUCTED EMISSIONS -------------------------------------------------------------- G APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS -------------------------------------------- 3 4 5 5 6 6 8 10 17 22 26 32 35 40 41 Ref. No.: LR500111111C Copyright ̺ c 2011, LTA Co., Ltd. Page 3 of 42G 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: AgencyCountryAccreditation No. ValidityReference NVLAP U.S.A 200723-0 2012-09-30 ECT accredited Lab. KCC KOREA KR0049 2013-04-24 EMC accredited Lab. FCC U.S.A 610755 2014-04-27 FCC filing FCC U.S.A 649054 2013-04-13 FCC CAB VCCI JAPAN R2133(10m), C2307 2014-06-21 VCCI registration VCCI JAPAN T-2009 2013-12-23 VCCI registration IC CANADA IC5799 2012-05-14 IC filing Ref. No.: LR500111111C Copyright ̺ c 2011, LTA Co., Ltd. Page 4 of 42G 2. Information’s about test item 2-1 Client & Manufacturer Company name : Sena Technologies, Inc. Address : 210 Yangjae-dong Seocho-gu Seoul 137-130 Korea Telephone / Facsimile : +82-2-571-8283/ +82-2-573-7710 2-2 Equipment Under Test (EUT) Trade name : Bluetooth Stream Audio adapter Model name : PD10 Serial number : Identical prototype Date of receipt : October 19, 2011 EUT condition : Pre-production, not damaged Antenna type : Chip antenna (M/N: SENA_009) Max Gain 0.5 dBi Frequency Range : 2402 ~ 2480MHz RF output power : Max. 11.85dBm - Conducted Number of channels : 79 Duty cycle : 80.90 % Channel spacing : 1MHz Channel Access Protocol : Frequency Hopping Spread Spectrum (FHSS) Type of Modulation : Basic Mode(GFSK), EDR Mode(Pi/4 DQPSK, 8DPSK) Power Source : DC 12.0 V Firmware Version : V1.0. 2-4 Tested frequency LOWMID HIGH Frequency (MHz) 2402 2441 2480 2-5 Ancillary Equipment EquipmentModel No. Serial No. Manufacturer - - - - Ref. No.: LR500111111C Copyright ̺ c 2011, LTA Co., Ltd. Page 5 of 42G 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Te s t Condition Status (note 1) 15.247(a) Carrier Frequency Separation > 25 kHz Conducted C 15.247(a) Number of Hopping Frequencies > 15 hops C 15.247(a) 20 dB Bandwidth 99% Bandwidth > 1.5 MHz C 15.247 Dwell Time < 0.4 seconds C 15.247(b) Transmitter Output Power < 250 mWatt C 15.247(d) Conducted Spurious emission > 20 dBc C 15.247(d) Band Edge > 20 dBc C 15.249 / 15.209 Field Strength of Harmonics < 54 dBuV (at 3m) Radiated C 15.109 Field Strength - C 15.207 /15.107 AC Conducted Emissions EN 55022 Line Conducted NA Note3 15.203 Antenna requirement - - C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: The data in this test report are traceable to the national or international standards. Note3: This device is only operated by DC Note 1: Antenna Requirement Æ The Sena Technologies, Inc. PD10 unit complies with the requirement of §15.203. The antenna type is the Chip antenna Note 2: The sample was tested according to the following specification: FCC Parts 15.247; ANSI C-63.4-2003 RSS-210 and ISSU…

Text truncated - open the document above for the full version.

FCC ID: S7A-SP03 IC: 8154A-SP03 Copyright ○ c 2011, LTA Co., Ltd. Page 1 of 1 Radiated Emission
