S7A-SP06BLUETOOTH STEREO MOTORCYCLE HEADSET

| SMH5 1 SMH5-FM SMH5 Bluetooth Headset & Intercom for Scooters and Motorcycles SENA www.senabluetooth.com Users Guide v1.0.0 | SMH5 2 INTRODUCTION Thank you for choosing the SENA SMH5, Bluetooth Stereo Headset and Intercom for motorcycles. With the SMH5, you can call hands-free on your Bluetooth mobile phone, listen to stereo music or voice instructions of GPS navigations by Bluetooth wirelessly, and have intercom conversations in full duplex with a passenger or other motorcycle riders. The SMH5 is compliant with the Bluetooth Specification v3.0 supporting the following profiles: Headset Profile, Hands- Free Profile (HFP), Advanced Audio Distribution Profile (A2DP), and Audio Video Remote Control Profile (AVRCP). Please check with the manufacturers of other devices to determine their compatibility with this headset. Please read this user’s guide carefully before using the headset. Also check www.senabluetooth.com/support for the latest version of the user’s guide and additional information related to SENA Bluetooth products. The SMH5 features: ● Bluetooth hands-free for Bluetooth mobile phones ● Bluetooth stereo headset for Bluetooth audio devices such as MP3 players ● Bluetooth stereo headset for Bluetooth GPS navigations ● Smart Multi-Point Bluetooth: Connect two HFP devices simultaneoulsy ● Multi-Pair Bluetooth Intercom for 4 persons ● Firmware Upgradeable Key Specifications: ● Bluetooth v3.0, Class1 ● Supporting profiles: Headset Profile, Hand-Free Profile (HFP), Advanced Audio Distribution Profile (A2DP), Audio Video Remote Control Profile (AVRCP) | SMH5 3 PACKAGE CONTENTS Headset Main Unit Phone Button ● Making and Answering a mobile phone call ● Entering into Mobile Phone Pairing Mode ● Entering into Bluetooth Audio Device Pairing Mode (MP3, GPS navigation) ● Entering into Voice Activated Phone Answering Setting Mode Jog Dial ● Start and End an Intercom Conversation ● Volume adjustment by rotating ● Play and Pause Bluetooth MP3 player ● Track-forward and Track-back by rotating while pressing the button ● Entering into Intercom Pairing Mode ● Entering into Voice Activated Intercom Setting Mode ● Reject an incoming mobile phone call ● Call Transfer | SMH5 4 USB Power Cable Microphone Sponges Velcro Pads Hex Key (Allen Wrench) | SMH5 5 POWERING ON/OFF AND CHARGING To power on and off the headset, you don’t need to press and hold any button for several seconds. Just short press the Jog Dial and the Phone Button simultaneously, and you will get quick on-and-off convenience. Powering On Press the Jog Dial and the Phone Button at the same time for about 1 second to power on. The blue LED turns on and you will hear ascending beeps. Powering Off Just short press the Jog Dial and the Phone Button simultaneously, you don’t need to press and hold for a few seconds. The red LED turns on for a while until it turns off completely and you will hear descending beeps. Charging The LED turns on red while charging, and turns to blue when the headset is fully charged. It takes about 2.5 hours to be completely charged. Low Battery Warning When the battery is low, the blinking blue LED in stand-by mode turns to red and you will hear mid-tone triple beeps. | SMH5 6 PAIRING THE SMH5 WITH BLUETOOTH DEVICES Before using the SMH5 Bluetooth headset with any of Bluetooth devices for the first time, you need to do the pairing operation. It can be paired with Bluetooth mobile phones, Bluetooth audio devices such as MP3 or GPS, and with other SMH5 Bluetooth headsets. This pairing operation is only required once for each Bluetooth device, and the headset will remain paired with the devices and automatically connects to the paired devices again when they are within range. Mobile Phone Pairing 1. Turn on the headset and press the Phone Button for 5 seconds until the LED flashes red and blue alternately and you hear multiple beeps. 2. Search for Bluetooth devices on your mobile phone. The headset will be listed on your mobile phone as SMH5. (Some mobile phone may not ask for the PIN number.) 3. Enter 0000 for the PIN 4. The headset can be paired as Handsfree or Headset. Handsfree profile is normally recommended for most mobile phones. If it is paired as Headset, the buttons of the SMH5 may not work properly. Bluetooth MP3 Player Pairing 1. The procedure is the same with the procedure of “Mobile Phone Pairing” except the SMH5 must be paired as Stereo Headset. 2. If you use a Bluetooth mobile phone and a Bluetooth audio device at the same time, please make sure to pair as Handsfree or as Headset with the mobile phone and to pair as Stereo Headset with the Bluetooth audio device. Bluetooth GPS Navigation Pairing 1. You can listen to Bluetooth voice instructions from a Bluetooth GPS navigation. 2. The paring procedure is the same with the procedure of “Mobile Phone Pairing”, except the SMH5 could be paired as either Headset or Stereo Headset depending on the Bluetooth GPS navigation. 3. Please refer to the manual of the Bluetooth GPS navigation for details. | SMH5 7 PAIRING WITH SELECTIVE PROFILE: A2DP STEREOOR HANDSFREE If you have a MP3 stereo music phone such as a Smartphone, sometimes you may need to selectively use the SMH5 for A2DP stereo music only or for mobile phone hands-free only. This instruction is for advanced users who want to pair the SMH5 to their Smartphones only with one selective profile: A2DP Stereo for music or HFP for phone call. If it is not the first time to do paring with the mobile phone, you have to clear the previous paring list on both devices; the mobile phone and SMH5. To clear pairing list on SMH5, please do factory reset described on the page 21.To clear pairing list on the mobile phone, please refer to the mobile phone manual. A2DP Stereo Music Only 1. Turn on the headset and press the Phone Button for 5 seconds until the LED flashes red and blue alternately and you hear multiple beeps. 2. Within 2 seconds, tap the Jog Dial again, then the LED turns to red flashing and the beeps turn t…

Text truncated - open the document above for the full version.

Sena Technologies, Inc. 210 Yangjae-dong Seocho-gu Seoul 137-130 Korea Tel. +82-2-571-8283 Fax +82-2-573-7710 October 23, 2012 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize LTA Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: S7A-SP06. including signing of all documents relating to these matters. Any and all acts carried out by LTA Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Sena Technologies, Inc. LTA Co.,LTD. (Contact Person) Contact name: KyuHyun, Lee Position: Manager Phone:(82)31-323-6008 E-mail: [email protected] SeungHyun, Kim / Associate Research Engineer Sena Technologies, Inc.

Sena Technologies, Inc. 210 Yangjae-dong Seocho-gu Seoul 137-130 Korea Tel. +82-2-571-8283 Fax +82-2-573-7710 October 23, 2012 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 In re : Sena Technologies, Inc. FCC Application for FCC ID: S7A-SP06 To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Regards, SeungHyun, Kim / Associate Research Engineer Sena Technologies, Inc.

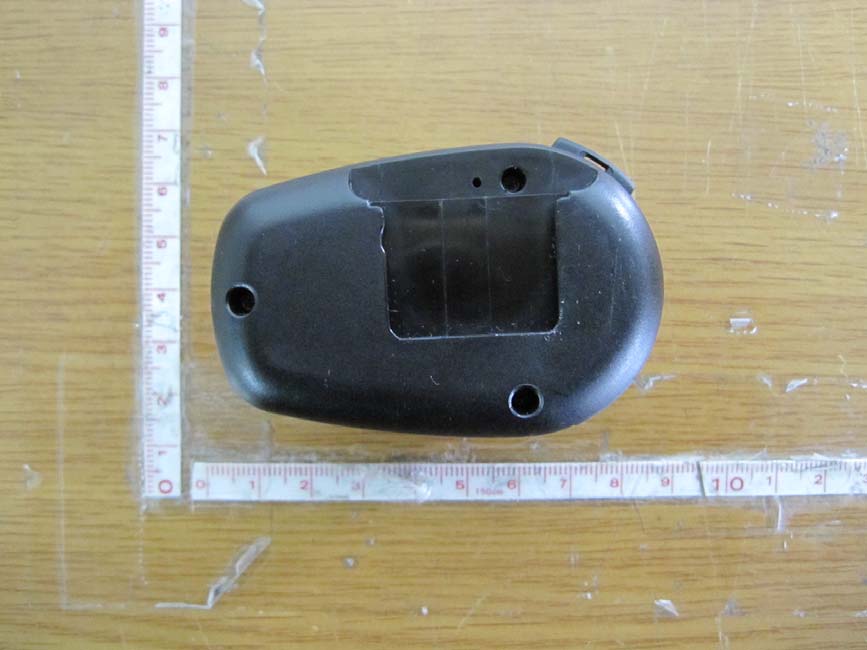

FCC ID: S7A-SP06 IC: 8154A-SP06 Copyright ○ c 2012, LTA Co., Ltd. Page 1 of 3 Upper Lower FCC ID: S7A-SP06 IC: 8154A-SP06 Copyright ○ c 2012, LTA Co., Ltd. Page 2 of 3 Front Rear FCC ID: S7A-SP06 IC: 8154A-SP06 Copyright ○ c 2012, LTA Co., Ltd. Page 3 of 3 ANTENNA- M/N: SENA_D02 Components

FCC ID: S7A-SP06 IC : 8154A-SP06 Copyright Ⓒ 2012, LTA Co., Ltd. SAMPLE LABEL & LOCATION

FCC ID: S7A-SP06 IC: 8154A-SP06 Copyright ○ c 2012, LTA Co., Ltd. Page 1 of 3 MainBoard – Front MainBoard – Rear FCC ID: S7A-SP06 IC: 8154A-SP06 Copyright ○ c 2012, LTA Co., Ltd. Page 2 of 3 BT Module – Front BT Module – Rear FCC ID: S7A-SP06 IC: 8154A-SP06 Copyright ○ c 2012, LTA Co., Ltd. Page 3 of 3 ANTENNA- M/N: SENA_D02

FCC ID: S7A-SP06 ATTACHMENT ** MPE Calculations ** The MPE calculation for this exposure is shown below. The peak radiated output power (EIRP) is calculated as follows: EIRP = P + G EIRP = 12.86 dBm + 0.2 dBi EIRP = 13.06 dBm Where, P = Power input to the antenna (mW) G = Powe rgain of the antenna (dBi) Power density at the specific separation: S = PG/(4R 2 π) Where, S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) S = (19.32 *1.05) / (4 * 20 2 * π) S = 0.004 mW/cm 2 The Maximum permissible exposure (MPE) for the general population is 1 mW/cm 2 . The power density does not exceed the 1 mW/cm 2 limit. Therefore, the exposure condition is compliant with FCC rules. Estimated safe separation: R = √(PG / 4π) Where, P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) R = √(19.32*1.05 / 4π) R = 1.27 Cm The numeric gain(G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain / 10) G = Log -1 (0.2 / 10) G = 1.05

Ref. No.: LR500111210J Copyright ○ c 2012, LTA Co., Ltd. Page 1 of 48 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: October 1~ 23, 2012 Test Report S/N: LR500111210J Test Site : LTA CO., LTD. CERTIFICATION OF COMPLIANCE FCC ID IC APPLICANT Equipment Class : Part 15 Spread Spectrum Transmitter (DSS) Manufacturing Description : Bluetooth Stereo Motorcycle Headset Manufacturer : Sena Technologies, Inc. Model name : SMH5-FM Variant Model name : SMH5EV Test Device Serial No.: : Identical prototype Rule Part(s) : FCC Part 15.247 Subpart C; ANSI C-63.4-2003 RSS-210 and ISSUE No. :8 Date :2010 Frequency Range : 2402 ~ 2480MHz RF power : Max 12.86 dBm – Conducted Data of issue : October 23, 2012 This test report is issued under the authority of: The test was supervised by: Kyu-Hyun Lee, Manager Jung-Moo Her, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. NVLAP LAB Code.: 200723-0 S7A-SP06 8154A-SP06 Sena Technologies, Inc. Ref. No.: LR500111210J Copyright ○ c 2012, LTA Co., Ltd. Page 2 of 48 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 FREQUENCY HOPPING SYSTEM REQUIREMENTS-------------------------------------------- 3.3 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.3.1 CARRIER FREQUENCY SEPARATION ---------------------------------------------------- 3.3.2 NUMBER OF HOPPING FREQUENCIES -------------------------------------------------- 3.3.3 20 dB BANDWIDTH ---------------------------------------------------------------------------- 3.3.4 TIME OF OCCUPANCY (Dwell Time) ------------------------------------------------------- 3.3.5 TRANSMITTER OUTPUT POWER ---------------------------------------------------------- 3.3.6 BAND – EDGE & SPURIOUS ----------------------------------------------------------------- 3.3.7 FIELD STRENGTH OF HARMONICS-Transmitter-------------------------------------------- 3.3.8 FIELD STRENGTH OF HARMONICS-Receiver----------------------------------------------- 3.3.9 AC CONDUCTED EMISSIONS ---------------------------------------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS -------------------------------------------- 3 4 5 5 6 8 8 10 12 19 24 28 34 38 44 47 Ref. No.: LR500111210J Copyright ○ c 2012, LTA Co., Ltd. Page 3 of 48 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2013-09-30 ECT accredited Lab. RRL KOREA KR0049 2013-04-24 EMC accredited Lab. FCC U.S.A 610755 2014-04-27 FCC filing FCC U.S.A 649054 2013-04-13 FCC CAB VCCI JAPAN R2133(10m), C2307 2014-06-21 VCCI registration VCCI JAPAN T-2009 2013-12-23 VCCI registration VCCI JAPAN G-563 2015-05-28 VCCI registration IC CANADA 5799A-1 2015-06-21 IC filing Ref. No.: LR500111210J Copyright ○ c 2012, LTA Co., Ltd. Page 4 of 48 2. Information’s about test item 2-1 Client & Manufacturer Company name : Sena Technologies, Inc. Address : 210 Yangjae-dong Seocho-gu Seoul 137-130 Korea Telephone / Facsimile : +82-2-571-8283/ +82-2-573-7710 2-2 Equipment Under Test (EUT) Trade name : SENA Model name : SMH5-FM Variant Model name SMH5EV Serial number : Identical prototype Date of receipt : September 28, 2012 EUT condition : Pre-production, not damaged Antenna type : Chip antenna (M/N: SENA_D02) Max Gain 0.2 dBi Frequency Range : 2402 ~ 2480MHz RF output power : Max. 12.86 dBm - Conducted Number of channels : 79 Duty cycle : 81.62 % Channel spacing : 1MHz Channel Access Protocol : Frequency Hopping Spread Spectrum (FHSS) Power Source : 3.7 Vdc from Internal Battery (Li-Ion Polymer Battery) Firmware Version : V1.0.0 2-4 Tested frequency Bluetooth LOW MID HIGH Frequency (MHz) 2402 2441 2480 2-5 Ancillary Equipment Equipment Model No. Serial No. Manufacturer Smart phone SHV-E160S R33C20PNN0R SAMSUNG 2-6 Model Description M/N Ty pe Type Description SMH5-FM Basic Model Bluetooth and FM receiver embedded. SMH5EV Variant Model Only Bluetooth embedded. Ref. No.: LR500111210J Copyright ○ c 2012, LTA Co., Ltd. Page 5 of 48 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Test Condition Status (note 1) 15.247(a) Carrier Frequency Separation > 25 kHz Conducted C 15.247(a) Number of Hopping Frequencies > 15 hops C 15.247(a) 20 dB Bandwidth 99% Bandwidth > 1.5 MHz C 15.247(a) Dwell Time < 0.4 seconds C 15.247(b) Transmitter Output Power < 250 mWatt C 15.247(d) Conducted Spurious emission > 20 dBc C 15.247(d) Band Edge > 20 dBc C 15.249 / 15.209 Field Strength of Harmonics < 54 dBuV (at 3m) Radiated C 15.109 Field Strength - C 15.207 /15.107 AC Conducted Emissions EN 55022 Line Conducted C 15.203 Antenna requirement - - C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: The data in this test report are traceable to the national or international st…

Text truncated - open the document above for the full version.

FCC ID: S7A-SP06 IC: 8154A-SP06 Copyright ○ c 2012, LTA Co., Ltd. Page 1 of 4 Radiated Emission (9kHz ~ 30MHz) FCC ID: S7A-SP06 IC: 8154A-SP06 Copyright ○ c 2012, LTA Co., Ltd. Page 2 of 4 Radiated Emission (30MHz ~ 1GHz) FCC ID: S7A-SP06 IC: 8154A-SP06 Copyright ○ c 2012, LTA Co., Ltd. Page 3 of 4 Radiated Emission (above 1GHz) FCC ID: S7A-SP06 IC: 8154A-SP06 Copyright ○ c 2012, LTA Co., Ltd. Page 4 of 4 Conducted Emission
