S7A-SP06-AMotorcycle Bluetooth Communication System

| SMH5 1 SMH5-FM SMH5 Bluetooth Headset & Intercom for Scooters and Motorcycles SENA www.senabluetooth.com Users Guide v1.0.0 | SMH5 2 INTRODUCTION Thank you for choosing the SENA SMH5, Bluetooth Stereo Headset and Intercom for motorcycles. With the SMH5, you can call hands-free on your Bluetooth mobile phone, listen to stereo music or voice instructions of GPS navigations by Bluetooth wirelessly, and have intercom conversations in full duplex with a passenger or other motorcycle riders. The SMH5 is compliant with the Bluetooth Specification v3.0 supporting the following profiles: Headset Profile, Hands- Free Profile (HFP), Advanced Audio Distribution Profile (A2DP), and Audio Video Remote Control Profile (AVRCP). Please check with the manufacturers of other devices to determine their compatibility with this headset. Please read this user’s guide carefully before using the headset. Also check www.senabluetooth.com/support for the latest version of the user’s guide and additional information related to SENA Bluetooth products. The SMH5 features: ● Bluetooth hands-free for Bluetooth mobile phones ● Bluetooth stereo headset for Bluetooth audio devices such as MP3 players ● Bluetooth stereo headset for Bluetooth GPS navigations ● Smart Multi-Point Bluetooth: Connect two HFP devices simultaneoulsy ● Multi-Pair Bluetooth Intercom for 4 persons ● Firmware Upgradeable ● Power Spec: DC 3.7V Key Specifications: ● Bluetooth v3.0, Class1 (2402 ~ 2480MHz) ● Supporting profiles: Headset Profile, Hand-Free Profile (HFP), Advanced Audio Distribution Profile (A2DP), Audio Video Remote Control Profile (AVRCP) Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications, However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Caution : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment Industry Canada(IC) Statement This device complies with RSS-210 of the Industry Canada Rules. | SMH5 3 Operation is subject to the following two conditions: 1) this device may not cause harmful interference and 2) this device must accept any interference. Including interference that may cause undesired operation of device. This class B digital apparatus complies with Canadian ICES-003      Cet appareil est conforme à norme CNR-210 des règlements d'Industrie Canada. Son fonctionnement est sujet aux deux conditions suivantes: 1) Cet appareil ne doit pas provoquer d'interférences et 2) Cet appareil doit accepter toute les interférences. y compris celles pouvant entraîner son dys-fonctionnement. Cet appareil numérique de classe B est conforme à la norme NMB-003 du Canada.        This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. NOTE: THE MANUFACTURERE IS NO T RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.              Cet appareil est conforme aux limites d'exposition aux rayonnements d'Industrie Canaca pour unenvironnement non contrôlé. II doit être installé de façon à garder une distance minimale de 20 centimètres entre la source de rayonnements et votre corps. REMARQUE: LE FABRICANT N'EST PAS RESPONSIBLE DES INTERFÉRENCES RADIOÉLECTRIQUES CAUSÉES PAR DES MODIFICATIONS NON AUTORISÉES APPORTÉES APPORTÉES À CET APPAREIL. DE TELLES MODIFICATIONS POURRAIT ANNULER L'AUTORISATION ACCORDÉE À L'UTILISATEUR DE FAIRE FONCTIONNER L'APPAREIL. | SMH5 4 PACKAGE CONTENTS Headset Main Unit Phone Button ● Making and Answering a mobile phone call ● Entering into Mobile Phone Pairing Mode ● Entering into Bluetooth Audio Device Pairing Mode (MP3, GPS navigation) ● Entering into Voice Activated Phone Answering Setting Mode Jog Dial ● Start and End an Intercom Conversation ● Volume adjustment by rotating ● Play and Pause Bluetooth MP3 player ● Track-forward and Track-back by rotating while pressing the button ● Entering into Intercom Pairing Mode ● Entering into Voice Activated Intercom Setting Mode ● Reject an incoming mobile phone call ● Call Transfer | SMH5 5 Microphone Sponges Velcro Pads Hex Key (Allen Wrench) | SMH5 6 POWERING ON/OFF AND CHARGING To power on and off the headset, you don’t need to press and hold any button for several seconds. Just short press the Jog Dial and the Phone Button simultaneously, and you will get quick on-and-off convenience. Powering On Press the Jog Dial and the Phone Button at the same time for about 1 second to power on. The blue LED turns on and you will hear ascending beeps. Powering Off Just short press the Jog Dial and the Phone Button simultaneously, you don’t need to press and hold for a few seconds. The red LED turns on for a while until it turns off complet…

Text truncated - open the document above for the full version.

SENA TECHNOLOGIES.Inc 40, Maeheon-ro, Seocho-gu, Seoul, Korea. Sep 8 th , 2015 Applicant: SENA TECHNOLOGIES.Inc FCC ID: S7A-SP06-A IC: 8154A-SP06A The typical placement of the EUT is on a motorcycle helmet. See the photo on next page. The distance between the device and user in the worst case application, is 30mm. Sincerely, Seunghyun Kim Reasearch Engineer Inside Helmet

Sena Technologies,Inc. 210 Yangjae-dong Seocho-gu, Seoul, South Korea, 137-130 Date: Aug.28, 2015 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA Letter of Authorization We, the undersigned, hereby authorize Harvey Sung of DT&C C o., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCC ID: S7A-SP06- A including signing of all documents relating to these matters. Any and all acts carried out by Harvey Sung of DT&C C o., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Sena Technologies,Inc. “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Seunghyun KIM Reasearch Engineer

Sena Technologies,Inc. 210 Yangjae-dong Seocho-gu, Seoul, South Korea, 137-130 Date: Aug. 28, 2015 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA RE: Request of Confidentiality for FCCID: S7A-SP06-A To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission`s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Sena Technologies,Inc. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Sena Technologies,Inc. temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT & SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Schematics 3 Operational Description 4 Part Lists SHORT-TERM 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be public before the date of the Grant for this application. Sincerely, Seunghyun KIM Reasearch Engineer

Sena Technologies,Inc. 210 Yangjae-dong Seocho-gu Seoul 137-130 Korea D ate: Aug. 28, 2015 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA DECLARATION FOR ADDITIONAL FREQUENCY HOPPING REQUIREMENTS To whom it may concern: We hereby declare that the device of (FCC ID: S7A-SP06-A, IC: 8154A-SP06A) meet following FCC requirements of the Section 15.247(a)(1) : 1.The hopping sequence is pseudorandom. 2.All channels are used equally on average. 3.The receiver input bandwidth approximately equal the transmit bandwidth. 4.The receiver hop in sequence with the transmit signal. S incerely, Seunghyun Kim Reasearch Engineer

SENA TECHNOLOGIES.Inc 40, Maeheon-ro, Seocho-gu, Seoul, Korea. Sep 8 th , 2015 Applicant: SENA TECHNOLOGIES.Inc FCC ID: S7A-SP06-A IC: 8154A-SP06A We confirm that there are no changes in the circuital and electronic feature, and in the technical data provided in the submitted document. Sincerely, Seunghyun Kim Reasearch Engineer

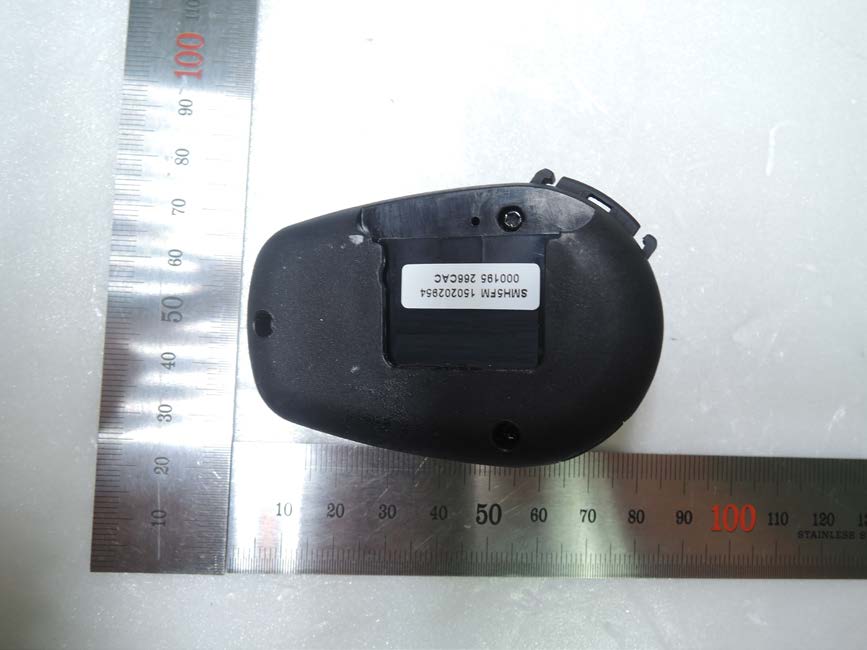

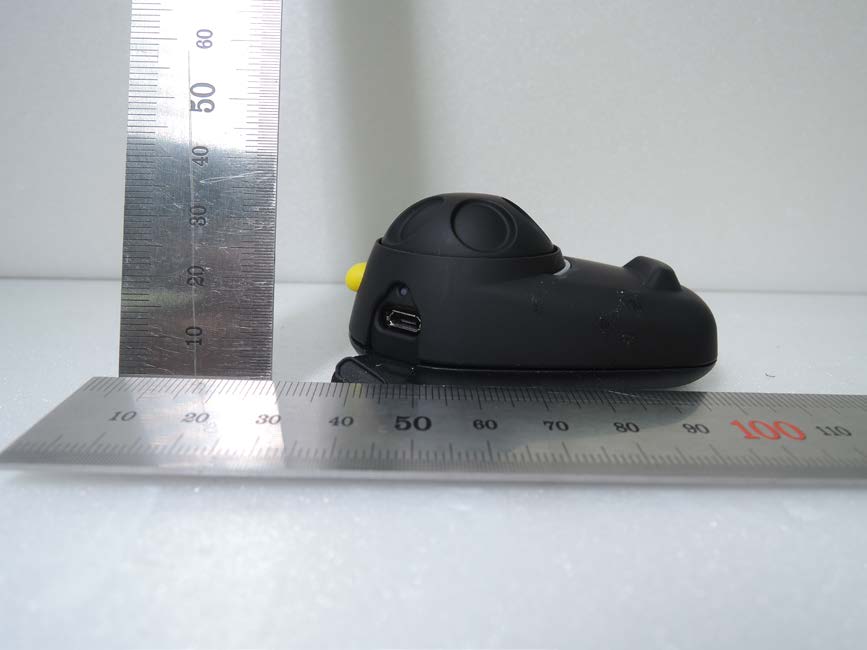

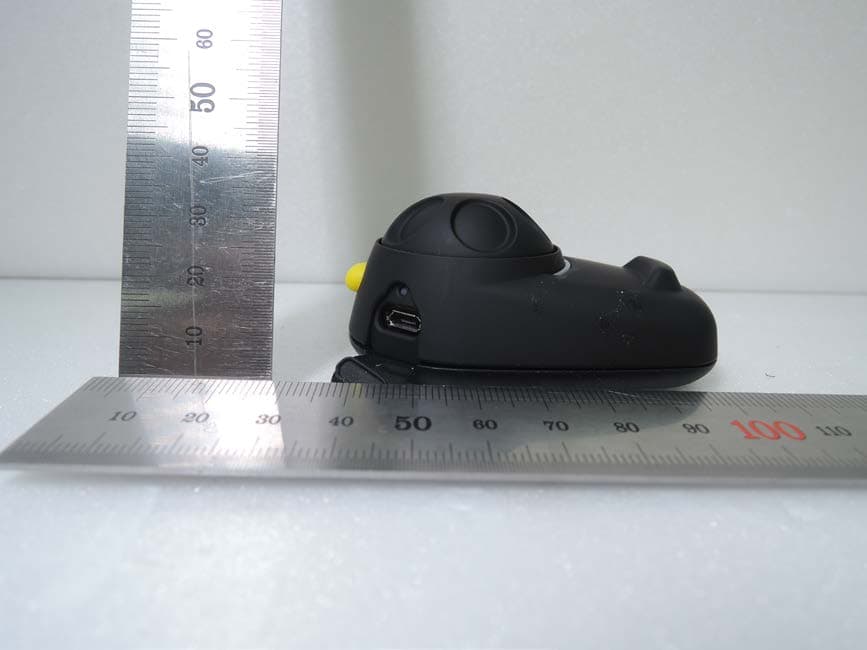

FCCID: S7A-SP06-A IC : 8154A-SP06A Copyright Ⓒ 2015, DT&C Co., Ltd. Page 1 / 3 View 1 FCCID: S7A-SP06-A IC : 8154A-SP06A Copyright Ⓒ 2015, DT&C Co., Ltd. Page 2 / 3 View 2 FCCID: S7A-SP06-A IC : 8154A-SP06A Copyright Ⓒ 2015, DT&C Co., Ltd. Page 3 / 3 View 3

FCC ID: S7A-SP06-A Copyright Ⓒ 2015, DT&C Co., Ltd. LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included on this label. - The device is so small that it is not practicable to place the statement specified under 15.19 statement request, the information required by this paragraph shall be placed in a prominent location in the user's manual.

FCCID: S7A-SP06-A IC : 8154A-SP06A Copyright Ⓒ 2015, DT&C Co., Ltd. View 1 FCCID: S7A-SP06-A IC : 8154A-SP06A Copyright Ⓒ 2015, DT&C Co., Ltd. View 2 FCCID: S7A-SP06-A IC : 8154A-SP06A Copyright Ⓒ 2015, DT&C Co., Ltd. View 3

MHzmm = Typical Power: ± =[ / ]*[√ ] = Thus SAR for this device is not required. [Threshold at 50 mm in step 1) + (test separation distance - 50 mm)·( f(MHz)/150)] mW [Threshold at 50 mm in step 1) + (test separation distance - 50 mm)·10] mW S7A-SP06-A 7.94 2.48 30 - Max. power with turn-up tolerance = 7.94 Used Step 1) SAR test exclusion thresholds for 100MHz to 6GHz at te st separationn distances ≤ 50 mm = [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] FCC ID : Standalone SAR test exclusion considerations September 14, 2015 2480 - Min. test separation distance = mW 8.91 9.00 dBm - Min. transmitting frequency = dB 6.00 dBm 3.00 dBm Measured Output Power: ≤ 3, for 1g SAR Copyright Ⓒ 2015, DT&C Co., Ltd. Step 2-2) SAR test exclusion thresholds for 1500MHz to 6GHz at test separationn distances > 50 mm = N/A 30 Step 2-1) SAR test exclusion thresholds for 100MHz to 1500MHz at test separationn distances > 50 mm = N/A 0.42

DTNC1507-03245 FCC ID: S7A-SP06-A Report No.: DRTFCC1509-0193(1) TRF-RF-237(00)150713 Page 2 / 76 Copyright ○ C 2015, DT&C Co., Ltd. Test Report Version Test Report No. Date Description DRTFCC1509-0193 Sep. 14, 2015 Initial issue DRTFCC1509-0193(1) Sep. 18, 2015 Update Radiated Spurious Emissions (hopping mode) DTNC1507-03245 FCC ID: S7A-SP06-A Report No.: DRTFCC1509-0193(1) TRF-RF-237(00)150713 Page 3 / 76 Copyright ○ C 2015, DT&C Co., Ltd. Table of Contents 1. General Information ............................................................................................................... 4 1.1 Testing Laboratory .......................................................................................................................... 4 1.2 Details of Applicant ......................................................................................................................... 4 1.3 Description of EUT .......................................................................................................................... 4 1.4 Declaration by the applicant / manufacturer ................................................................................. 5 1.5 Information about the FHSS characteristics ................................................................................. 5 1.6 Test conditions ................................................................................................................................ 5 1.7 Test Equipment List ......................................................................................................................... 6 1.8 Summary of Test Results ................................................................................................................ 7 1.9 Conclusion of worst-case and operation mode ............................................................................ 8 2. Maximum Peak Output Power Measurement ...................................................................... 9 2.1 Test Setup ......................................................................................................................................... 9 2.2 Limit .................................................................................................................................................. 9 2.3 Test Procedure ................................................................................................................................. 9 2.4 Test Results .................................................................................................................................... 10 3. 20 dB BW ............................................................................................................................... 16 3.1 Test Setup ....................................................................................................................................... 16 3.2 Limit ................................................................................................................................................ 16 3.3 Test Procedure ............................................................................................................................... 16 3.4 Test Results .................................................................................................................................... 16 4. Carrier Frequency Separation............................................................................................. 22 4.1 Test Setup ....................................................................................................................................... 22 4.2 Limit ................................................................................................................................................ 22 4.3 Procedure ....................................................................................................................................... 22 4.4 Test Results .................................................................................................................................... 22 5. Number of Hopping Frequencies ....................................................................................... 27 5.1 Test Setup ....................................................................................................................................... 27 5.2 Limit ................................................................................................................................................ 27 5.3 Procedure ....................................................................................................................................... 27 5.4 Test Results .................................................................................................................................... 27 6. Time of Occupancy (Dwell Time) ........................................................................................ 33 6.1 Test Setup ....................................................................................................................................... 33 6.2 Limit ................................................................................................................................................ 33 6.3 Test Procedure ............................................................................................................................... 33 6.4 Test Results .................................................................................................................................... 33 7. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission .......... 38 7.1 Test Setup ....................................................................................................................................... 38 7.2 Limit ................................................................................................................................................ 38 7.…

Text truncated - open the document above for the full version.

FCCID: S7A-SP06-A IC : 8154A-SP06A Copyright Ⓒ 2015, DT&C Co., Ltd. Te s t Setup photographs EUT Position: X-axis EUT Position: Y- axis EUT Position: Z-axis FCCID: S7A-SP06-A IC : 8154A-SP06A Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (0.009 ~ 30MHz) FCCID: S7A-SP06-A IC : 8154A-SP06A Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (below 1000MHz) FCCID: S7A-SP06-A IC : 8154A-SP06A Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (Above 1GHz) FCCID: S7A-SP06-A IC : 8154A-SP06A Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup Photo for AC Conducted Emissions
