S7A-SP08MOTORCYCLE BLUETOOTH HEADSET & INTERCOM

| SMH10R 1 SMH10R Low Profile Motorcycle Bluetooth Headset & Intercom SENA www.senabluetooth.com User’s Guide | SMH10R 2 © 1998-2012 Sena Technologies, Inc. All rights reserved. Sena Technologies, Inc reserves the right to make any changes and improvements to its product without providing prior notice. Sena™ is a trademark of Sena Technologies, Inc. or its subsidiaries in the USA and other countries. SMH10™, SMH5™, SPH10™, SPH10S™, SPH10H™, SR10™, SM10™, SMH10R™ are trademarks of Sena Technologies, Inc. or its subsidiaries. These trademarks may not be used without the express permission of Sena. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sena is under license. iPhone, iPod touch are registered trademarks of Apple Inc. Zumo™ is a trademark of Garmin Ltd. or its subsidiaries. TomTom™ is the trademark or registered trademark owned by TomTom International B.V. Other trademarks and tradenames are those of their respective owners. | SMH10R 3 CONTENTS 1. INTRODUCTION 2. PACKAGE CONTENTS 3, INSTALLING THE SMH10R ON YOUR HELMET 4. POWERING ON/OFF AND CHARGING 4.1 Powering On 4.2 Powering Off 4.3 Charging 4.4 Low Battery Warning 4.5 Checking the Battery Level 5. VOLUME ADJUSTMENT 6. SMH10 CONFIGURATION SETTING 6.1 Enabling/Disabling Voice Activated Phone Answering 6.2 Enabling/Disabling Voice Activated Intercom 6.3 Enabling/Disabling Voice Prompts 6.4 Enabling/Disabling PLC (Packet Loss Consealment) 6.5 Delete All Bluetooth Pairing Information 6.6 Exit Voice Configuration Menu 7. PAIRING THE SMH10R WITH BLUETOOTH DEVICES 7.1 Mobile Phone Pairing 7.2 Bluetooth Stereo Device Pairing 7.3 Bluetooth GPS Navigation Pairing 7.4 Pairing with the Sena SR10, Bluetooth Two-way Radio Adapter 8. PAIRING WITH SELECTIVE PROFILE: A2DP STEREO OR HANDSFREE 8.1 A2DP Stereo Music Only 8.2 HFP for Phone Call Only 9. INTERCOM PAIRING 9.1 Pairing with Other SMH10R Headsets for Intercom Conversation 9.2 Pairing with Other SENA Headset Models for Intercom Conversation 10. FUNCTION PRIORITY 11. STEREO MUSIC 11.1 By Bluetooth Wireless Stereo 12. MOBILE PHONE CALL MAKING AND ANSWERING 13. TWO-WAY INTERCOM 13.1 Start and End Two-way Intercom 13.2 Intercom and Mobile Phone Call 13.3 Intercom and GPS 13.4 Intercom and Two-way Radio 14. THREE-WAY CONFERENCE INTERCOM 14.1 Start Three-way Intercom 14.2 End Three-way Intercom 15. FOUR-WAY CONFERENCE INTERCOM 15.1 Start Four-way Intercom 15.2 End Four-way Intercom 16. THREE-WAY CONFERENCE PHONE CALL WITH INTERCOM PARTICIPANT 17. INTERCOM FAILURE 18. INTERCOM RECONNECTION 19. FAULT RESET 20. FIRMWARE UPGRADE 21. CASE STUDY | SMH10R 4 BATTERY INFORMATION MAINTENANCE AND CARE DISPOSAL CERTIFICATION AND SAFETY APPROVALS FCC Compliance Statement FCC RF Exposure Statement FCC Caution CE Declaration of Conformity Industry Canada Statement Bluetooth License WAIVER AND GENERAL RELEASE Two-Year Limited Warranty Limitation of Liability Return for Full Refund WARNING | SMH10R 5 1. INTRODUCTION Thank you for choosing the Sena SMH10R, Bluetooth Stereo Headset and Intercom for sports bike riders. With the SMH10R, you can call handsfree on your Bluetooth mobile phone, listen to stereo music or voice instructions of GPS navigations by Bluetooth wirelessly, and have intercom conversations in full duplex with a passenger or other sports bike riders. The SMH10R is compliant with the Bluetooth 3.0 supporting the following profiles: Headset Profile, Hands-Free Profile (HFP), Advanced Audio Distribution Profile (A2DP), and Audio Video Remote Control Profile (AVRCP). Please check with the manufacturers of other devices to determine their compatibility with this headset. Please read this user’s guide carefully before using the headset. Also check www.senabluetooth.com/support for the latest version of the user’s guide and additional information related to Sena Bluetooth products. The SMH10R features: ● Bluetooth handsfree for Bluetooth mobile phones ● Bluetooth stereo headset for Bluetooth audio devices such as MP3 players ● Bluetooth stereo headset for Bluetooth GPS navigations ● Bluetooth intercom up to 900 meters (980 yards) * ● Four-way conference intercom ● Three-way conference phone call with intercom participant ● Multipoint Bluetooth pairing with GPS navigation or Sena SR10 Two-way Radio Adapter ● Multipoint Bluetooth pairing for 2 mobile phones ● Ultra slim and feather light ● Firmware upgradeable * in open terrain Key Specifications: ● Bluetooth 3.0 ● Supporting profiles: Headset Profile(HSP), Hands-Free Profile (HFP), Advanced Audio Distribution Profile (A2DP), Audio Video Remote Control Profile (AVRCP) | SMH10R 6 2. PACKAGE CONTENTS Headset Main Unit (+) Button / (-) Button  Volume adjustment  Navigate through configuration menu  Track-forward and track-back Center Button  Answer and end a mobile phone call  Reject an incoming mobile phone call  Start and end intercom conversation  Play and pause Bluetooth stereo device  Enter into intercom pairing mode  Enter into voice configuration setting DC Power Charging & Firmware Upgrade Port  Speaker Connector (4 pin female type)  Battery Pack Connector (2 pin male type)  Microphone Connector (2 pin female type) | SMH10R 7  Speakers  Attachable Boom Microphone  Wired Microphone  Battery Pack  Speaker Pad  Attachable Boom Microphone Holder  Velcro Pad for Boom Microphone  Velcro Pad for Speaker  Velcro Pad for Boom Microphone Holder  Velcro Pad for Wired Microphone  Velcro Pads for Battery Pack  Mounting Cradle  Microphone Sponge  USB Power & Data Cable 3. INSTALLING THE SMH10R ON YOUR HELMET To securely install the SMH10R on the helmet, please follow the procedure. 1 Locate a proper surface on the helmet to attach the Mounting Cradle, clean the helmet surface location with a moistened towel, and allow to drying thoroughly. 2 Adhere with double sided tape on the back side of the Mounting Cradle to the surface on the helmet. 3 Clamp the SMH10R main unit to the Mounting Cra…

Text truncated - open the document above for the full version.

Sena Technologies, Inc. 210 Yangjae-dong Seocho-gu Seoul 137-130 Korea Tel. +82-2-571-8283 Fax +82-2-573-7710 November 15, 2012 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Sena Technologies, Inc. FCC ID : S7A-SP08 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Sena Technologies, Inc.. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Sena Technologies, Inc.. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: Exhibit Type File Name CONFIDENTIAL Schematics CONF APPENDIX S7A-SP08 SCH DIA.pdf Parts list CONF APPENDIX S7A-SP08 PL.pdf Block diagram CONF APPENDIX S7A-SP08 BLK DIA.pdf Operational description CONF APPENDIX S7A-SP08 OpDes.pdf SHORT-TERM CONFIDENTIAL External Photos SHORT-TERM CONF S7A-SP08 EXT Photo.pdf Internal Photos SHORT-TERM CONF S7A-SP08 INT Photo.pdf Te s t-Setup Photos SHORT-TERM CONF S7A-SP08 Test Photo.pdf User’s Manual SHORT-TERM CONF S7A-SP08 Manual.pdf The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Seunghyun, KIM / Research Engineer Sena Technologies, Inc.

Sena Technologies, Inc. 210 Yangjae-dong Seocho-gu Seoul 137-130 Korea Tel. +82-2-571-8283 Fax +82-2-573-7710 November 15, 2012 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 In re : Sena Technologies, Inc. FCC Application for FCC ID: S7A-SP08 To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Regards, Seunghyun, KIM / Research Engineer Sena Technologies, Inc.

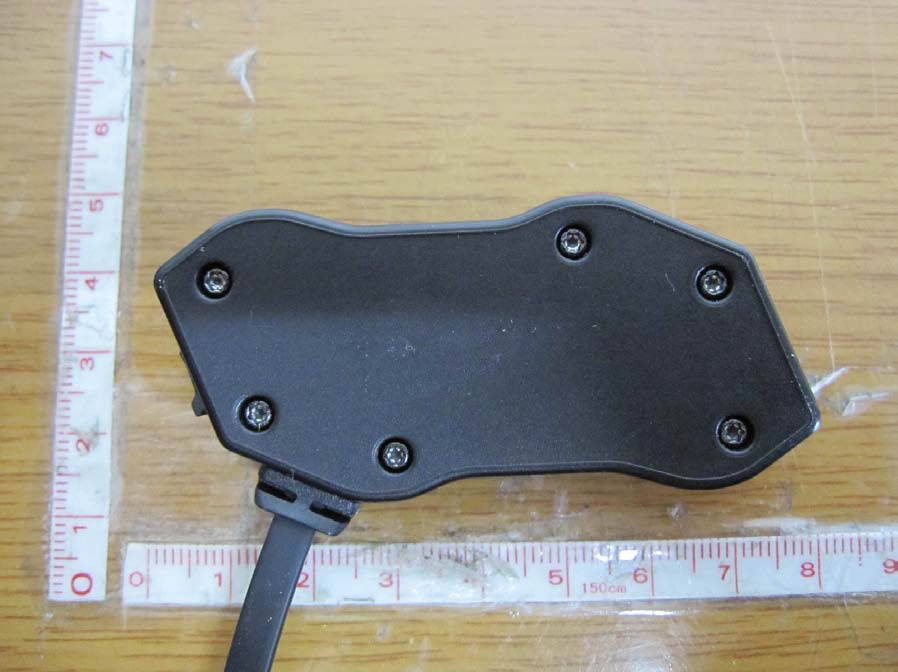

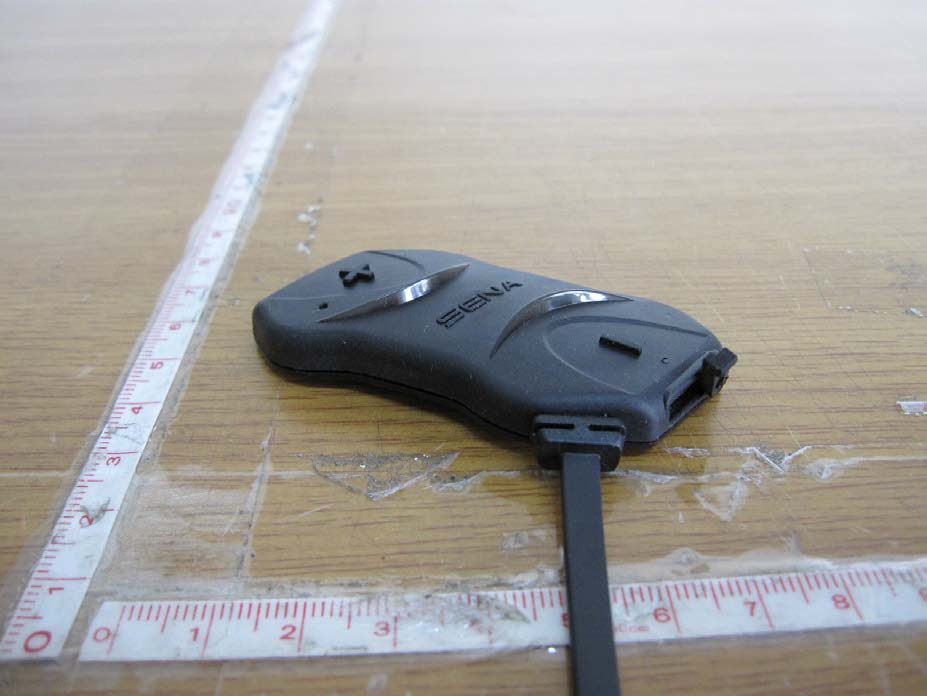

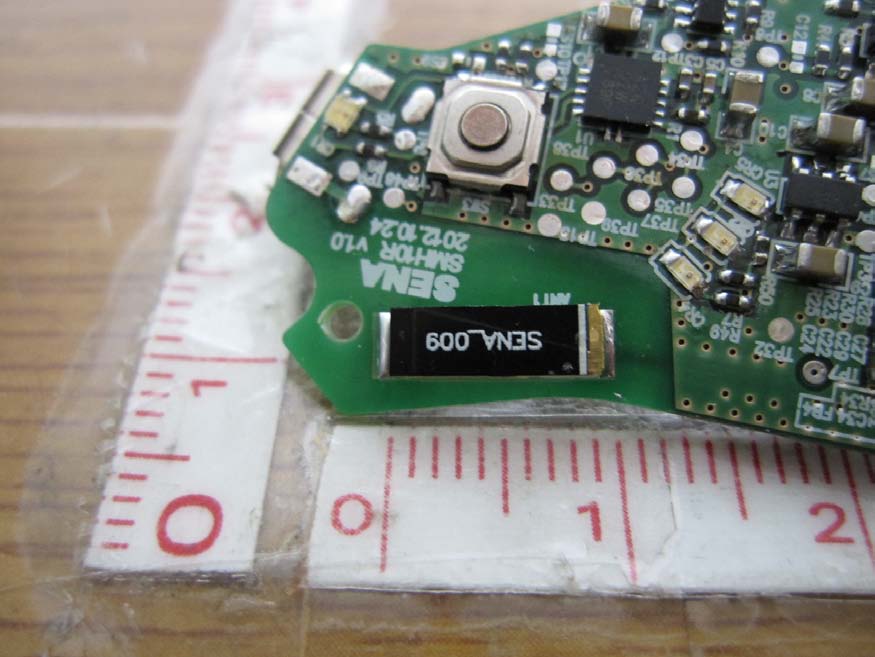

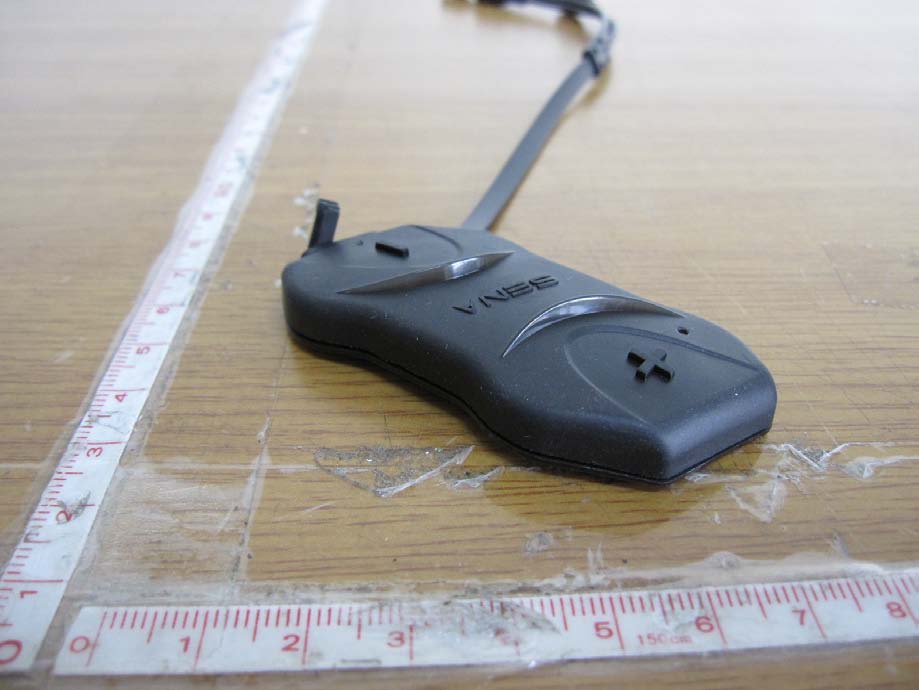

FCC ID: S7A-SP08 IC : 8154A-SP08 Copyright ○ c 2012, LTA Co., Ltd. Page 1 of 3 Upper Lower FCC ID: S7A-SP08 IC : 8154A-SP08 Copyright ○ c 2012, LTA Co., Ltd. Page 2 of 3 Front Rear FCC ID: S7A-SP08 IC : 8154A-SP08 Copyright ○ c 2012, LTA Co., Ltd. Page 3 of 3 ANTENNA- M/N: SENA_009 COMPONENT

FCC ID: S7A-SP08 IC : 8154A-SP08 Copyright Ⓒ 2012, LTA Co., Ltd. SAMPLE LABEL & LOCATION

FCC ID: S7A-SP08 IC: 8154A-SP08 Copyright ○ c 2012, LTA Co., Ltd. Page 1 of 1 MainBoard - Front MainBoard - Rear

FCC ID: S7A-SP08 ATTACHMENT ** MPE Calculations ** The MPE calculation for this exposure is shown below. The peak radiated output power (EIRP) is calculated as follows: EIRP = P + G EIRP = 12.42 dBm + 0.5 dBi EIRP = 12.92 dBm Where, P = Power input to the antenna (mW) G = Power gain of the antenna (dBi) Power density at the specific separation: S = PG/(4R 2 π) Where, S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) S = (17.46 *1.12) / (4 * 20 2 * π) S = 0.0039 mW/cm 2 The Maximum permissible exposure (MPE) for the general population is 1 mW/cm 2 . The power density does not exceed the 1 mW/cm 2 limit. Therefore, the exposure condition is compliant with FCC rules. Estimated safe separation: R = √(PG / 4π) Where, P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) R = √(17.46*1.12 / 4π) R = 1.25 Cm The numeric gain(G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain / 10) G = Log -1 ( 0.5 / 10) G = 1.12

Ref. No.: LR500111211B Copyright ○ c 2012, LTA Co., Ltd. Page 1 of 47 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: November 05~ 15, 2012 Test Report S/N: LR500111211B Test Sit e : LTA C O . , LT D . CERTIFICATION OF COMPLIANCE FCC ID IC APPLICANT Equipment Class : Part 15 Spread Spectrum Transmitter (DSS) Manufacturing Description : Bluetooth Stereo Motorcycle Headset Manufacturer : Sena Technologies, Inc. Model name : SMH10R Test Device Serial No.: : Identical prototype Rule Part(s) : FCC Part 15.247 Subpart C; ANSI C-63.4-2003 RSS-210 and ISSUE No. :8 Date :2010 Frequency Range : 2402 ~ 2480MHz RF power : Max 12.42 dBm – Conducted Data of issue : November 15, 2012 This test report is issued under the authority of: The test was supervised by: Kyu-Hyun Lee, Manager Jung-Moo Her, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. NVLAP LAB Code.: 200723-0 S7A-SP08 8154A-SP08 Sena Technologies, Inc. Ref. No.: LR500111211B Copyright ○ c 2012, LTA Co., Ltd. Page 2 of 47 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 FREQUENCY HOPPING SYSTEM REQUIREMENTS-------------------------------------------- 3.3 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.3.1 CARRIER FREQUENCY SEPARATION ---------------------------------------------------- 3.3.2 NUMBER OF HOPPING FREQUENCIES -------------------------------------------------- 3.3.3 20 dB BANDWIDTH ---------------------------------------------------------------------------- 3.3.4 TIME OF OCCUPANCY (Dwell Time) ------------------------------------------------------- 3.3.5 TRANSMITTER OUTPUT POWER ---------------------------------------------------------- 3.3.6 BAND – EDGE & SPURIOUS ----------------------------------------------------------------- 3.3.7 FIELD STRENGTH OF HARMONICS-Transmitter-------------------------------------------- 3.3.8 FIELD STRENGTH OF HARMONICS-Receiver----------------------------------------------- 3.3.9 AC CONDUCTED EMISSIONS ---------------------------------------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS -------------------------------------------- 3 4 5 5 6 8 8 10 12 19 24 28 34 38 43 46 Ref. No.: LR500111211B Copyright ○ c 2012, LTA Co., Ltd. Page 3 of 47 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E- mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2013-09-30 ECT accredited Lab. RRL KOREA KR0049 2013-04-24 EMC accredited Lab. FCC U.S.A 610755 2014-04-27 FCC filing FCC U.S.A 649054 2013-04-13 FCC CAB VCCI JAPAN R2133(10m), C2307 2014-06-21 VCCI registration VCCI JAPAN T-2009 2013-12-23 VCCI registration VCCI J APA N G-563 2015-05-28 VCCI registration IC CANADA 5799A-1 2015-06-21 IC filing Ref. No.: LR500111211B Copyright ○ c 2012, LTA Co., Ltd. Page 4 of 47 2. Information’s about test item 2-1 Client & Manufacturer Company name : Sena Technologies, Inc. Address : 210 Yangjae-dong Seocho-gu Seoul 137-130 Korea Telephone / Facsimile : +82-2-571-8283/ +82-2-573-7710 2-2 Equipment Under Test (EUT) Trade name : SENA Model name : SMH10R Serial number : Identical prototype Date of receipt : October 29, 2012 EUT condition : Pre-production, not damaged Antenna type : Chip antenna (M/N: SENA_009) Max Gain 0.5 dBi Frequency Range : 2402 ~ 2480MHz RF output power : Max. 12.42 dBm - Conducted Number of channels : 79 Duty cycle : 81.12 % Channel spacing : 1MHz Channel Access Protocol : Frequency Hopping Spread Spectrum (FHSS) Power Source : 3.7 Vdc from Internal Battery (Li-Ion Polymer Battery) Firmware Version : V1.1.0 2-4 Tested frequency Bluetooth LOW MID HIGH Frequency (MHz) 2402 2441 2480 2-5 Ancillary Equipment Equipment Model No. Serial No. Manufacturer Smart phone SHV-E160S R33C20PNN0R SAMSUNG Ref. No.: LR500111211B Copyright ○ c 2012, LTA Co., Ltd. Page 5 of 47 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Test Condition Status (note 1) 15.247(a) Carrier Frequency Separation > 25 kHz Conducted C 15.247(a) Number of Hopping Frequencies > 15 hops C 15.247(a) 20 dB Bandwidth 99% Bandwidth > 1.5 MHz C 15.247(a) Dwell Time < 0.4 seconds C 15.247(b) Transmitter Output Power < 250 mWa t t C 15.247(d) Conducted Spurious emission > 20 dBc C 15.247(d) Band Edge > 20 dBc C 15.249 / 15.209 Field Strength of Harmonics < 54 dBuV (at 3m) Radiated C 15.109 Field Strength - C 15.207 /15.107 AC Conducted Emissions EN 55022 Line Conducted C 15.203 Antenna requirement - - C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: The data in this test report are traceable to the national or international standards. Note 1: Antenna Requirement  The Sena Technologies, FCC ID: S7A-SP08 unit complies with the requirement of §15.203. The antenna type is chip antenna. Note 2: The sample was tested accor…

Text truncated - open the document above for the full version.

FCC ID: S7A-SP08 IC: 8154A-SP08 Copyright ○ c 2012, LTA Co., Ltd. Page 1 of 4 Radiated Emission ( 9kHz ~ 30MHz) FCC ID: S7A-SP08 IC: 8154A-SP08 Copyright ○ c 2012, LTA Co., Ltd. Page 2 of 4 Radiated Emission (30MHz ~ 1GHz) FCC ID: S7A-SP08 IC: 8154A-SP08 Copyright ○ c 2012, LTA Co., Ltd. Page 3 of 4 Radiated Emission (Above 1GHz) FCC ID: S7A-SP08 IC: 8154A-SP08 Copyright ○ c 2012, LTA Co., Ltd. Page 4 of 4 Conducted Emission
