S7A-SP124HelmLink

Helmlink Manual Charging Red LED: Charging Blue LED: Fully charged Power On/Off Press and hold the (+) Button and Center Button for 1 second Tap the (+) Button and Center Button. Volume Adjustment (+) Button - Increase the volume (-) Button - Decrease the volume Battery Check Phone, Music Pairing Initially Pairing the headset The headset will automatically enter the phone pairing mode when you initially turn on the headset or in the following situation: • Rebooting after executing Factory Reset 1. Press and hold the (+) Button and (-) Button for 1 second. 2. Search for Bluetooth devices on your mobile phone. Select the Helmlink in the list of the devices detected on the mobile phone. Music Operation Play or pause music: Press the Center Button for 1 second. Track back: Press the (-) Button for 1 second. Track forward: Press the (+) Button for 1 second. Mobile Phone Call Making and Answering Answering a call: Tap the Center Button Ending a call: Press the Center Button for 2 seconds. Voice dial: Press the Center Button for 3 seconds. Speed dial: Press the (+) Button for 3 seconds. Rejecting a call: Press the (+) Button for 2 seconds. Intercom Intercom Pairing 1. Press and hold the Center Button of two headsets for 5 seconds until red LEDs of both units start to flash rapidly. Intercom Start/End : Tap the Center Button Mesh Intercom Mesh Intercom On/Off : Tap the Mesh Button Radio On/Off Turn on the FM radio: Press the (-) Button for 1 second. Turn off the FM radio: Press the (-) Button for 1 second. Radio Scan Up FM Band Start scanning: Press (+) Button for 1 second. Stop scanning: Press (+) Button for 1 second. Save presets while scanning Save presets: Tap the Center Button Radio Move to Preset Station Move to next preset: Press the Center Button for 1 second (1 → 2 → ... → 10) Radio Seek Stations Seek up stations: Double tap the (+) Button. Seek down stations: Double tap the (-) Button. Setting Configuration Menu: Press the Center Button for 10 seconds. Using the Sena Device Manager Connect the headset to your computer via a USB cable. Launch the Sena Device Manager and click DEVICE SETTING to configure the headset settings. For details about downloading the Sena Device Manager, please refer to the leaflet included in the package. Troubleshooting Factory Reset If you want to restore the headset to factory default settings, use the Factory Reset in the configuration menu. The headset automatically restores the default settings and turns off. Certification and Safety Approvals FCC Compliance Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antennae -Increase the separation between the equipment and the receiver -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC RF Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. The antenna used for this transmitter must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. When equipped, the distance between antenna and one’s head surface is 30.8mm. FCC Caution Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. Certification et homologation de sécurité Déclaration de conformité FCC Cet appareil est en conformité avec la partie 15 des règles de la FCC. Son fonctionnement est soumis aux deux conditions suivantes : (1) Cet appareil ne doit pas créer d’interférences préjudiciables et (2) Cet appareil doit accepter toutes les interférences reçues, y compris celles qui pourraient entraver son bon fonctionnement. Cet équipement a été testé et jugé conforme aux limites pour un appareil numérique de classe B, conformément à la partie 15 des règles de la FCC. Ces limites sont conçues pour fournir une protection raisonnable contre les interférences nuisibles dans une installation résidentielle. Cet équipement génère et utilise de l’énergie radio fréquence et, s’il n’est pas installé et utilisé conformément. aux instructions, il peut occasionner des interférences nuisibles au niveau des communications radios. Cependant, il n’existe aucune garantie que ces interférences ne se produiront pas dans une installation particulière. Si cet équipement génère des interférences nuisibles à la réception de la radio ou de la télévision (ce qu’il est possible de déterminer en mettant l’équipement hors tension, puis sous tension), l’utilisateur est invité à suivre une ou plusieurs des mesures suivantes pour corriger le problème des interférences en prenant l’une des mesures suivantes : -Modifier l’emplacement ou l’orientation de l’antenne de réception. -É loigne…

Text truncated - open the document above for the full version.

SENA TECHNOLOGIES.Inc September 7 th , 2022 Applicant: SENA TECHNOLOGIES.Inc FCC ID: S7A-SP124 / IC: 8154A-SP124 To. Whom it may concern: We, Sena Technologies,Inc. declare that when equipped, the distance between antenna and one’s head surface is 30.8mm. Seunghyun Kim, Research Engineer

SENA TECHNOLOGIES.Inc 19, Heolleung-ro 569-gil, Gangnam-gu, Seoul, South Korea Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: S7A-SP124 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematics Operational Description Part List [SP124] BLK [SP124] SCH [SP124] OpDes [SP124] Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); Exhibit Type File Name External Photos Internal Photos Test Setup Photos Manual [SP124] EXT Photo [SP124] INT Photo [SP124] Test Setup Photo [SP124] Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. Sincerely, Seunghyun KIM / Research Engineer

SENA TECHNOLOGIES.Inc 19, Heolleung-ro 569-gil, Gangnam-gu, Seoul, South Korea Sep 26, 2022 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Letter of Authorization We, the undersigned, hereby authorize Yong-Min, Won of EMC Labs Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCC ID: S7A-SP124 / IC: 8154A-SP124 including signing of all documents relating to these matters. Any and all acts carried out by Yong-Min, Won of EMC Labs Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from SENA TECHNOLOGIES.Inc “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Seunghyun KIM / Research Engineer

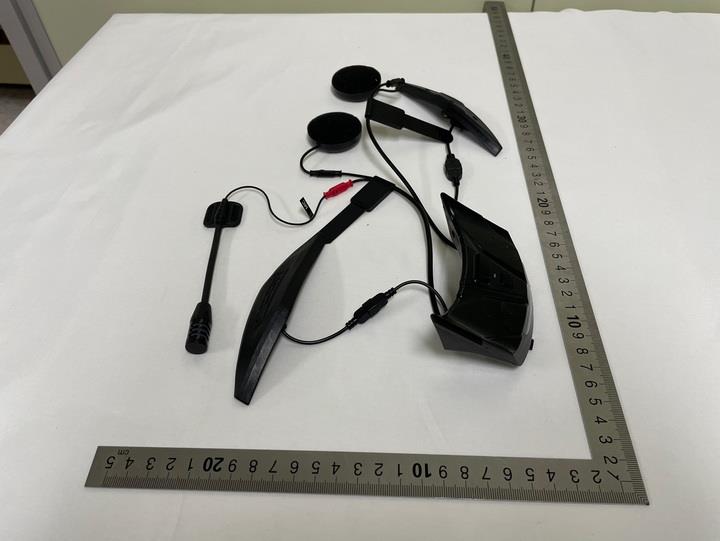

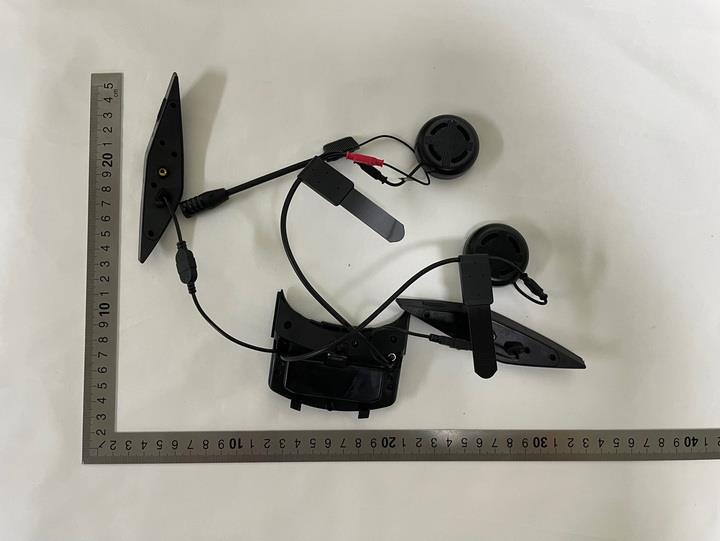

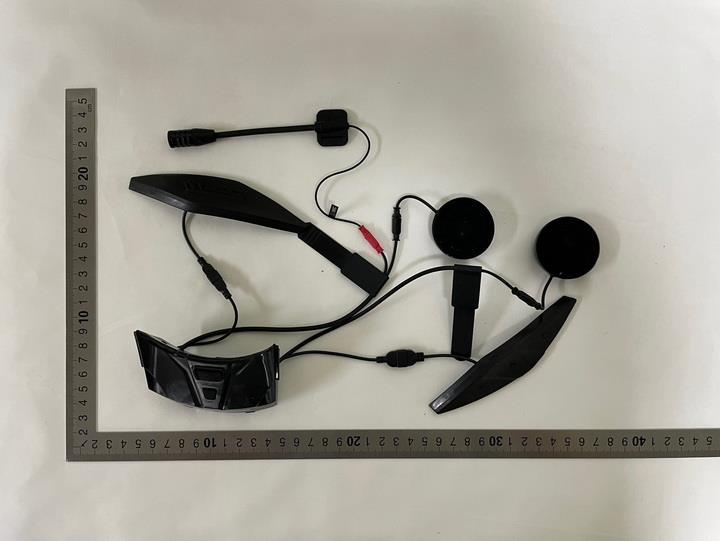

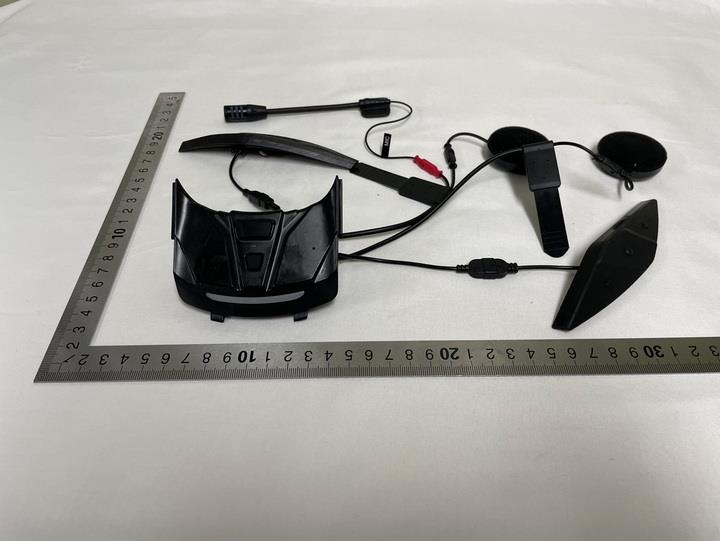

USB Charging Port

SENA_SP124_Label & Location Label Location (Rear)

Internal Battery BT Antenna MESH Antenna

Report No.: DRRFCC2209-0146(1) FCC ID: S7A-SP124 Date of issue: Oct. 05, 2022 Cop yright Ⓒ 2022, DT&C Co., Ltd. SAR Plots Verification Plots SAR Test Plots DT&C Co., Ltd. DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:726 Communication System: UID 0, CW (0); Frequency: 2450 MHz; Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.847 S/m; ε r = 39.396; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: Probe: EX3DV4 - SN3866; ConvF(7.33, 7.33, 7.33); Calibrated: 4/29/2022 Electronics: DAE3 Sn520 Sensor-Surf ace: 2mm (Mechanical Surface Detection) Phantom: SAM-twin right_2022-03-18; Type: QD000P40CD; Serial: TP:1786 Measurement SW: DASY52, Version 52.10 (3); SEMCAD X Version 14.6.13 (7474) Test Date: 2022-09-01; Ambient Temp: 20.8; Tissue Temp: 20.7 2450 MHz System Verification (100 mW) Area Scan (7x9x1): Measurement grid: dx=12mm, dy=12mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = 0.17 dB Peak SAR (extrapolated) = 11.2 W/kg SAR(1 g) = 5.18 W/kg; SAR(10 g) = 2.35 W/kg 0 dB = 8.08 W/kg DT&C Co., Ltd. DUT: SP124; Type: Bluetooth Headset Communication System: UID 0, Bluetooth (0); Frequency: 2480 MHz;Duty Cycle: 1:1.302 Medium parameters used: f = 2480 MHz; σ = 1.877 S/m; ε r = 39.257; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: Probe: EX3DV4 - SN3866; ConvF(7.33, 7.33, 7.33); Calibrated: 4/29/2022 Electronics: DAE3 Sn520 Sensor-Surface: 2mm (Mechanical Surface Detection) Phantom: SAM-twin right_2022-03-18; Type: QD000P40CD; Serial: TP:1786 Measurement SW: DASY52, Version 52.10 (3); SEMCAD X Version 14.6.13 (7474) Test Date: 2022-09-01; Ambient Temp: 20.8; Tissue Temp: 20.7 1 cm space from Body, Front, Bluetooth 1 Mbps Ch. 78, Ant External Area Scan (6x11x1): Measurement grid: dx=12mm, dy=12mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = 0.17 dB Peak SAR (ex trapolated) = 1.77 W/kg SAR(1 g) = 0.805 W/kg; SAR(10 g) = 0.360 W/kg 0 dB = 1.26 W/kg

Report No.: DRRFCC2209-0146(1) FCC ID: S7A-SP124 This test report is prohibited to copy or reissue in whole or in part without the approval of DT&C Co., Ltd TRF-RF-601(03)161101 Pages: 2 / 51 Test Report Version Test Report No. Date Description Tested by Reviewed by DRRFCC2209-0146 Sep. 20, 2022 Initial issue Yejin Seo HakMin Kim DRRFCC2209-0146(1) Oct. 05, 2022 Addition simultaneous transmission information Yejin Seo HakMin Kim Report No.: DRRFCC2209-0146(1) FCC ID: S7A-SP124 This test report is prohibited to copy or reissue in whole or in part without the approval of DT&C Co., Ltd TRF-RF-601(03)161101 Pages: 3 / 51 Table of Contents 1. DESCRIPTION OF DEVICE .......................................................................................................................... 4 1.1 General Information ............................................................................................................................... 4 1.2 Guidance Applied................................................................................................................................... 4 1.3 DUT Antenna Locations ......................................................................................................................... 5 1.4 SAR Test Exclusions .............................................................................................................................. 5 1.4 Power Reduction for SAR ...................................................................................................................... 5 1.5 Device Serial Numbers .......................................................................................................................... 5 2. INTROCUCTION ........................................................................................................................................... 6 3. DESCRIPTION OF TEST EQUIPMENT ........................................................................................................ 7 3.1 SAR MEASUREMENT SETUP .............................................................................................................. 7 3.2 Probe Specification ................................................................................................................................ 8 3.3 Probe Calibration Process ..................................................................................................................... 9 3.3.1 E-Probe Calibration .......................................................................................................................... 9 3.4 Data Extrapolation ............................................................................................................................... 10 3.5 SAM Twin Phantom ............................................................................................................................. 11 3.6 Device Holder for Transmitters ............................................................................................................ 12 3.7 Brain Simulation Mixture Characterization ........................................................................................... 13 3.8 SAR TEST EQUIPMENT ..................................................................................................................... 13 4. TEST SYSTEM SPECIFICATIONS ............................................................................................................. 14 5. SAR MEASUREMENT PROCEDURE ........................................................................................................ 15 5.1 Measurement Procedure ..................................................................................................................... 15 6. RF EXPOSURE LIMITS .............................................................................................................................. 17 7. SAR MEASUREMENT PROCEDURES ...................................................................................................... 18 7.1 Measured and Reported SAR .............................................................................................................. 18 8. Nominal and Maximum Output Power Spec and RF Conducted Powers ............................................. 19 8.1 Bluetooth Nominal and Maximum Output Power Spec and Conducted Powers .................................. 19 8.2 MESH Nominal and Maximum Output Power Spec and Conducted Powers ....................................... 21 9 . SYSTEM VERIFICATION ............................................................................................................................ 22 9.1 Tissue Verification ................................................................................................................................ 22 9.2 Test System Verification ....................................................................................................................... 22 10. SAR TEST RESULTS ............................................................................................................................... 23 10.1 Head SAR Results ............................................................................................................................. 23 10.2 SAR Test Notes ................................................................................................................................. 23 11. FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ...................................................................... 24 11.1 Introduction ........................................................................................................................................ 24 11.2 Simultaneous Transmission Procedures ............................................................................................ 24 11.3 Simultaneous Transmission Capabilities ............................................................................................ 2…
